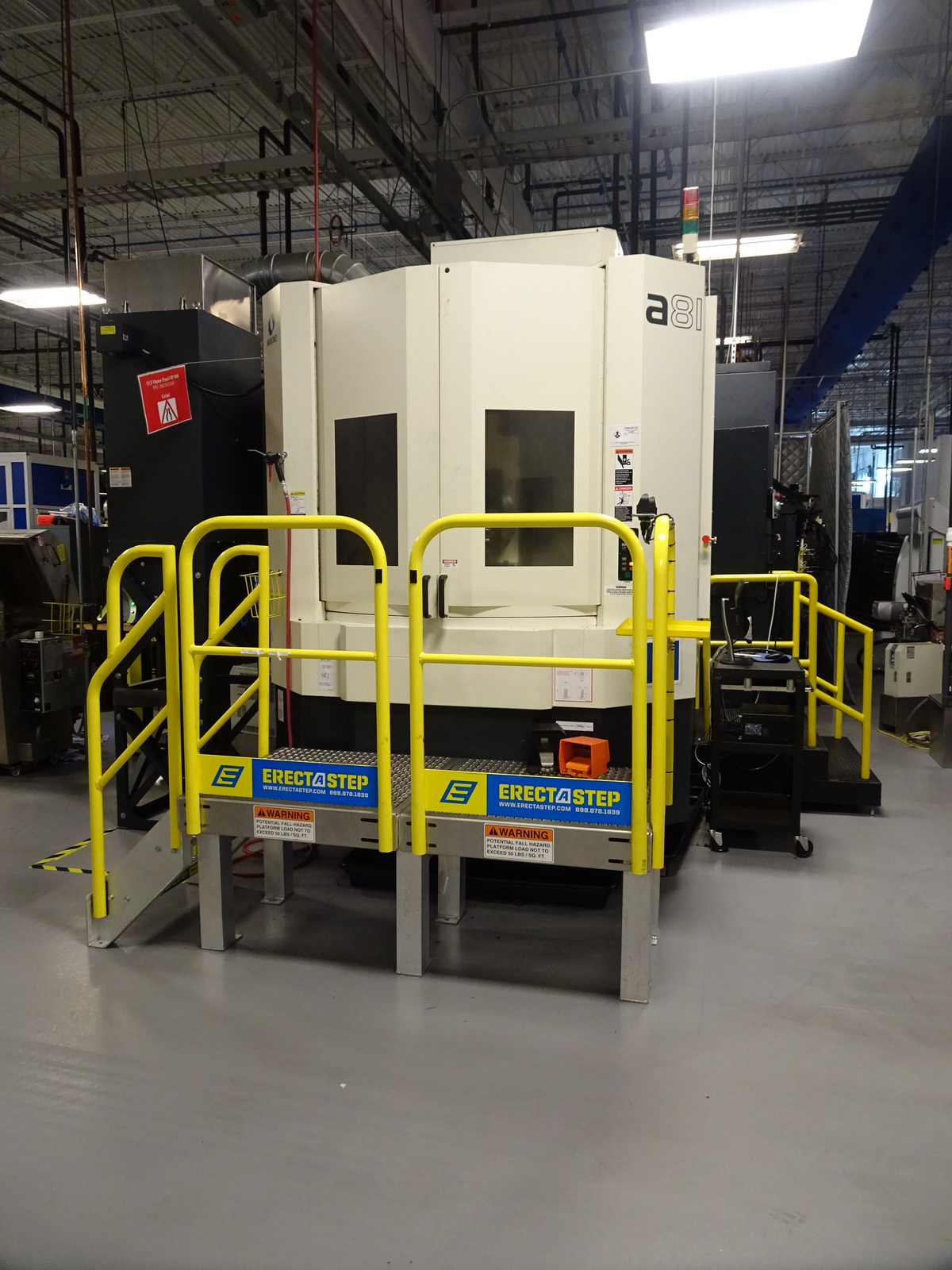

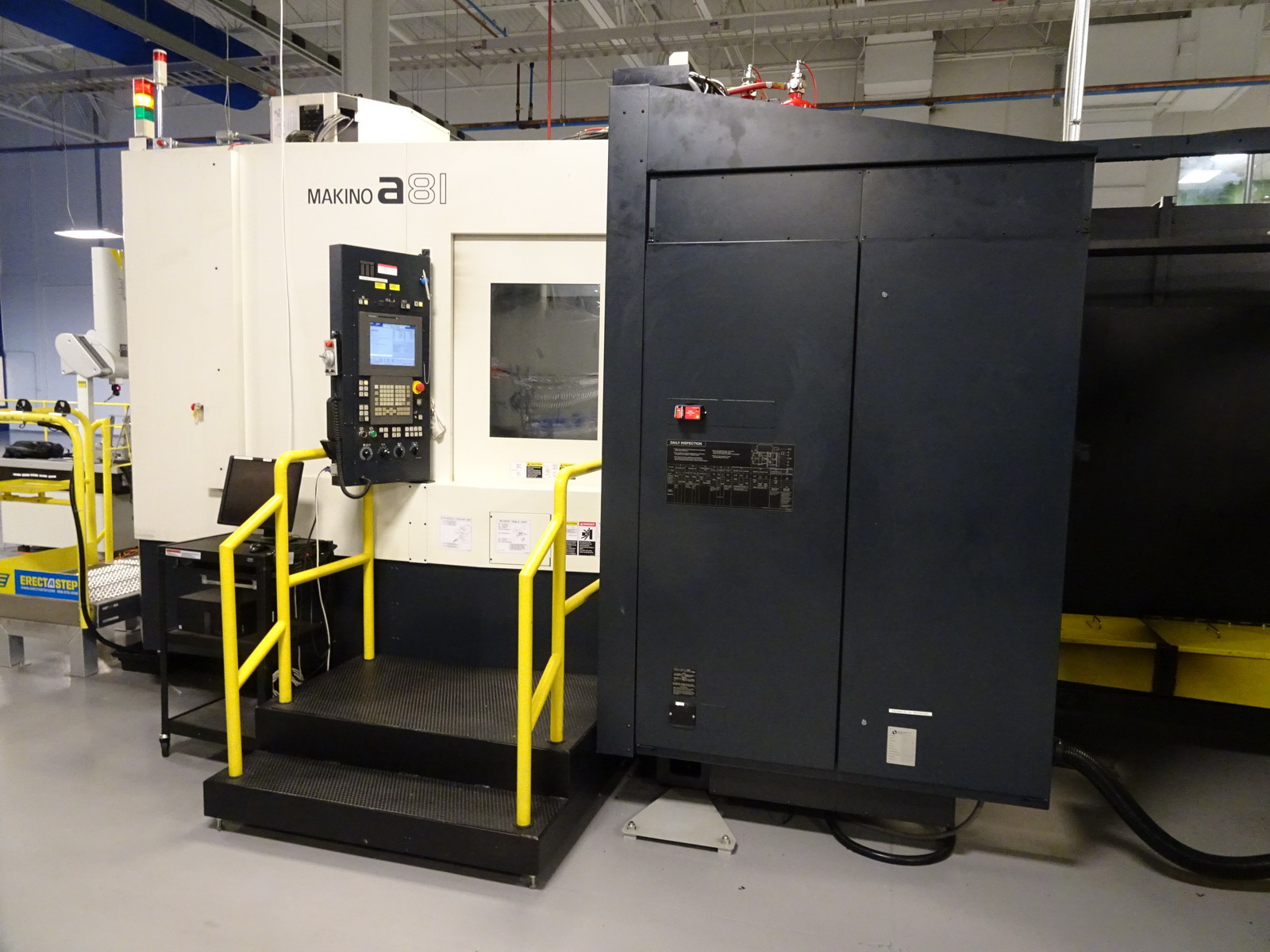

2012 Makino Full 5-Axis CNC Horizontal Machining Center, Model A81,
TSC,
X-Axis Travel: 35.4 in, Y-Axis Travel: 31.5 in, Z- Axis Travel 40.1 in,
Full B Axis Bi Directional 0.001 deg,
Pallet Size: (Qty 2) 24.8 in x 24.8 in,
Max Load 2645 lb.,
Max Spindle Speed 10,000 RPM,
Auto Tool Changer: 300 Station ATC,
HSK-A100 Spindle Interface,
47 HP, High Pressure 300 PSI Through Spindle Coolant, (Qty 2)

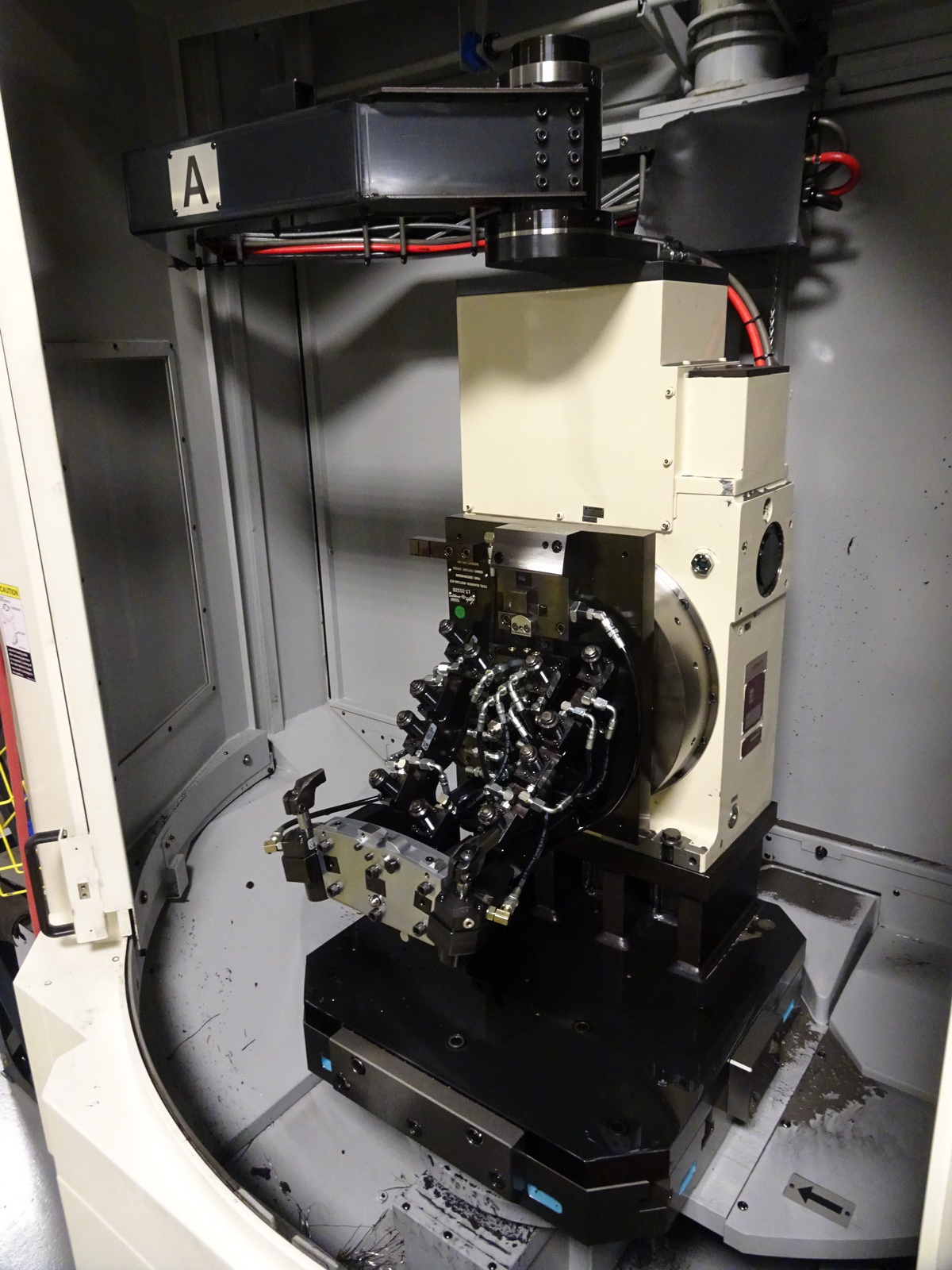

Tsudakoma Koma Precision Rotary Tables Model RBA-400K,
Machine Dimensions: 333 in L X177 in W X 131 in H,
CAT 50,

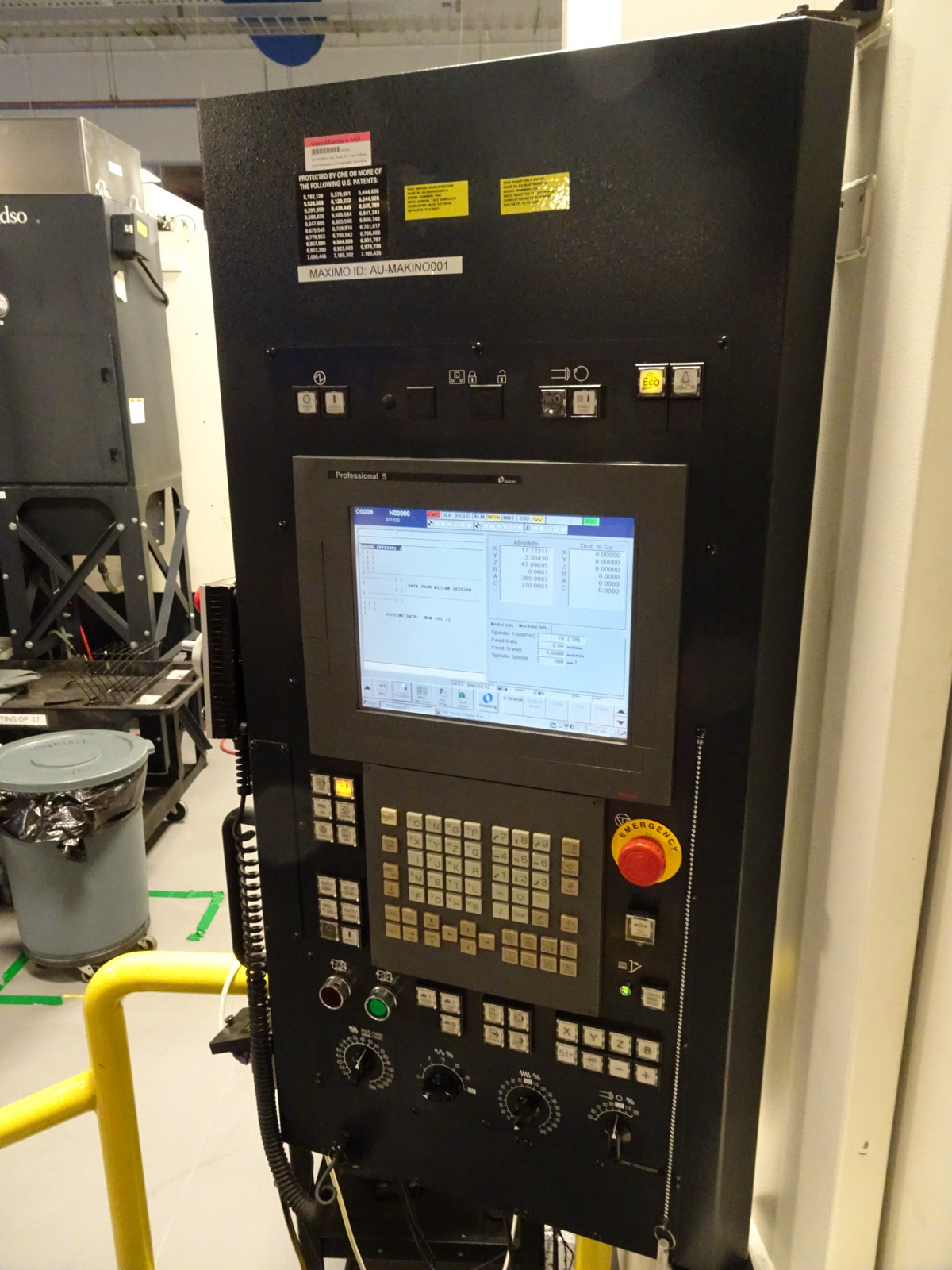

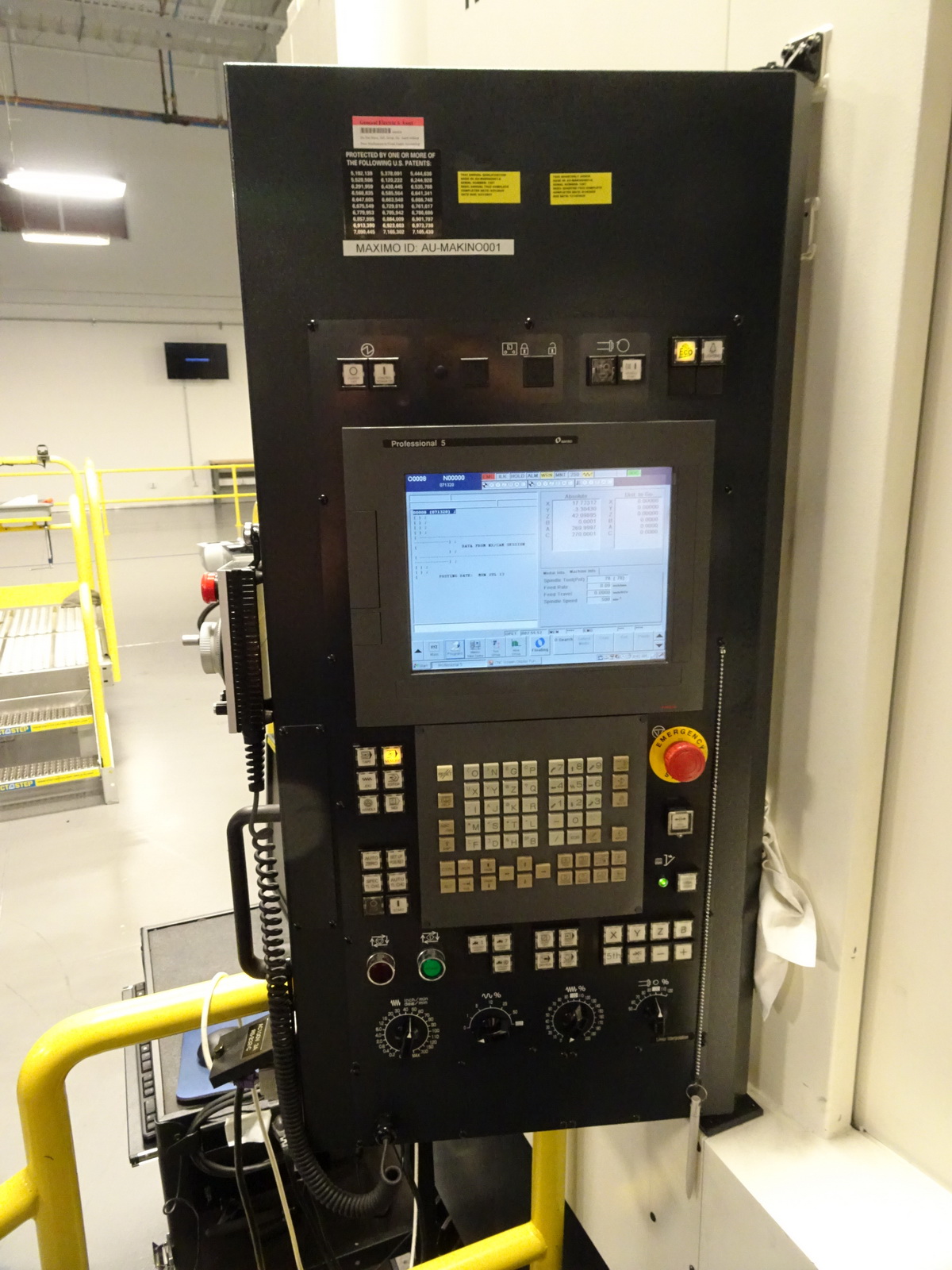

Control: Professional 5 (Fanuc 31i),
Machine Weight 41,000 lbs,
Eight Nozzle Coolant Overhead Shower System,
Daiken Auto Lubrication System,

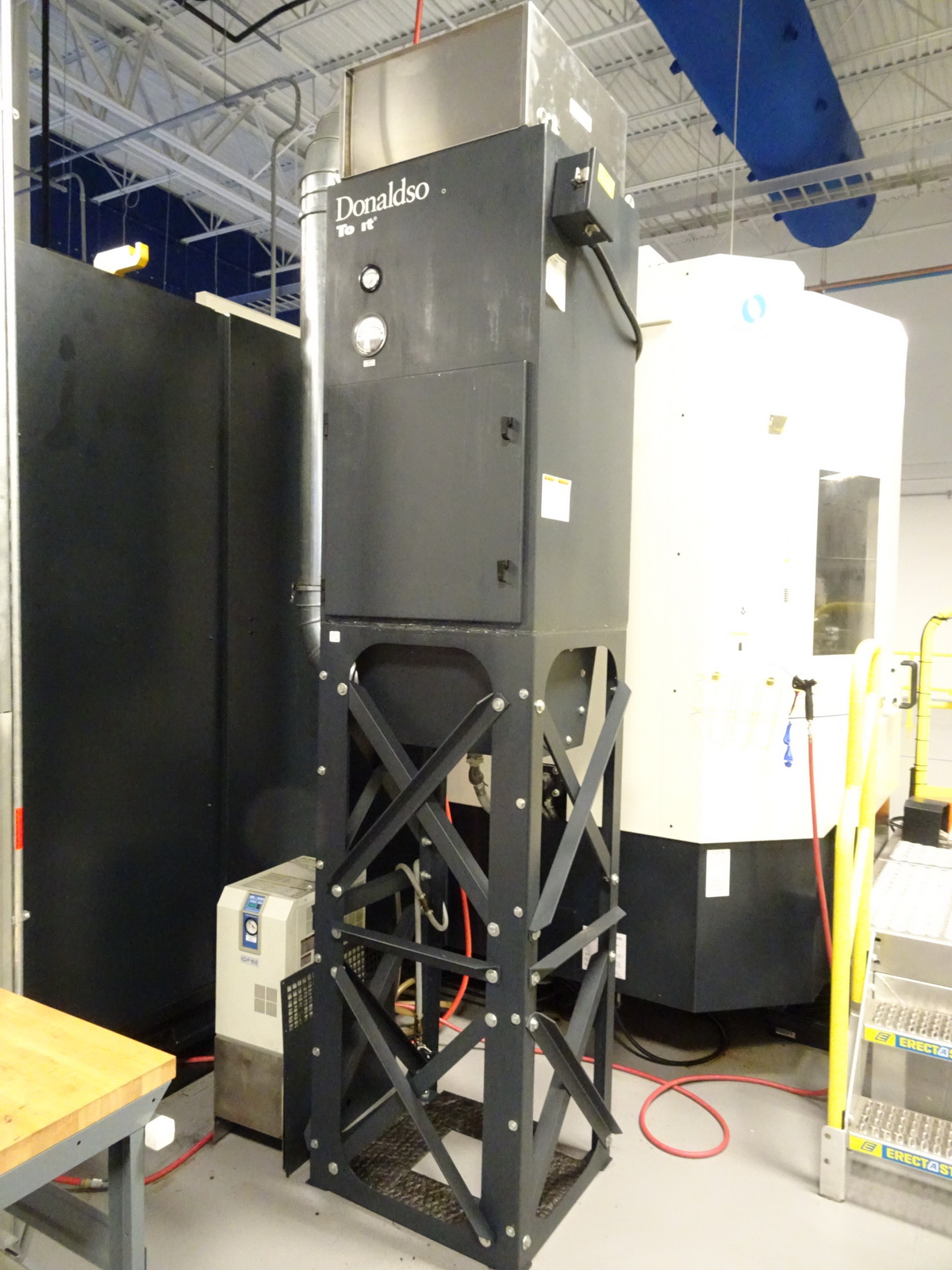

Donaldson Torit Mist Collector Model. Donaldson Torit Mist Collector,
NC4S Altm RMP 600 AMS High Accuracy Probe
60 HZ, 460 V,
Run Hours 31,995,

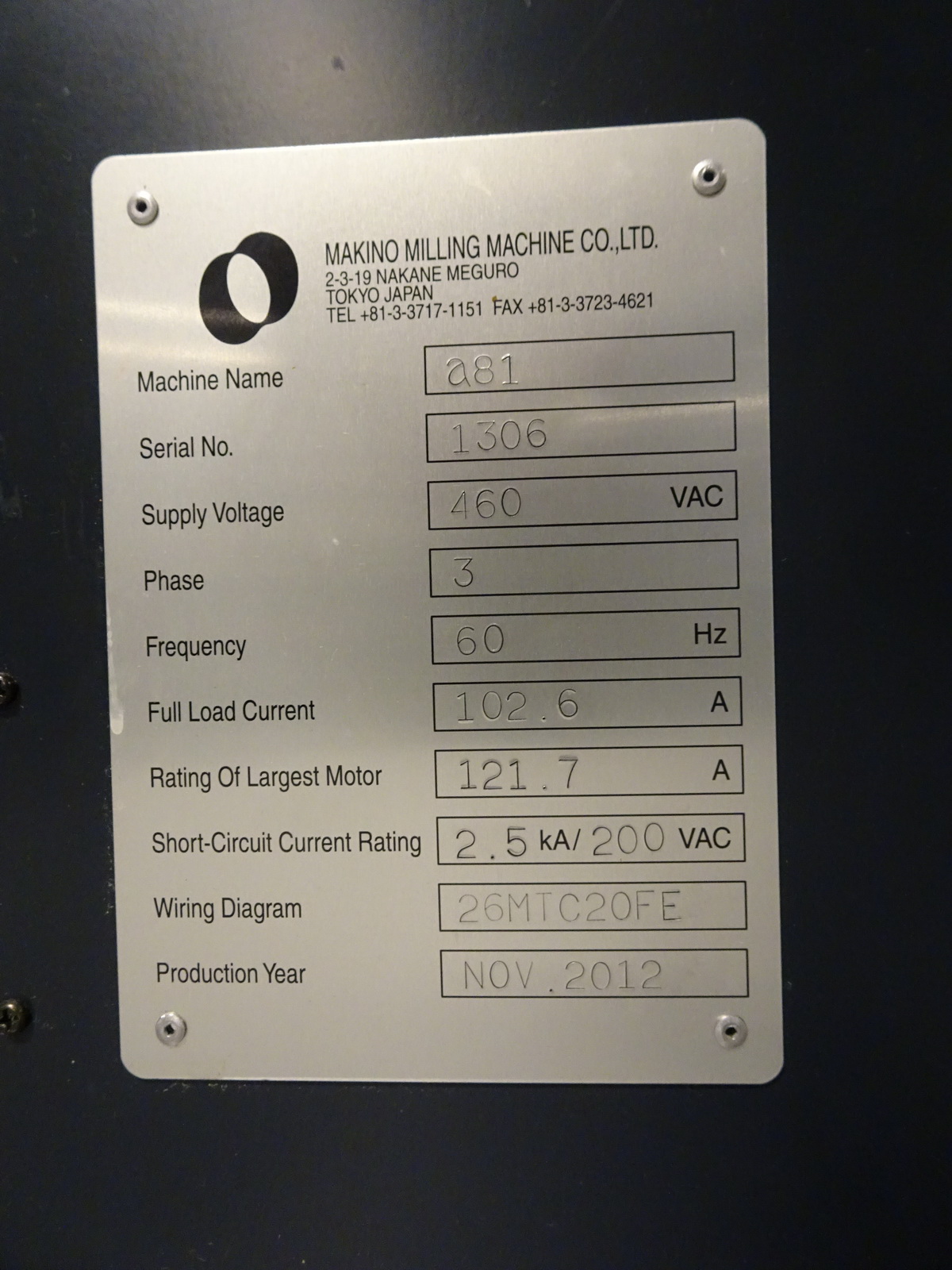

Machine Serial Number 1306,
For a representative video please click on the following link
Renown Jet Engine Component Mfg. Facility
CNC Machine Tools as Late as 2019 by:
Makino-Magerle-Campbell-Lagun Republic
CNC Grinding-EDMs-Horizontal & Vertical Machining(20) EDMs, Zeiss CMM, (5) 5-Axis Grinding Centers Welding Systems, Robotic Deburring, Much More
To view more information on the 2012 MAKINO FULL 5-AXIS CNC HORIZONTAL MACHINING CENTER, MODEL A81 (LOT 1), including reviews, brand information, photos, videos, and more,
