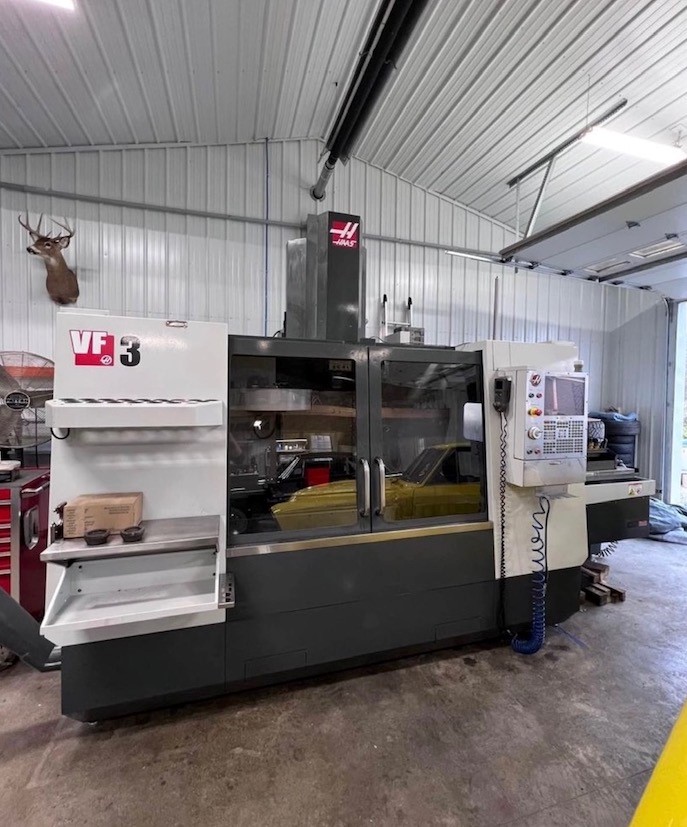

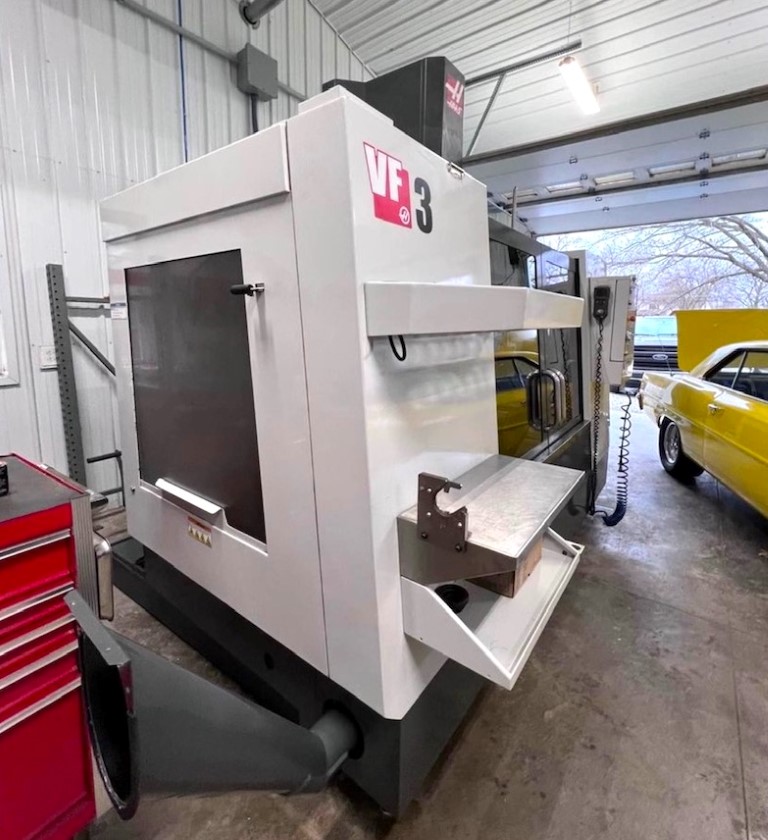

2012 HAAS VF-3, VMC MACHINE # 8390

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


2012 HAAS VF-3, VMC MACHINE # 8390
VF-3
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
12500 (LB)
2012
$0.00

Description

Reference #: 8390
Machine Type: CNC Verticals
Year: 2012
Manufacturer: Haas
Model: VF-3
Control: Haas 32 BIT
Condition: Used - Excellent
Under Power: Yes
Code: M0185
Table:
Table Size: 48" x 18"
Maximum Table Load: 3500 Lbs
Travels:
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 25"
Spindle Nose to Table: 4" - 29"
Spindle:
Spindle Speeds: 15,000 RPM
Spindle Taper: 40 Taper
Main Motor: 20 HP
Max Torque: 75 ft-lb @ 1400 rpm
Max Torque w/opt Gearbox: 250 ft-lb @ 450 rpm
Tool Changer:
Tool Changer Positions: 20 ATC
Max Tool Diameter (full): 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 sec
Chip-to-Chip (avg): 4.5 sec
Rapids:
Rapid Traverse (X, Y & Z ): 1000 IPM
Feed Rate: 650 IPM
Accuracy:
Positioning: 0.0002"
Repeatability: 0.0001"
General:
Weight (approx.): 12500 lb
Air Required: 4 scfm, 100 psi
Coolant Capacity: 55 gal
Power (options may increase requirement): 195-260 VAC/50 A
: 354-488 VAC/30 A
Equipped With:
Haas Control

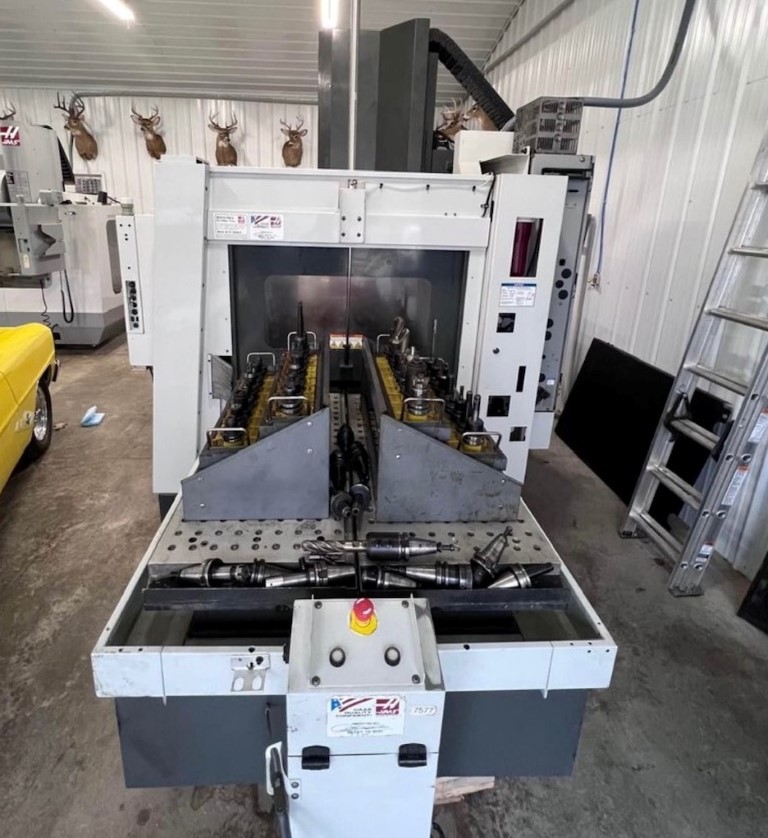

Pallet Changer Interface
300 PSI Through Spindle Coolant
Chip Auger
High Speed Machining
Spindle Probe
Touchsetter
Full compliment of Tool Holders
Spare M Codes
Macro Option
Pallet Changer available at additional cost of $17,850
Comments:
Low Hours - Excellent Condition
