2012 HAAS ST-40, MACHINE # 7500

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


ST-40
Lathes and Turning Centers CNC
Slant Bed Turning center
used
27000 (LB)
2012
$0.00

Description

Reference #:7500
Machine Type:CNC Lathes
Year:2012
Manufacturer:Haas
Model:ST-40
Control:Haas 32 BIT
Condition:Good
Under Power:Yes
Code:L2150

Capacity:

  • Chuck Size: 15"
  • Swing Over Bed Ways: 34.5"
  • Swing Over Cross Slide: 25.5"
  • Max. Turning Diameter: 25.5"
  • Max. Turning Length: 44"

Spindle:

  • Speeds: 2400 RPM
  • Bore: 4.62"
  • Bar Capacity: 4"
  • Nose: A2-8
  • Main Motor: 55 HP

Turret:

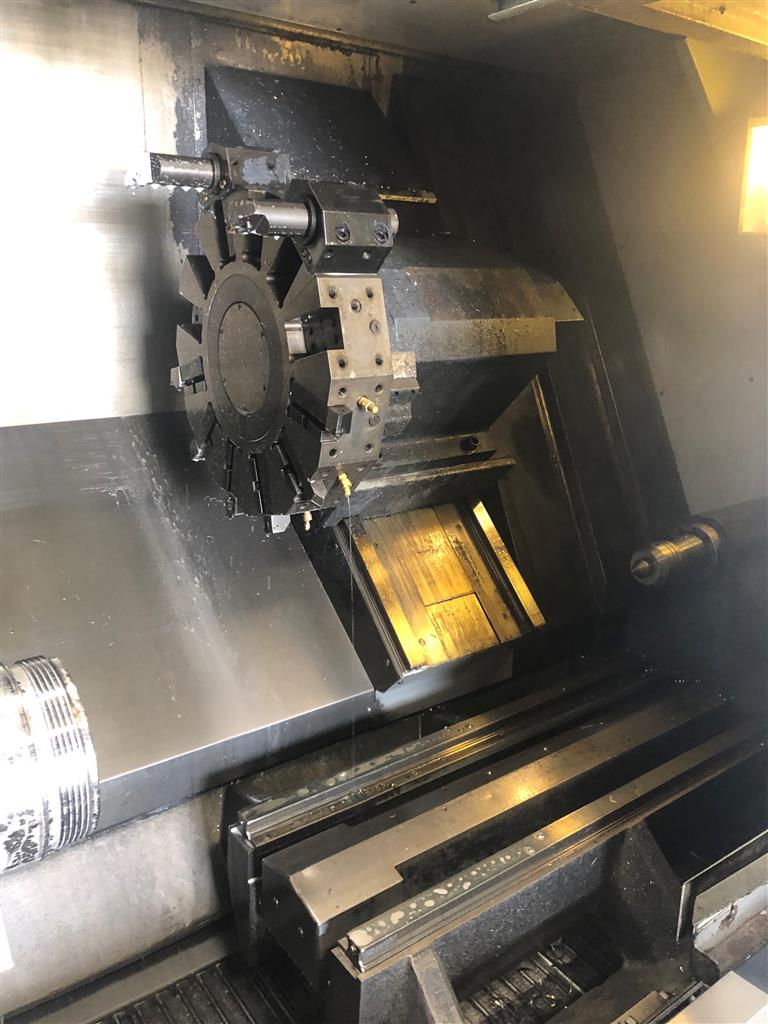

  • Number of Positions: 12 Positions
  • X-Axis Travel: 17.0"
  • Z-Axis Travel: 44.0"

Tailstock:

  • Quill Taper: MT #5

Rapids:

  • Feed Rates (X & Z ): 710

Dimensions:

  • Floor Space (L x W x H): 150" x 77" x 74"
  • Weight (approx.): 27,000 Lbs

Equipped With:

  • HAAS Control with Intuitive Programming System, Rigid Tapping, Remote Jog
  • Handle
  • Programmable Servo Tailstock
  • Extra Performance Options (55 HP)
  • 2-Speed Gearbox

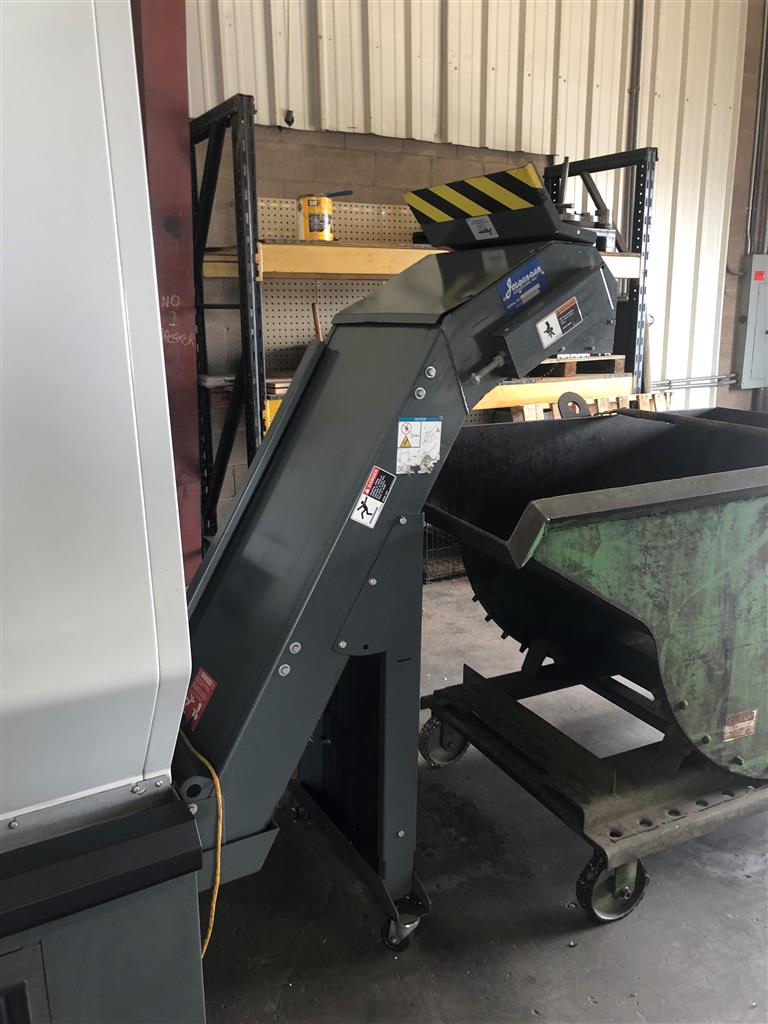

  • Belt-type Chip Conveyor
  • Extended Tool Pocket up to 33 inches
  • Bolt-On Style Turret
  • Large amount of Tooling

Comments:

  • Inspect under power
  • 9,252 hours
  • Some Tooling
  • $1,200 to load it up
