2012 Haas ST-40

2012 HAAS ST-40

Add to Your File

Brand: 2012 HAAS ST-40

Model: ST-40

Serial No. : L2150

Category: Vertical Turret Lathes VTL

Sub Category: Drills Manual and CNC

Condition: used

Weight: (KG)

Year Built: 2012

Status:

Price: $0.00

Description

Capacity:

Chuck Size: 15\"
Swing Over Bed Ways: 34.5\"
Swing Over Cross Slide: 25.5\"
Max. Turning Diameter: 25.5\"
Max. Turning Length: 44\"

Spindle:

Speeds: 2400 RPM
Bore: 4.62\"
Bar Capacity: 4\"
Nose: A2-8
Main Motor: 55 HP

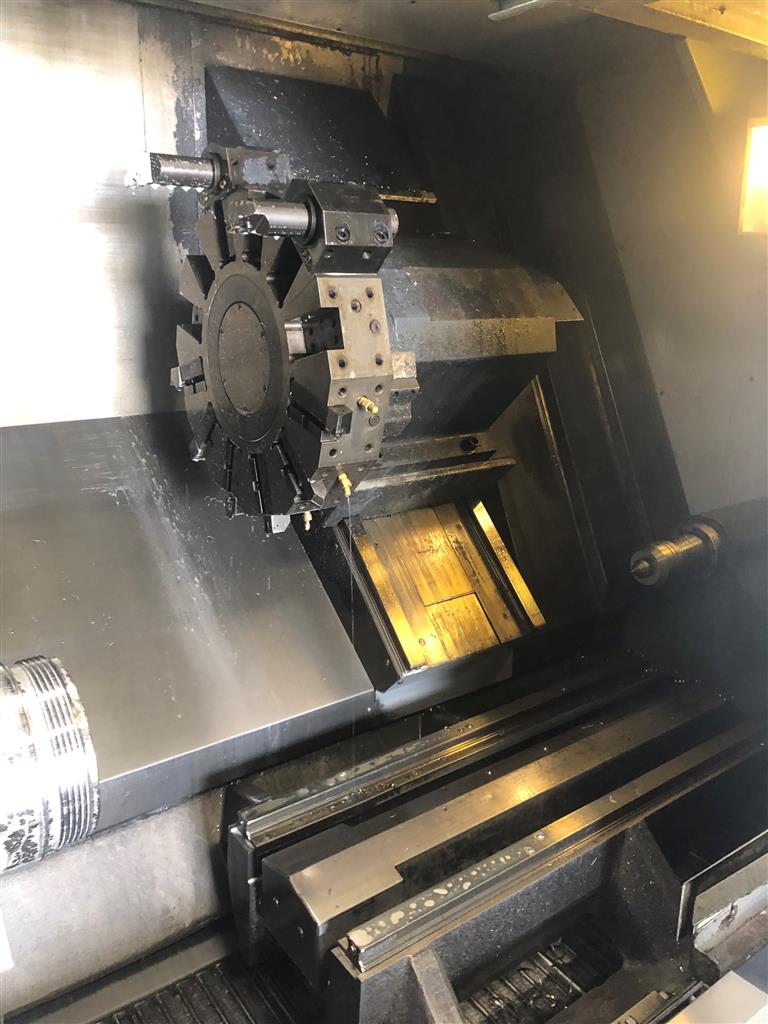

Turret:

Number of Positions: 12 Positions
X-Axis Travel: 17.0\"
Z-Axis Travel: 44.0\"

Tailstock:

Quill Taper: MT #5

Rapids:

Feed Rates (X & Z ): 710

Dimensions:

Floor Space (L x W x H): 150\" x 77\" x 74\"
Weight (approx.): 27,000 Lbs

Equipped With:

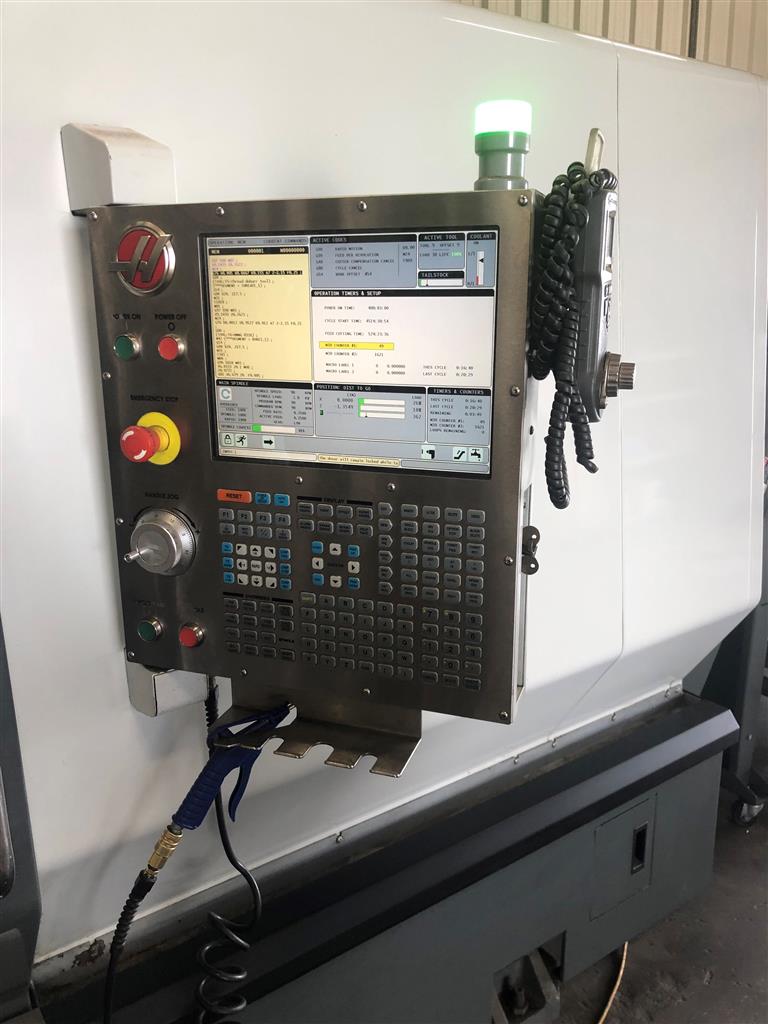

HAAS Control with Intuitive Programming System, Rigid Tapping, Remote Jog
Handle
Programmable Servo Tailstock - US$12,895 option
Extra Performance Options (55 HP) - $13,995 option
2-Speed Gearbox
Belt-type Chip Conveyor
Extended Tool Pocket up to 33 inches
Bolt-On Style Turret
Large amount of Tooling

Comments:

Inspect under power
9,252 hours
Some Tooling
$1,200 to load it up
