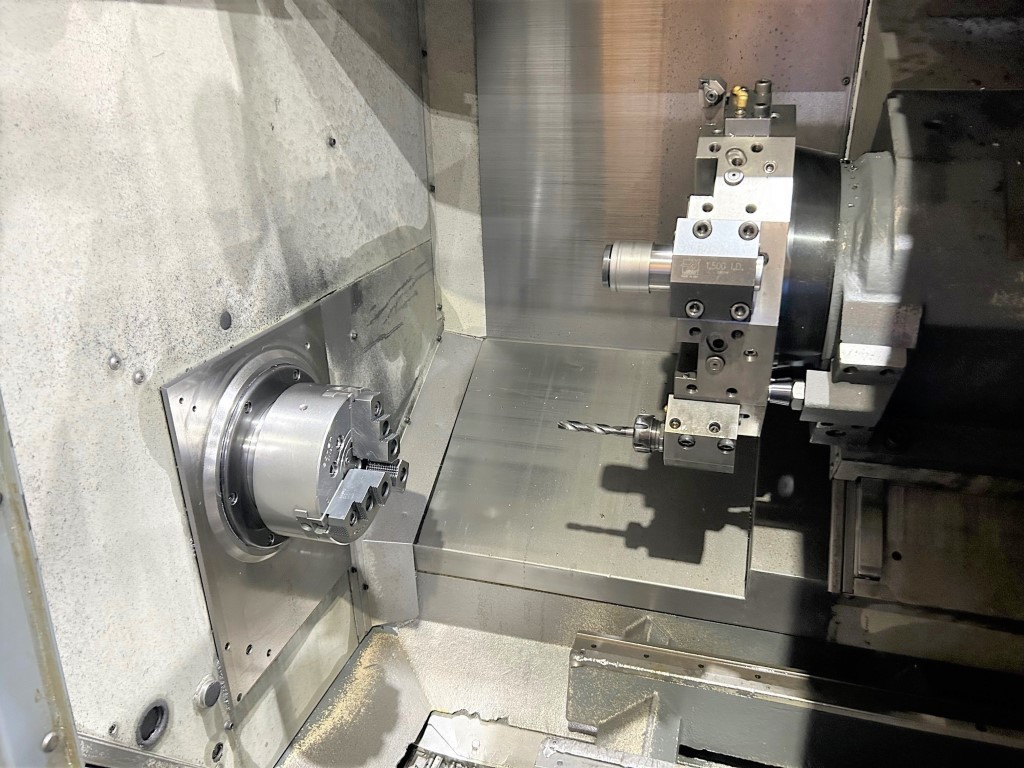

2011 HAAS ST-20 2 AXIS CNC CHUCKING LATHE MACHINE # 8565

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


ST-20
Lathes and Turning Centers CNC
Chucking NC, CNC.
new
(LB)
2011
$0.00

Description

Reference #: 8565

Machine Type: CNC Lathes
Year: 2011
Manufacturer: Haas
Model: ST-20

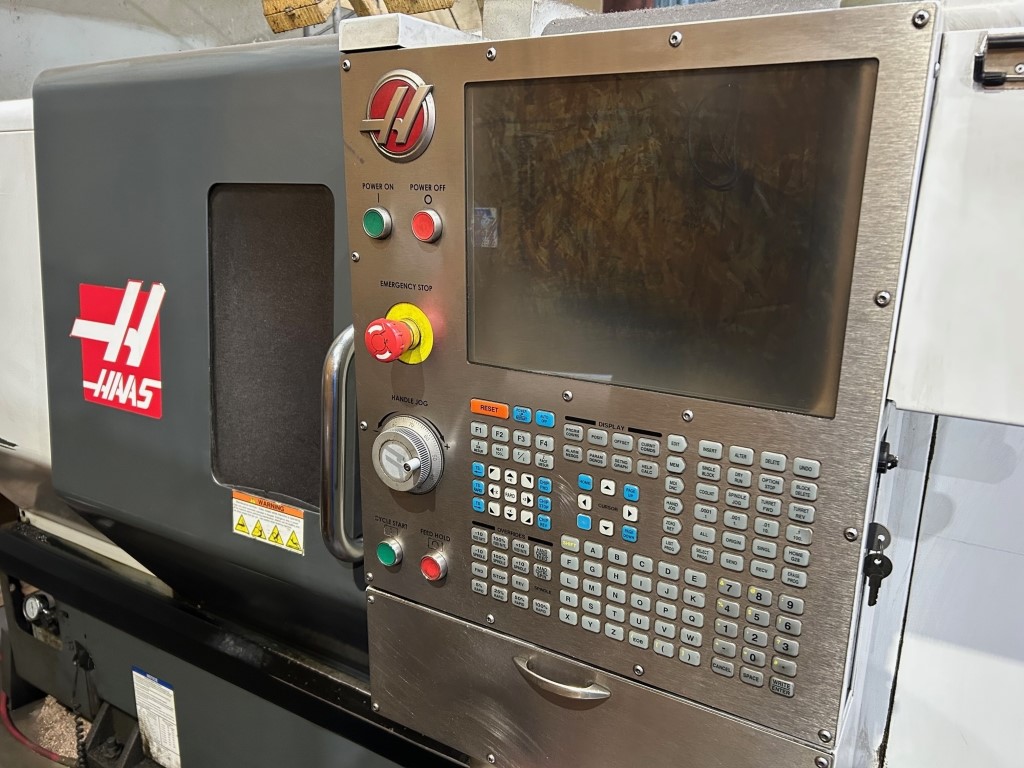

Control: Haas 32 BIT
Condition: Used
Under Power: Yes
Code: L2125
Capacity:
Chuck Size: 8"
Swing Over Bed Ways: 31.75"
Swing Over Cross Slide: 15"
Max. Turning Length: 20.5"
Spindle:
Speeds: 4,000 RPM
Bore: 2"
Nose: A2-6
Main Motor: 20 HP
Turret:
Number of Positions: 12
Dimensions:
Floor Space (L x W x H): 125" x 78" x 77"
Weight (approx.): 8,800 Lbs
General:
Electrics: 354-488 V, 50/60 Hz
Full Load Amps: 20
Max Amps: 35
Equipped With:
Fanuc Control

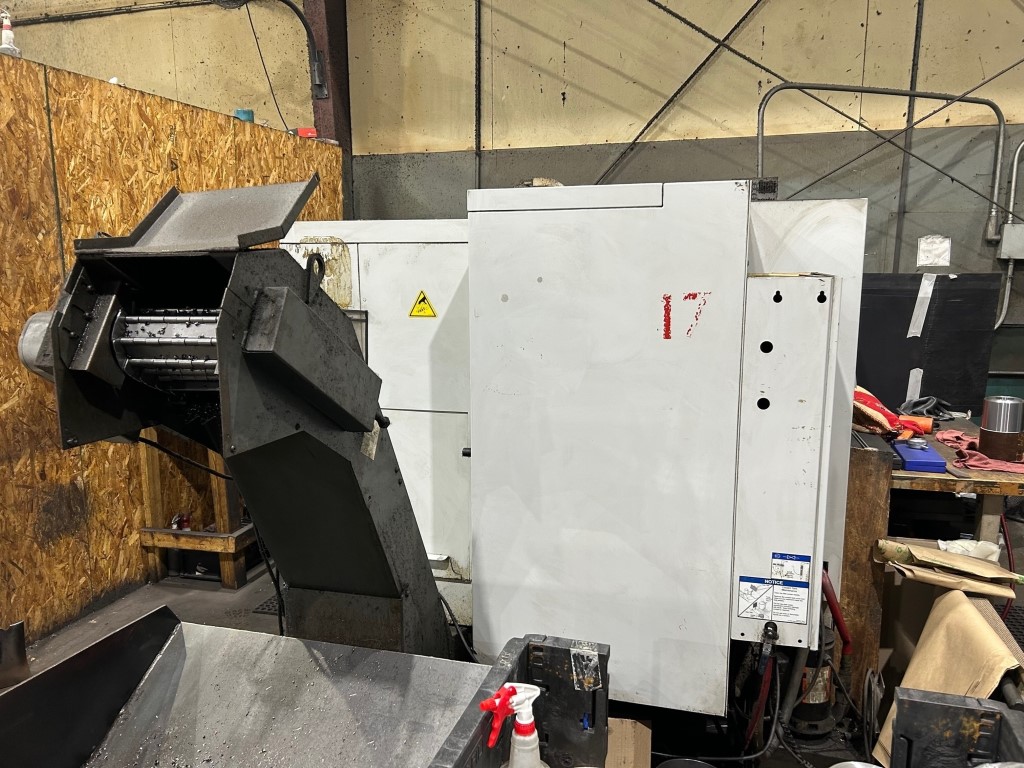

Chip Conveyor
8" 3-Jaw Chuck
