Max Swing Over Saddle 27.95"
Max Machining Diameter 27.95"
Max Working Distance Between Spindles 59.06"
Cross Travel (X-Axis) 27.17"
Longitudinal Travel (Z-Axis) 60.83"
Y-Axis Travel 9.02"
B-Axis Universal Head Swivel 225 Degree
C-Axis Spindle Rotation .001 Degree
Tool Positions 40 Total
Spindle Bore 4.72"
Bar Capacity 3.15"
Spindle Nose A2-11
Spindle Speed Range 38-3800 RPM
Spindle Horsepower Both Spindle 40 HP
Live Tooling Speed Range 90-6000 RPM
Live Tooling Horsepower 14 HP
Approximate Machine Dimensions w/Conveyor 281" x 101"
Approximate Machine Height 119"
Approximate Machine Weight 36,000 LBS
Power On 16,653
Cuttin Hours 7,934

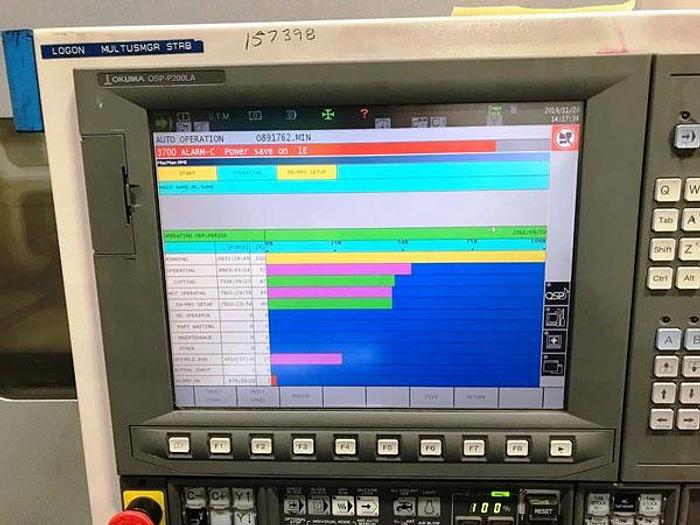

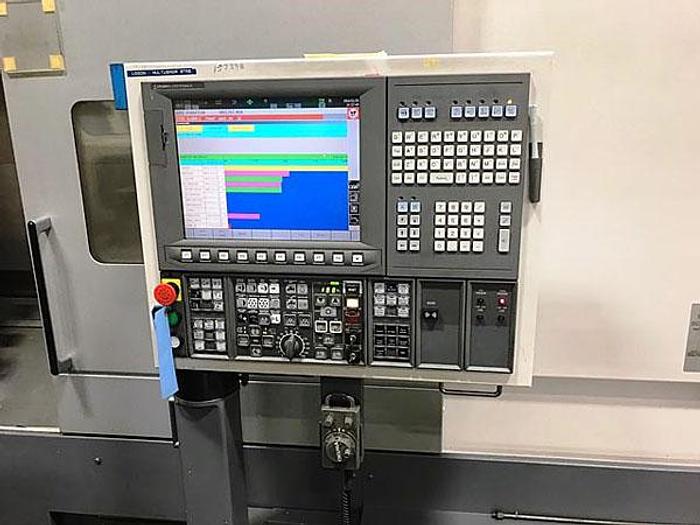

OKUMA OSP P200LA CNC Control, Hi-G Control, Admac 3D Virtual Monitor,

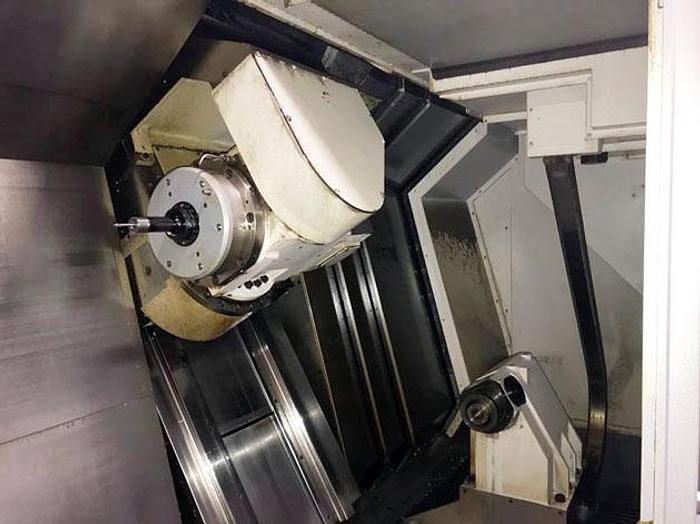

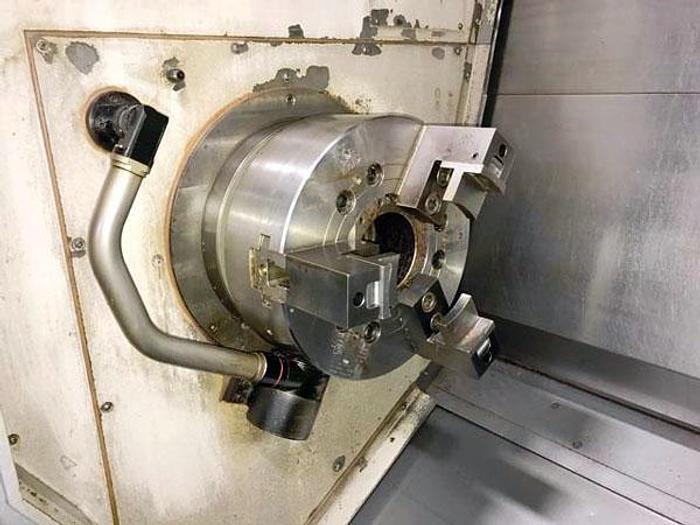

Full Contouring B-Axis Universal Head, Kitagawa B-15 15" 3-Jaw Power Chuck
Lathe Tool Indexing, Programmable Torque Limit, 40 Station Automatic
Tool Changer Heavy Duty Tailstock with 60" Between Centers, Full C-Axis
Spindle Rotation, CAPTO Spindle Taper, 3D Animation, Servo Link Spindle,
Tool Life Management, Tool Wear Comp, Tool Setting Probe, Plane Conversion,
Profile Generation, Coolant Thru the Spindle, Helical Cutting,
Synchronous Tapping, Oil Chiller, Chip Conveyor & Coolant System.
