2011/17 TOSHIBA (SHIBURA) MCW-4624

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


MCW-4624
M0120
Milling Machines
MILLERS, SKIN GANTRY TYPE
used
(KG)
2011
$0.00

Description

Travels:

  • X-axis travel (Bridge longitudinal direction): 137.8\"
  • Y-axis travel (Spindle head crosswise dir.): 145.7\"
  • Z-axis travel (Ram vertical direction): 35.4\"
  • Height (Table top to Gauge plane): 41.3\"
  • Distance between wall columns: 180.3\"

Spindle:

  • Spindle Speed: 30 ~ 4,000 RPM
  • Max. Torque: 1,127.8 Ft-lb
  • Spindle drive motor: AC40/29.5 HP
  • Taper on the spindle: 7/24 taper No. 50

Ram:

  • Guide for ram: Full closed mono-block
  • Sectional dimensions: 15\" x 15\"

Feed Rate:

  • Rapid traverse rate ( X / Y ): 984 Inches/min
  • Rapid traverse rate ( Z ): 393.7 inches/min
  • Feedrate for machining ( X / Y / Z ): 1 ~ 393.7 inches/min

Accuracy:

  • Positioning accuracy ( X / Y / Z ): +/- 0.00027/39.4\"
  • Repeatability ( X / Y / Z ): +/-0.00012\"

Floor Plate:

  • Floor plate size: 126\" x 94.5\"
  • Max. mass on floor plate: 2,048 Lbs/Ft2

Machine Size:

  • Machine height: 192.9\"
  • Floor space: 310\" x 323.7\"
  • Mass of machine (including CNC system): 110,230 Lbs

Equipped With:

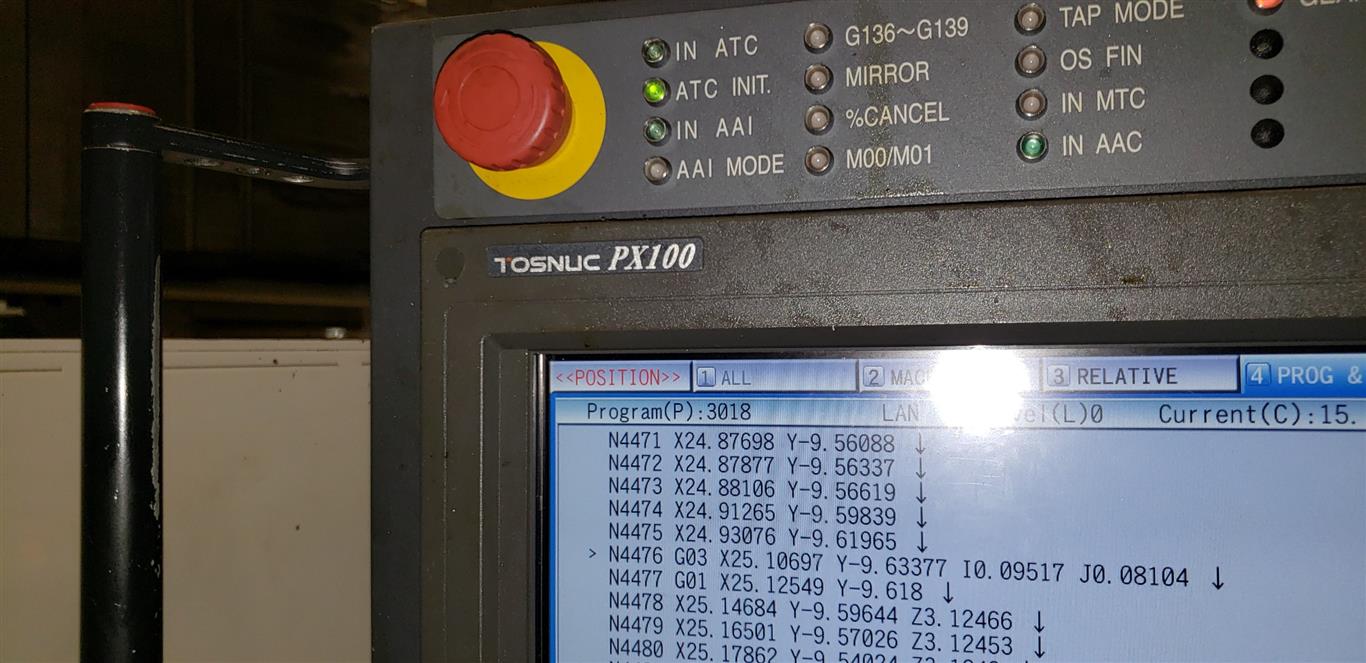

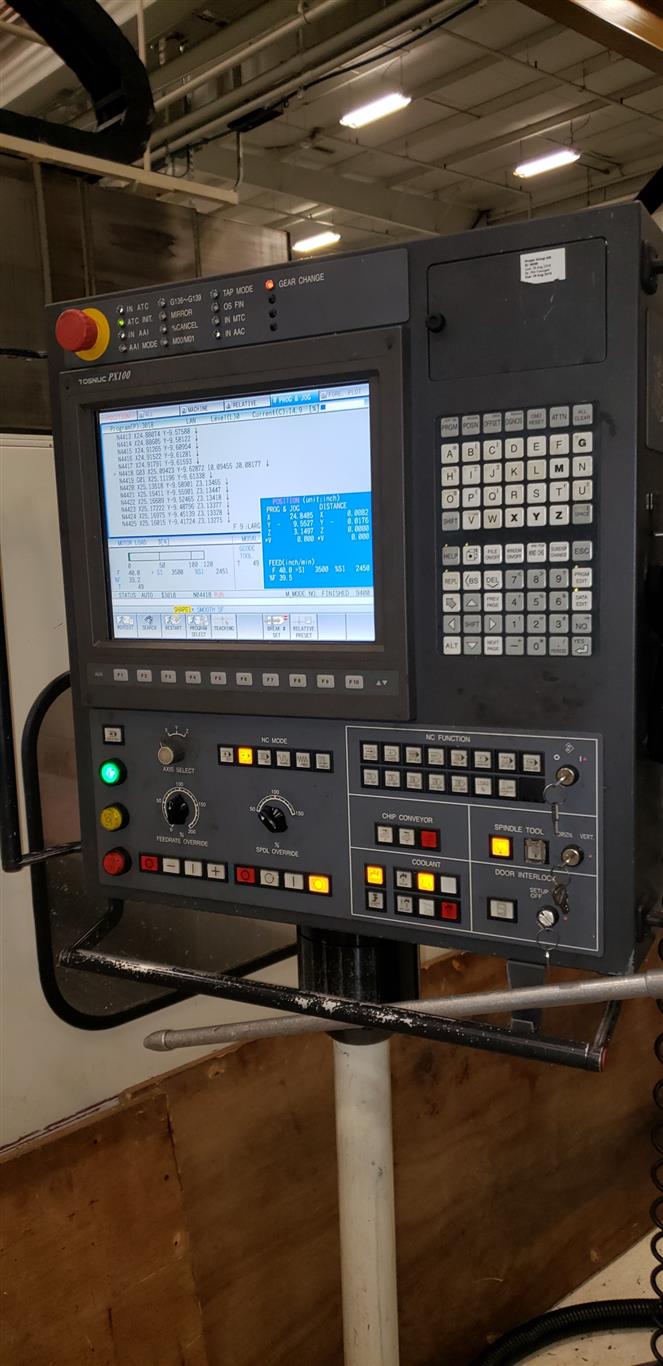

  • Tosnuc PX100 Control
  • Chip Conveyor
  • 36 Position Automatic Tool Changer

Comments:

  • Quoted price is only assured until October 31, 2019
  • After that the price may change
  • Machine was built new in 2011, but was not installed until 2017
