Description

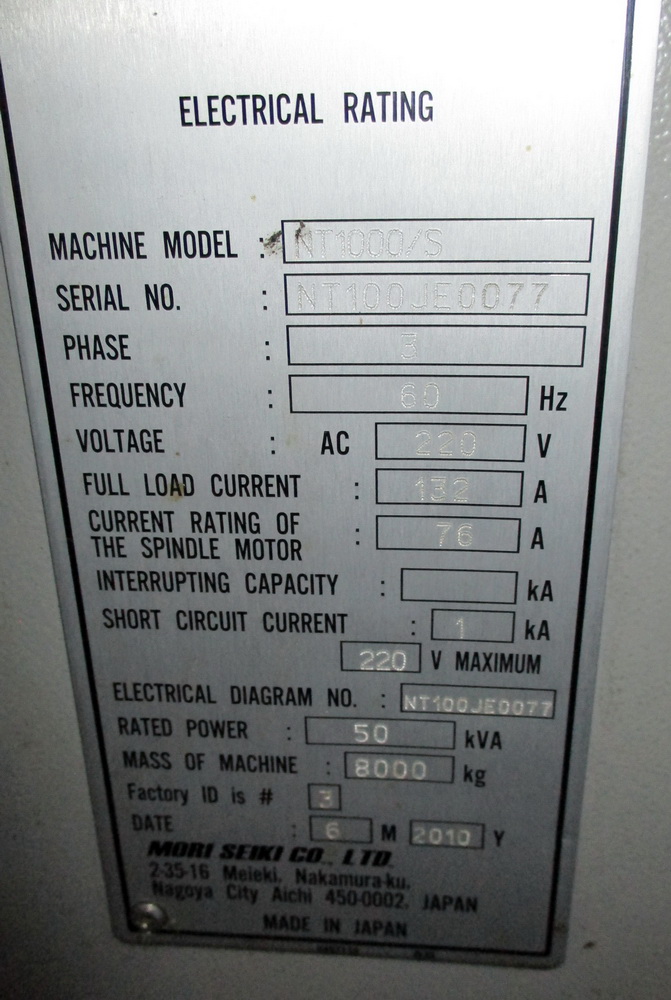

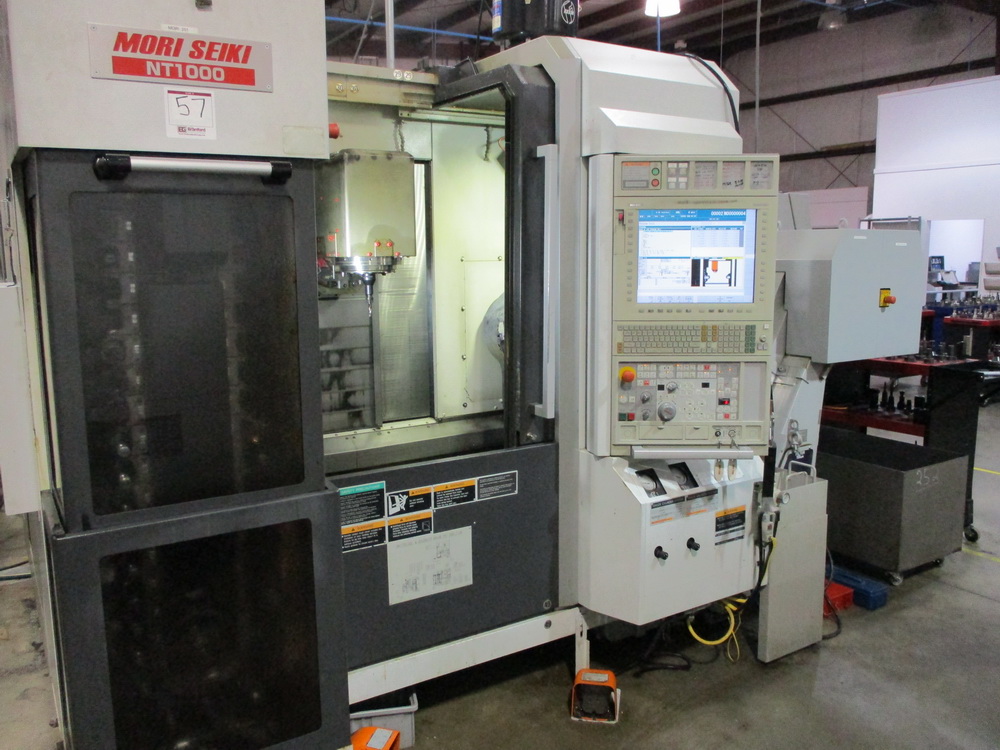

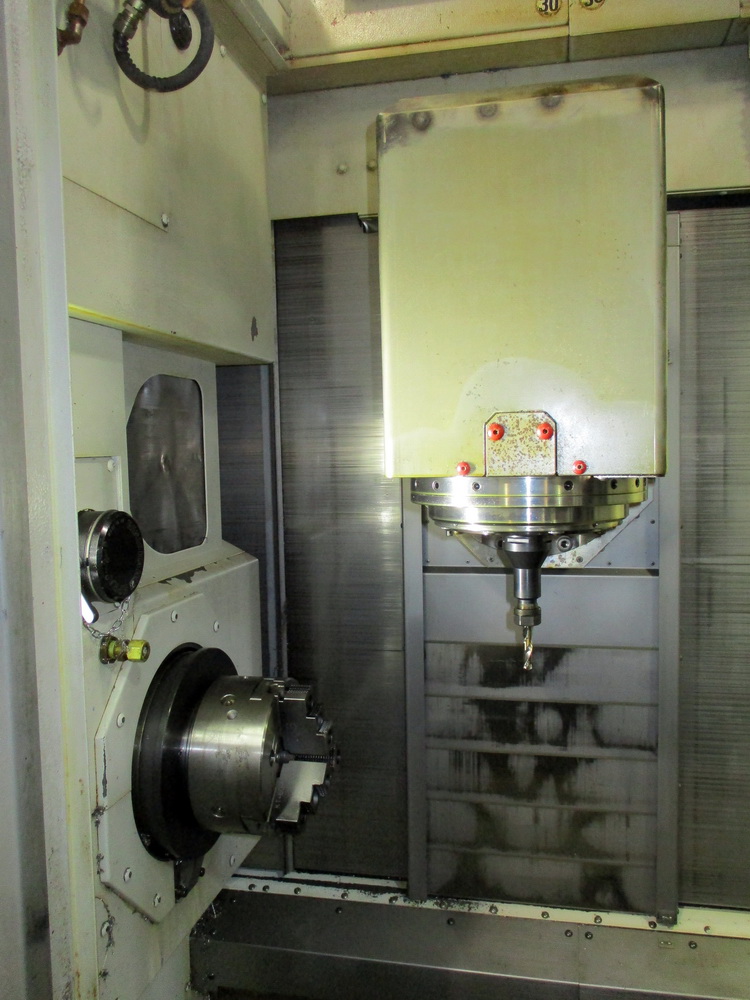

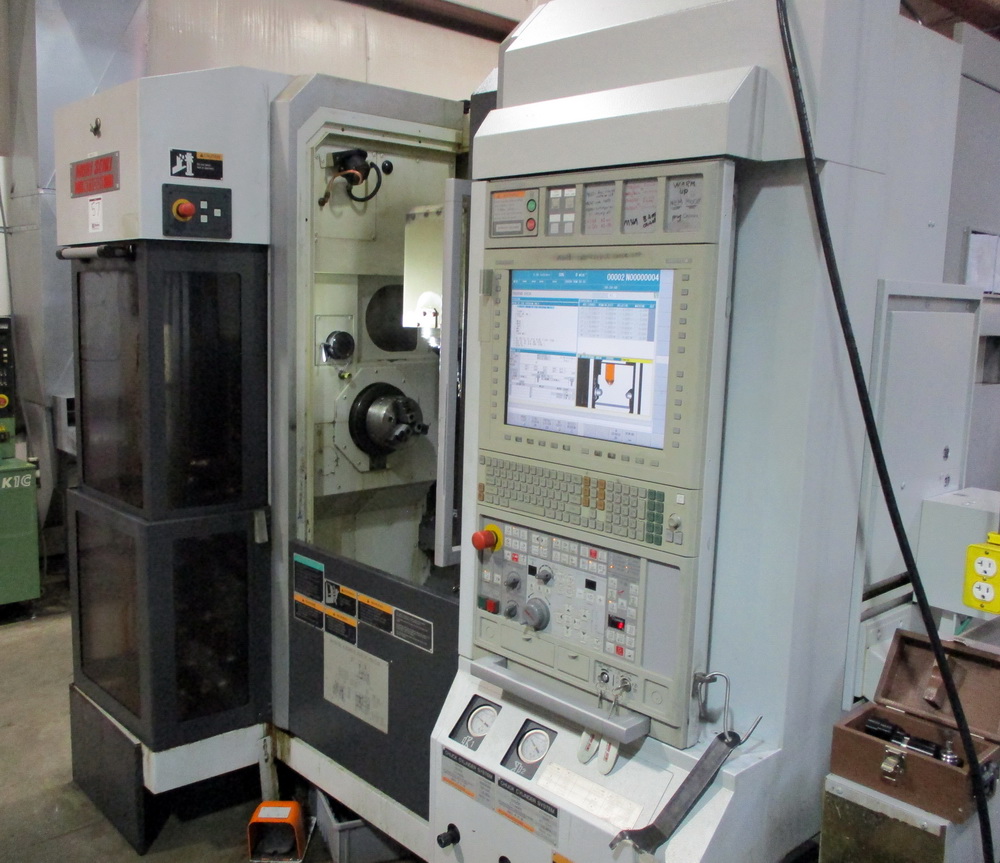

2010 Mori Seiki NT-1000S 7-Axis CNC Integrated Milling & Turning Center, X-15.5", Y-+/-4.1", Z-18.1"+ 6.1", 12,000 RPM B-Axis Mill Spindle, 6000 RPM Left & Right Spindles, (2) 6" Chucks, 40 ATC, Renishaw Touch Off , EPB Type Tooling, Parts Catcher, Coolant System, Chip Conveyor, Mori-Seiki MSX-711 IV CNC Control, Hours: 14,730, 32 SECO EDP 3GX Toolholders, S/N NT100JE0077

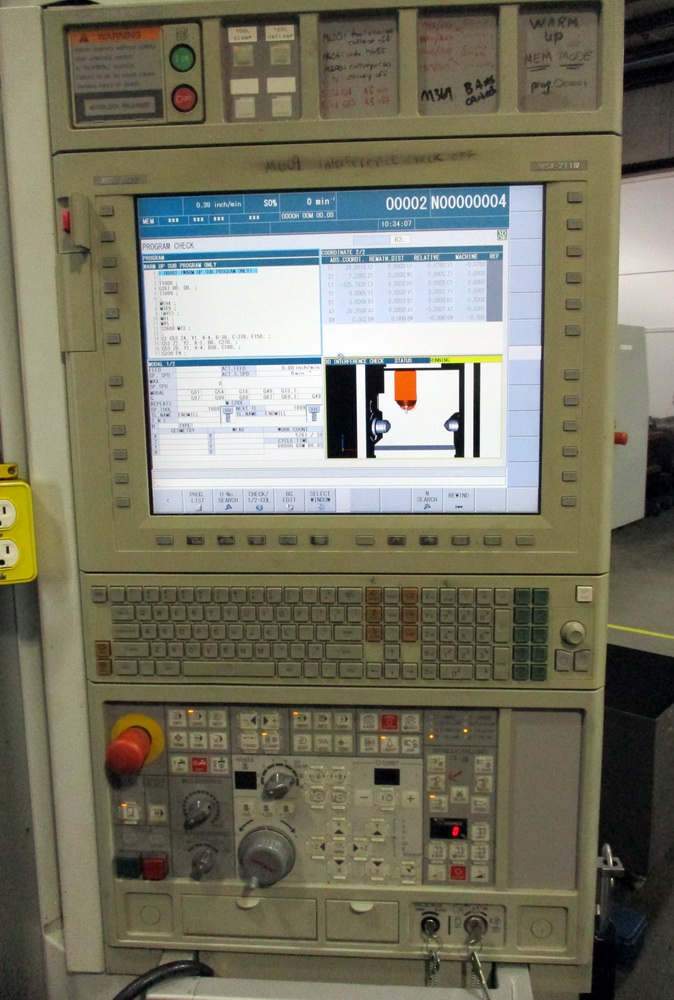

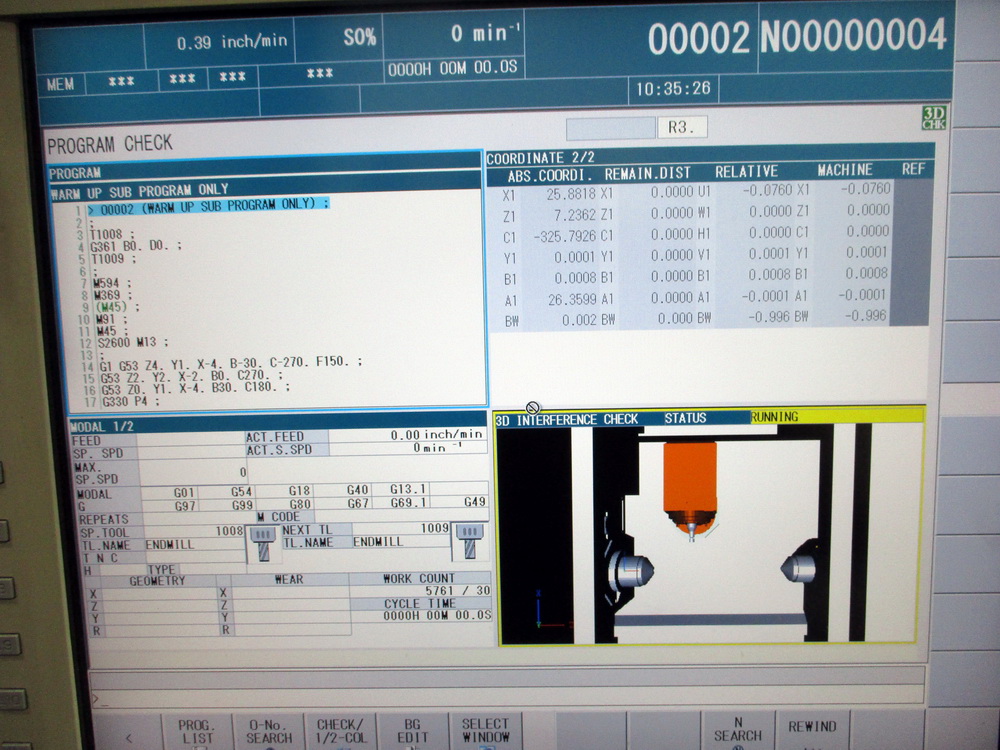

MSX-711 IV CNC Control

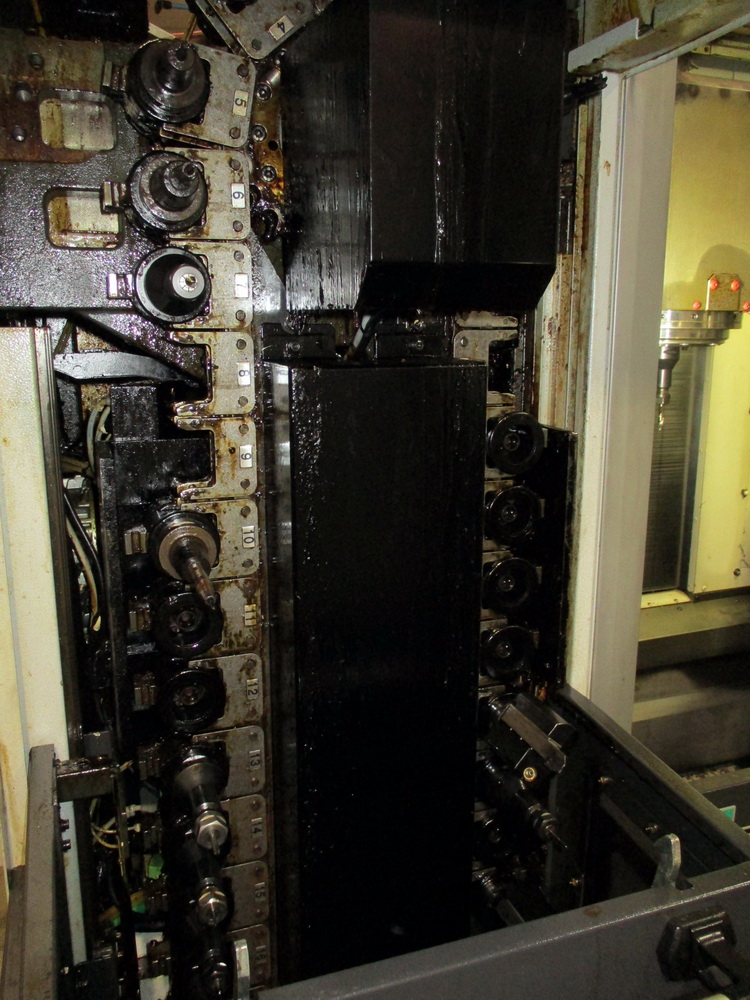

40-Position Tool Changer

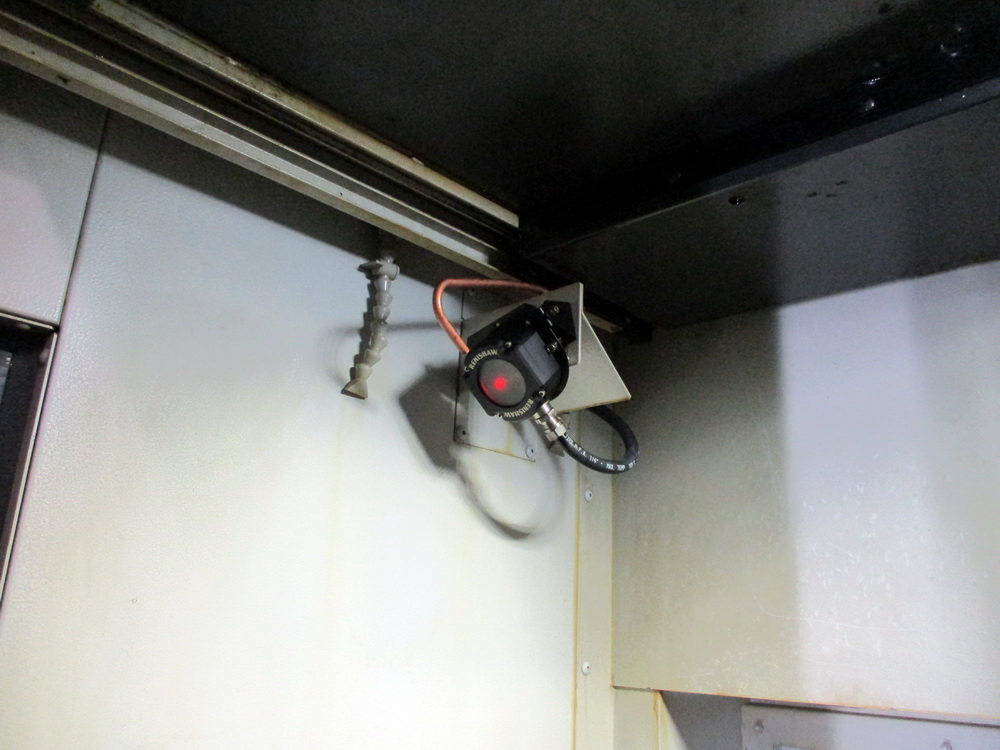

Renishaw Probe

CAPACITY:

Swing Over Bed ........................ 14.6"

Swing Over Cross Slide ................ 14.6"

Turret 2 .............................. 11.8"

Distance Between Centers .............. 35"

Maximum Turning Diameter (Spindle 1)... 14.6"

Turret 2 .............................. 8.3"

Maximum Turning Length ................ 16.7"

Bar Work Capacity ..................... 2"

X1-Axis Travel......................... 15"

X2-Axis Travel ........................ 18.1"

Y-Axis Travel ......................... /-4.1"

Z-Axis Travel ......................... 18.1"

Z2-Axis Travel ........................ 24"

SPINDLE 1, MAIN SPINDLE:

Max. Spindle Speed .................... 6000 RPM

Spindle Nose .......................... JIS A2-5

Spindle Hole Diameter ................. 2.4"

Bar Capacity .......................... 2"

Min. Spindle Indexing Increment ....... 0.0001 Degree

Spindle Motor ......................... 15 HP

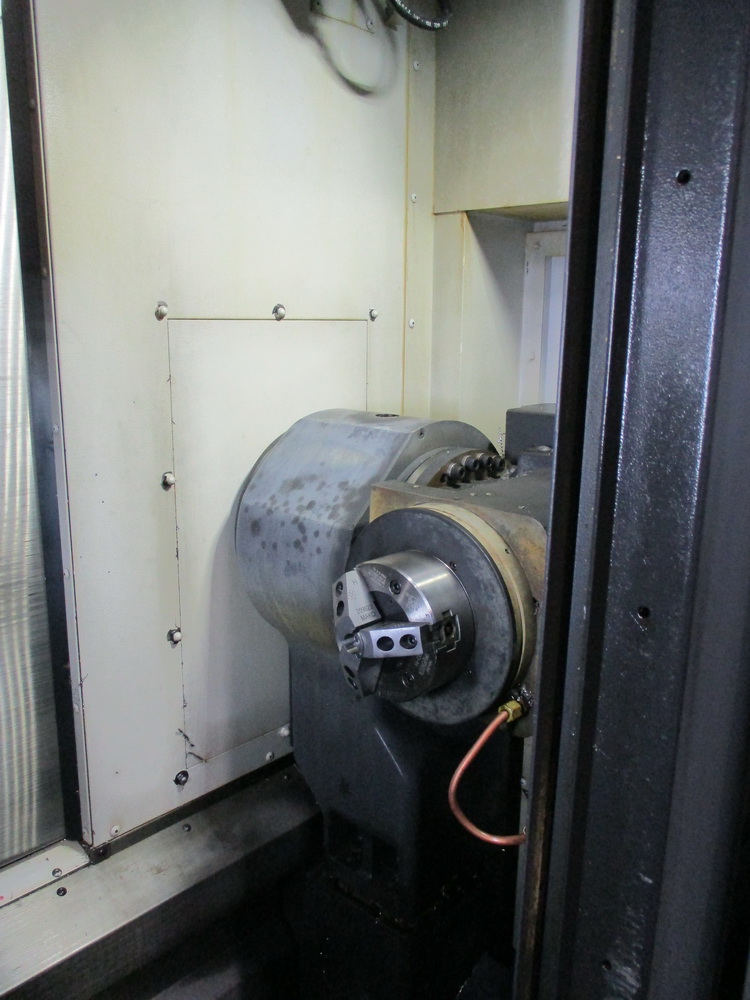

SPINDLE 2, SUB-SPINDLE:

Spindle Speed ......................... 6000 RPM

Bar Capacity .......................... 1.5"

Spindle Motor ......................... 10 HP

TOOL SPINDLE, UPPER TURRET:

Spindle Speed ......................... 12,000 RPM

Spindle Taper ......................... CAPTO C5

Tool Capacity (ATC) ................... 36 ATC

Tool Change Time ...................... 1.2 Seconds

B-Axis Indexing Increment ............. 0.0001 Degrees

TURRET 2, LOWER TURRET:

Tool Stations ......................... 10

Turret Indexing Time .................. 0.19 Seconds

Max. Rotary Spindle Speed ............. 6000 RPM

Rotary Drive Motor .................... 2 HP

DIMENSIONS & WEIGHTS:

Floor Space ........................... 95.5" x 106.5"

Machine Height ........................ 94.5"

Machine Weight ........................ 19,360 Lbs.

EQUIPPED WITH:

MORI SEIKI MSX 711 IV CNC Control

40-Position Automatic Tool Changer

(2) 6,000 RPM Left & Right Chucks

Renishaw Probe

Parts Catcher

Coolant System

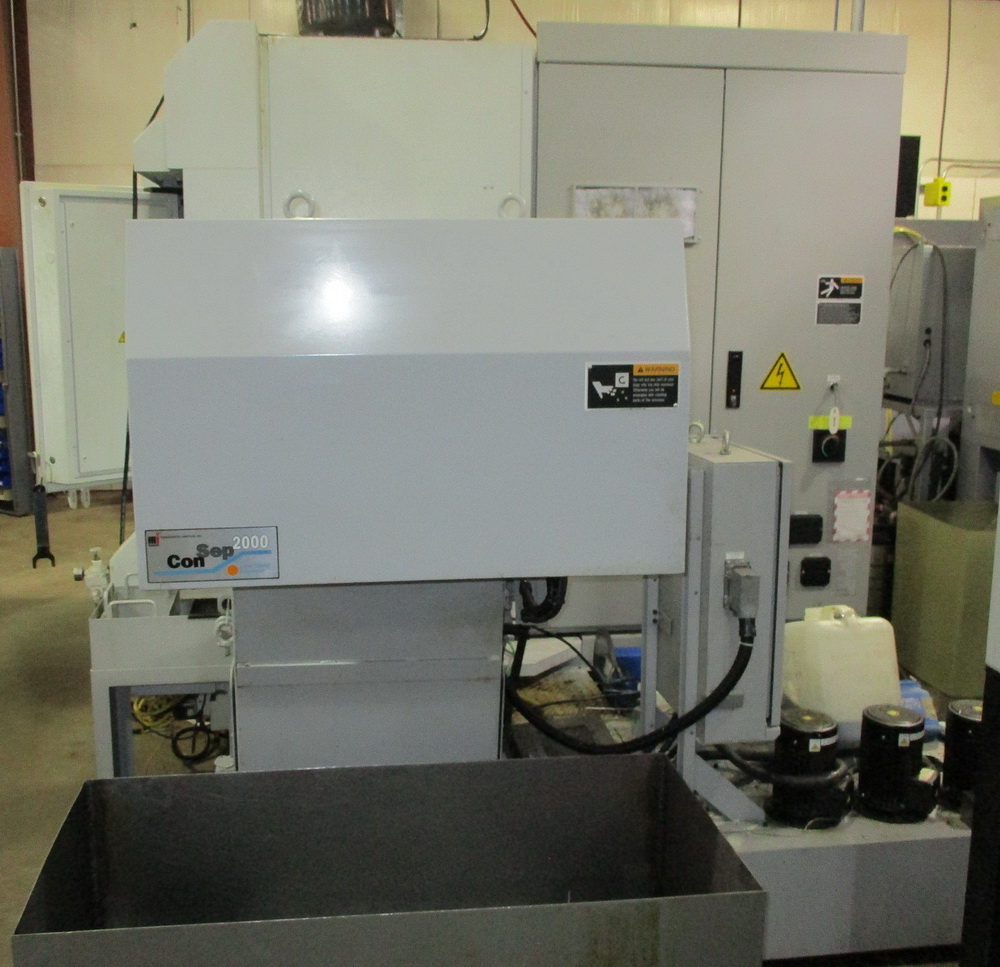

Chip Conveyor
