3. WIPS - Wireless Intuitive Probing System Ready (Without Probes)
4. 20 HP High Torque Spindle
5. 40 Station Automatic Tool Changer
6. Ethernet Interface
7. MPG Control
8. Rigid Tapping
9. Spindle Orientation
10. Programmable Coolant
11. Coolant Tank and Pump
12. Chip Auger
13. Work Light
Specifications:
X30"
Y20"
Z20"
Power20 hp
RPM10,000 RPM
# ATC24
TaperCAT-40
Table-W13"
Table-L36"
# Axis3
Dimensions106" x 101" x 101" High
Weight7,800 lbs Approx.
X-Axis: 30"
Y-Axis: 20"
Z-Axis: 20"
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4" - 24"
Length: 36.0"
Width: 18.0"
Number of Std T-Slots: 3
T-Slot Width: 5/8"
Max Weight on Table: 3000 lbs
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 20 HP
Capacity: 40
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5"
Max Tool Length: 11"
Tool Changing Time: 4.2 Seconds
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 106" x 101" x 101" High
Weight: 7800 lbs Approx.
More on this model

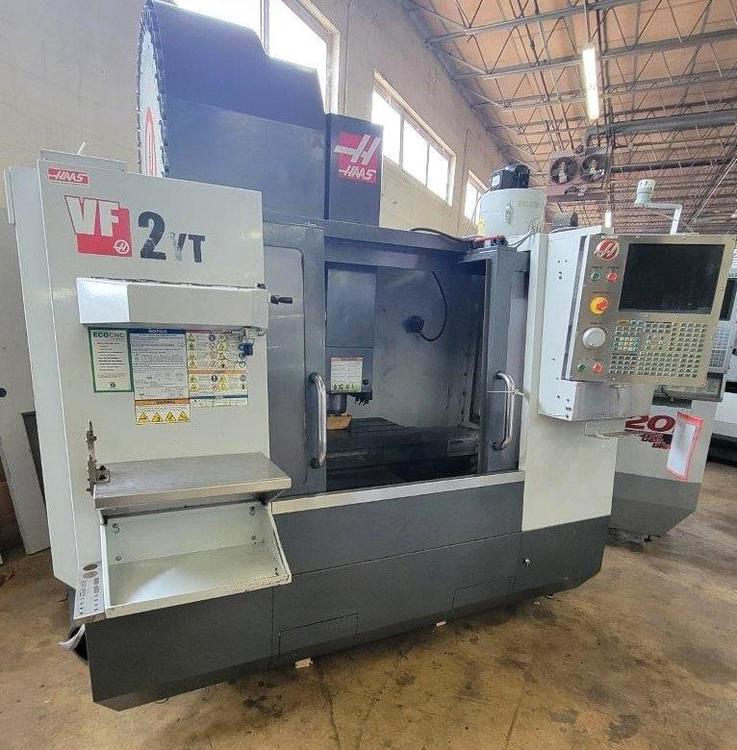

To view more information on the 2010 HAAS VF-2YT VERTICAL MACHINING CENTER VERTICAL MACHINING CENTERS WITH PALLETS, including reviews, brand information, photos, videos, and more,
