2010 HAAS TL-4, MACHINE # 7531

Add to Your File

Brand: 2010 HAAS TL-4, MACHINE # 7531

Model: TL-4

Serial No. : L2057

Category: Lathes and Turning Centers CNC

Sub Category: Center Drive, NC, CNC.

Condition: used

Weight: 25880 (LB)

Year Built: 2010

Status:

Price: $0.00

Description

Capacity:

Chuck Size: 25\"
Swing Over Bed Ways: 35\"
Swing Over Cross Slide: 16\"
Max. Turning Length: 80\"
Distance Between Centers: 91\"

Spindle:

Speeds: 500 RPM
Bore: 12.55\"
Nose: A1-20
Main Motor: 55 HP

Turret:

Number of Positions: 4 Tools
X-Axis Travel: 18\"
Z-Axis Travel: 80\"

Tailstock:

Stroke of Quill: 5.9\"
Quill Taper: MT #5

Rapids:

Rapid Traverse (X & Z ): 150 IPM & 320 IPM

Dimensions:

Floor Space (L x W x H): 234\" x120\" x 87\"
Weight (approx.): 25880 lb

Equipped With:

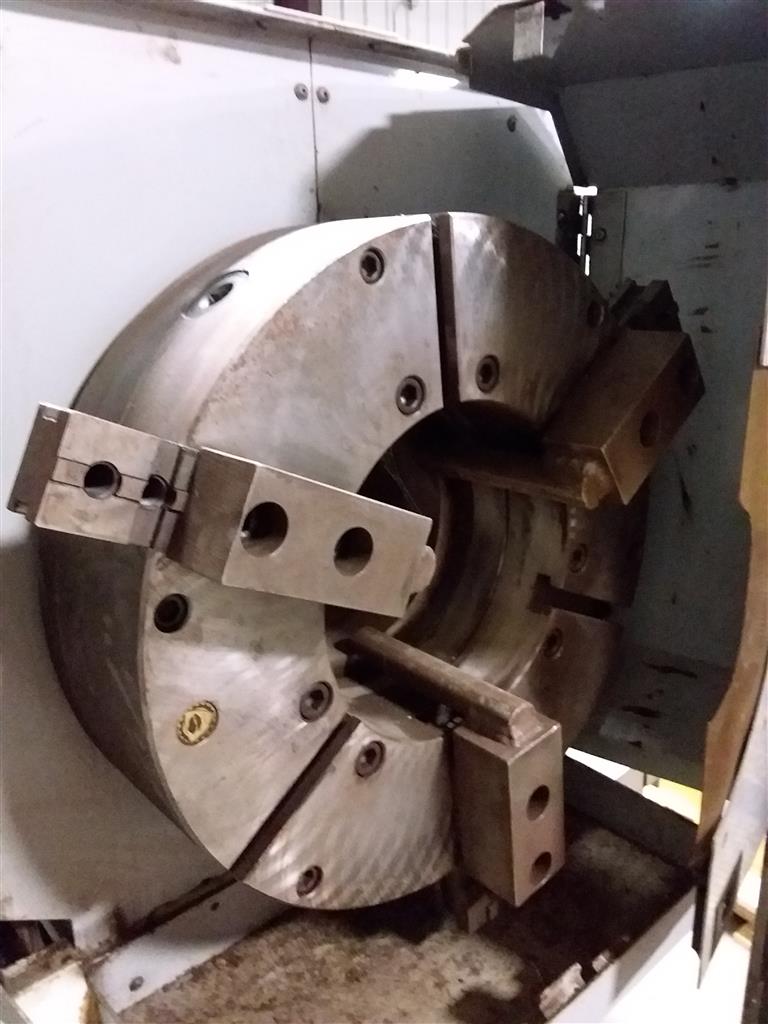

(2) 25\" 3 Jaw Independent Chuck w/ 12.55\" Thru Hole
Haas CNC Control
Front and Rear Chucks also comes with a spare chuck
(2) Speed Gear Box

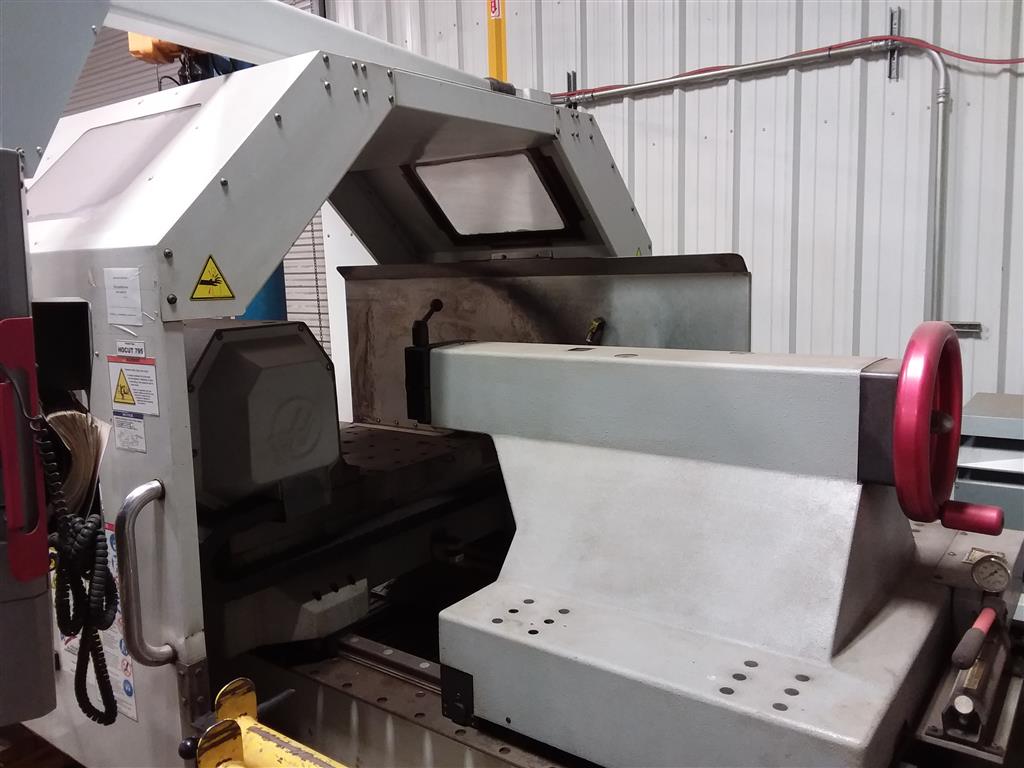

Tailstock
Chip Conveyor

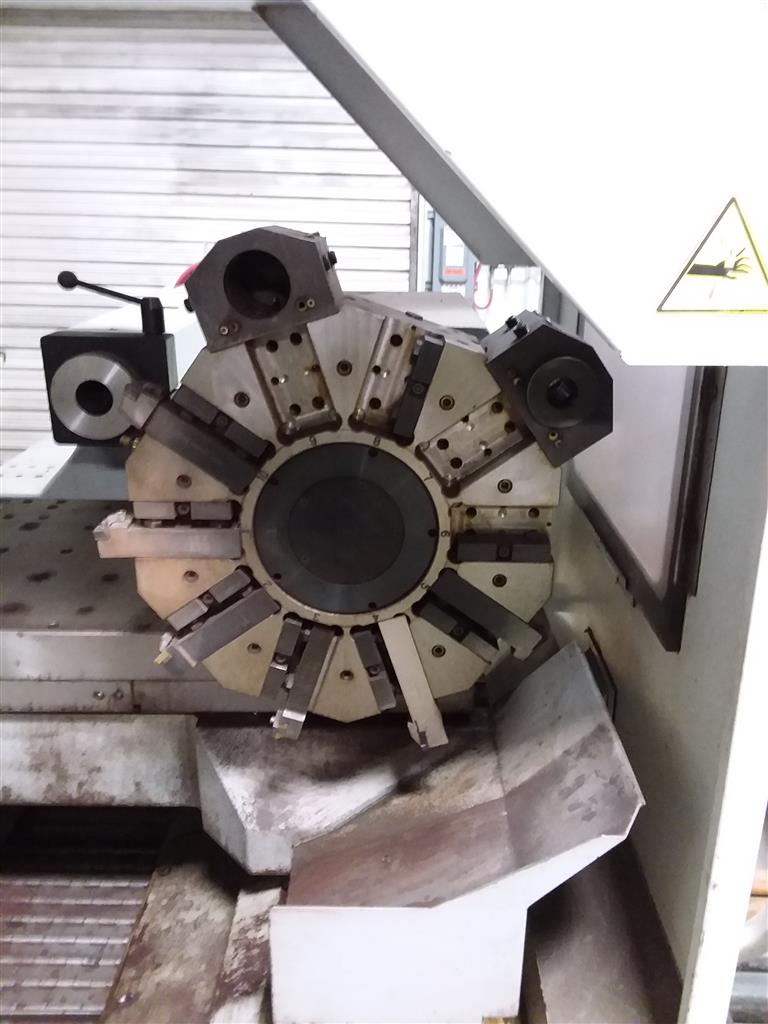

Turret
Coolant System

Comments:

Run Time: 4000 hours (approximate)
We used it to turn down forging to be able to get them in our other machines
There are a total of four chucks for the machine.
