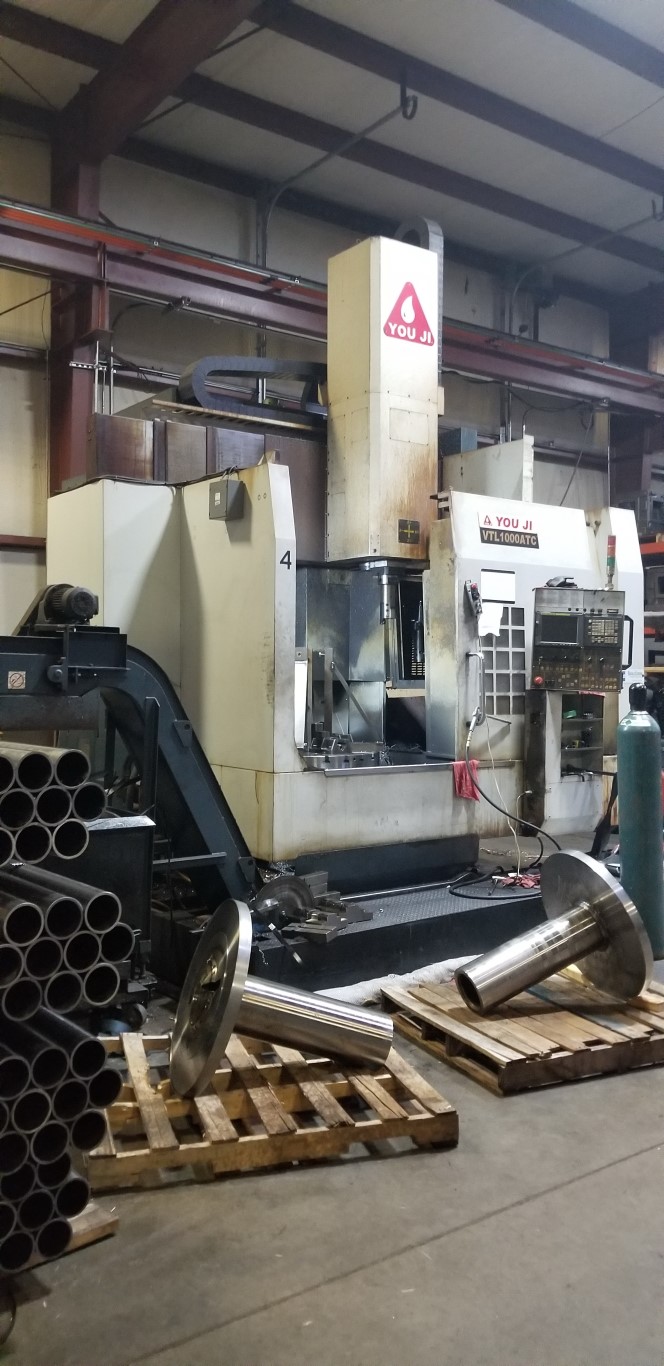

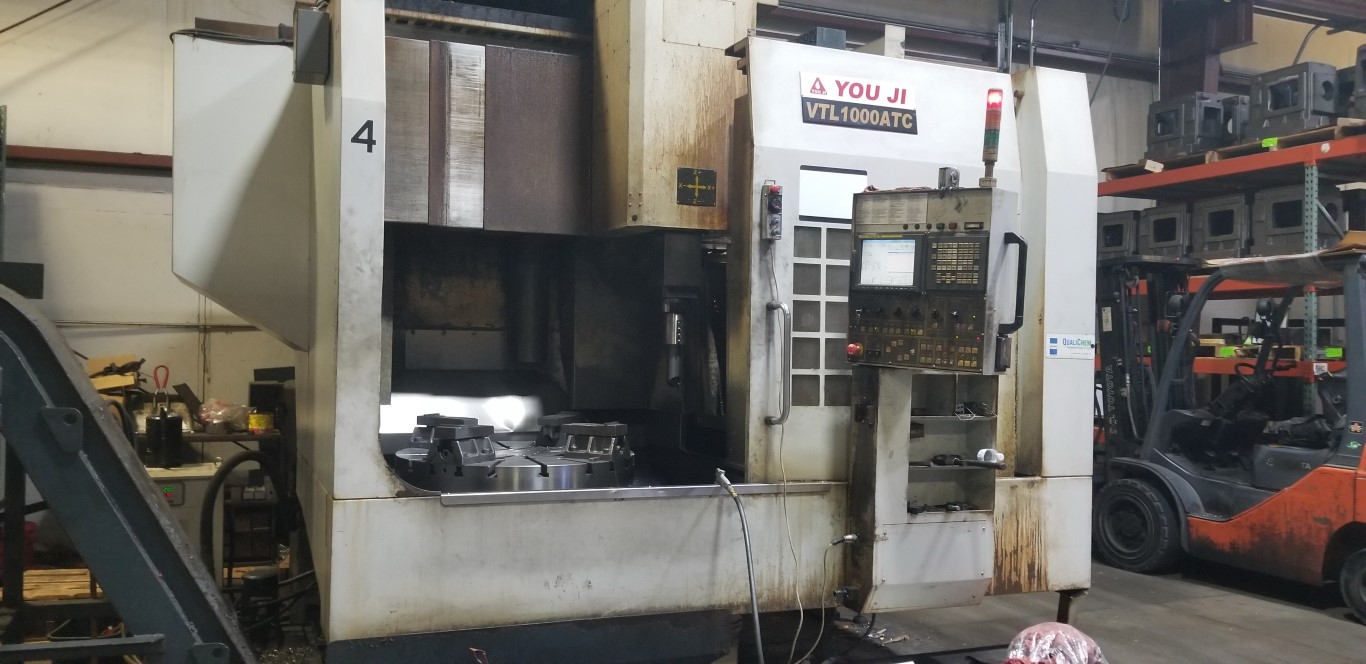

Reference #: 8910
Machine Type: Vertical Lathes
Year: 2009
Manufacturer: YOU JI
Model: VTL-1000ATC

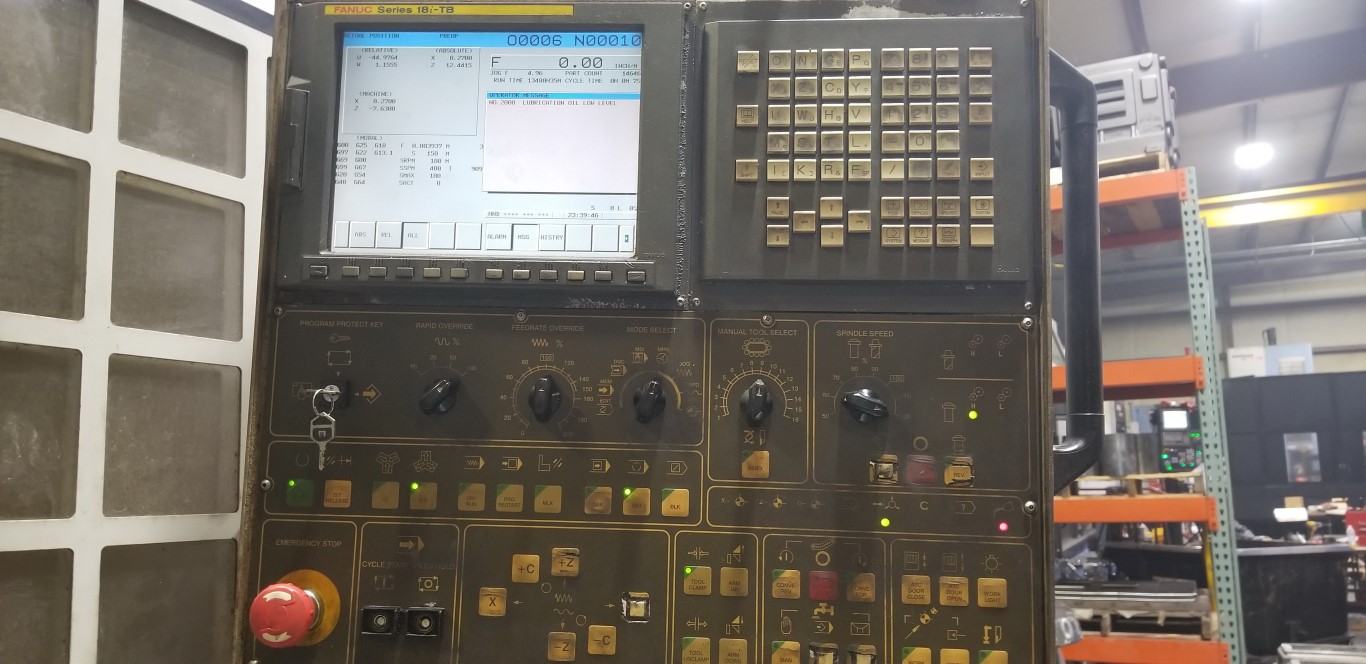

Control: Fanuc 18iTB
Condition: Used
Under Power: Yes
Code: B6200A
Capacity:

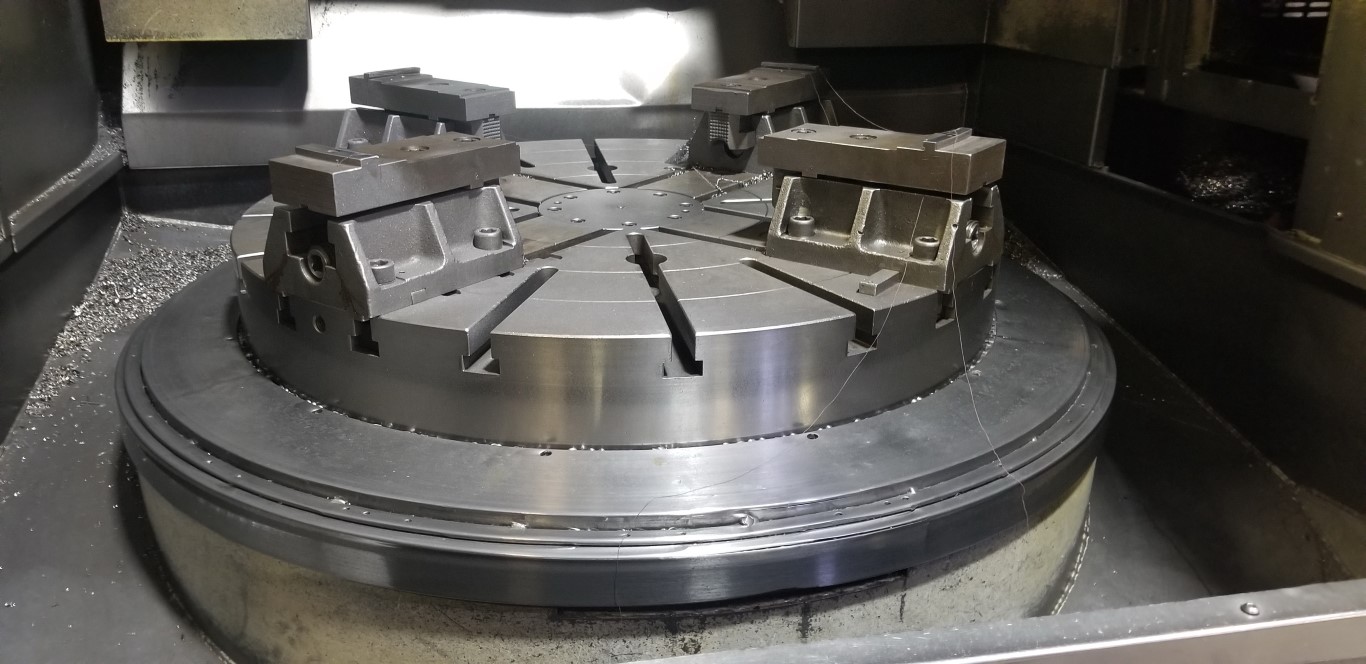

Table diameter: 39.3"
Max. swing: 53.1"
Max. cutting diameter: 43.3"
Max. cutting height: 35.4"
Max. Table Load: 8820 Lbs
Travel:
Horizontal travel of rail head (X-axis): -15.7", 28.3"
Vertical travel of ram (Z-axis): 31.49"
Vertical travel of crossrail: 19.6"
Spindle:
Table speed (Low): 1 - 160 rpm
Table speed (High): 160 - 600 rpm
Feed Rate:
Rapid traverse of rail head (X-axis): 472 IPM
Rapid traverse of ram (Z-axis): 393 IPM
Cutting feed rate: 0.393 - 78.7 IPR
Manual feeder rate: 0 - .236 ipm

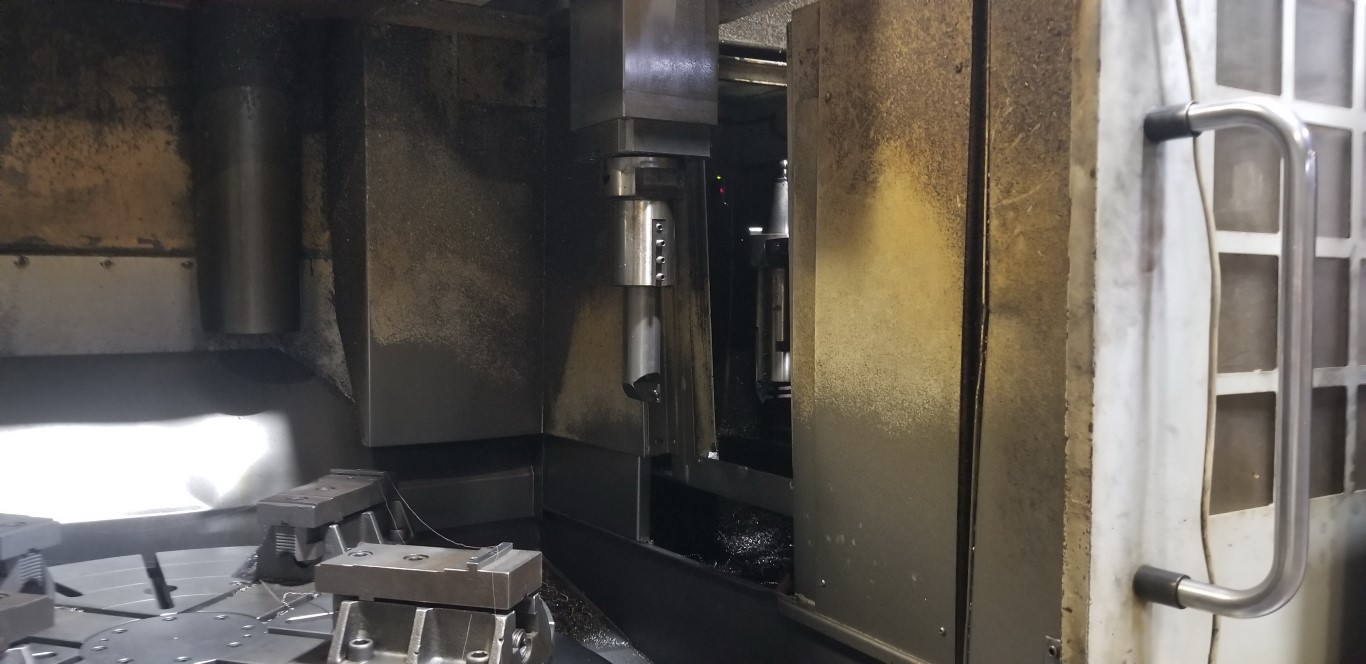

Tooling:
Turret (ATC) type: 12 Tools
Type of tool shank: 7/24 taper BT-50
Max. of tool size for automatic tool changing: 11.8"
Max. tool weight: 110 Lbs
Max. loading of ATC: 1323 Lbs
Tool change time(ATC): 40 Seconds
Motors:
Spindle drive motor: 49.6 / 60 HP
X-axis servo motor: 9.3 HP
Z-axis servo motor: 8 HP
Power Sources:
Power Capacity: 80 kVA
Floor Dimensions: 182" x 151"
Machine Weight: 68,355 Lbs
