Used Boring Mills For Sale - 2008 Toshiba BP-150 R22

Home »
Boring Mills »
Horizontal, Table Type NC, CNC »
2008 Toshiba BP-150 R22

2008 TOSHIBA BP-150 R22

Add to Your File

Brand: 2008 TOSHIBA BP-150 R22

Model: BP-150 R22

Serial No. : B5751A

Category: Boring Mills

Sub Category: Horizontal, Table Type NC, CNC

Condition: used

Weight: (KG)

Year Built: 2008

Status:

Price: $0.00

Description

Spindle:

Spindle Diameter: 5.9\"
Spindle Motor: 49.6 HP
Spindle Speeds: 2500 RPM
Spindle Taper: ISO 50 Taper
Spindle Gearbox: 2 Speed (Low/High)

Travels:

X-AxisTravel: 160\"
Y-Axis (Vertical) Travel: 100\"
Z-Axis (Spindle) Travel: 60\"
W-Axis (Saddle) Travel: 28\"

Speeds:

X/Y/Z Axis Rapids: 393 IPM

Table:

Table Size: 86.6\" x 70.8\"
Table Weight Capacity: 44,000 LBS
B-Axis Full Contouring: .001 (360,000) deg.

Electrics:

Power Requirement: 220V/60/80 KVA

Coolant:

Max. Pressure: 13 gal / min
Tank Capacity: 110 Gallons

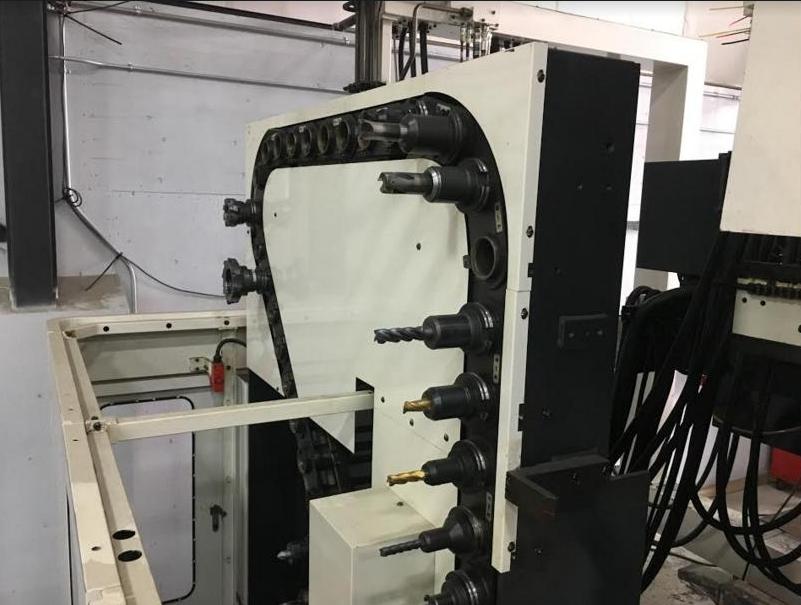

Tool Changer:

Capacity: 60 Tool Pods
Max. Tool Diameter: 4.9\" / 9.4\"
Max. Tool Length: 15.75\"
Max. Tool Weight: 55 Lbs

Dimensions:

Length x Width x Height: 25\ x 20\ x 19\"
Machine Weight: 96,000 Lbs

Equipped With:

TOSNUC 888
Glass Scales
Chiller Unit - Spindle Oil
Wireless Touch Probe - Renishaw RMP60
1200 Meters Part Program Storage
All Available Manuals
Auxiliary Mass Storage Card
B-Axis Table (360,000 Positons)
Chip Air Blow
Chip Conveyor
Coolant System
Coolant Thru Spindle 290 PSI
High Splash and Coolant Guarding
Pendant Operator Control Panel
Renishaw Auto Measurement System

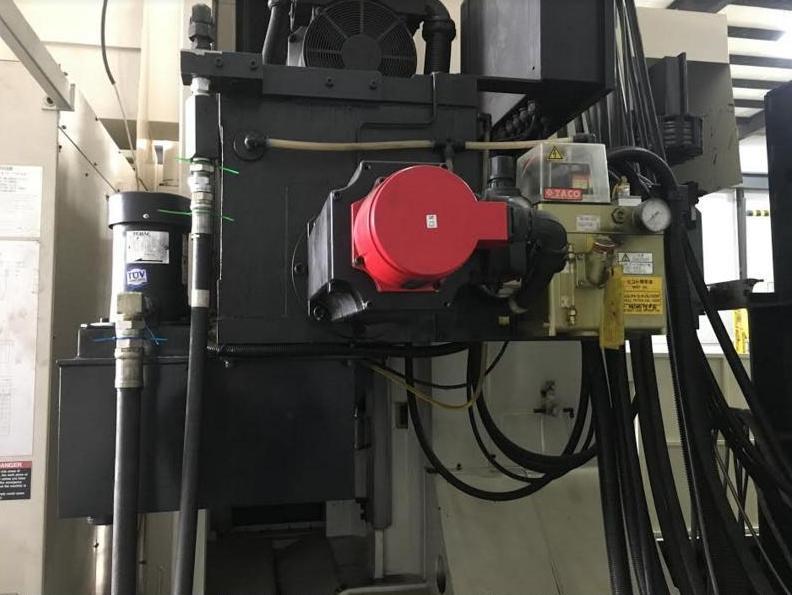

Spindle Chiller

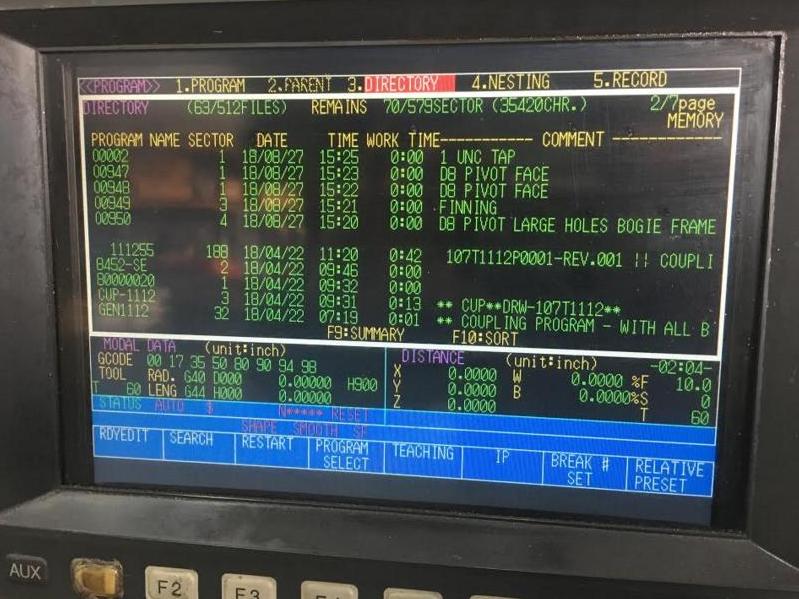

Tosnuc 888 CNC Control W / Color Graphics
X, Y, And Z Axis Scale
Part Program Storage 300 Meters
B Axis Rotary Scale

Comments:

Never Used In Production
Was Used For Maintenance Repair Work
Located in Alberta, Canada
