Description

Reference #:8110
Machine Type:CNC Lathes
Year:2008
Manufacturer:Okuma
Model:Multus B300W
Control:OSP-P200L
Condition:Used, Good
Under Power:Yes
Code:L2155

Specifications:

• Max Swing Over Saddle: 24.80"
• Max Machining Diameter: 17.72"
• Max Workig Distance Between Spindles: 35.43"
• Cross Travel (X-Axis): 22.83"
• Longitudinal Travel (Z-Axis): 36.80"
• Y-Axis Travel: 6.299"
• B-Axis Universal Head Swivel: 225 Degree
• W-Axis Sub-Spindle Slide: 33.46"
• C-Axis on Both Spindles: .001 Degree
• Automatic Tool Changer Capacity (ATC): 40 Total
• Spindle Bore: 3.1"
• Spindle Nose: A2-8
• Spindle Speed Range: 50 - 3800 RPM
• Opposed Spindle Range: 38 - 5000 RPM
• Spindle Horsepower Both Spindles: 20 HP Each
• Live Tooling Spindle Range: 90 - 10,000 RPM
• Live Tooling Horsepower: 15 HP
• Live Tooling Speed Range: 90 - 6,000 RPM
• Approximate Machine Dimensions: 166" x 90"
• Approximate Machine Height: 102"
• Approximate Machine Weight: 24,000 Lbs

Equipped With:

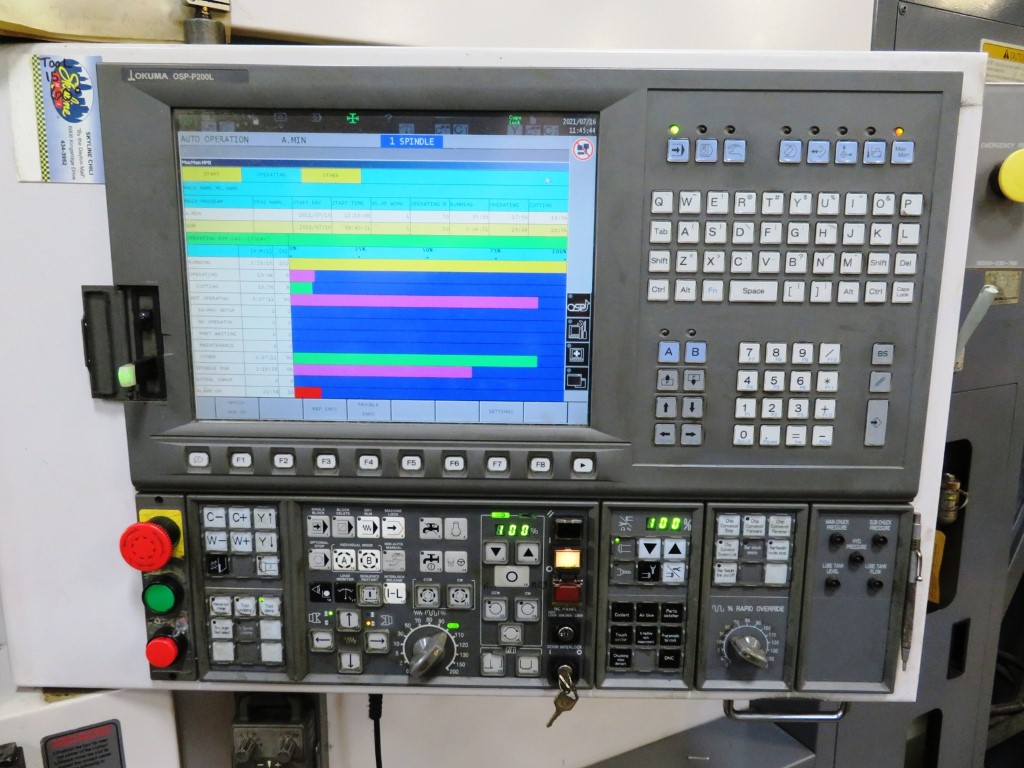

• Okuma OSP P200L Control
• Big Bore Option
• A2-8 nose (38-3800 RPM, 30/20HP)
• 10" 3-Jaw Chuck on Main
• 8" Chuck on Sub Spindle

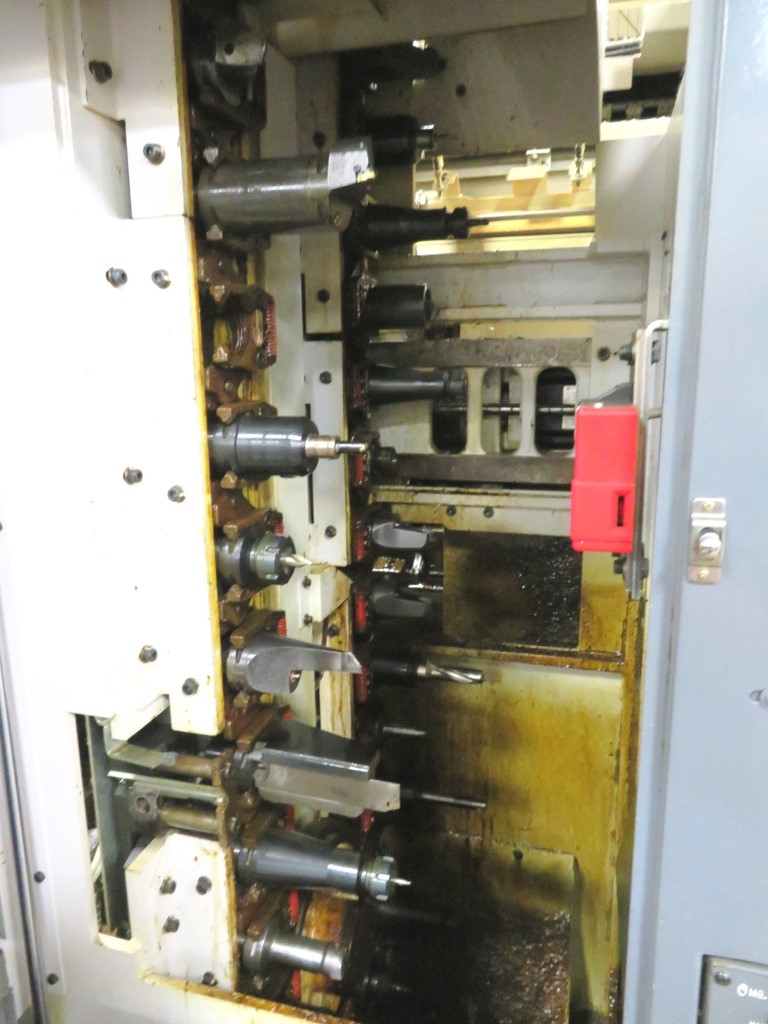

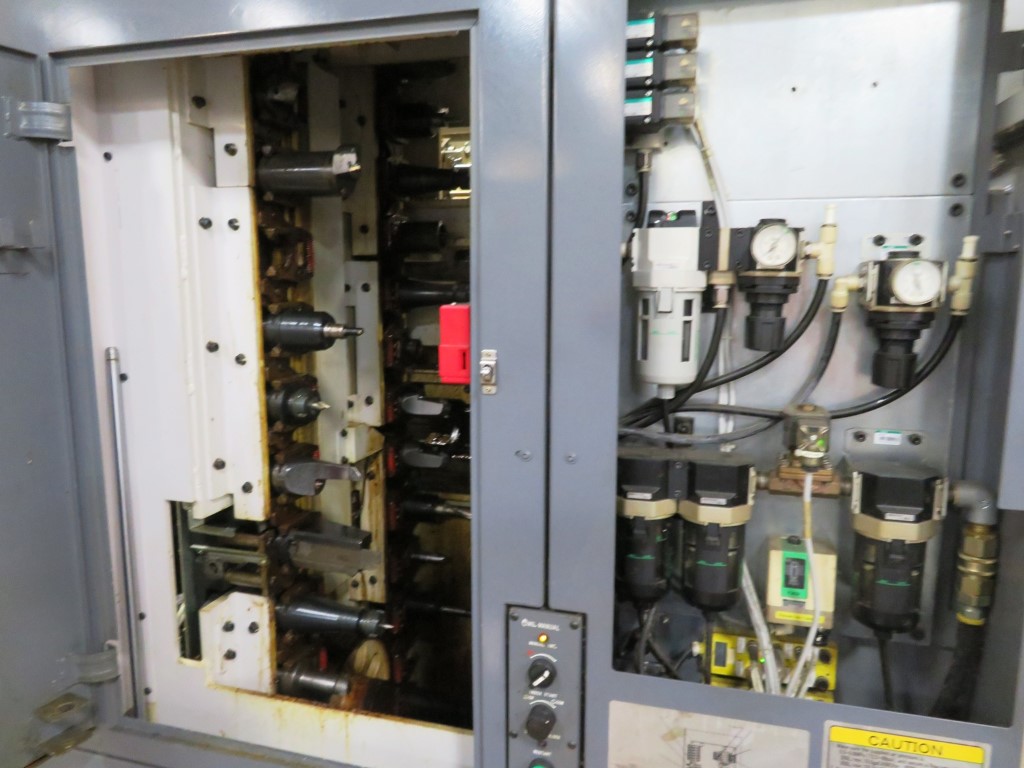

• 40 Station Automatic Tool Changer
• CAPTO C6 Spindle Taper
• Tool Presetter
• Parts Catcher
• Thru Spindle Coolant
• Hi-G Control
• Lathe Tool Indexing
• Plane Conversion
• Profile Generation
• Rigid Tapping
• Helical Cutting
• Bar Feed Interface
• Tool Management System

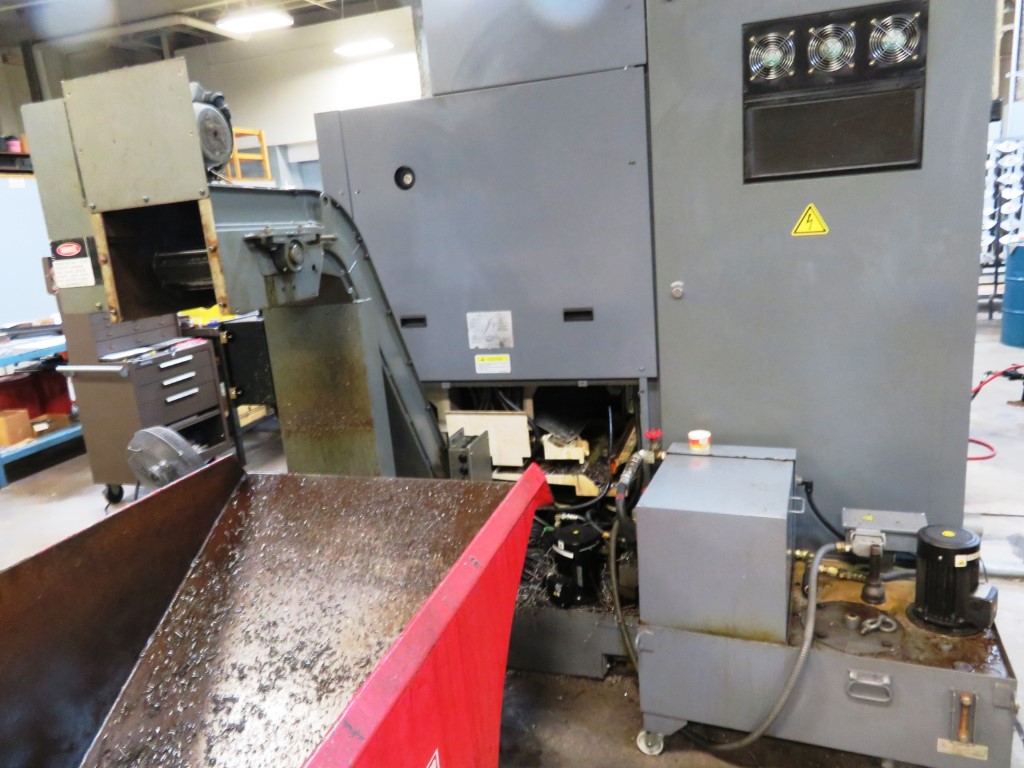

• Chip Conveyor & Coolant System
• Capto Tooling Package (approximately 25 pieces of Capto C6)

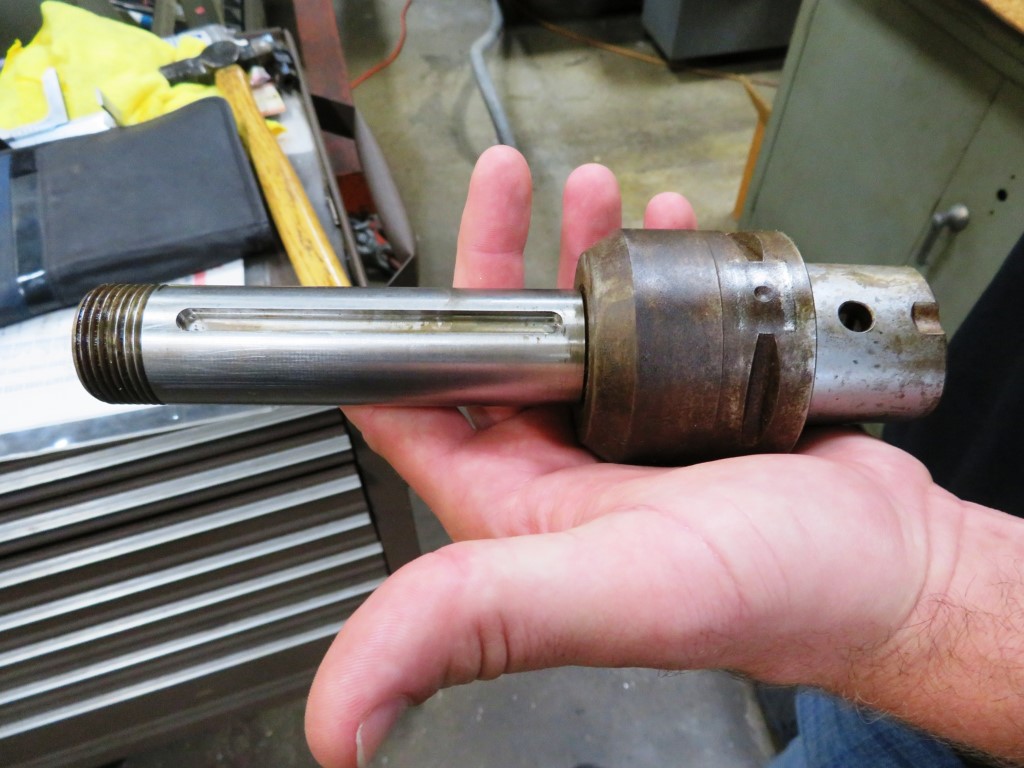

• Capto gear hob arbor and Renishaw probe system

Comments:

• Only 7,700 Cutting Hours
• Machine Appears to be in Excellent Condition
• Spindle RPM 10000 H!
• B-Axis .001 Degree Positioning
• Parts Catcher For Subspindle
• Auto Gauging, Renishaw
• Touchsetter A
• Thru Spindle Coolant Prep 70KG / CM2
• Barfeeder I/F Universal Type
• Spare M-Codes 4 Sets
• Rapid Traverse Override
• This machine has the capability to cut gears
