Description:

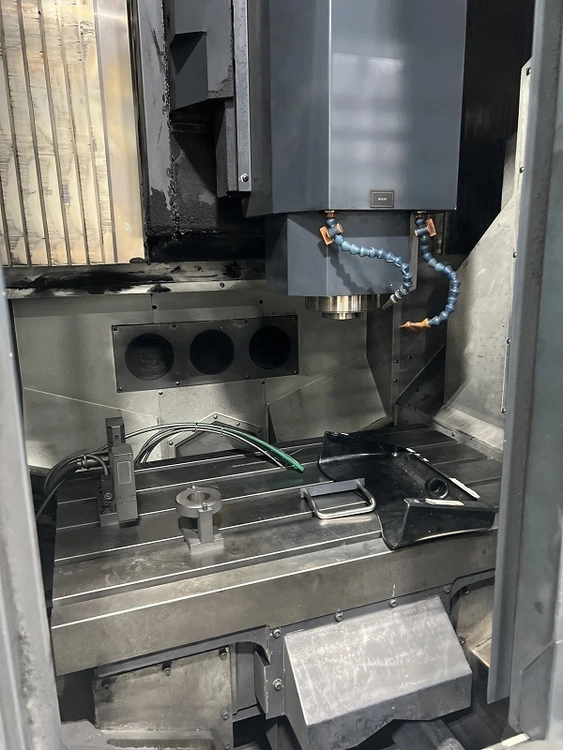

Makino Hard milling Machine with Graphite machining Package, makino Factory Maintenance program every 2000 hours
Overview:
Type: Vertical Machining Centers with Pallets
Manufacturer: MAKINO
Model: E33
Condition: Excellent
Year: 2008
Stock #: 8450
Status: For Sale
Equipped with:
Pro 5 control, The Makino Professional 5 Control provides the perfect blend of a Windows CE graphical user interface (GUI), touch-screen convenience, the networking and storage capability of a data center, and the proven stability of Fanuc 310i hardware. It provides a highly integrated, superior performance, embedded control system capable of fast execution of commands, high reliability, flexibility, integration capability and ease of operation.
Graphite machining package:
Auto lube
Fully enclosed
Rigid tap
Helical interpolation
Transformer
Spindle chiller
Linear scale feedback
Recent new ballscrews
New: 2008
NOTE: This machine was holding 0.0003 in to 0.0005 in upon removal from service.
Note: Machine has always been under contract with Makino to do (Preventative Maintenance) and has always been Makino (Only) maintained.
Every 2,000 hours, all covers are removed and the machine is cleaned. All filters are replaced, all oil & fluids drained and replaced with new. (Makino actually has a kit for this)
Specifications:
X 25.6"
Y 17.7"
Z 17.7"
Power 18.5 hp
RPM 40,000 RPM
# ATC 30
Taper HSK E32
Table-W 19.7"
Table-L 35.5"
# Axis 3
Control CNC (Fanuc Makino PRO 5)
Dimensions 90 in x 99 in x 119 in high
Weight 16,090 lbs.
Model: E33
Travels: 25.6 in x 17.7 in x 17.7 in
Table size: 35.5 in x 19.7 in
Spindle speeds: 400-40,000 rpm
Spindle taper: HSK E32
Spindle HP: 11.25
ATC: 30
Rapid feed rates: 1,574 ipm
Cutting feed rates: 1,574 ipm
Max. work piece weight: 1,102 lbs.
Dimensions: 90 in wide x 99 in long x 119 in high x 16,090 lbs.
