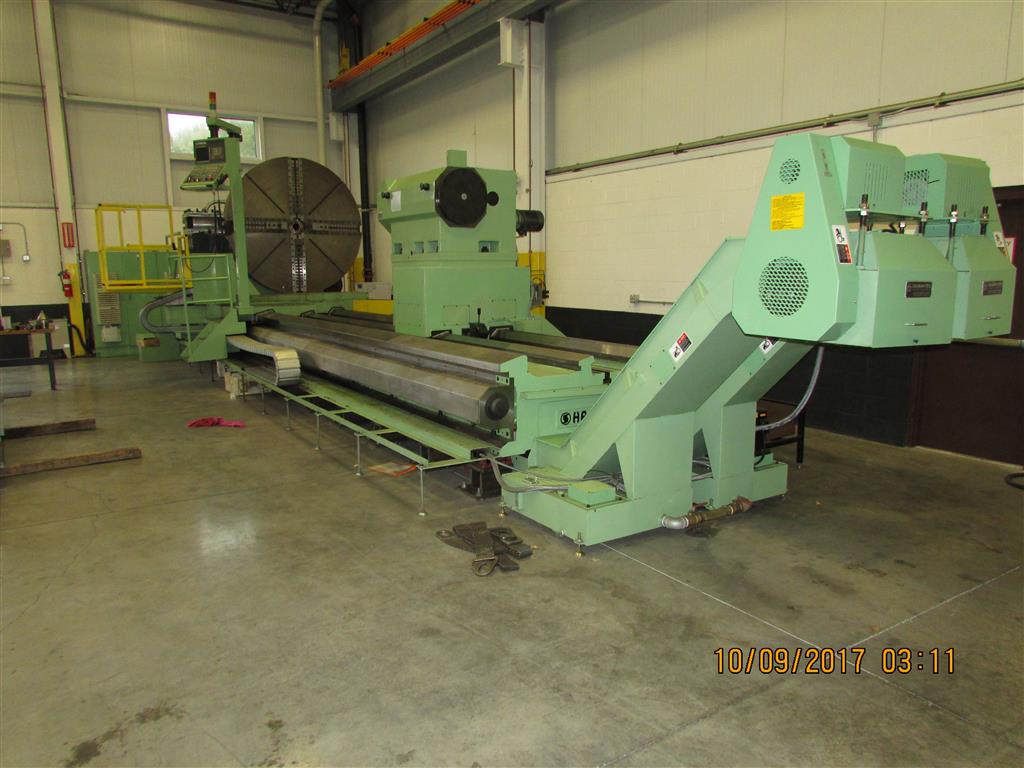

2008 HANKOOK DYNATURN 2600 X 6000, MACHINE # 7235

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Dynaturn 2600 x 6000
Lathes and Turning Centers CNC
CNC Lathe (Flat Bed)
used
(LB)
2004
$0.00

Description

Reference #:7235
Machine Type:CNC Lathes
Year:2008
Manufacturer:Hankook
Model:Dynaturn 2600 x 6000
Control:Fanuc 32A
Condition:Excellent
Under Power:Yes
Code:L2150

Specifications:

  • Max. Turning Diameter: 2,600 mm
  • Max. Swing Over Bed: 2,600 mm
  • Max. Swing Over Slide: 2,200 mm
  • Max. Cutting Length: 6,000 mm
  • Max. Distance Between Centers: 6,000 mm
  • Number of Spindle Speeds: Automatic 4 Step
  • Spindle Speed Range: 1 - 250 rpm
  • Tailstock Quill Diameter: 400 mm (15.75")
  • Overall Length: 13,500 mm (522")
  • Overall Depth: 5,165 mm (204")
  • Overall Height: 3,570 mm (141")
  • Voltage: 440 Volts / 60 Hertz

Equipped With:

  • Fanuc 32A Control

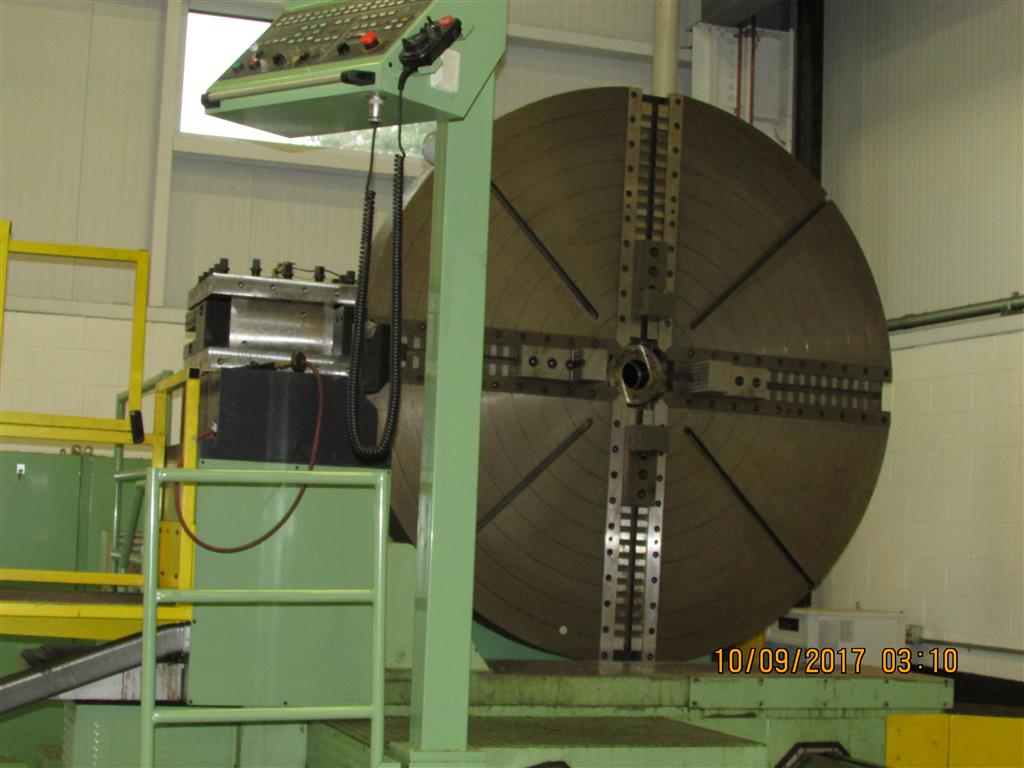

  • 90" 4 Jaw Independent Manual Chuck
  • (1) Roller Jaw Steady Rest 150-500mm
  • (1) Roller Jaw Steady Rest 500-800mm

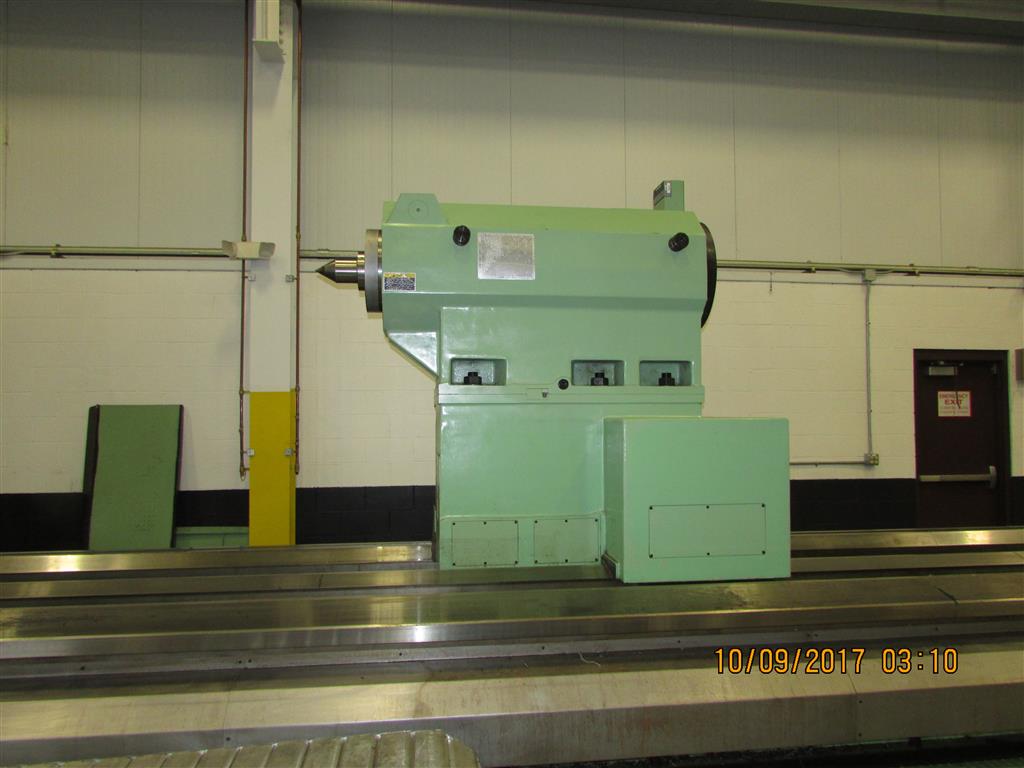

  • Tail Stock With Load Meter, With 30 Ton Capacity
  • Chip Conveyor, With Chip Bin.
  • Head Stock Centers 60 Degree And 75 Degrees
  • Tail Stock Centers 60 Degree And 75 Degrees
  • (1) Turning Holder
  • (3) Id Boring Holders, 63 Mm Capacity
  • (2) Boring Bar Sleeves
  • 640 M Program Storage
  • 200 Registered Programs
  • Extended Programing Editing
  • Hydraulic H-4 Turret Tool Post. (4 Position)
  • Rotary Tail Stock Center
  • Work Lamp and Patrol Lamp
  • Operating and Maintenance Manuals
  • Transformer 220 Volt/60hz
  • Number of Spindle Speeds Automatic 4-Step

Comments:

  • This Machine is in Good Operating Condition and is Under Power
  • Can be Inspected Upon Request
  • Very Low Hours! Like New
  • Cost New 1/1/2009 Was $1,475,000.00 From Hankook America, One Owner
  • Price incudes loading on purchasers truck
