Haas Heavy duty VF-5 #50 Taper, with 4 xis drive, Side mount 30 ATC, Remote MPG with screen, 7,500 PRM, 30 H.P., P Cool, Chip Auger, Internal transformer
Overview:
Type: Vertical Machining Centers
Manufacturer: HAAS
Model: VF-5/50
Condition: Good
Year: 2008
Stock #: 8388
Status: For Sale

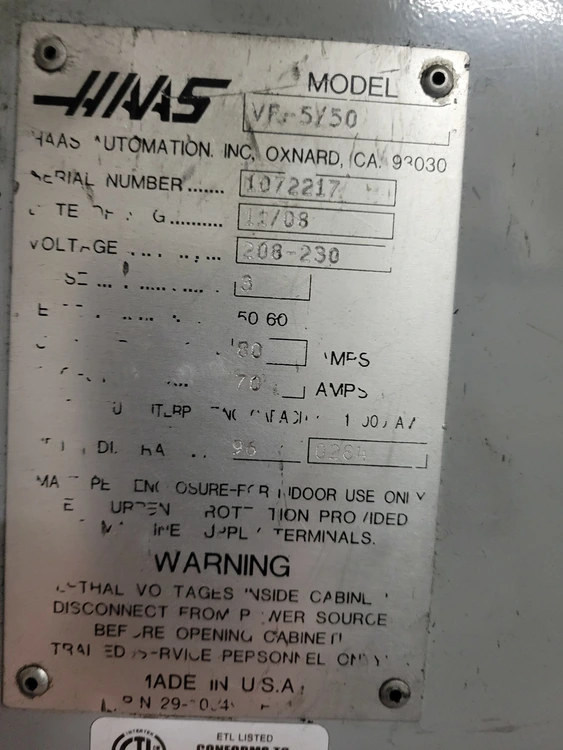

Serial #: 1072217
Equipped With:

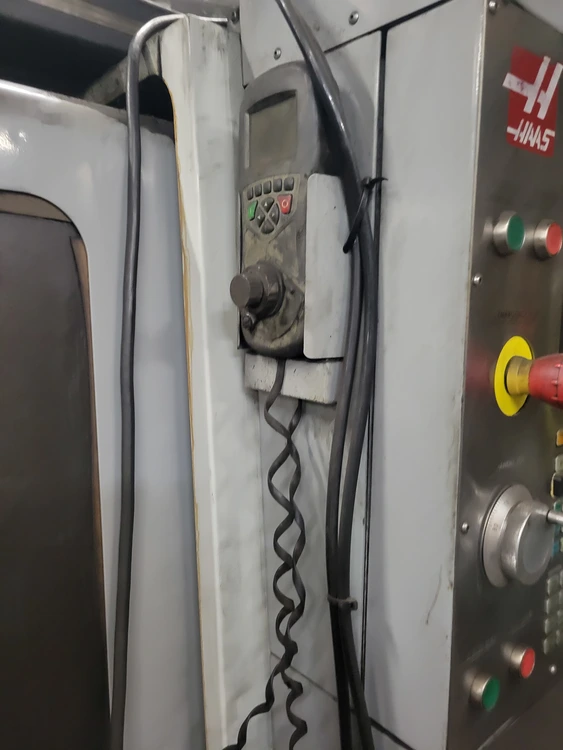

4th axis drive, #50 Taper, 30 H.P. spindle, 7,500 RPM, gearbox, Chip conveyor, Internal transformer, coolant flush, MPA with screen, rigid tapping, P-cool and more
Specifications:
X 50"
Y 26"
Z 25"

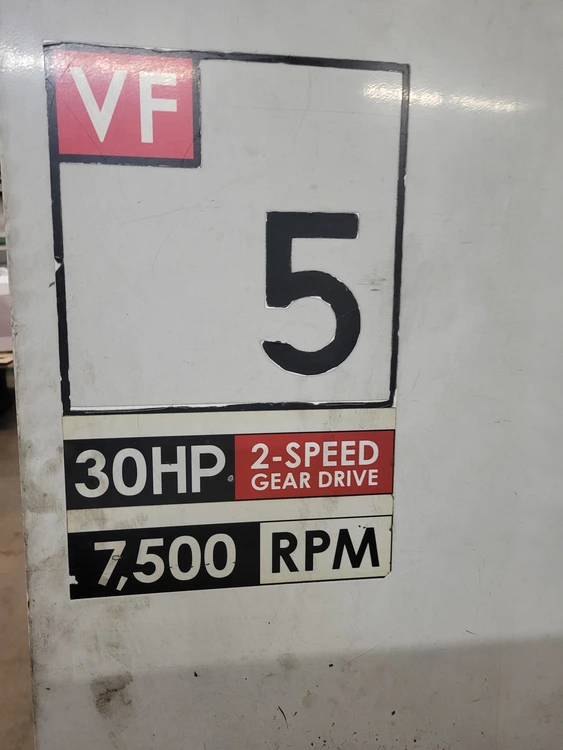

Power 30 hp
RPM 7,500 RPM
# ATC 30
Taper CT 50
Table-W 23"
Table-L 62"
# Axis 4

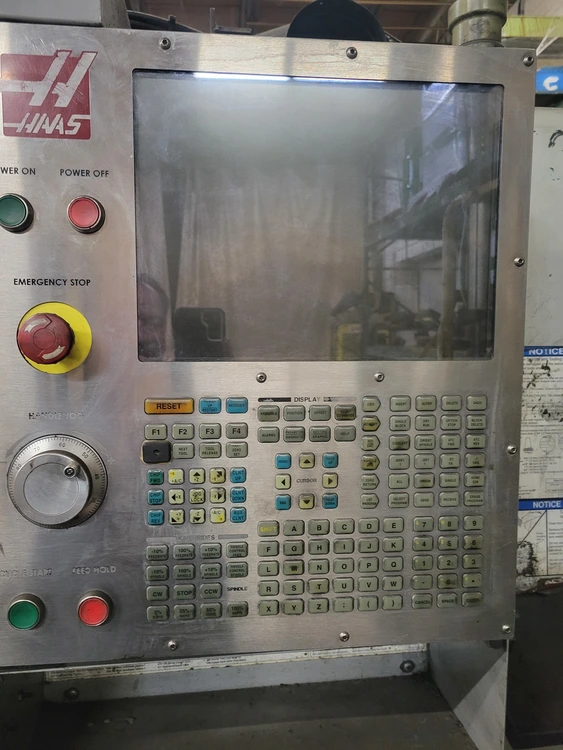

Control CNC (Haas)
TABLE WORKING SURFACE 62 in x 23 in
TABLE LOAD CAPACITY 4,000 LBS.
LONGITUDINAL TRAVEL (X-AXIS) 50 in
CROSS TRAVEL (Y-AXIS) 26 in
VERTICAL TRAVEL (Z-AXIS) 25 in
RAPID TRAVERSE RATE, ALL AXES 1200 IPM

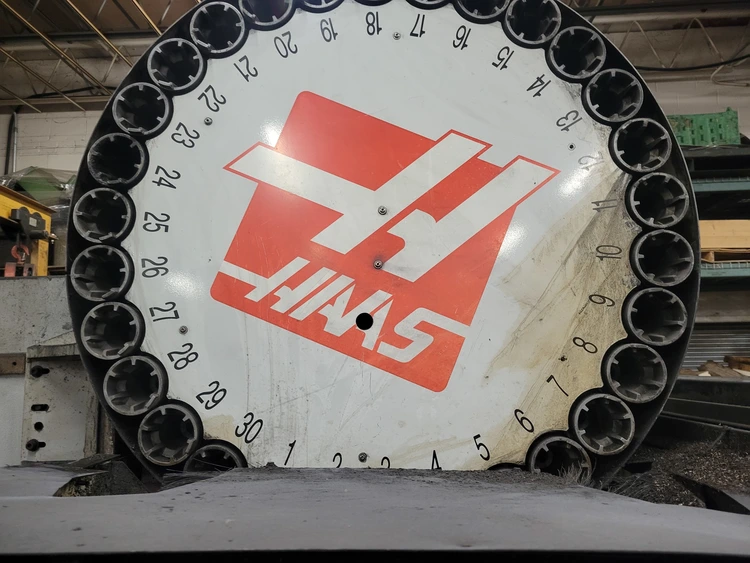

TOOL STORAGE CAPACITY 30 Side Mount
SPINDLE HORSEPOWER 30 HP
SPINDLE SPEEDS RANGE 7500 RPM (2 spd Gear)
SPINDLE TAPER CAT-50
APPROXIMATE WEIGHT - NET 15,150 LBS.
POWER: 220V. / 3 Phase
