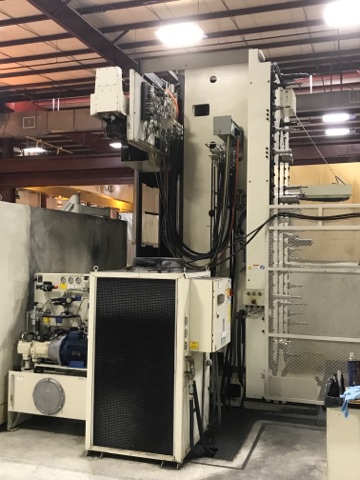

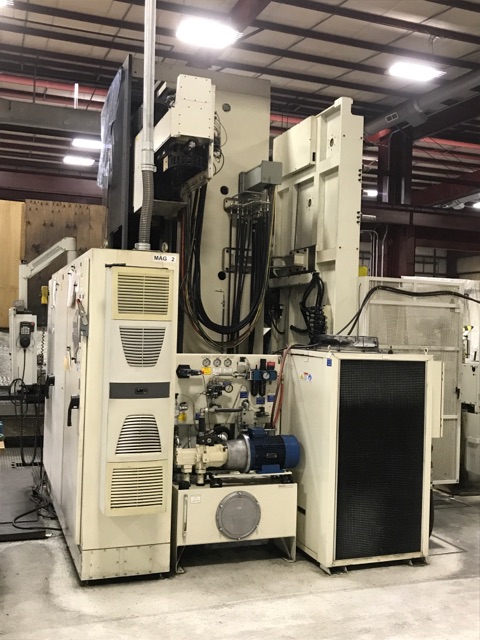

2008 GIDDINGS & LEWIS RT-1600

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


RT-1600
B5751A
Boring Mills
Machining Centers Vertical Horizontal CNC
used
(KG)
2008
$0.00

Description

'

Spindle:

  • Spindle Diameter: 6.1\"
  • Spindle Motor: 74 / 50 HP
  • Spindle Speeds: (4) 1 to 3500 RPM
  • Range 1: 1 - 185 RPM
  • Range 2: 174 - 463 RPM
  • Range 3: 446 - 1190 RPM
  • Range 4: 1116 - 3500 RPM
  • Constant Torque (S6 - 40 Rating): 5532 Ft-Lbs
  • Constant Torque (Continuous Rating): 3750 Ft-Lbs
  • Spindle Taper: ANSI B5.50 #50

Travels:

  • X-AxisTravel: 141.7\"
  • Y-Axis Total (Vertical) Travel: 102.4\"
  • Y-Axis Travel Above Table: 97\"
  • Z-Axis (Spindle) Travel: 49.2\"
  • W-Axis (Saddle) Travel: 59\"

Rapids:

  • Rapid Traverse Rate: 709 IPM

Table:

  • Built in Rotary Table: 63\" x 78.7\"
  • Table Rotation (in .,001 Degree Increments): 360,000
  • Rotary B Axis Feed: 6 PRM
  • Max. Table Weight Capacity: 55,100 Lbs

Tool Changer:

  • Pockets: 120 Positions
  • Max Tool Weight: 110 Lbs
  • Max Magazine Capacity: 6615 Lbs
  • Max Tool Diameter (all pockets full): 4.9\"
  • Max Tool Diameter (Adjacent Pockets empty): 9.8\"
  • Max Tool Diameter: 11\"
  • Max Tool Length: 28.5\"
  • Max Tool Movement: 81 Ft-Lbs
  • Tool to Tool Time: 15 Seconds

Coolant:

  • Production Coolant System (Above Ground): 60 Hz
  • Coolant Tank Capacity: 251 Gallons
  • Coolant Thru Spindle: 1015 PSI
  • Coolant Thru Nozzles: 160 PSI

Equipped With:

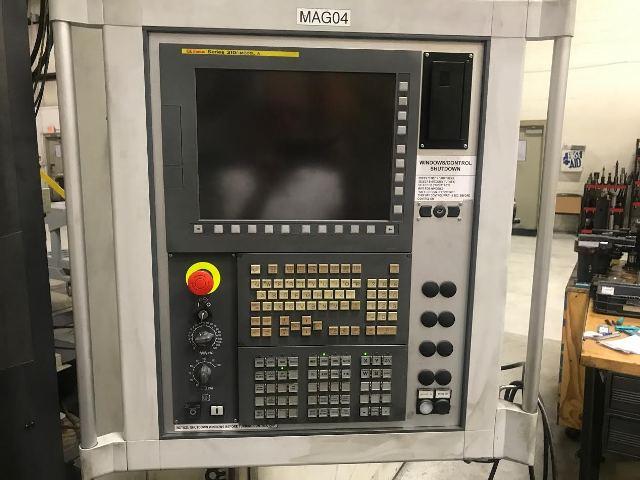

  • GE Fanuc 310i High Performance CNC with Machine Control Panel
  • Renishaw RMP60 Probe with Radio Tranmission
  • 120 Position Automatic Tool Changer
  • 3.5\" Floppy Disk Drive
  • Rigid Tapping
  • High Level Programming Capability
  • Remote MPG
  • Built in Rotary Table: 63\" x 78.7\"
  • All Hardened Ways
  • Axis Feedback: Coded Linear Scale Feedback: X, Y & W Axes
  • Servo Motor Encoded Z Axis
  • Direct Feedback Encoder B-Axis
  • '
