2008 DOOSAN PUMA 300LC, 2 AXIS UNIVERSAL CNC LATHE # 8246

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Puma 300LC
Lathes and Turning Centers CNC
Universal
used
(LB)
2008
$0.00

Description

Reference #: 8246
Machine Type: CNC Lathes
Year: 2008
Manufacturer: Doosan
Model: Puma 300LC
Control: Fanuc 21iTC
Condition: Very Good
Under Power: Yes
Code: L2150
Specifications:
Chuck Size: 12"
Spindle motor: 35 hp
Spindle speed: 0 - 2,800 rpm
Spindle nose: A2-11
Draw tube I.D.: 4.05"
Maximum turning diameter: 15.7"
Maximum turning length: 52.8"
Max spindle torque: 577 ft-lbs
Z-axis Feed thrust (cont / inter): 2,796 / 4,474 lbs
Boring bar diameter: 1.5"
Turret index time: .15 sec.
Tailstock quil stroke (programmable): 3.9"
Swing: 23.2"
Swing Over Cross Slide: 17.7"

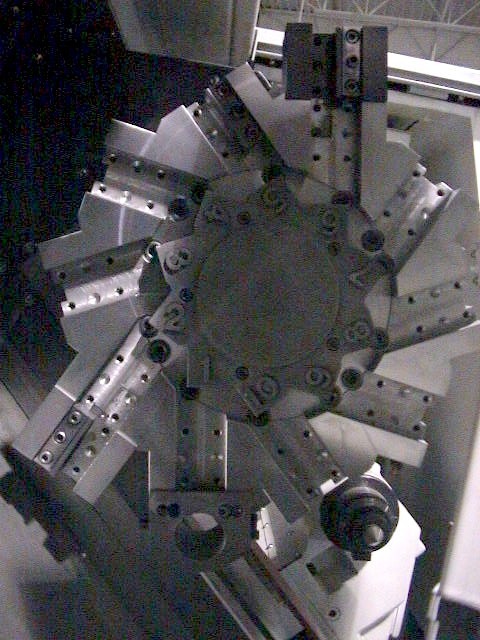

Turret:
X-Axis Travel: 11.1"
Z-Axis Travel: 52.4"
Number of Tools: 12
Tool Selection: Bi-directional
Tailstock:
Quill Diamter: 3.9"
Quill Travel: 4.7"
Taper: NT #4
Dimensions:
Length (with chip conveyor): 150" (168")
Width: 77"
Height: 80"
Weight: 15,000 Lbs
Speeds:
Rapid Traverse (X / Z): 787/945 IPM
Machine:
Electrics: 220/3/60, 45kVA
Equipped With:

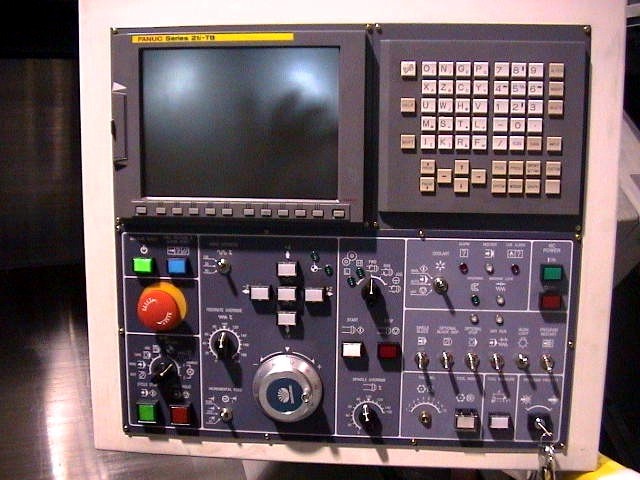

Fanuc 21iTC Control
Value Chuck
Coolant System
Coolant Enclosure

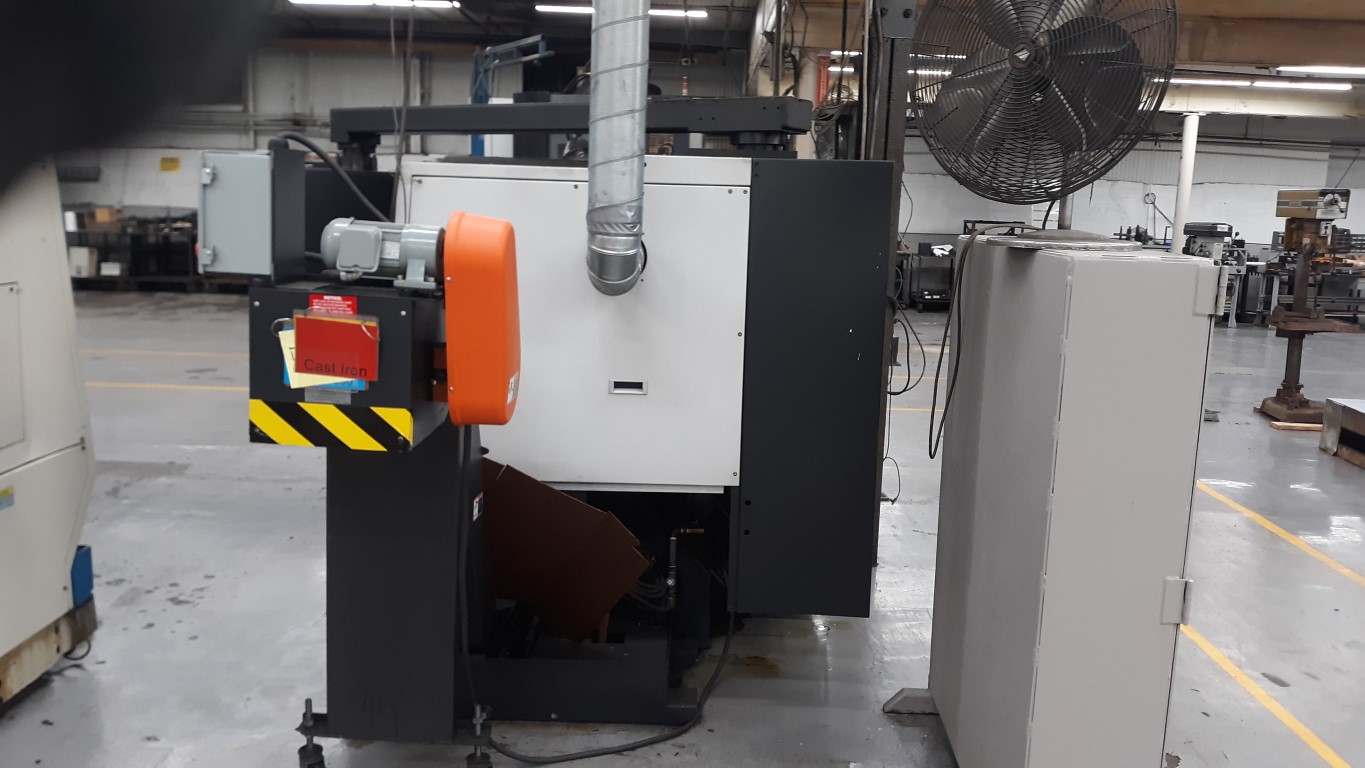

Chip Conveyor
Auto Tool Presetter
Box Way Construction

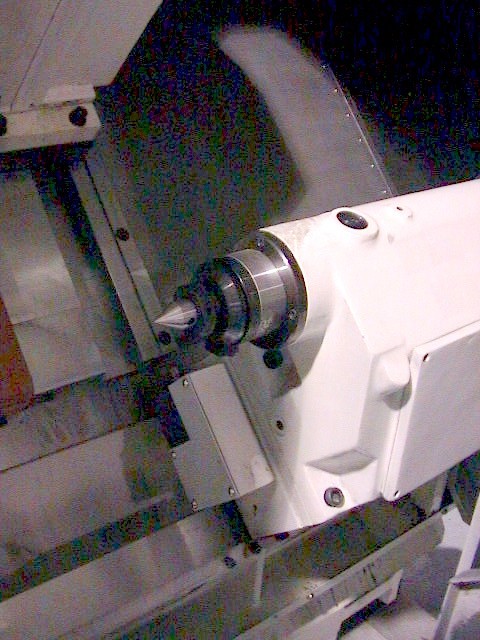

Hydraulic Programmable Tailstock & Quill
Geared Head
Comments:
1470 Hours spindle hours
They are keeping the special valve chuck.
