2007 MAZAK QUICK TURN NEXUS 450-LL-M-1000U CNC LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


QUICK TURN NEXUS 450-II M-1000U
199668
Lathes and Turning Centers CNC
Multi Axis Turning Center
used
20300 (LB)
2007
$0.00

Feature Video

Description

Overview:

Type:  CNC Lathes

Manufacturer:  MAZAK

Model:  QUICK TURN NEXUS 450-II M-1000U

Condition:  Used - Excellent

Year:  2007

Stock #:  LHL

Status:  For Sale

Serial #:  199668

Description:

2007 MAZAK QUICK TURN NEXUS 450-ll-M-1000U CNC LATHE

The Quick Turn 450M features a machine design that minimizes vibration during heavy-duty turning to create exceptional surface finishes and maintain a long tool life. With no transmission belts, pulleys, or gears, its integral spindle/motor delivers more high-efficiency power to the tooltip for cutting purposes.

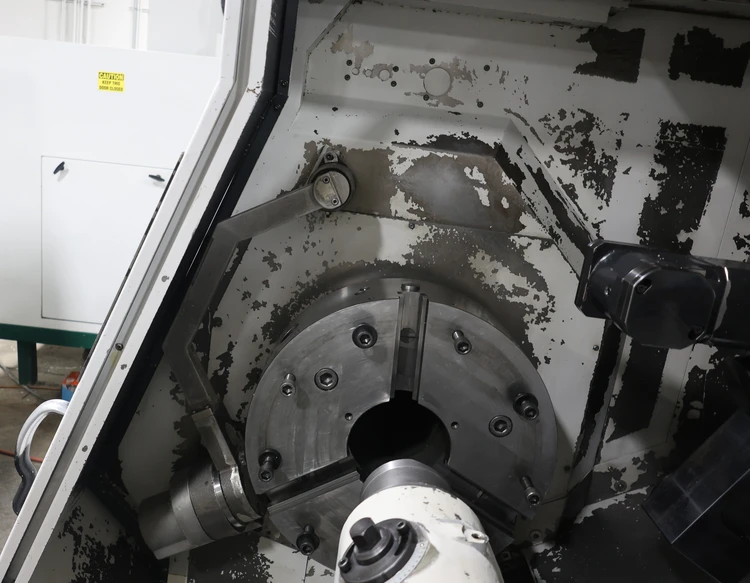

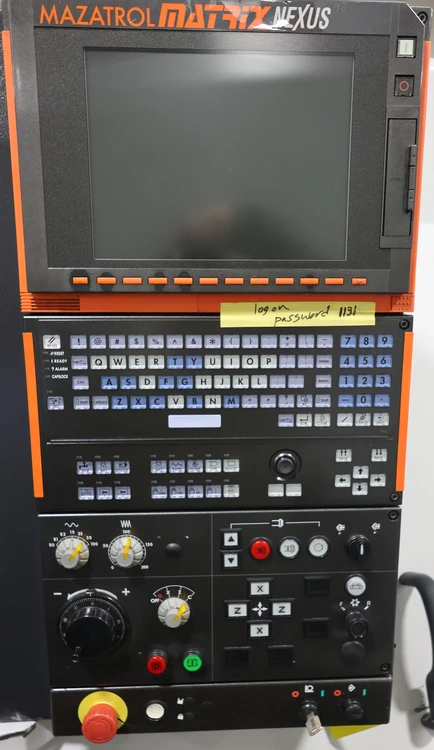

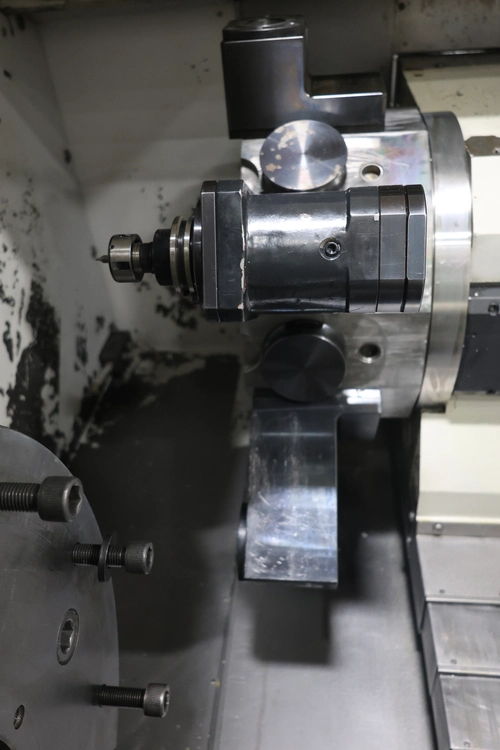

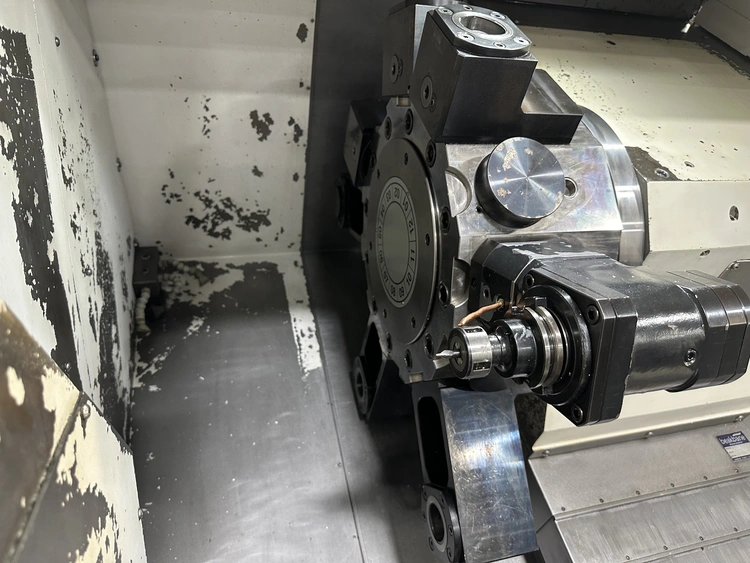

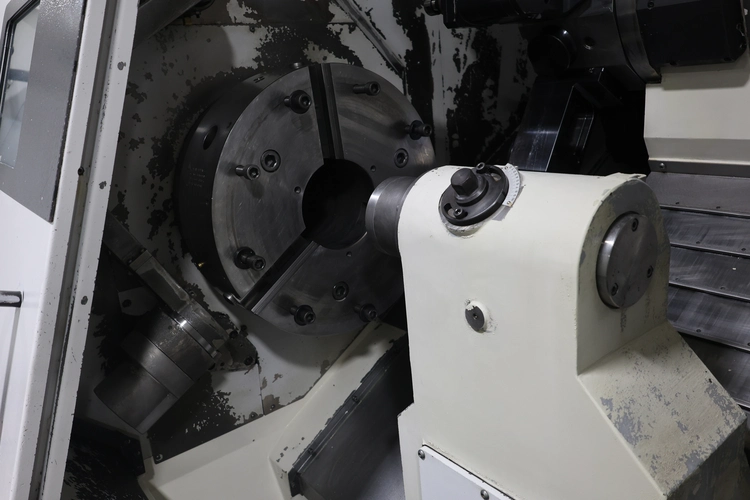

This CNC lathe is compatible with Windows XP. It also includes a six-static tool holders, one live tool, manuals, and a new 21" Samchully hydraulic chuck with a 6.5" bore with factory jaws.


Available for inspection under power.

Financing available.


Max Swing: 33.1"

Max. Machining Diameter: 23"

Max. Bar Capacity: 6.5"

Max. Machining Length: 40.3"

Chuck size: 21 in

Max. Spindle Speed: 2,000RPM

Motor Output: 50/40 HP

No. of Tools: 12

X-axis Travel: 12.13"

Z-axis Travel: 42.13 in

Spindle Nose: A2-15


To the best of our knowledge, all details listed are deemed correct. It is the buyers responsibility to confirm ALL details prior to purchase.


Specifications:

Swing 33.1" 840.74 mm

Machining Length 40.3" 1,023.6 mm

Chuck Size 21" 533.4 mm

Bar Capacity 6.5" 165.1 mm

Power 50 hp 37.3 kW

Max RPM 2,000 RPM 2,000 RPM

Tailstock Yes Yes

Live Tooling Yes Yes

Control CNC CNC

Weight 20,300 20,300
