2007 HNK NT-16/20 63/78 CNC VERTICAL BORING MILL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


NT-16/20 63/78 CNC Vertical Boring Mill
B6200A
Boring Mills
Vertical NC, CNC
used
(KG)
2007
$0.00

Description

Capacity:

  • Table Diameter: 62.99\"
  • Maximum Swing: 78.74\"
  • Maximum Height Under Rail: 62.99\"
  • Table Load Capacity: 22,046 Lbs

Spindle:

  • Speeds: 1 - 250 RPM
  • Motor: 60 HP

Ram:

  • Vertical Travel (Z-Axis): 35.4\"
  • Ram Cross Section: 7.9\" x 7.9\"
  • Horizontal Tam Travel (X-Axis): -7.87\" / 74.8\"

Raapids:

  • X-Axis Feed Rate: 472.4 IPM
  • Z-Axis Feed Rate: 393.7 IPM
  • Cutting Feeed Rate (Max): 118 IPM

Tool Changer:

  • Number Of Positions: 12 Tools

Dimensions:

  • Floor Space (W x D): 276\" x 178\"
  • Height: 242\"
  • Weight: 57,200 Lbs

Equiped With:

  • Fanuc 18iTB Control
  • 62.99\" Face Plate Chuck with (4) Jaws

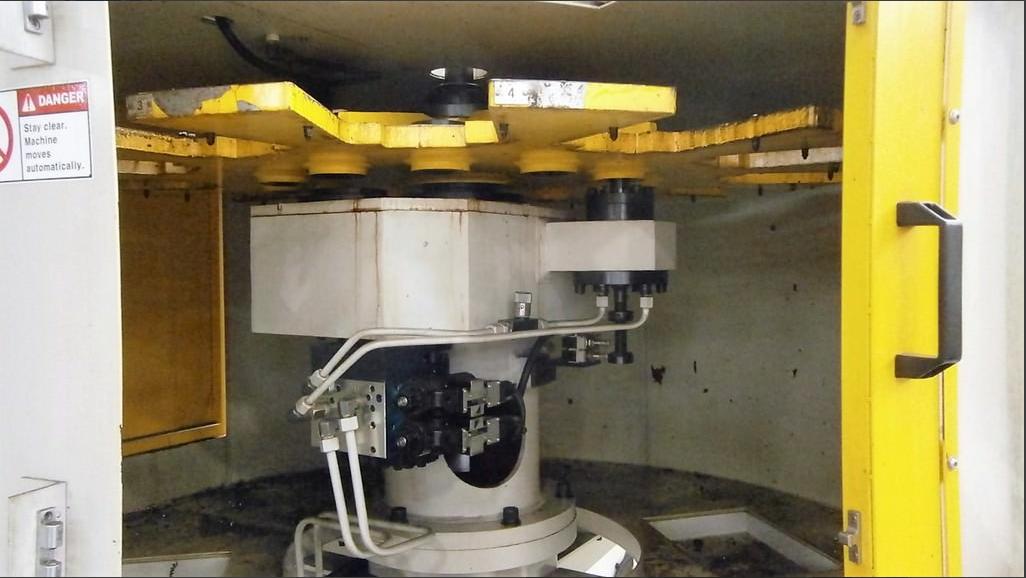

  • 12 Station Automatic Tool Changer
  • Coolant System
  • Full Chip and Splash Enclosure

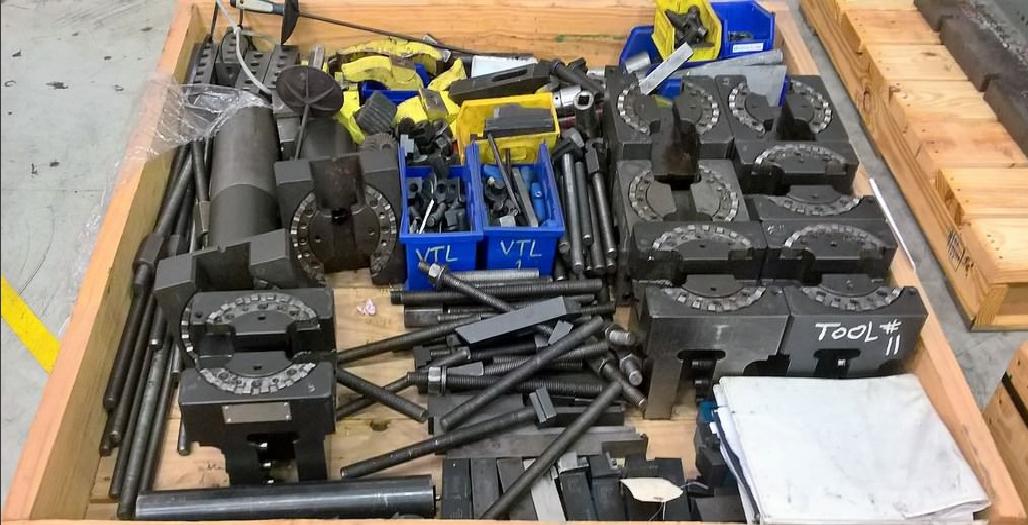

  • Misc Tooling
  • Chip Conveyor
  • 60 HP Main Motor
