2007 HAAS SL30, MACHINE # 8077
SL30
Lathes and Turning Centers CNC
Slant Bed Turning center
used
16000 (LB)
2007
$0.00

Feature Video

Description

Reference #:8077
Machine Type:CNC Lathes
Year:2007
Manufacturer:Haas
Model:SL30

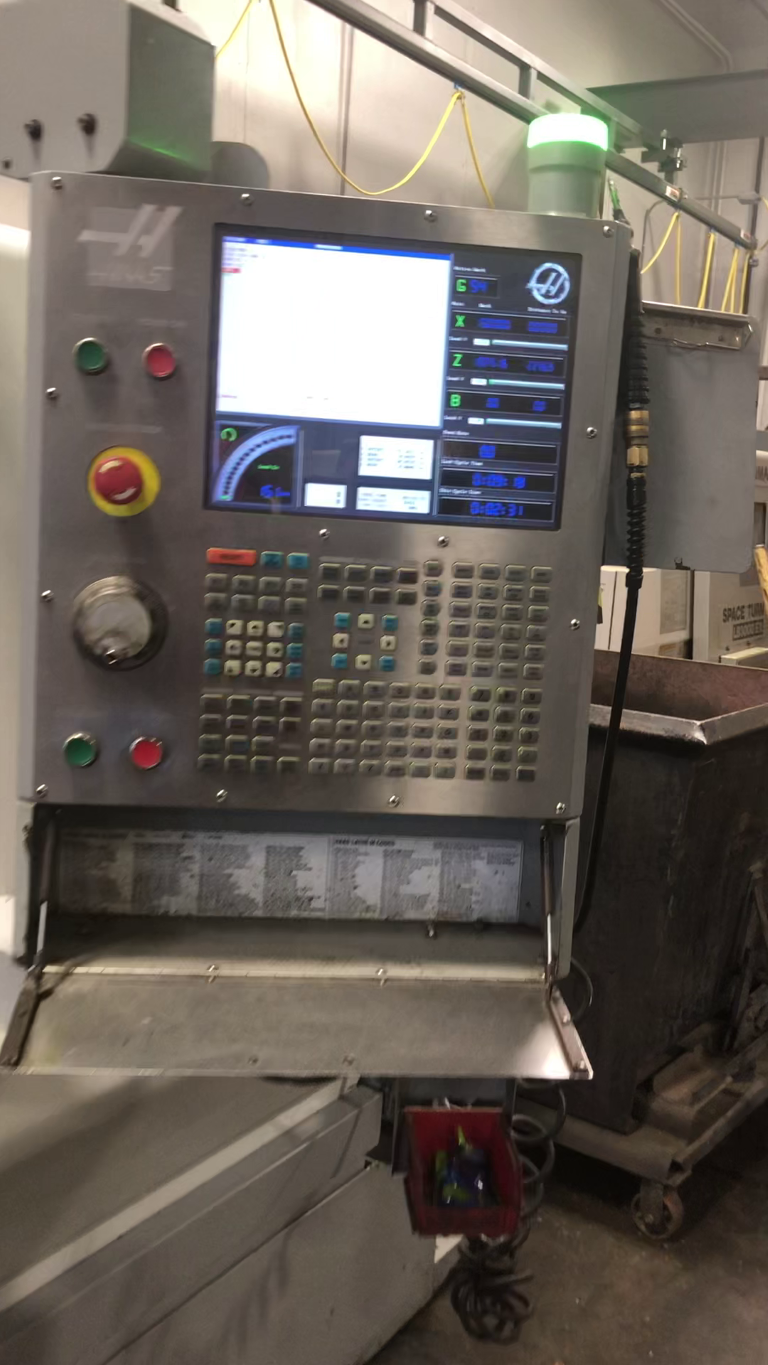

Control:Haas 32 BIT
Condition:Used
Code:L2150

Capacity:

  • Chuck Size: 12"
  • Swing Over Bed Ways: 30.0"
  • Swing Over Cross Slide: 14.5"
  • Max. Turning Diameter: 16.0"
  • Max. Turning Length: 34.0"
  • Distance Between Centers: 39.0"

Spindle:

  • Speeds Range: 25 - 3,400 RPM
  • Bore: 3.5"
  • Bar Capacity (Max): 3.0"
  • Nose: A2-6
  • Main Motor: 30 hp

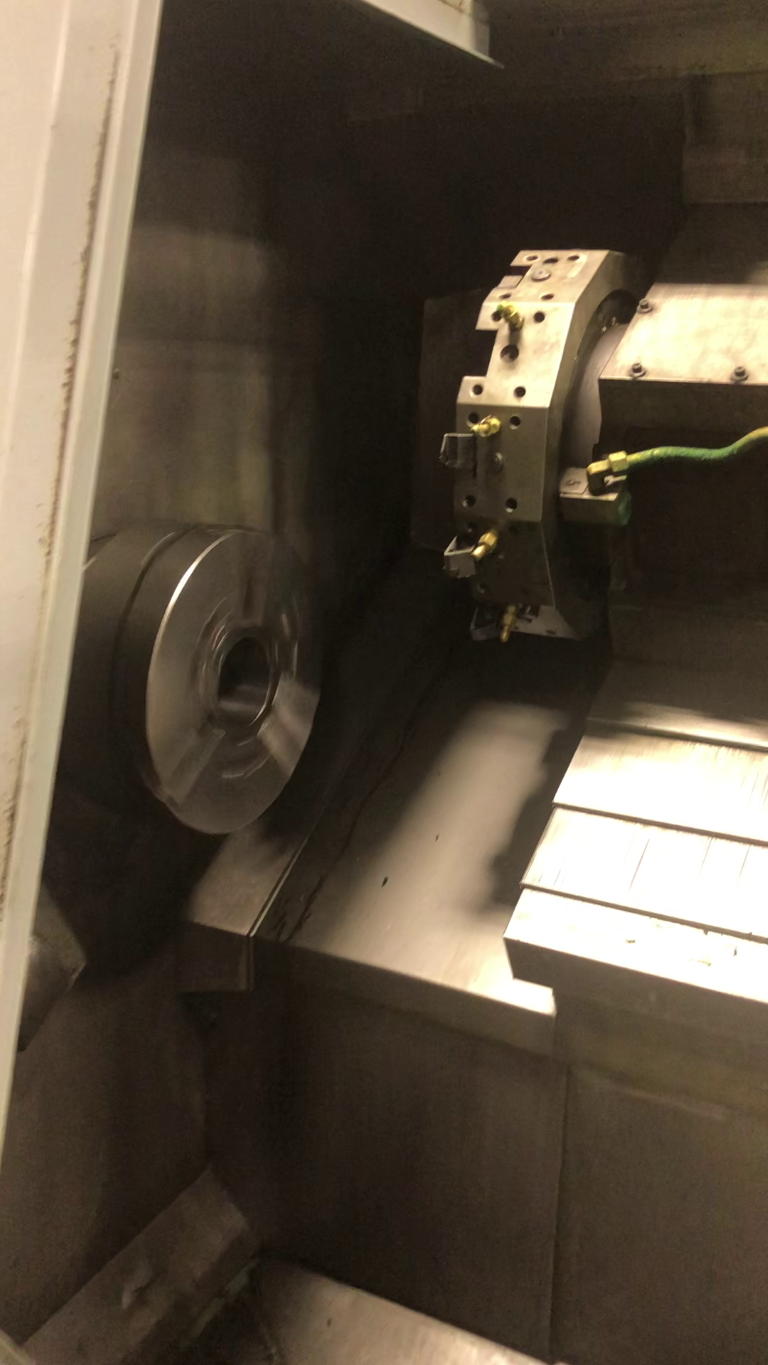

Turret:

  • Number of Positions: 12
  • X-Axis Travel: 11.30"
  • Z-Axis Travel: 34.00"

Rapids:

  • Rapid Traverse (X & Z ): 710 ipm

Dimensions:

  • Floor Space (L x W x H): 162" x 77" x 74"
  • Weight (approx.): 16,000 lb

Electrics:

  • Power Requirement: 28 kVA
  • Volts / 3 Phase, 60 Hz: 200-250 VAC@100A

Tailstock:

  • Taper: MT4
  • Travels: 33.5"
  • Thrust: 300 - 1,500 lb

Equipped With:

  • Haas 32 Bit CNC with USB Port
  • High Torque Gearbox, 2 Speed

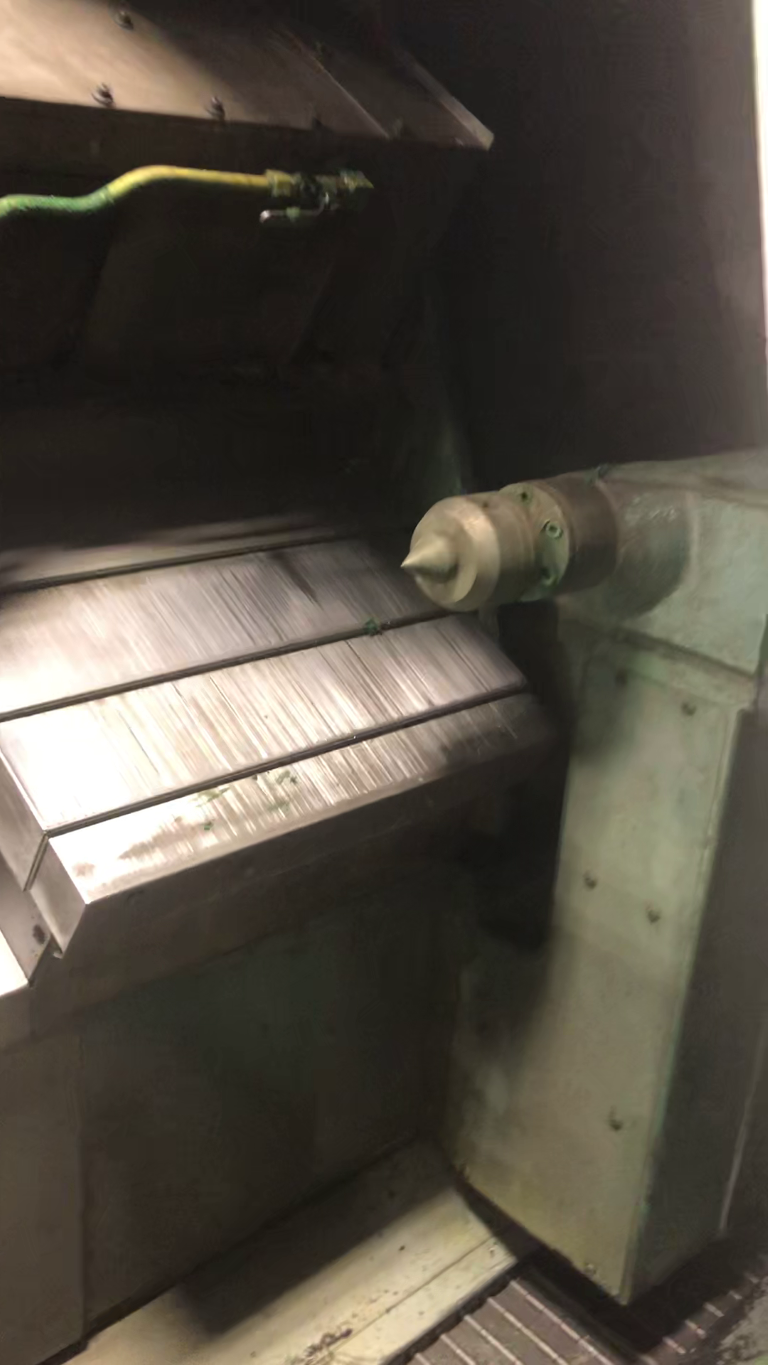

  • Tail Stock

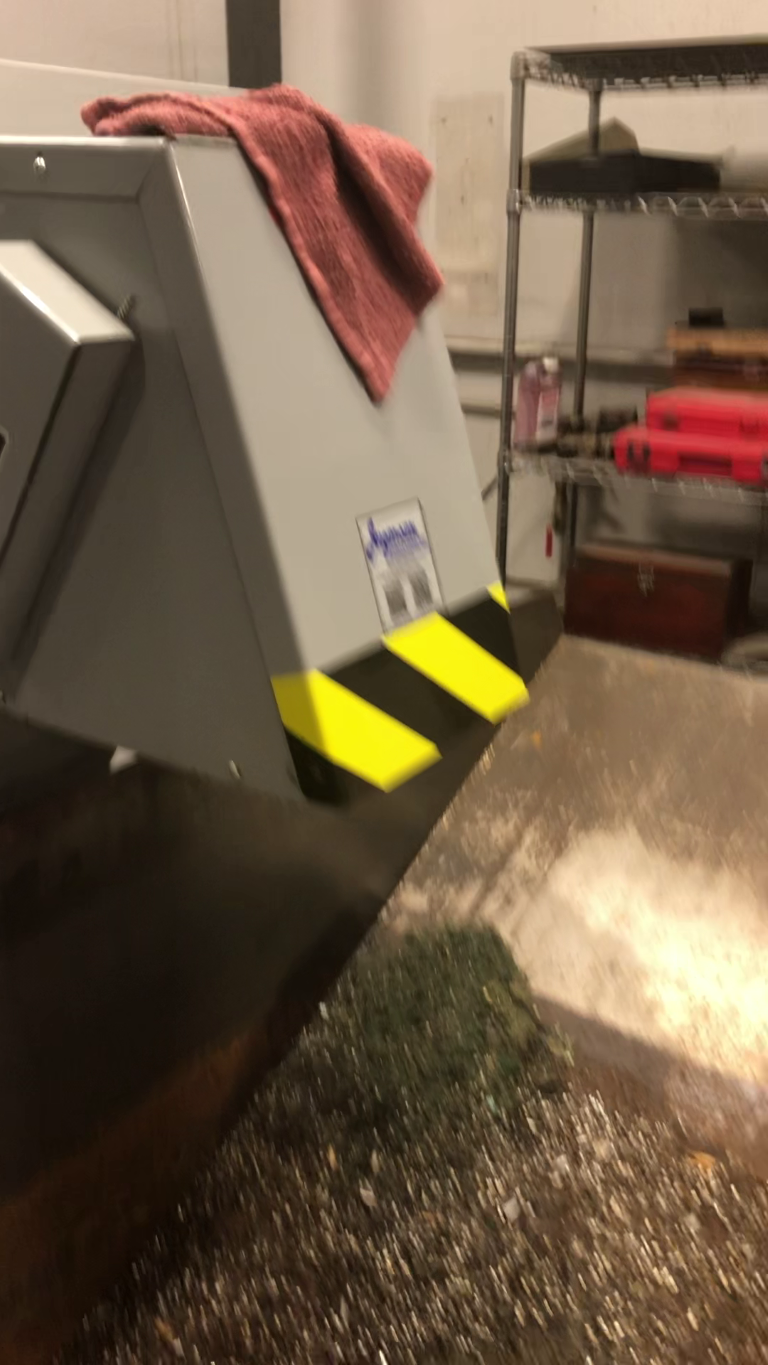

  • Chip conveyor

Comments:

  • Can be inspected under power in Oklahoma
  • Video http://tbf.me/a/LMNVs
