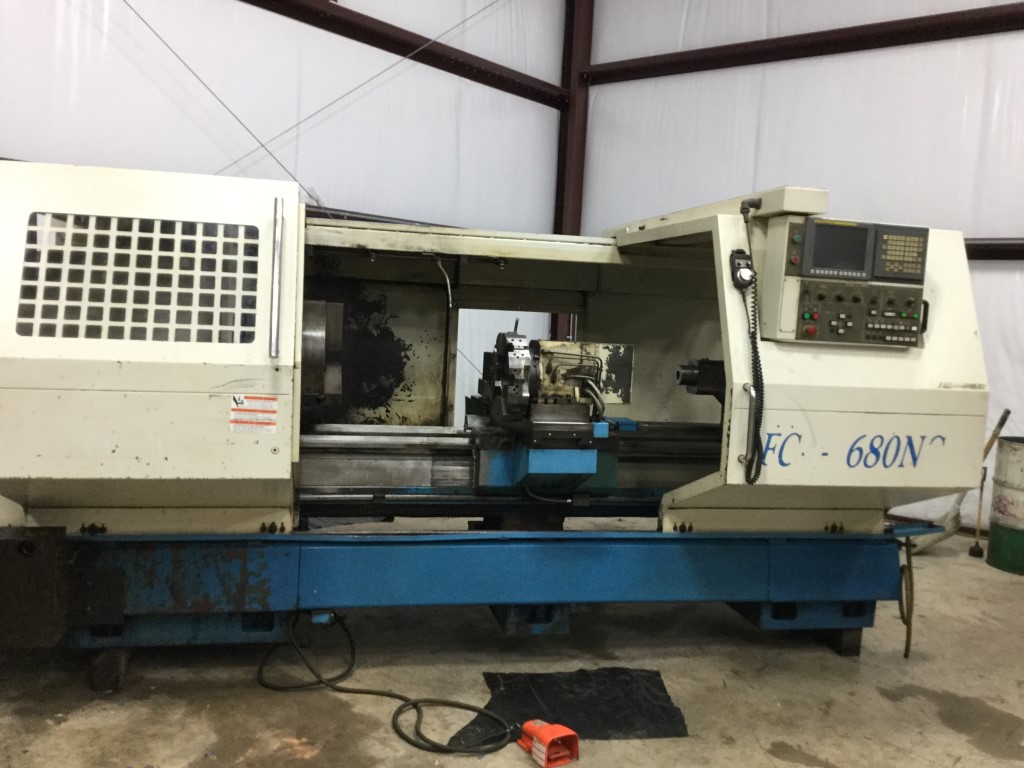

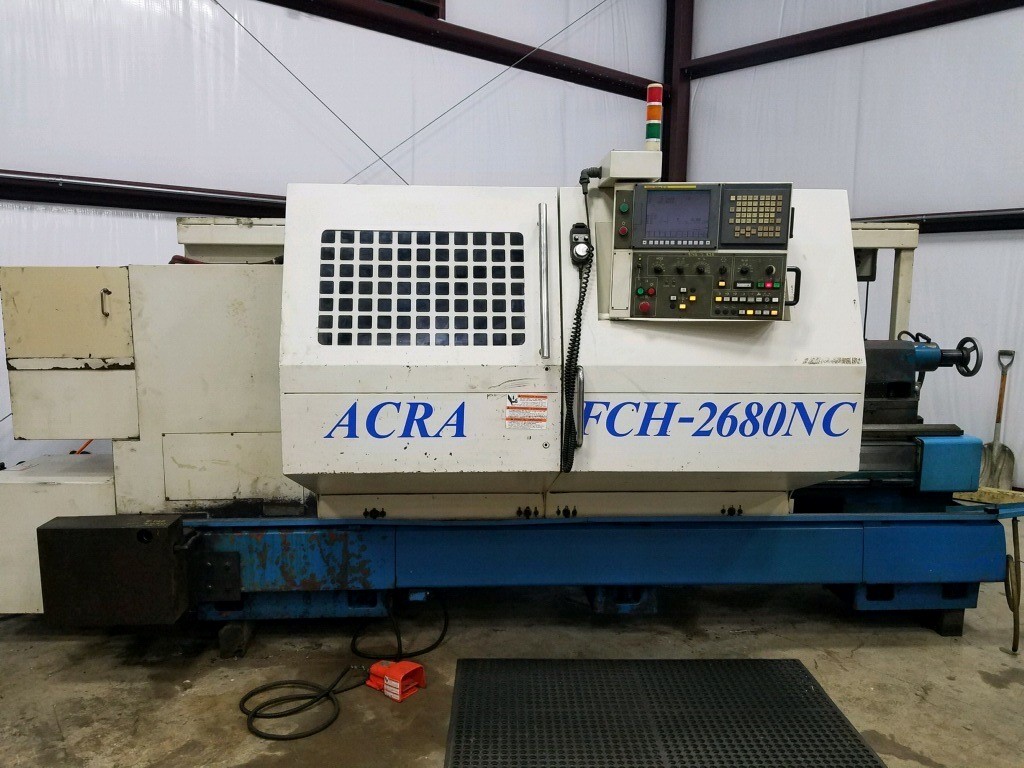

2007 ACRA FNC-2680

Add to Your File

Brand: 2007 ACRA FNC-2680

Model: FNC-2680

Serial No. : L3040

Category: Vertical Turret Lathes VTL

Sub Category:

Condition: used

Weight: (KG)

Year Built: 2007

Status:

Price: $0.00

Description

'

Capacity:

Swing: 26\"
Maximum Swing Over Cross Slide: 14,6\"
Maximum Cutting Diameter: 23.6\"
Distance Between Centers: 84.6\"

Spindle:

Spindle Speeds (A-Type / C-Type): 6-2000 / 3-1200 RPM
Spindle Bore: 8\"
Spindle Nose: A2-15
Main Motor: 30 HP

Turret:

Type of Turret: H4/H6 or V8
X-Axis Travel: 21.6\"
Z-Axis Travel: 83.1\"

Speeds:

Rapid Traverse Rate: 394 IPM

Tailstock:

Quill Stroke: 7.9\"

Euipped With:

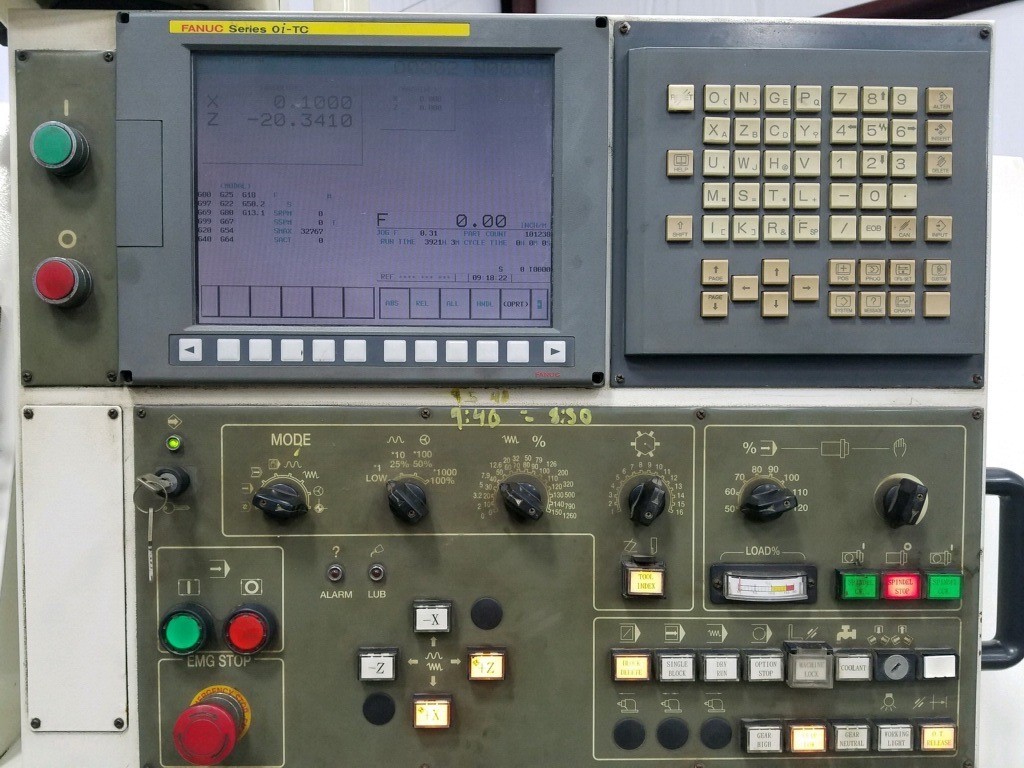

Fanuc 0iT

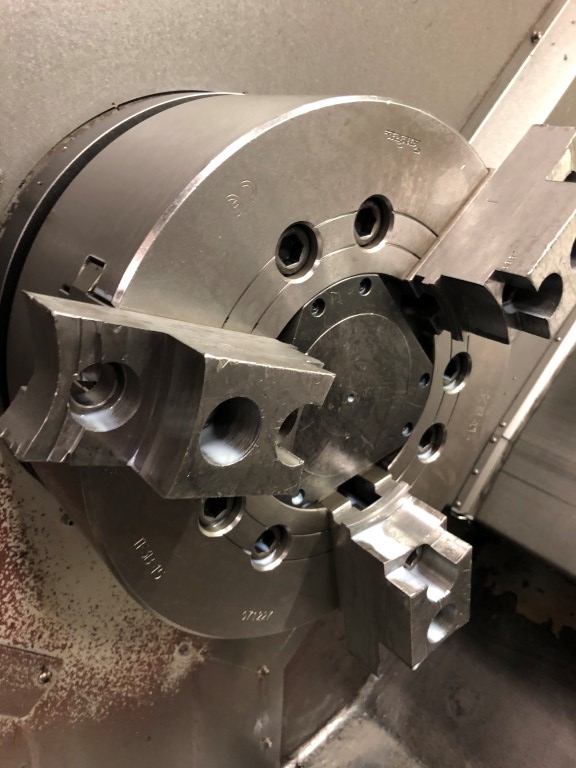

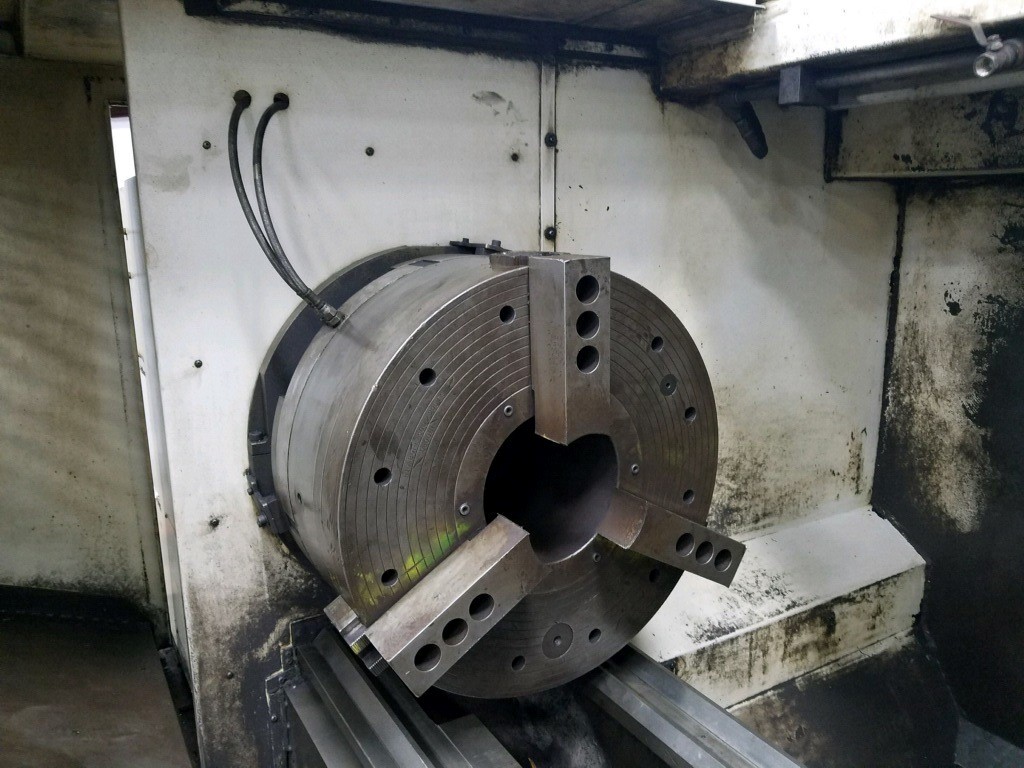

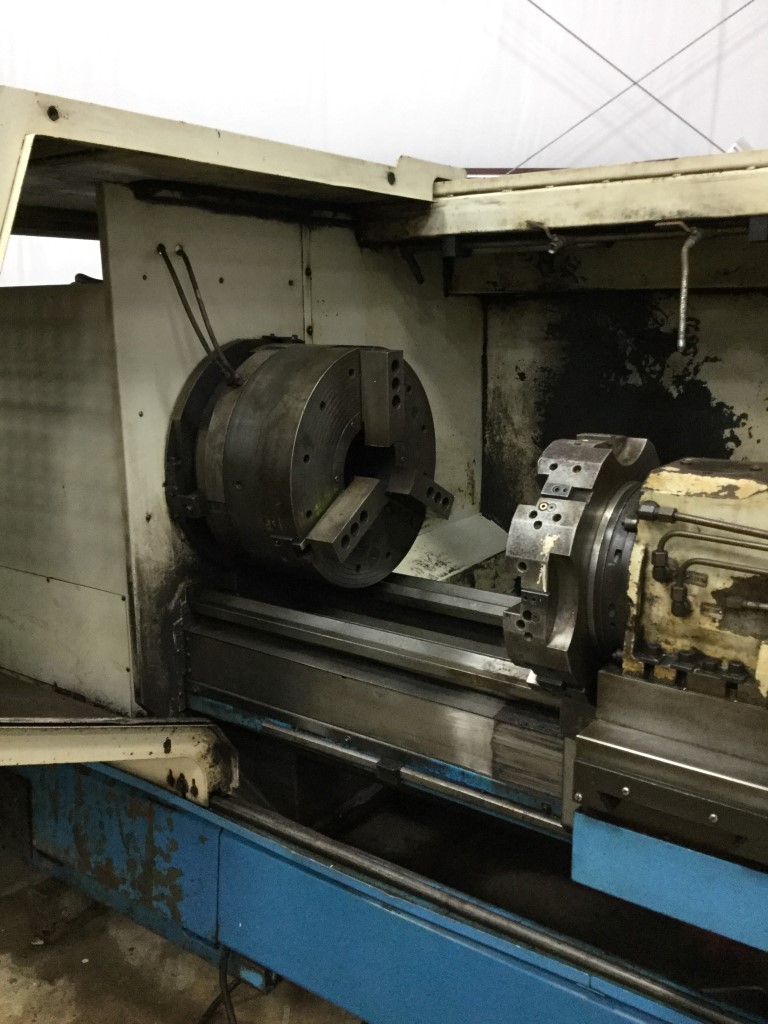

Front Actuated 3-Jaw Chuck with 8\" Thru-Hole

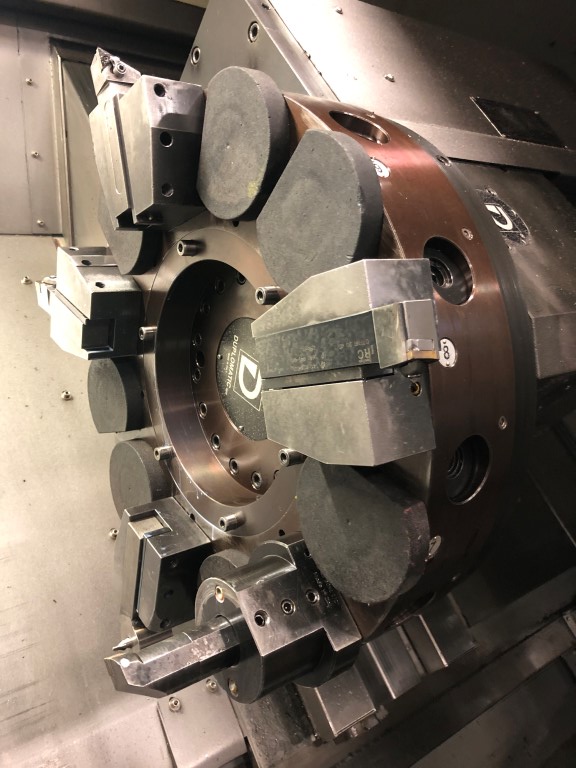

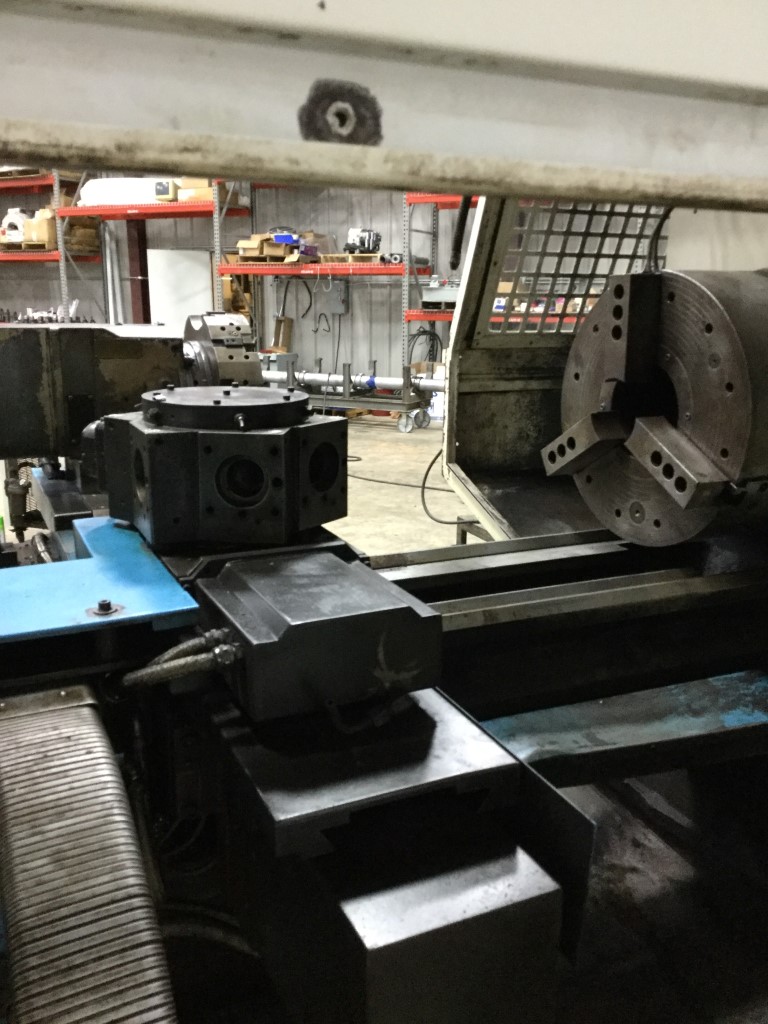

Front Turret
Hydraulic System
Work Lamp
Coolant Tank & Coolant system with 1 HP high power motor
Double Doors & Splash Guard
Hydraulic & manual all-in-one tailstock
One set of manuals
One set of adjusting tools & tool box

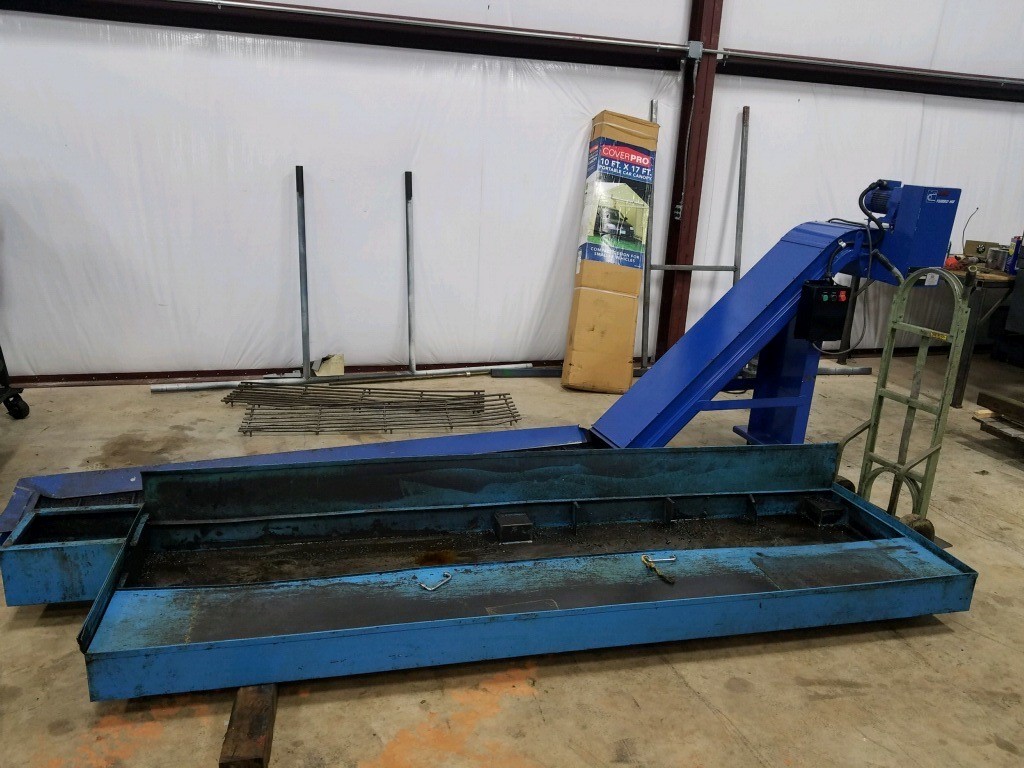

Chip Conveyor
Chip Bucket
Live Center MT#5
10.4� color LCD
I Manual Guide

Comments:

Includes prepping and loading on buyer\'s truck
