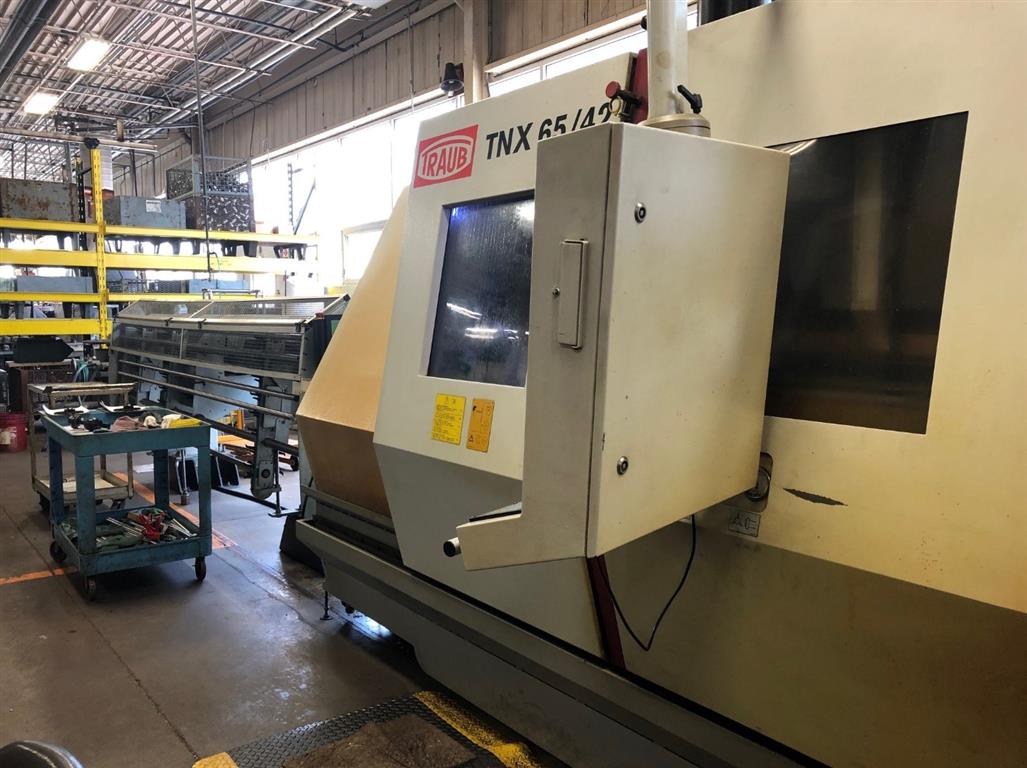

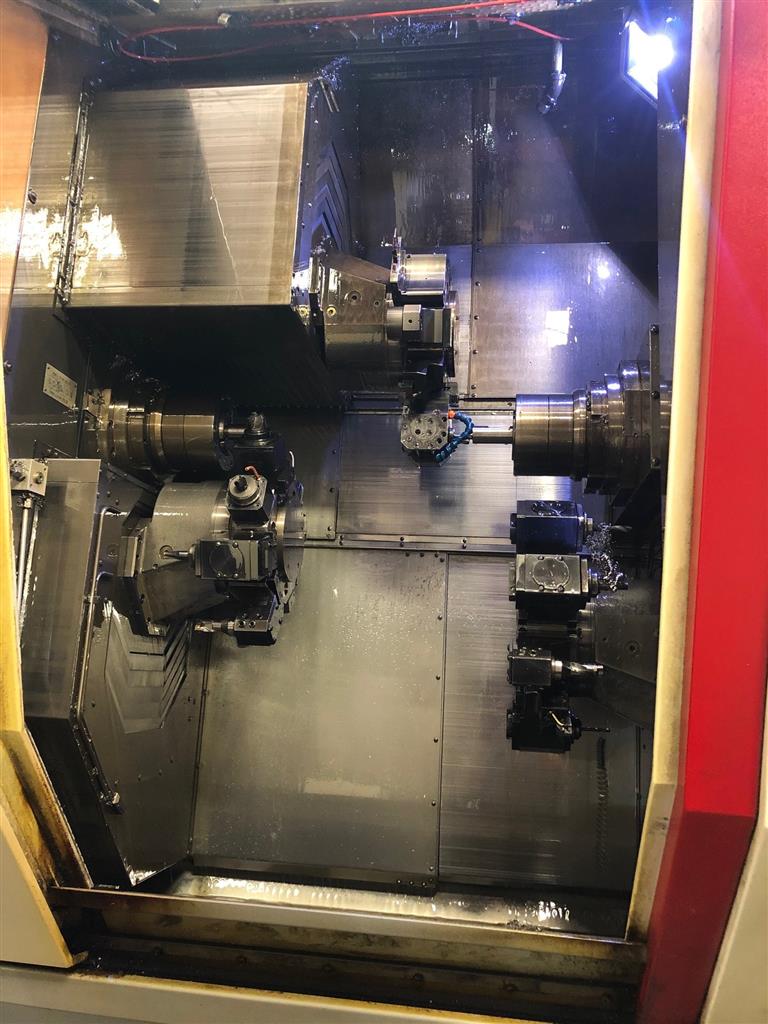

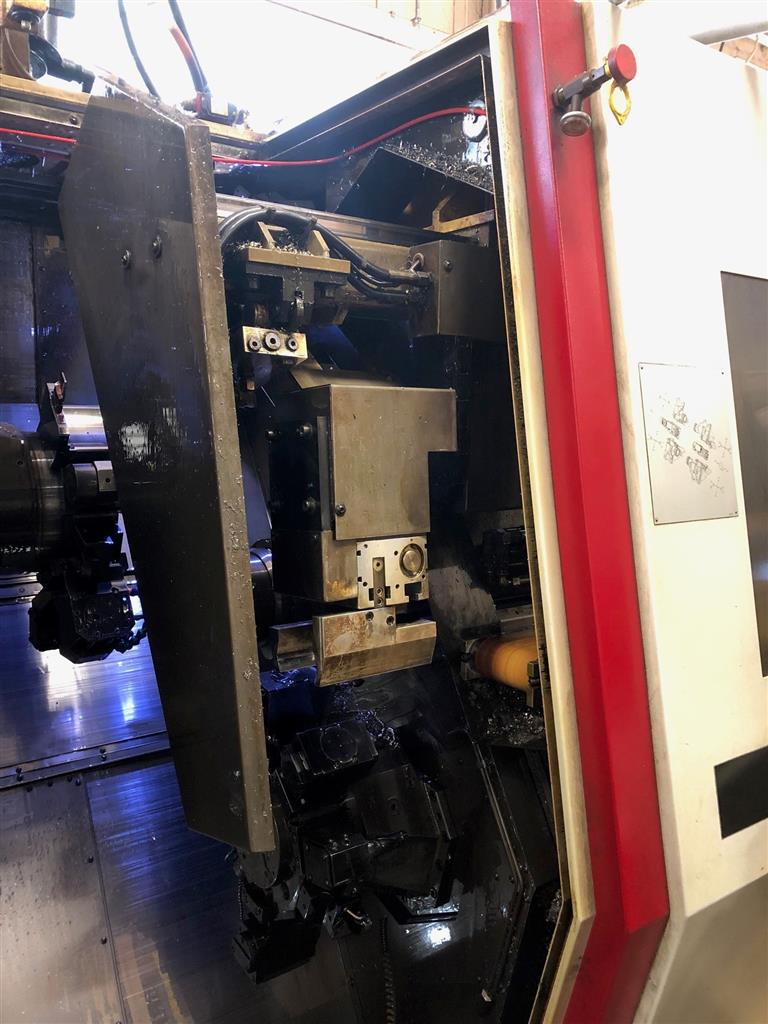

2006 TRAUB TNX 65/42 CNC LATHE, MACHINE # 7386

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


TNX 65/42
Lathes and Turning Centers CNC
Multi Axis Turning Center
used
22050 (LB)
2006
$0.00

Description

Reference #:7386
Machine Type:CNC Lathes
Year:2006
Manufacturer:Traub
Model:TNX 65/42
Control:Traub TX8i-s
Condition:Good
Under Power:Yes
Code:L2155

Specifications:

  • Number of Axes: 13
  • Number of Spindles: 2

Main Spindle:

  • Nose: A2-6
  • Power: 53 HP
  • Speed: 5,000 RPM
  • Max. Bar Capacity: 65 mm / 2.55"
  • Max. Turning Diameter: 6.88"
  • C-Axis Indexing Precision: 0.001 Degrees

Counter-Spindle:

  • Nose: A2-5
  • Power: 37.5 HP
  • Speeds: 5,000 RPM
  • Max. Bar Capacity: 42 mm / 1.65"
  • Max. Turning Diameter: 6.3"
  • C-Axis Indexing Precision: 0.001 Degrees
  • Turning Length: 25.5"

Turning-Milling:

  • X/Z Stroke: 13.3" / 25.6"
  • Y-Axis Stroke: +/- 1.57"
  • B-Axis Stroke: +/- 3.7"
  • B-Axis Indexing Precision: 0.001 Degrees
  • Tool Type: HSK 40
  • Spindle Speeds: 12,000 RPM
  • Spindle Power: 7.3 HP

Tool Changer:

  • Auto Tool Changer - Loading Arm - Capacity: 80 ATC

Turrets:

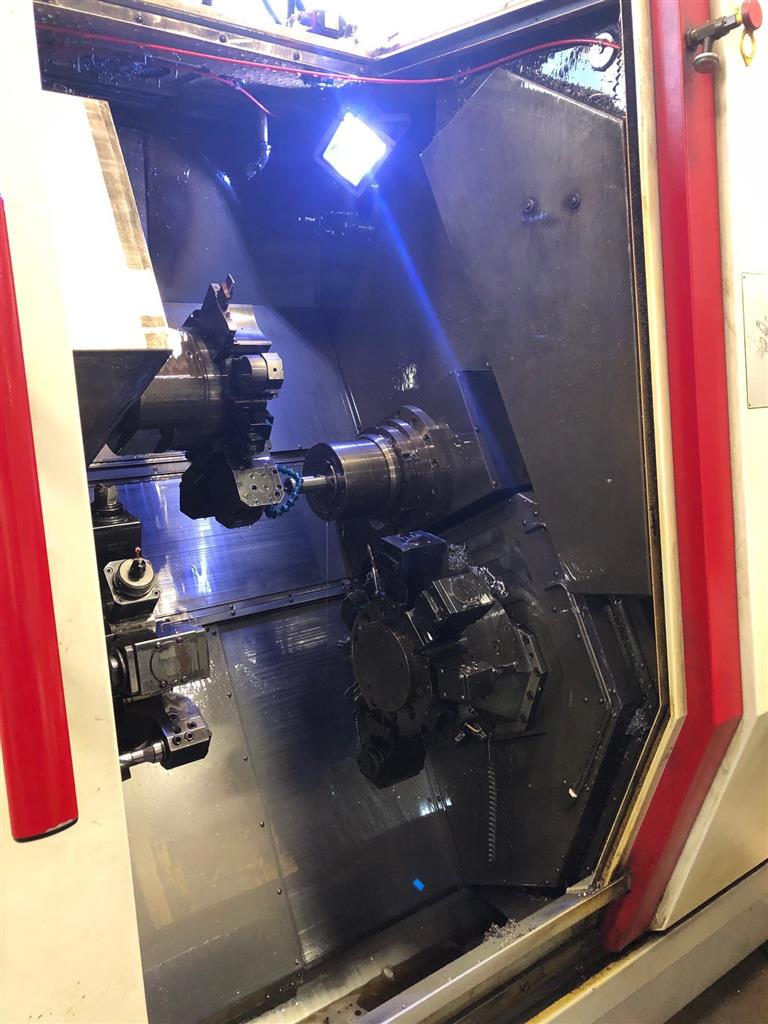

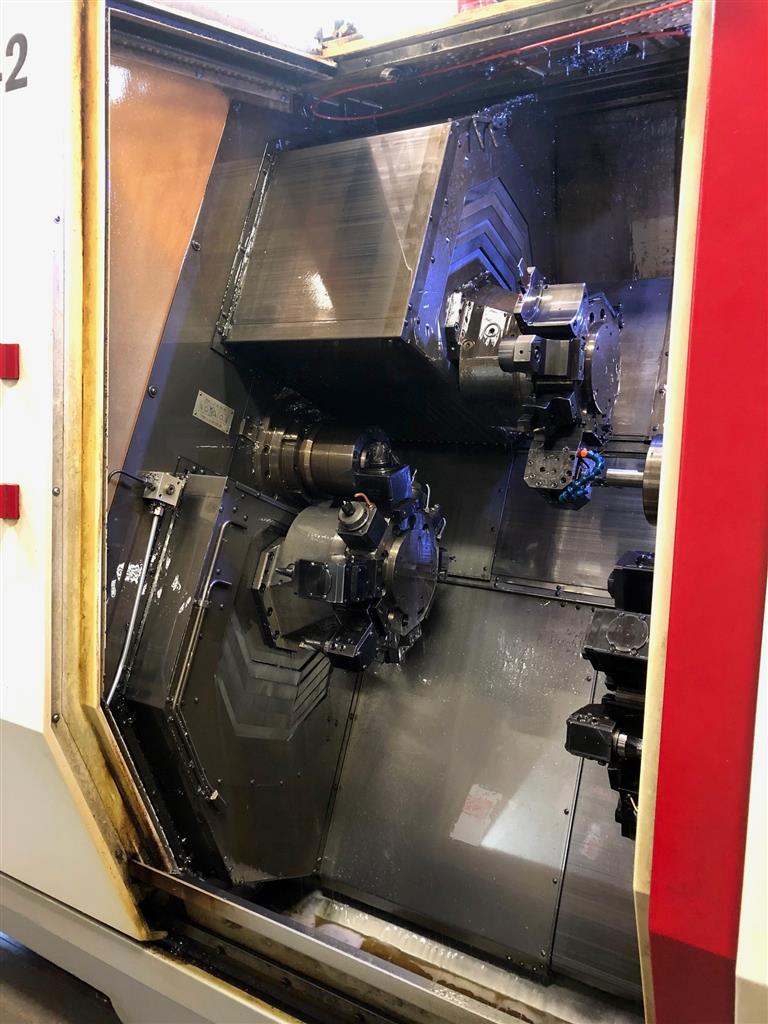

  • Number of Interior Turrets: 2
  • Number of Positions: 10
  • Number of motor positions: 10
  • X, Z Stroke: 6.8"
  • Y Axis: +/- 1.57"
  • Tool Type: VDI 30
  • Live Tools Speed: 6,000 RPM
  • Tool Tool Power: 7.3 HP

Power Supply:

  • Supply Voltage: 400 Volts
  • Total Installed power: 80 kVA

General:

  • Machine floor space: 231" x 91.2"
  • Machine height: 106"
  • Machine weight: 22050 Lbs

Equipped With:

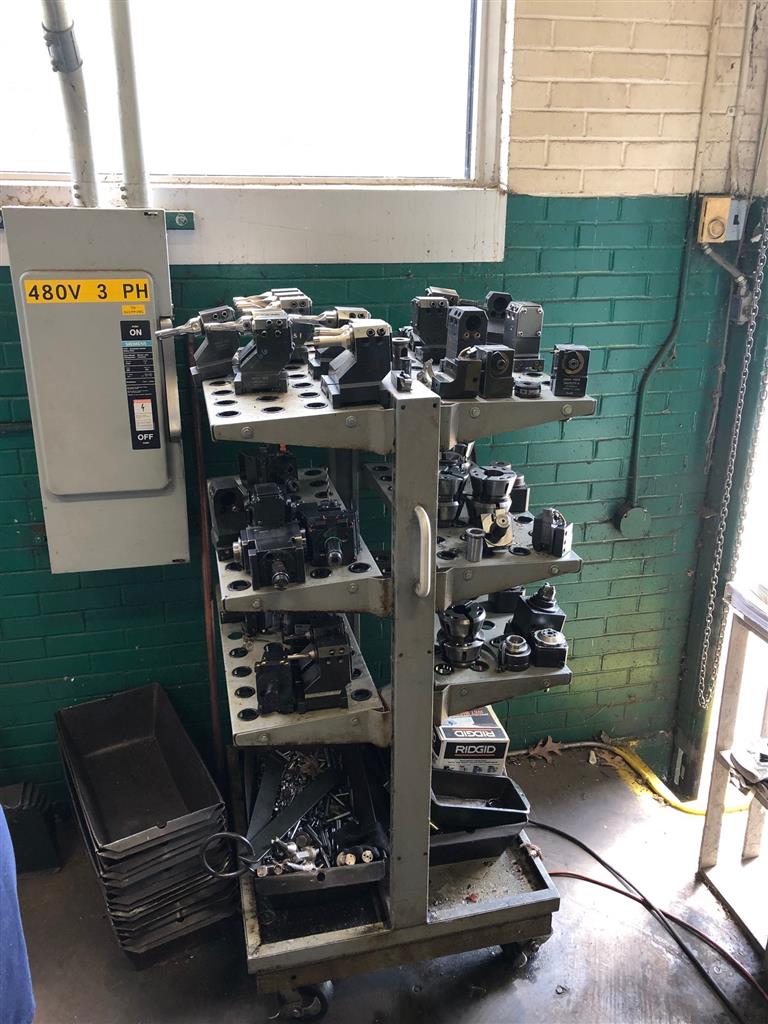

  • Live Tool Heads for Z & X axis
  • Roller heads
  • Angled tool holders

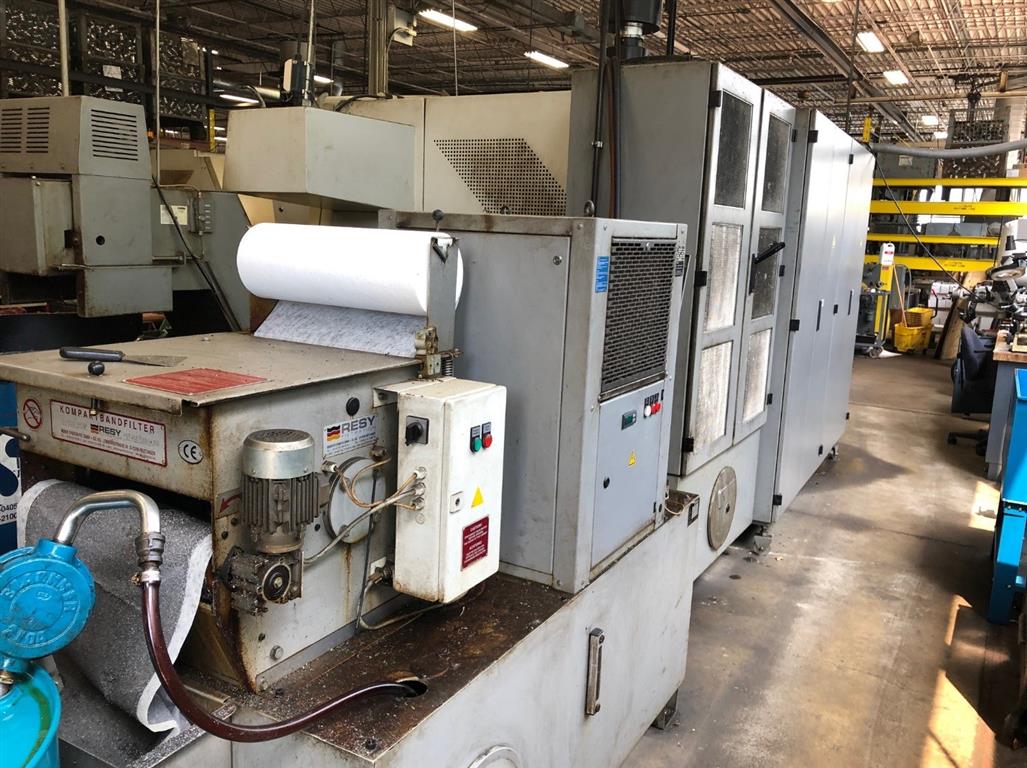

  • Coolant chiller
  • Part removal gantry and conveyor
  • Fx900 Mister

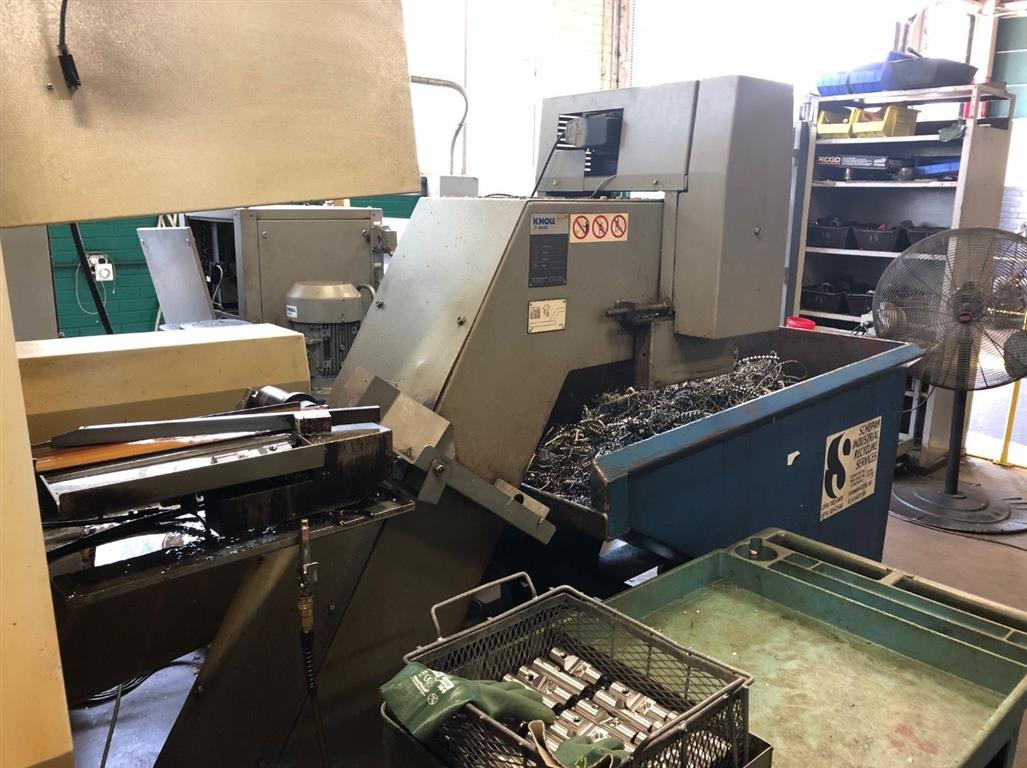

  • Trap Conveyor

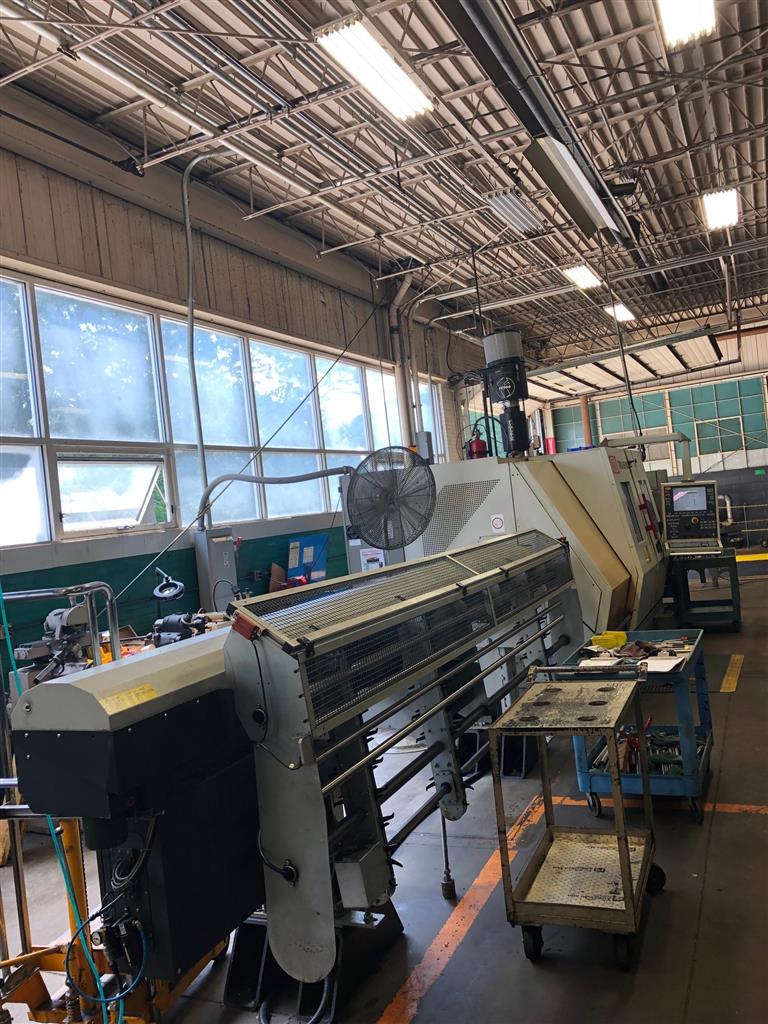

  • LNS 12in bar feeder for 1-1/8" to 1-3/4" round stock
  • Tool Monitoring system
  • Have operator, program, electrical, and maintenance manuals
  • Some repair parts

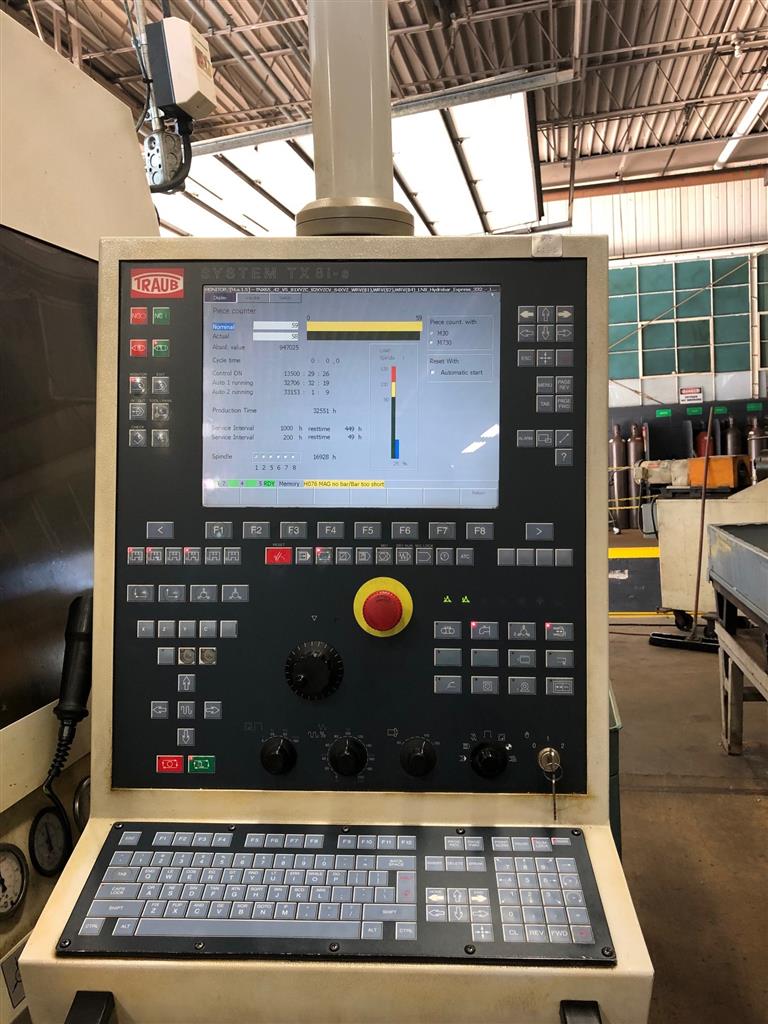

  • TRAUB TX8i-s (Meldas FCU7-DA435-X01) Control
