Cutting Capacity at 90 Degrees from Table: 25" W x 36" H
Cutting Capacity at 45 Degrees from Table: 25" W x 25"H
Cutting Capacity at 30 Degrees from Table: 25" W x 17" H
Blade Size: 2" x .063"
Blade Motor: 15 HP
Electricals: 440/3/60
Equipped With:
HEM SS Smart Saw Control
Powered & Programmable Dual Tilt
(2) Full Stroking Vises
Feed System:
Holding Vise on Feed
Feed Tables Included

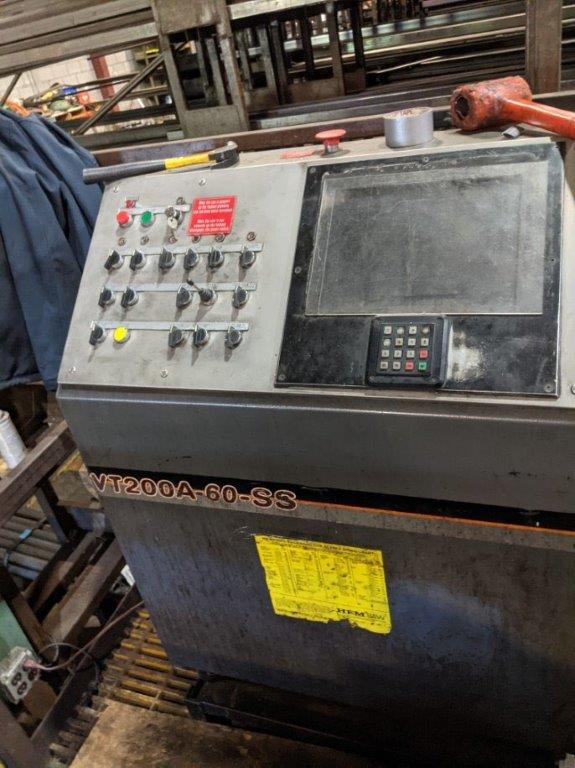

HEM SS Smart Control
Free Standing Control Console
Icon Driven Menu
Full Stroking Vises
Forward Cut-Stop
Swing Away Top Clamp - Main Vise (Full Capacity)
Top Clamp - Feed Vise (Full Capacity)
Stroke Bar-Feed W/ Capability To Lift The Feed Table & Operate Lift Rollers
During The Feed Cycle
3rd Holding Vise On Feed
Second Main Vise Assembly
Powered Blade Tension
Power Tilt W/ Led Readout On Console
Programmable Tilt
Infinitely Variable Blade Speed (65-400 SFPM)
Blade Speed On Console
Cut Watcher System
Flat Carbide Blade Guides
Blade Break Switch
Blade Saver System
Powered Guide Arm
Set Of Powered Raised Lift Up Rollers (In/Out)
Adjustable Clamping Pressure (0-1,500 Lbs)
Adjustable Feed Rate & Cutting Pressure
Rollers All The Way Through the Feed System
Material Jog
Out Of Stock Switch
Coolant System
Chip Conveyor System
Powered Blade Chip Brush
Blade Guards For Safety
All Hydraulic Machine
