2006 HAAS SL30T, UNIVERSAL CNC LATHE # 8123

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


SL30T
Lathes and Turning Centers CNC
Universal
used
16000 (LB)
2006
$0.00

Description

Reference #:8123
Machine Type:CNC Lathes
Year:2006
Manufacturer:Haas
Model:SL30T
Control:Haas 32 BIT
Condition:Used
Under Power:Yes
Code:L2150

Capacity:

  • Chuck Size: 12"
  • Swing Over Bed Ways: 30.0"
  • Swing Over Cross Slide: 14.5"
  • Max. Turning Diameter: 16.0"
  • Max. Turning Length: 34.0"
  • Distance Between Centers: 39.0"

Spindle:

  • Speeds Range: 25 - 3,400 RPM
  • Bore: 3.5"
  • Bar Capacity (Max): 3.0"
  • Nose: A2-6
  • Main Motor: 30 hp

Turret:

  • Number of Positions: 12
  • X-Axis Travel: 11.30"
  • Z-Axis Travel: 34.00"

Rapids:

  • Rapid Traverse (X & Z ): 710 ipm

Dimensions:

  • Floor Space (L x W x H): 162" x 77" x 74"
  • Weight (approx.): 16,000 lb

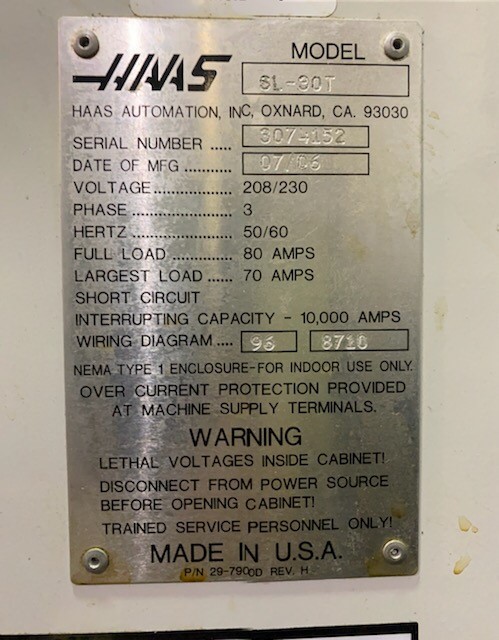

Electrics:

  • Power Requirement: 28 kVA
  • Volts / 3 Phase, 60 Hz: 200-250 VAC@100A

Tailstock:

  • Taper: MT4
  • Travels: 33.5"
  • Thrust: 300 - 1,500 lb
