2006 HAAS SL-10, MACHINE # 7839
SL30
L2150
Lathes and Turning Centers CNC
Universal
used
(KG)
2006
$0.00

Description

Capacity:

  • Chuck Size: 12\"
  • Swing Over Bed Ways: 30.0\"
  • Swing Over Cross Slide: 14.5\"
  • Max. Turning Diameter: 16.0\"
  • Max. Turning Length: 34.0\"
  • Distance Between Centers: 39.0\"

Spindle:

  • Speeds Range: 25 - 3,400 RPM
  • Bore: 3.5\"
  • Bar Capacity (Max): 3.0\"
  • Nose: A2-6
  • Main Motor: 30 hp

Turret:

  • Number of Positions: 12
  • X-Axis Travel: 11.30\"
  • Z-Axis Travel: 34.00\"

Rapids:

  • Rapid Traverse (X & Z ): 710 ipm

Dimensions:

  • Floor Space (L x W x H): 162\" x 77\" x 74\"
  • Weight (approx.): 16,000 lb

Electrics:

  • Power Requirement: 28 kVA
  • Volts / 3 Phase, 60 Hz: 200-250 VAC@100A

Tailstock:

  • Taper: MT4
  • Travels: 33.5\"
  • Thrust: 300 - 1,500 lb

Equipped With:

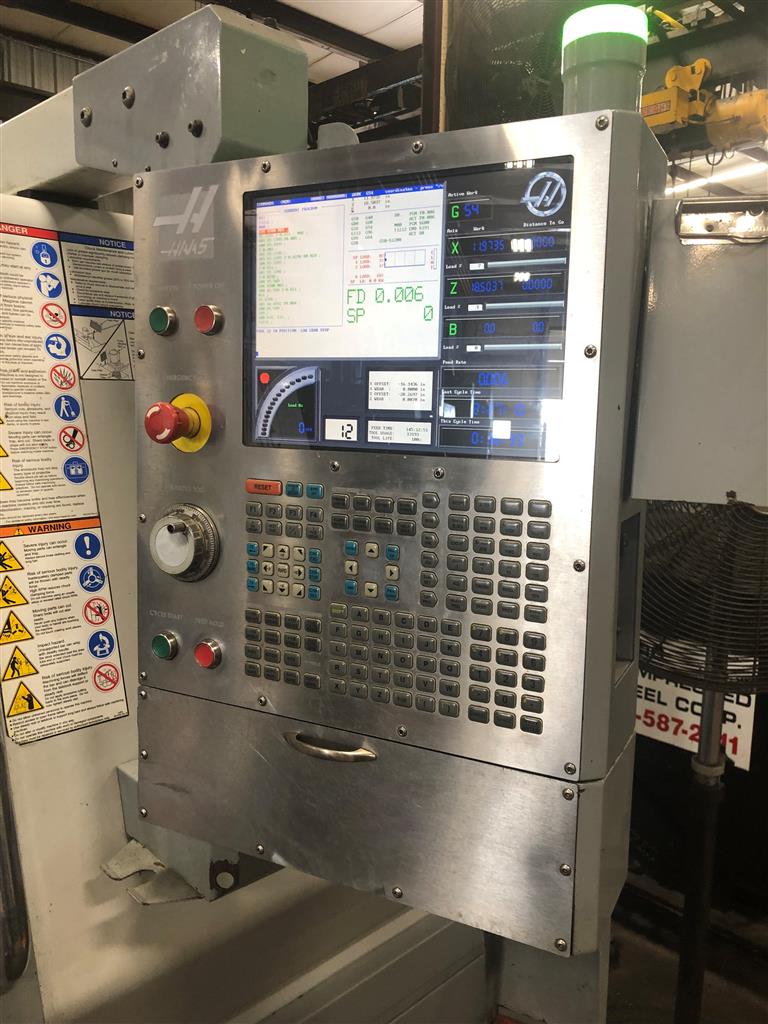

  • Haas 32 Bit CNC
  • High Torque Gearbox, 2 Speed
  • 12\" Kitagawa Power Chuck
  • Tail Stock
  • Chip conveyor
  • Tool pre setter
  • Intuitive programming

Comments:

  • Can be inspected under power in Oklahoma
