Used Lathes And Turning Centers CNC For Sale - 2006 Doosan Puma 400B, Machine # 8128

Home »
Lathes and Turning Centers CNC »
Universal »
2006 Doosan Puma 400B, Machine # 8128

2006 DOOSAN PUMA 400B, MACHINE # 8128

Add to Your File

Brand: 2006 DOOSAN PUMA 400B, MACHINE # 8128

Model: Puma 400B

Serial No. :

Category: Lathes and Turning Centers CNC

Sub Category: Universal

Condition: used

Weight: 19000 (LB)

Year Built: 2006

Status:

Price: $0.00

Description

Reference #:8128
Machine Type:CNC Lathes
Year:2006
Manufacturer:Doosan
Model:Puma 400B
Control:Fanuc 21iTB
Condition:Used
Under Power:Yes
Code:L2150

Capacity:

Chuck Size: 15"
Swing Over Bed Ways: 27.56"
Swing Over Cross Slide: 18.9"
Max. Turning Diameter (Max / Std): 21.65" / 14.96"
Max. Turning Length:
Distance Between Centers: 44.1"

Spindle:

Speeds: 20 - 2000 RPM
Bore: 5.2"
Bar Capacity: 4.63"
Nose: A2-11
Main Motor: 50 / 37 HP
Torque: 1836 Ft - Lbs

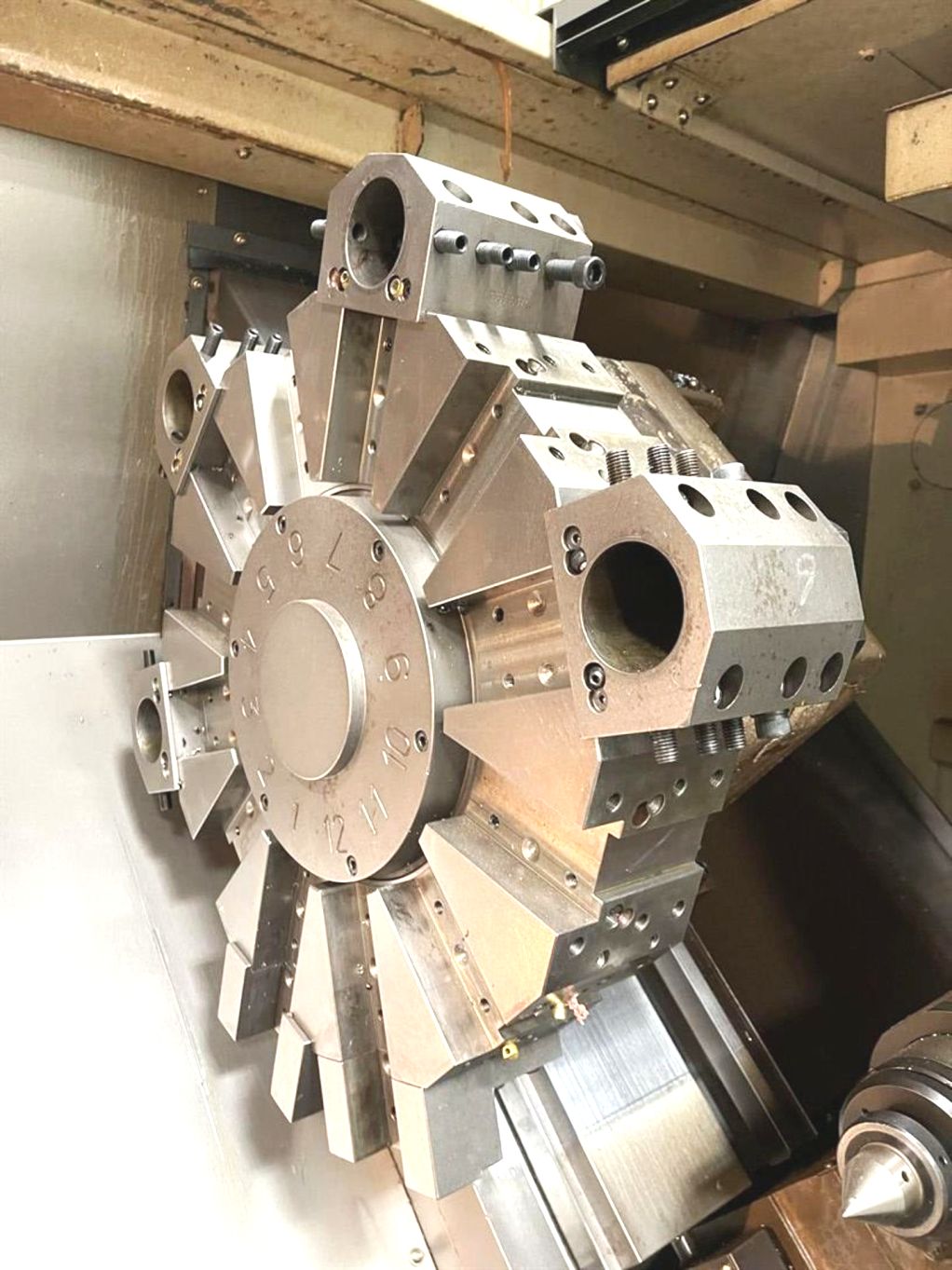

Turret:

Number of Positions: 10 Station Turret
X-Axis Travel: 14.3"
Z-Axis Travel: 43.5"
Indexing (Single Step): 0.25 Seconds

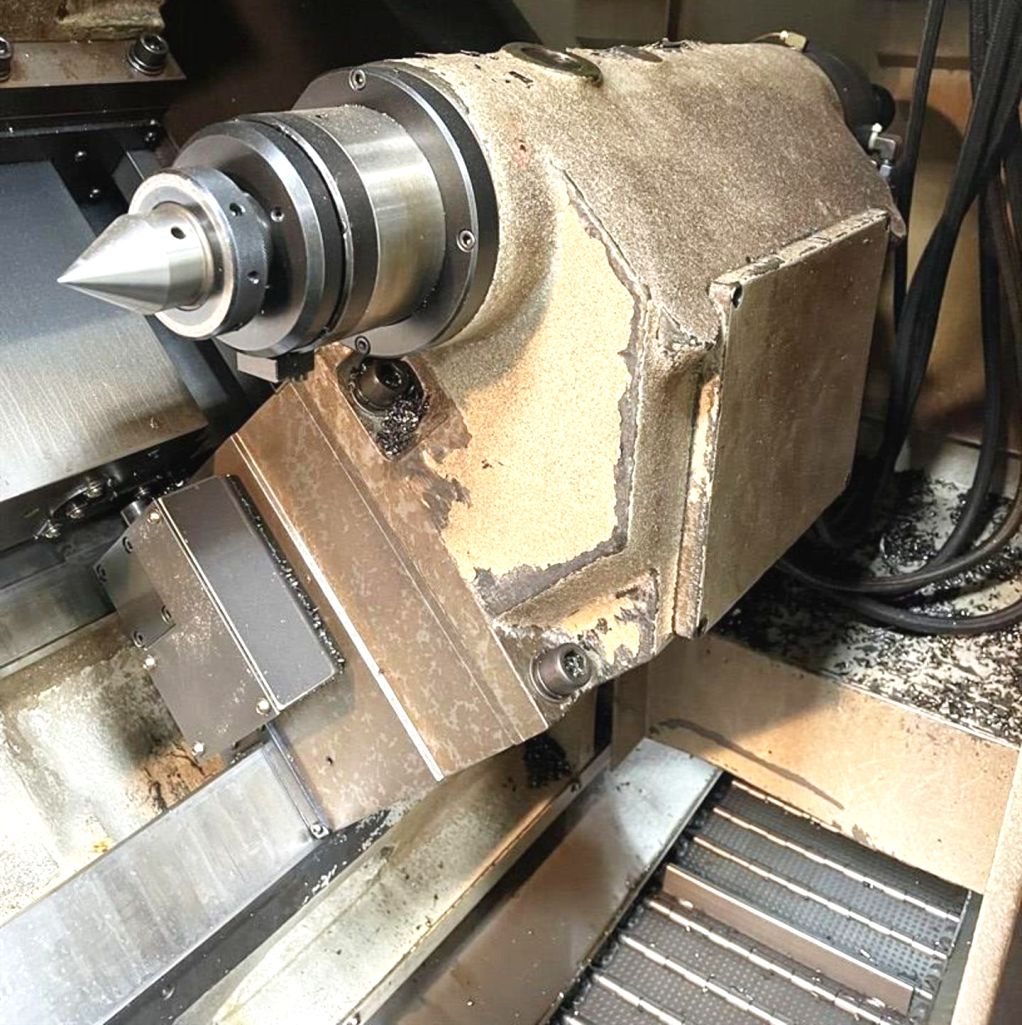

Tailstock:

Stroke of Body:
Stroke of Quill:
Quil Diameter:
Quill Taper: MT#5

Rapids:

Rapid Traverse (X & Z ): 630 / 790 IPM

Dimensions:

Floor Space (L x W x H): 153" x 85" x 90"
Weight (approx.): 19,000 lbs.

Equipped With:

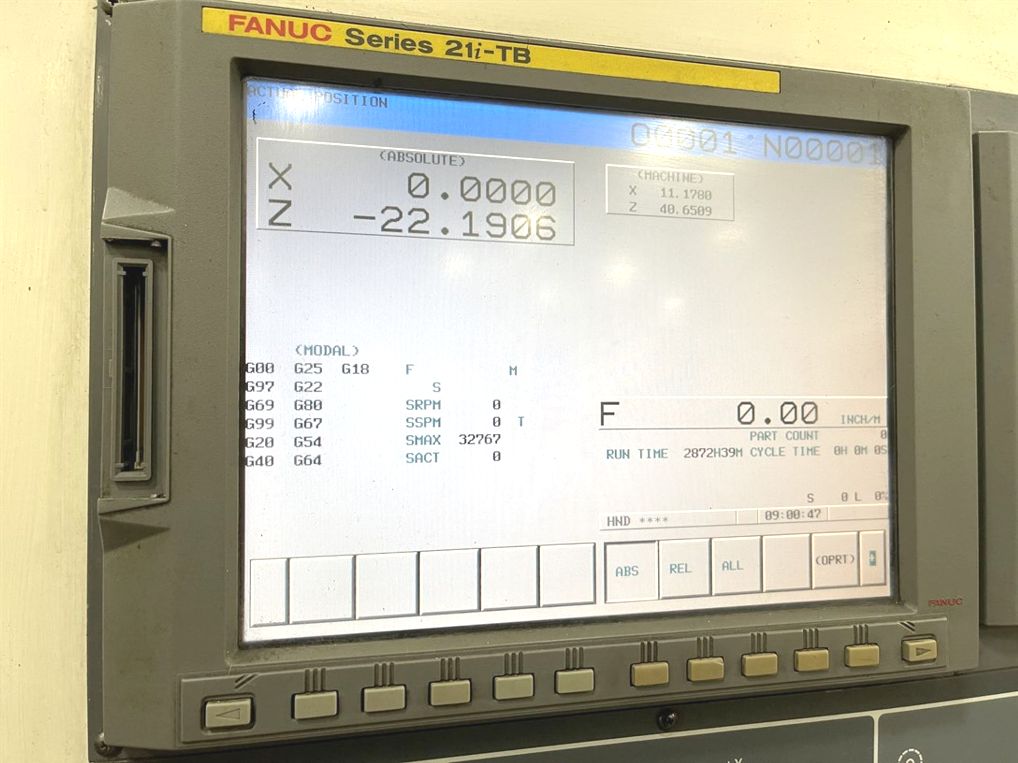

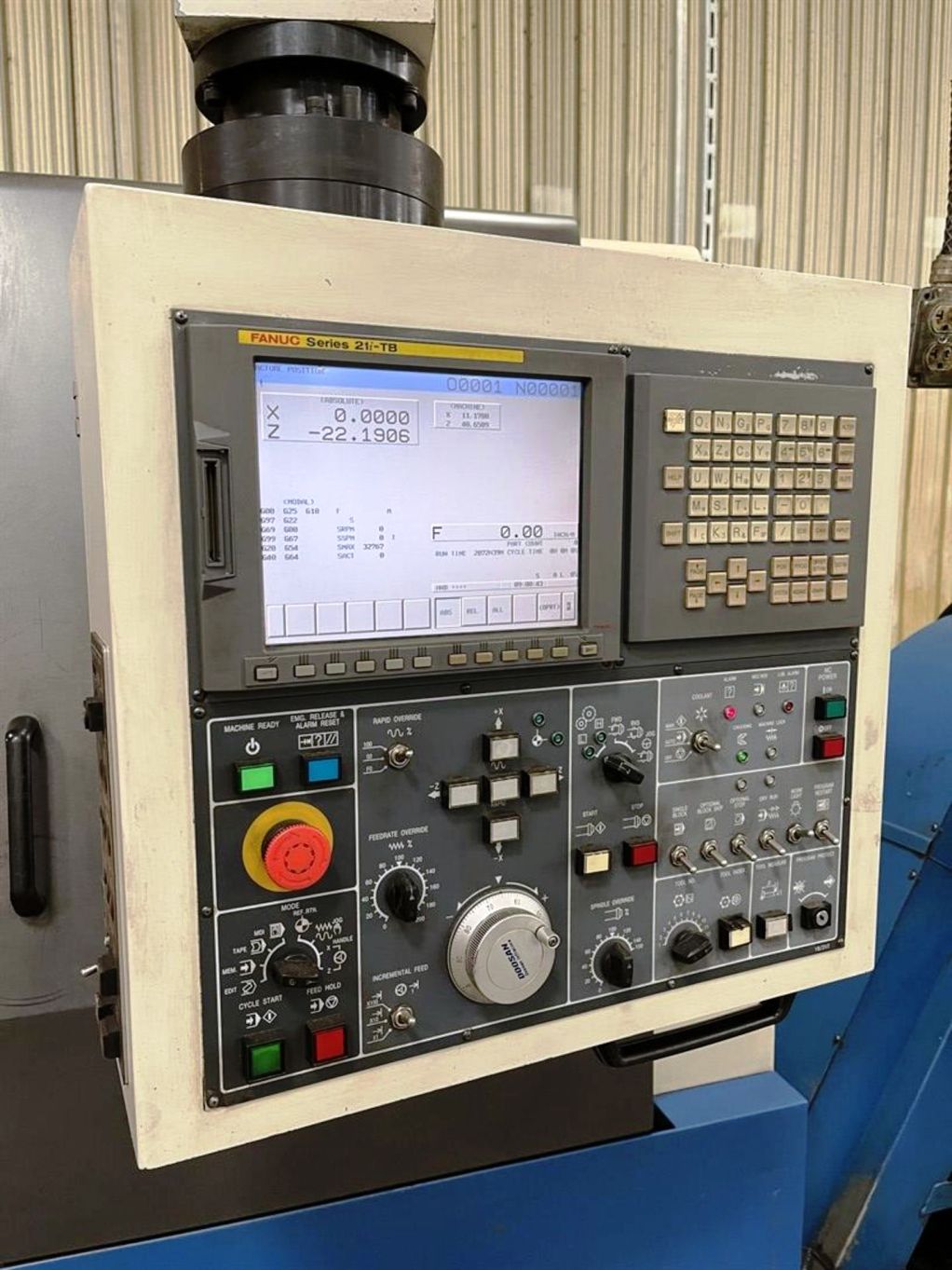

Fanuc 21iTB Control

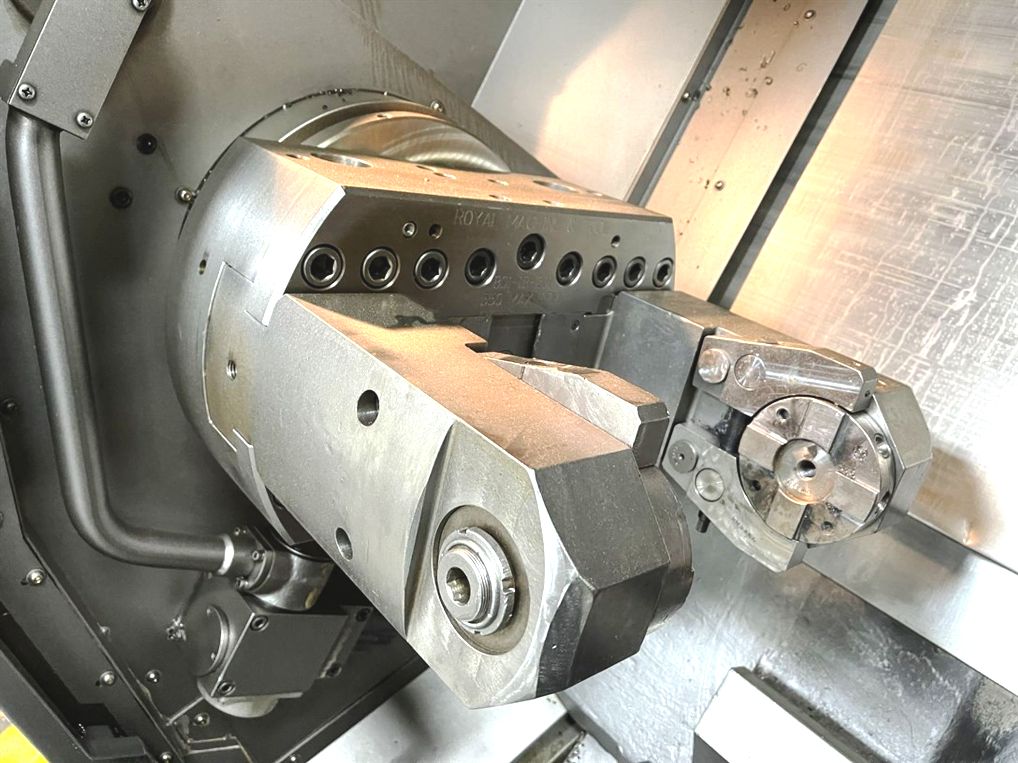

Special Hydaulic Valve Chuck Fixture * Optional on Request.
15"-3 Jaw Hydraulic Chuck * Optional in Stock on Request.
PC/MCIA Interface
Programmable Quick Tool Setter
Programmable Tailstock & Quill

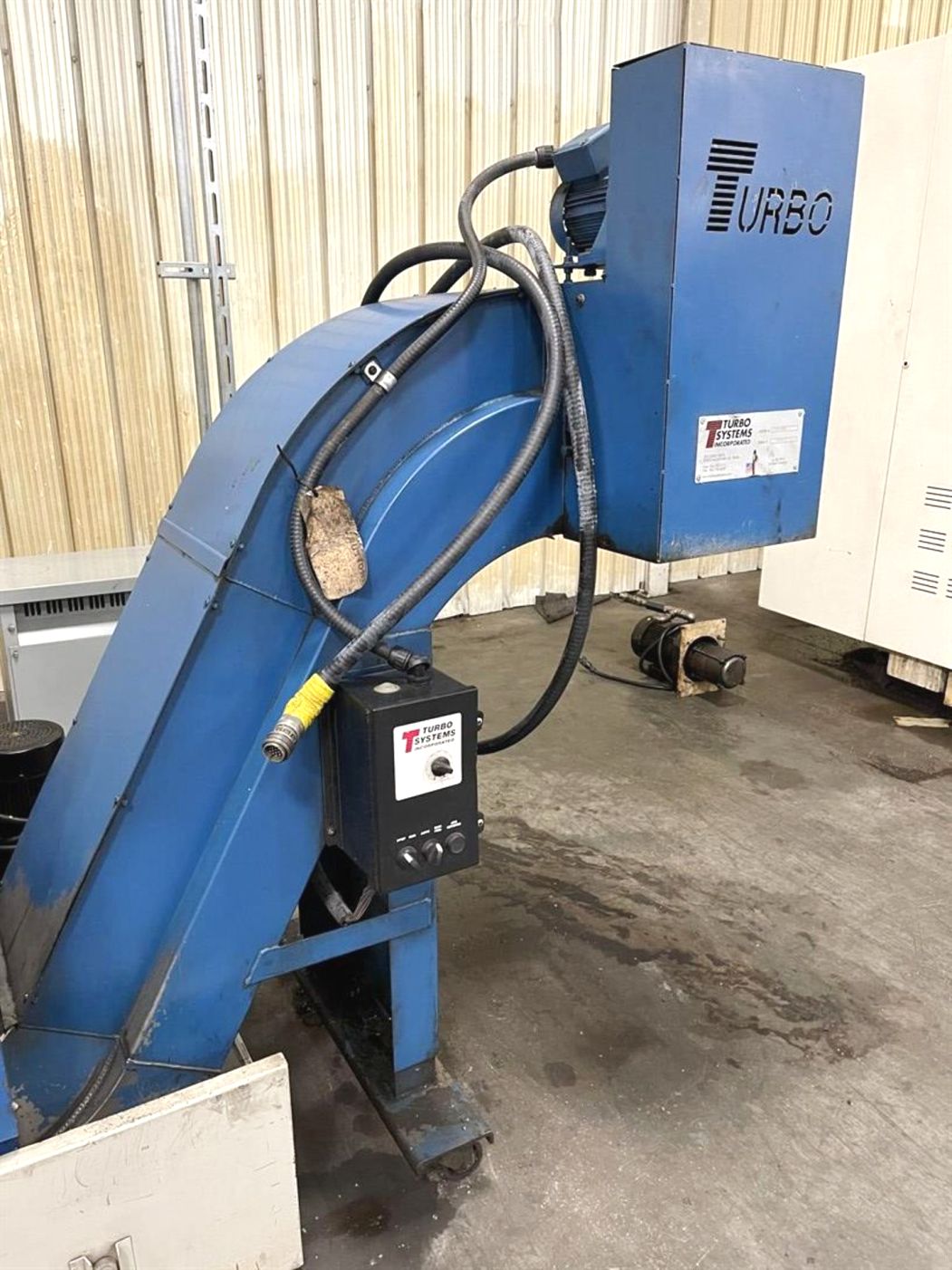

Side Discharge Chip Conveyor

Comments:

Ready to Load on Location in Midwest Shop
Ran 1 Key Valve Part in Special Fixture Chuck is Why only 2,972 Cutting Hours!
