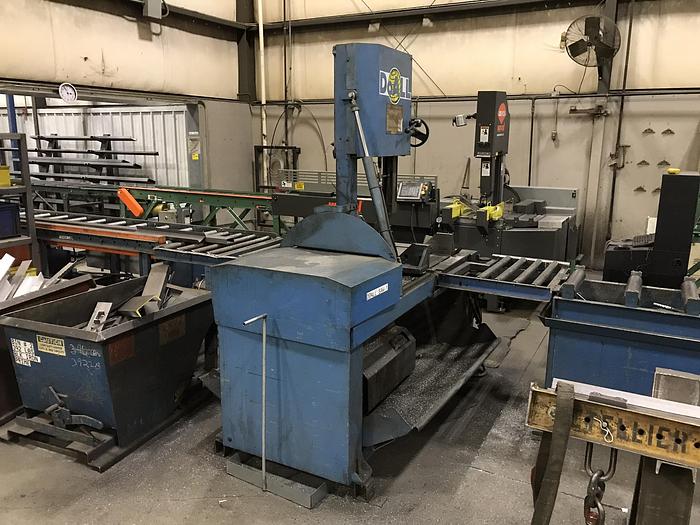

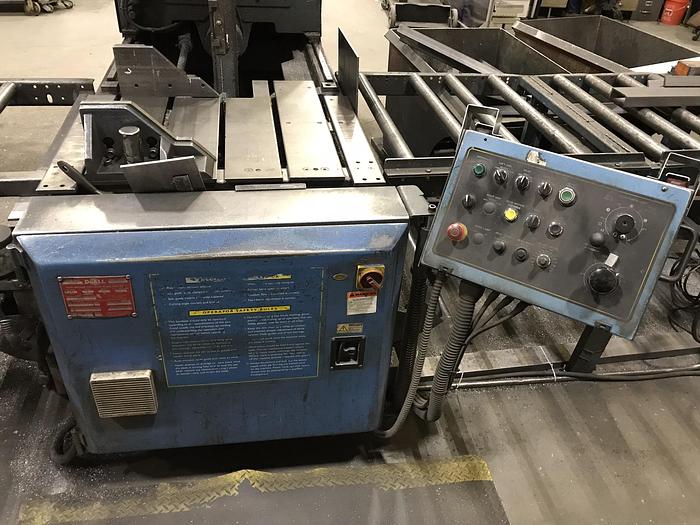

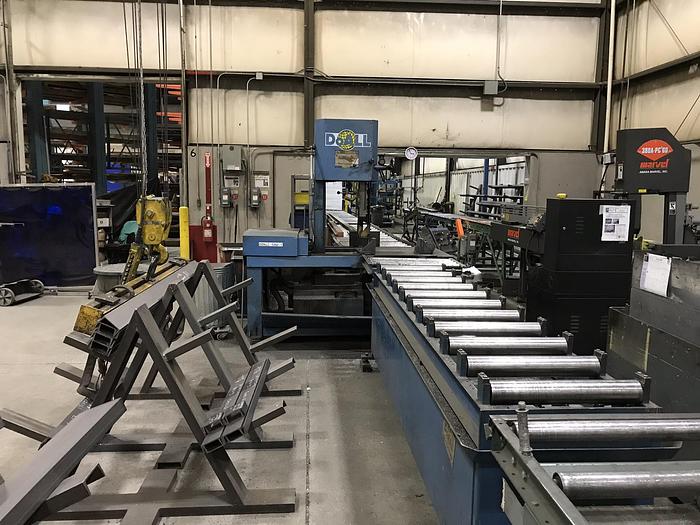

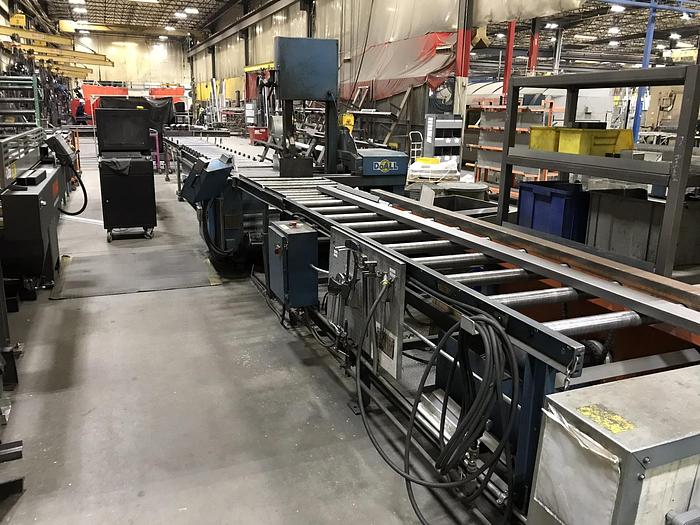

2006 DOALL TF1822M AUTOMATIC VERTICAL BAND SAW

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


TF1822M
JW0906142
Saws
Automatic Vertical Band Saw
used
4500 (LB)
2006
$0.00

Description

Specifications

ManufacturerDoallModelTF1822MYear2006ConditionUsedSerial NumberJW0906142Stock NumberUM-10795-145Capacity Rectangle at 90 deg HxW 18 x 22" (457x560mm)Capacity Round at 90 deg18" (457mm)Rectangle Capacity at 45 deg18 x 15" (457x381mm)Round Capacity at 45 deg15" (381mm)Rectangle Capacity at 60 deg18 x 10-1/4" (457x260mm)Round Capacity at 60 deg10-1/4"(260mm)Blade Speeds65-385 fpm (20-120mpm)Maximum Blade Length195" (4980mm)Blade Width and Gage1-1/4" (32mm)Blade Drive Motor5 hp (3.75 kW)Work Table Height36-1/2" (927mm)Floor Space Required140" x 100" x 97" (3556x2540x2464mmNet Weight4500 lbs (2041kg)Wheel Size19" (483mm)Miter Cutting60° left and rightBlade GuidesCarbide facedFeed SystemInfinitely adjustableHydraulic Pump1/2 hp (0.37kW)Hydraulic Tank Capacity4 gal (15 L)Cooling SystemFlood standard, Mist optionalCoolant Tank Capacity12 gal (45 lit)Max Bundle Capacity at 90 deg HxW18" x 12" (457x305mm)Upper Wheel Adjustment2" (51mm)

More on this model

To view more information on the 2006 DOALL TF1822M AUTOMATIC VERTICAL BAND SAW, including reviews, brand information, photos, videos, and more,
