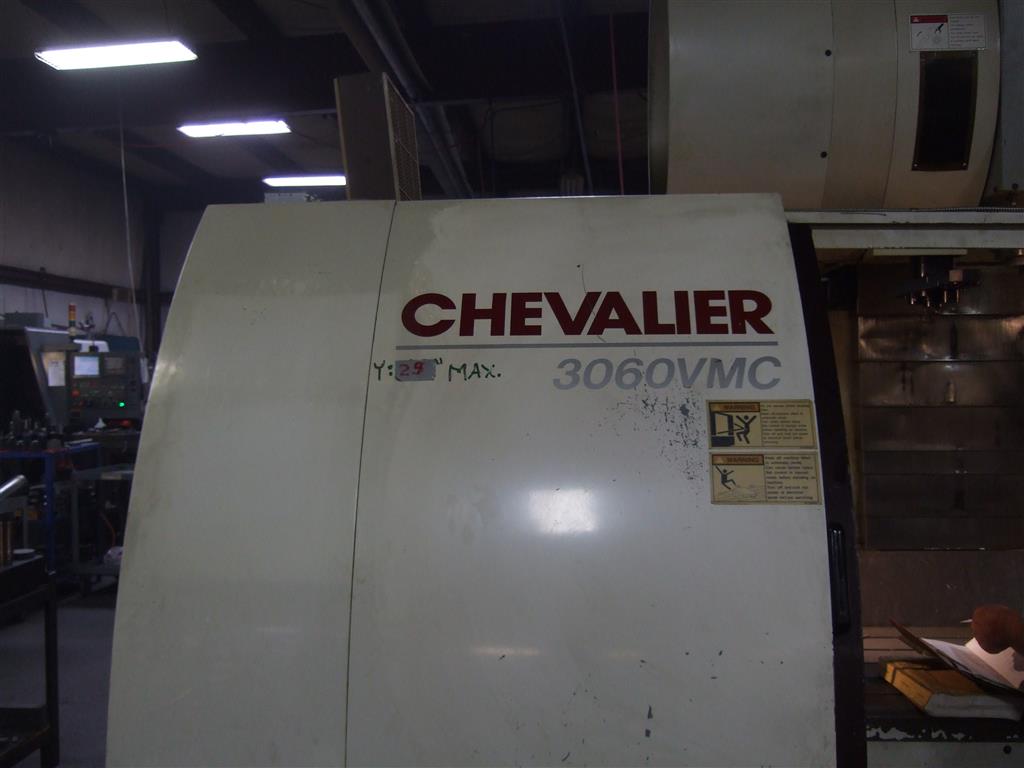

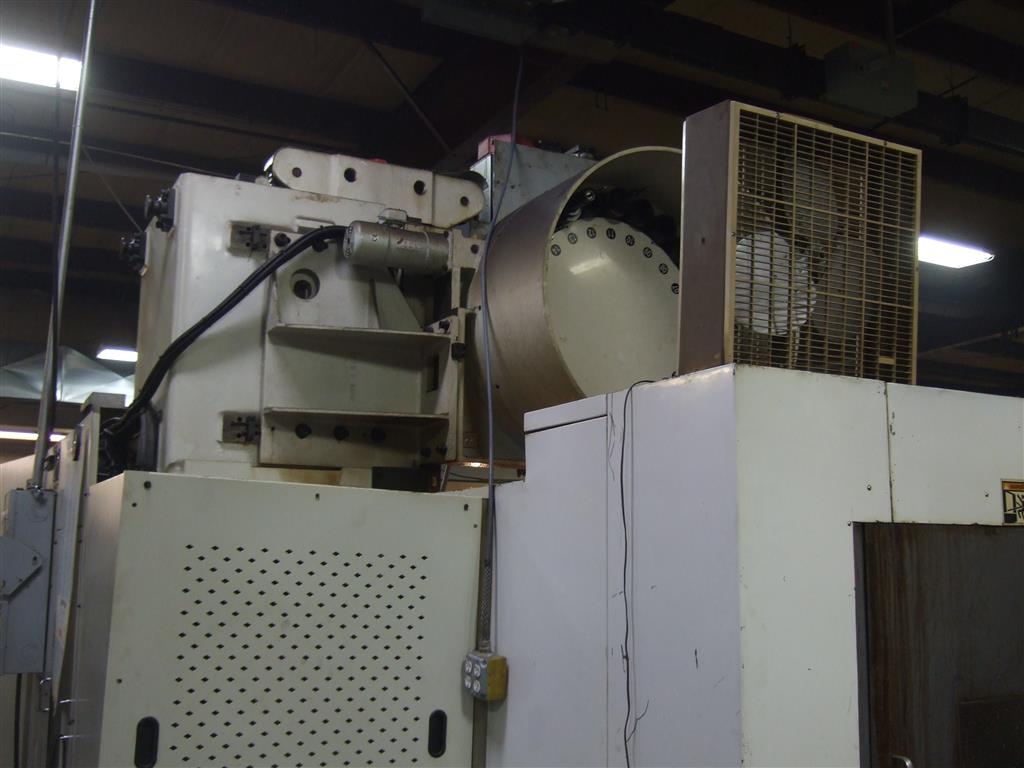

2006 CHEVALIER 3060VMC, MACHINE # 7397

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


3060VMC
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
30800 (LB)
2006
$0.00

Feature Video

Description

Reference #:7397
Machine Type:CNC Verticals
Year:2006
Manufacturer:Chevalier
Model:3060VMC
Control:Fanuc 0iMC
Condition:Good
Under Power:Yes
Code:M0185

Table:

  • Table Size: 67 x 28.5"
  • Maximum Table Load: 5500 Lbs

Travels:

  • X-Axis Travel: 60"
  • Y-Axis Travel: 31.5"
  • Z-Axis Travel: 30"
  • Spindle Nose to Table Top: 7.9" - 37.9"

Spindle:

  • Spindle Speeds (Maximum0: 40 - 4,000 RPM
  • Spindle Taper: CT 50
  • Main Motor: 20 HP

Tool Changer:

  • Tool Changer Positions: 24 ATC
  • Max. Tool Diameter: 4.3"
  • Max. Tool Weight: 33 Lbs

Rapids:

  • Rapid Traverse (XY/ Z): 590 / 590 / 472 IPM

General:

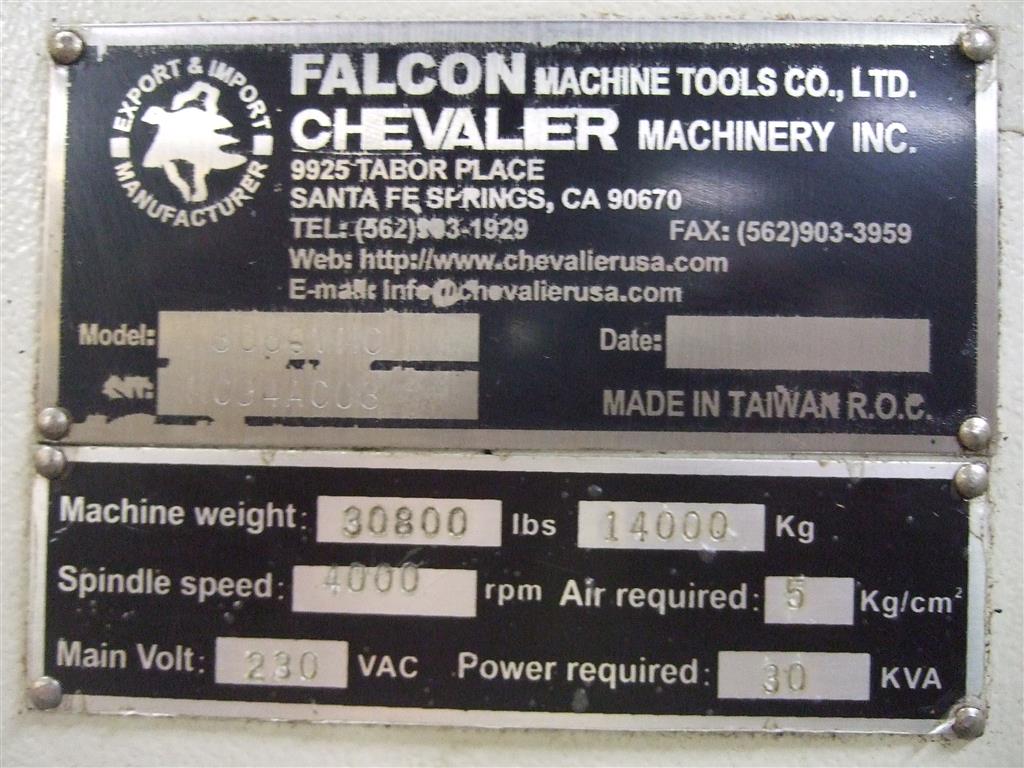

  • Weight: 30,800 Lbs
  • Width: 17 2"
  • Depth: 11 2"
  • Height (with Z-Axis all the way up): 11

Equipped With:

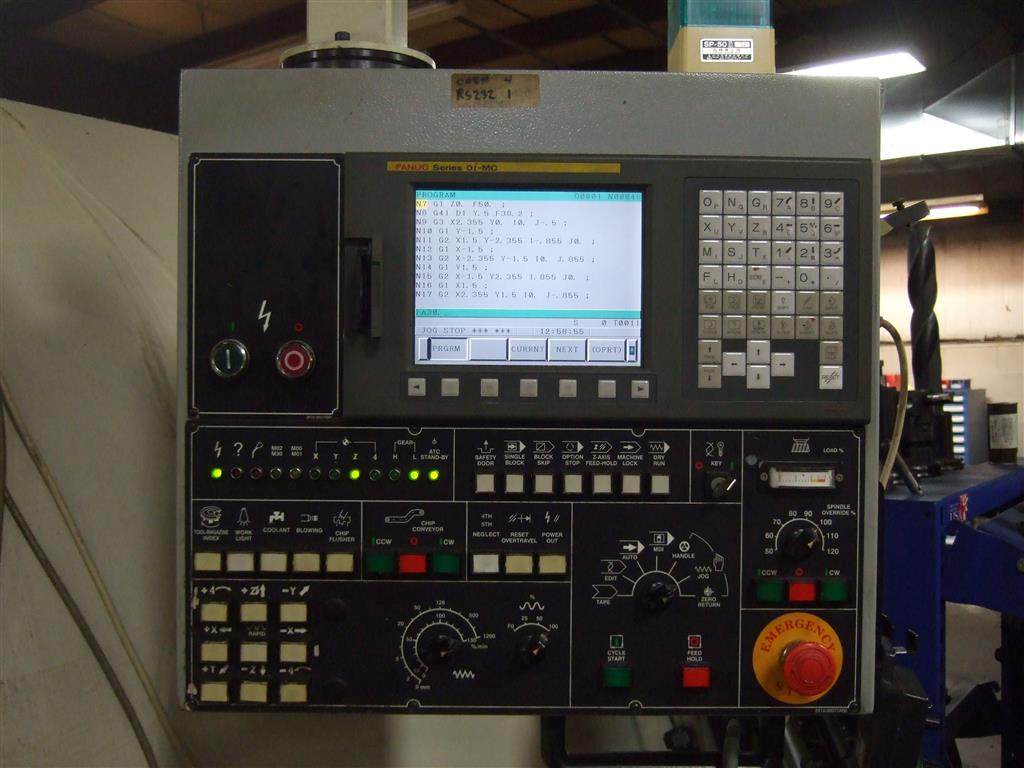

  • Fanuc 0iMC Control with Ethernet, RS-232, and Flash Drive

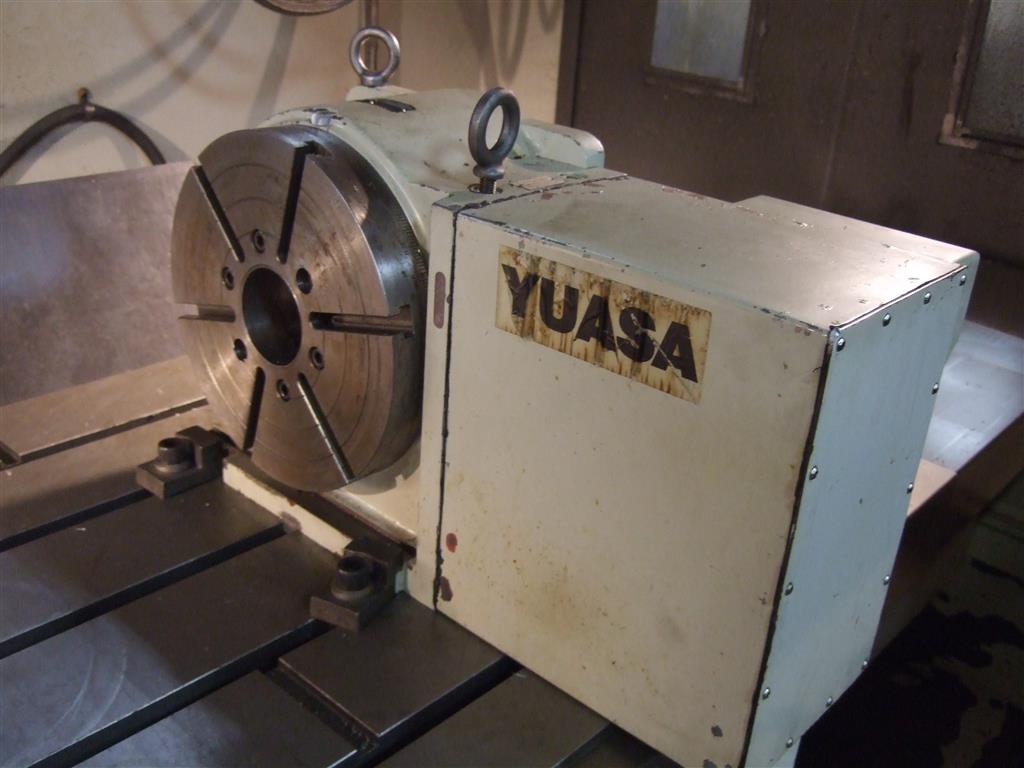

  • Yuasa 11" Full Contouring Rotary Table with Tailstock
  • Assorted 50 Taper Tool Holders available at additional cost

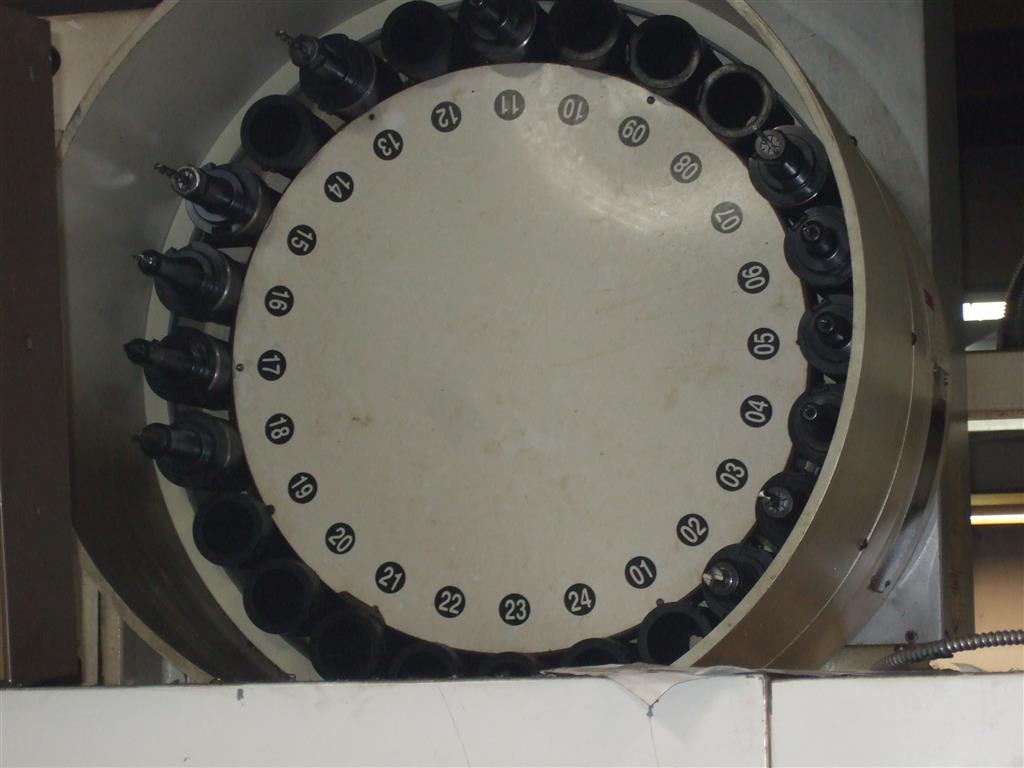

  • 24 Position Side Mount Tool Changer
  • 20 HP Gear Driiven Spindle

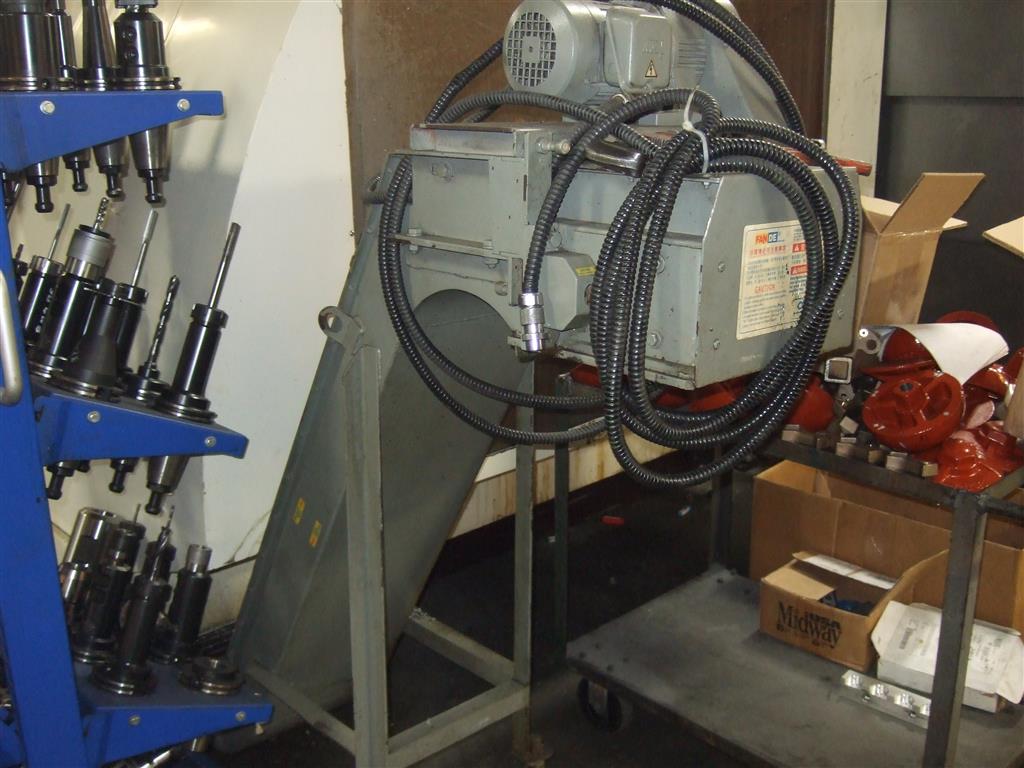

  • Chip Conveyor

Comments:

  • X & Y Axis Ball Screws were replaced recently
  • Recent ballbar test showed the machine to be less than .001" in a 20" circle
