Used Vertical Turret Lathes VTL For Sale - 2005 YOU JI YV-1200 ATC+C With Live Spindle, Machine # 8112

Home »
Vertical Turret Lathes VTL »
CNC Vertical Turret Lathes »
2005 YOU JI YV-1200 ATC+C with Live Spindle, Machine # 8112

2005 YOU JI YV-1200 ATC+C WITH LIVE SPINDLE, MACHINE # 8112

Add to Your File

Brand: 2005 YOU JI YV-1200 ATC+C WITH LIVE SPINDLE, MACHINE # 8112

Model: YV-1200 ATC+C

Serial No. :

Category: Vertical Turret Lathes VTL

Sub Category: CNC Vertical Turret Lathes

Condition: used

Weight: 51000 (LB)

Year Built: 2005

Status:

Price: $0.00

Description

Reference #:8112
Machine Type:Vertical Lathes
Year:2005
Manufacturer:YOU JI
Model:YV-1200 ATC+C with Live Spindle
Control:Fanuc 18iTB
Condition:Used
Code:B6175A

Specifications:

Table: 49.21"
Max Swing: 63"
Max Cutting Diameter: 53.15"
Max Cutting Height: 63"
Ram Distance to Table (Max / Min): 76.6" / 0"
Max. Table Load: 11,023 Lbs
X-Axis (Horizontal Travel of Rail Head): 36.81"
Z-Axis (Vertical Travel of Ram): 35.43"
C-Axis Indexing: 0.001 Degree
Vertical Travel of Cross Rail: 29.5"
Table Speeds (2 Speed Ranges): 1 - 350 RPM
Live Milling Spindle Speeds (2 Ranges): 2 - 2400 RPM
Rapid Traverse of Rail Head (X-Axis): 472.44 IPM
Rapid Traverse of Ram (Z-Axis): 393.7 IPM
Cuting Feed Rate: .03 - 78.74 IPM
Automatic Tool Changer Pockets: 16
Spindle Taper: BT 50
Spindle Drive Motor: 60 HP
Live Spindle Drive Motor: 15 HP
Machine Dimensions: 236" x 157"
Approximate Machine Weight: 51,000 Lbs

Equipped With:

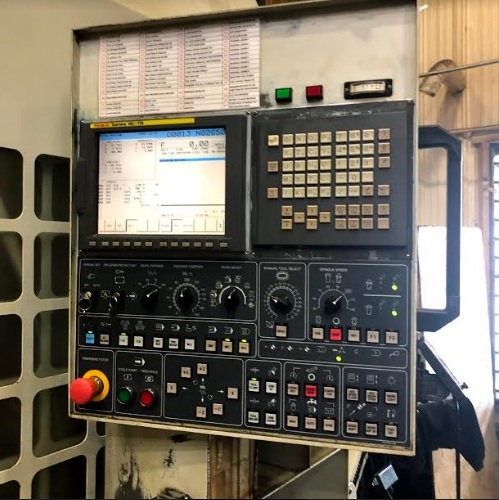

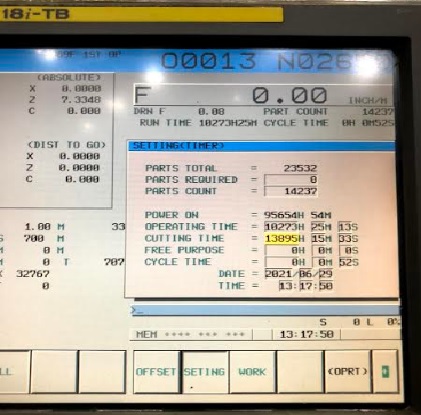

Fanuc 18iTB Control

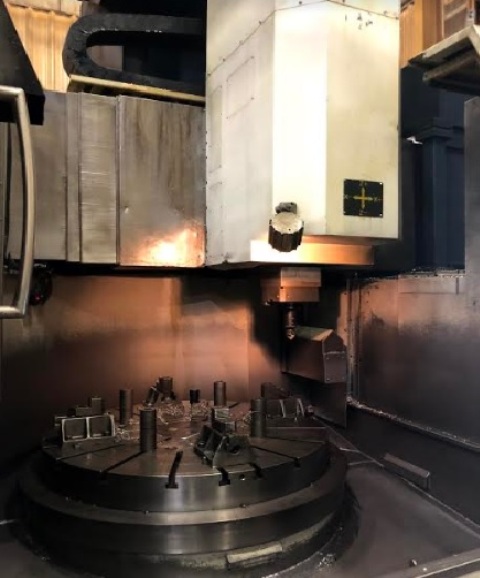

49" Dia. Table with (4) Jaws

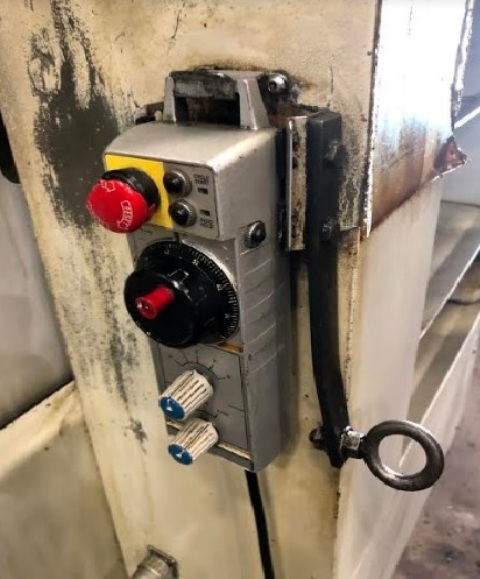

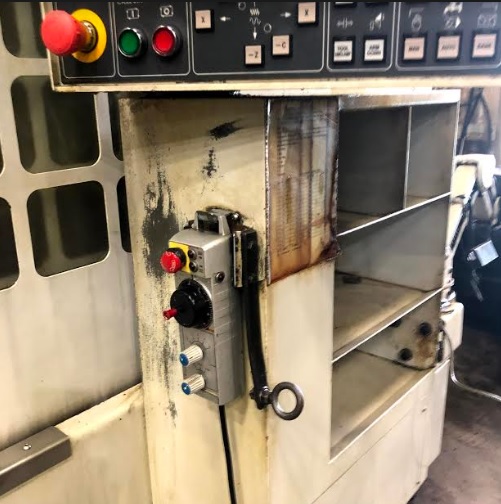

Remote MPG
Chip Conveyor
Oil Chiller, Box Ways
Coolant Through Spindle
Machine Manuals
C Axis Table Indexing

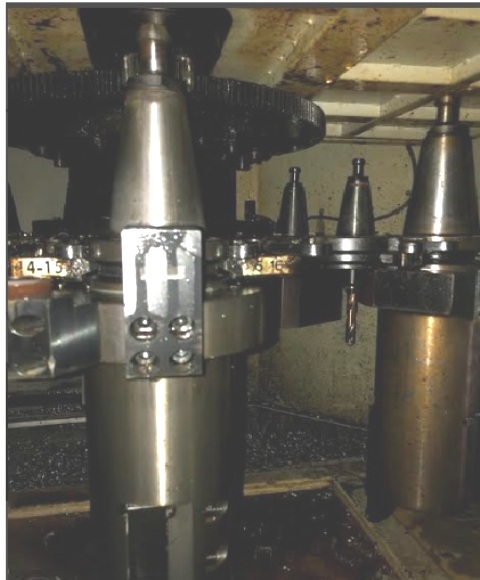

BT #50 Tool Holders
