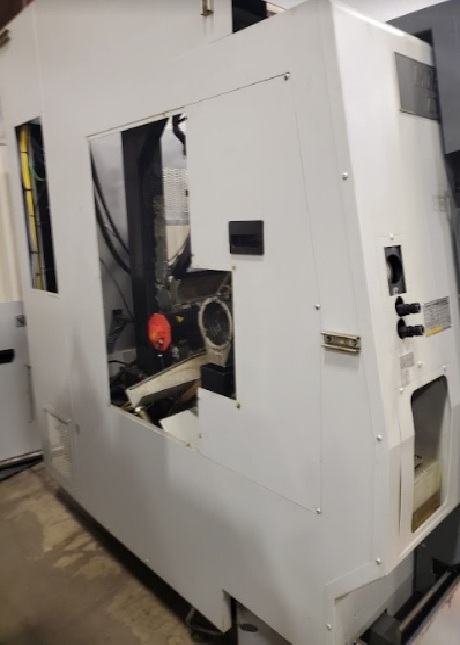

2005 MORI-SEIKI ZT2500Y, MACHINE # 8125

Add to Your File

Brand: 2005 MORI-SEIKI ZT2500Y, MACHINE # 8125

Model: ZT2500Y

Serial No. :

Category: Lathes and Turning Centers CNC

Sub Category: Multi Axis Turning Center

Condition: used

Weight: 25300 (LB)

Year Built: 2005

Status:

Price: $0.00

Description

Reference #:8125
Machine Type:CNC Lathes
Year:2005
Manufacturer:Mori-Seiki
Model:ZT2500Y
Control:Fanuc MSX-501
Condition:Used
Under Power:Yes
Code:L2155

Specifications:

Max. Turning Diameter: 14.9"
X-Axis Travel (No1 / No2): 11" / 7.9"
Z-Axis (No1 / No2): 37.8" / 38.8"
Y-Axis Stroke: +/- 3.54"
Rapid Traverse Rate (X / Z Axes): 945 IPM
Turning Length: 51.2"
Turret Positions (Upper / Lower): 12 / 12
Spindle Motors: 30 HP
Spindle Bore: 2.8"
Bar Capacity: 2.5"
Spindle Speeds (Both Spindles): 4,000 RPM
Spindle Nose: JIS A2-8
Approximate Weight: 25,300 LBS
Live Tooling Motors: 3.5 / 6 HP
Live Tooling Speeds (Both): 4,000 RPM

Equipped With:

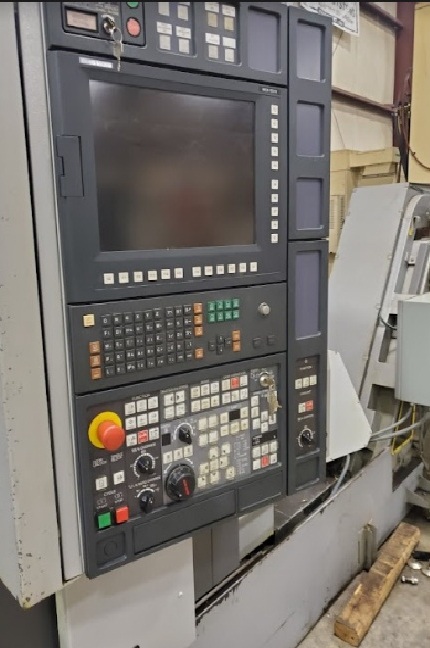

Fanuc MSX-501 Control
RS232C Port Interface
Y-Axis

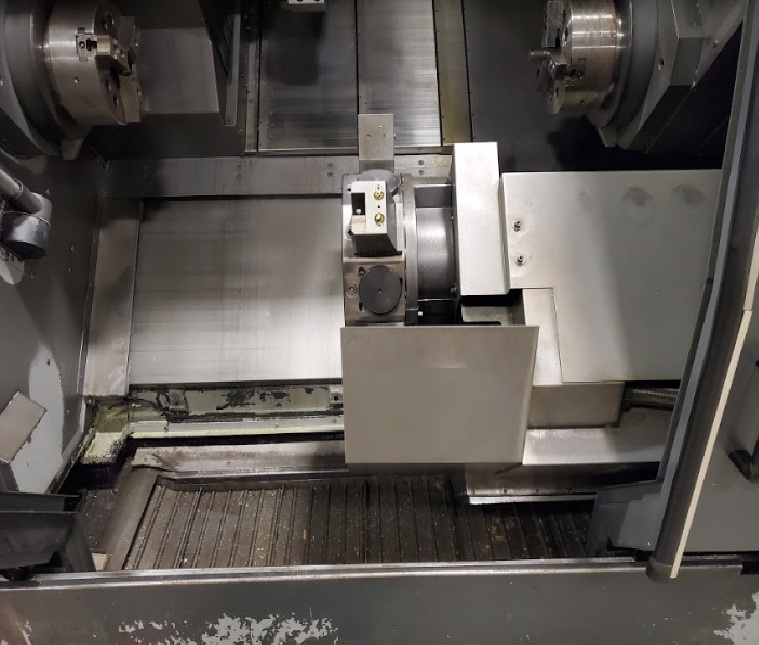

Two (2) 10" Diameter 3-Jaw Hydraulic Chucks

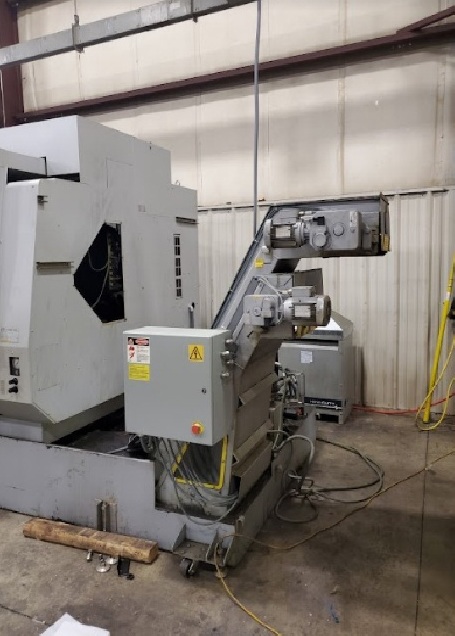

Chip Conveyor & Coolant Tank
MAPPS Conversational Programming
(1) Live Tooling Holder.. Straight Type
