2005 HAAS VF-8 VERTICAL MACHINING CENTER MACHINE # 7560

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VF-8
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
25600 (LB)
2005
$0.00

Description

Reference #:7560
Machine Type:CNC Verticals
Year:2005
Manufacturer:Haas
Model:VF-8
Control:Haas 32 BIT
Code:M0185
Location:Illinois

Travels:

  • X Axis: 64"
  • Y Axis: 40"
  • Z Axis: 30"
  • Spindle Nose to Table (min - max): 4" - 34"

Table:

  • Length x Width: 64" x 36"
  • Max Weight on Table (evenly distributed): 4000 lb

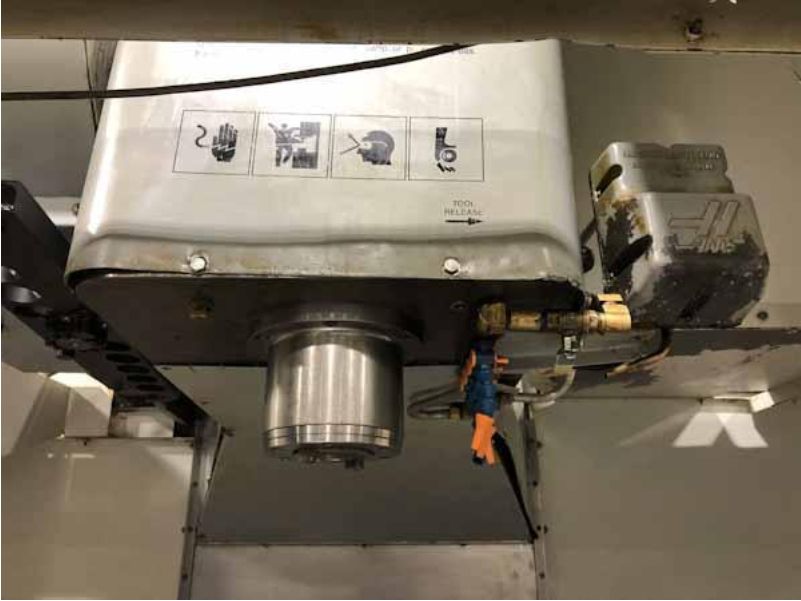

Spindle:

  • Max Rating: 20 hp
  • Max Speed: 0 - 7500 rpm
  • Max Torque: 250 ft-lb @ 450 rpm
  • Drive System: 2-Speed Geared Head
  • Taper: CT 50

Feedrates:

  • Rapids on X, Y, Z: 600 IPM

Tool Changer:

  • Capacity (Side Mount Tool Changer): 24 + 1
  • Max Tool Diameter (adjacent empty): 6"
  • Max Tool Diameter (full): 3"
  • Max Tool Length (from gage line): 16"
  • Max Tool Weight: 12 Lbs
  • Tool-to-Tool (avg): 4.2 sec
  • Chip-to-Chip (avg): 6.3 sec

General;

  • Machine Weight: 25,600 lb
  • Approximate Dimensions: 25,600 Lbs

Equipped With:

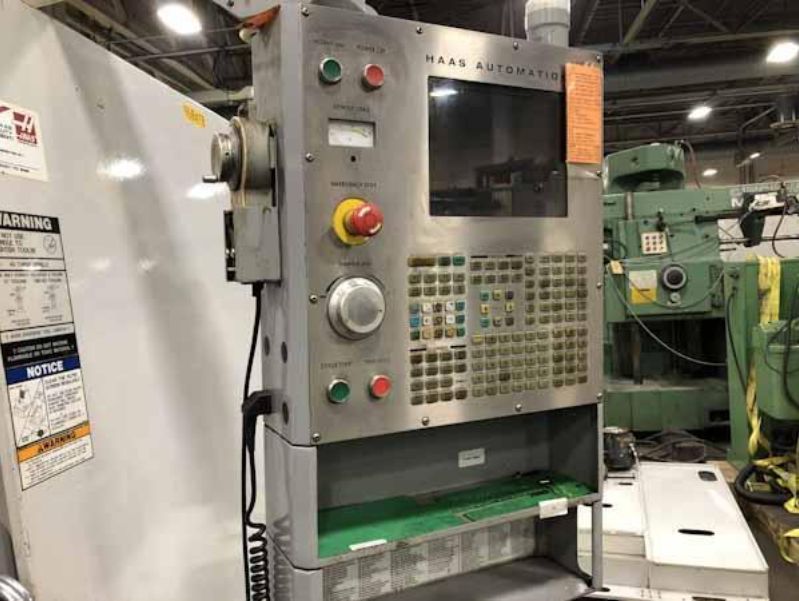

  • Haas CNC Control,. with Jog Control Pendant

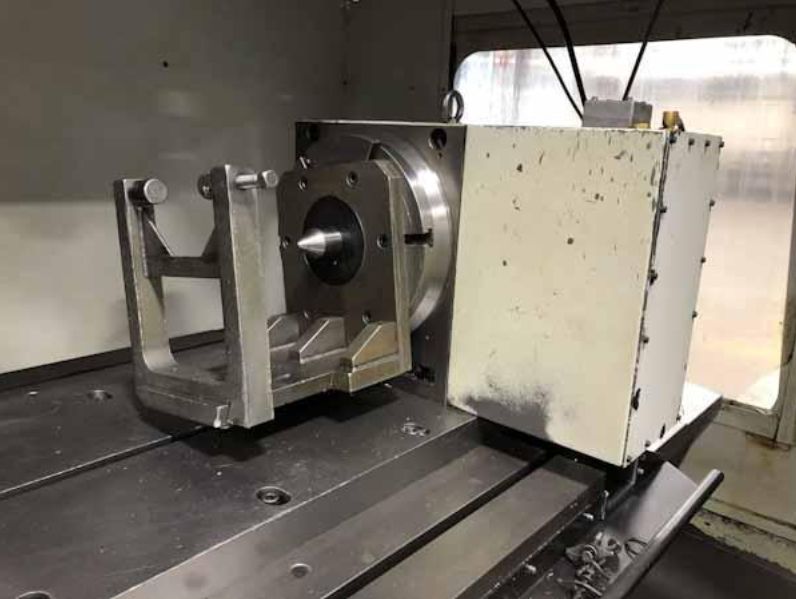

  • Haas HRT310 4th Axis Rotary Table With Pneumatic Tailstock

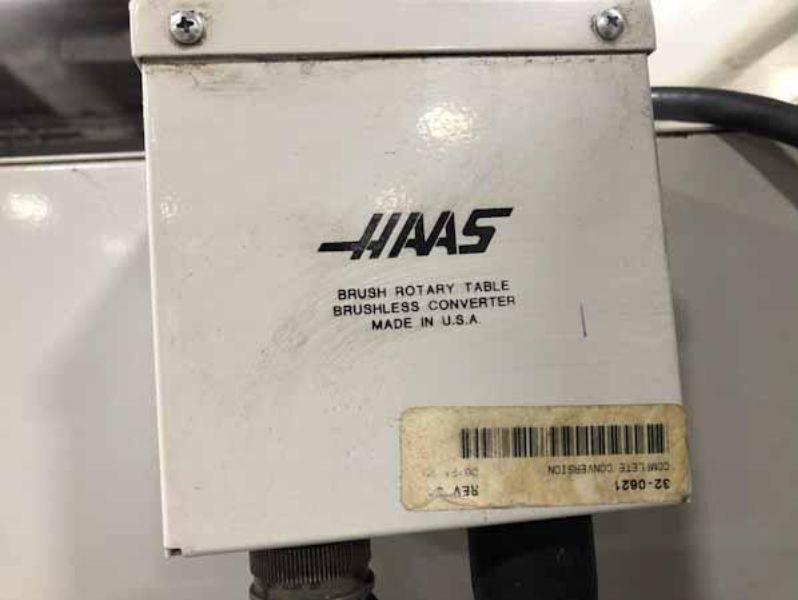

  • Brush/Brushless Horizontal Vertical Converter
  • Through Spindle Coolant
  • Chip Auger
  • Rigid Tapping

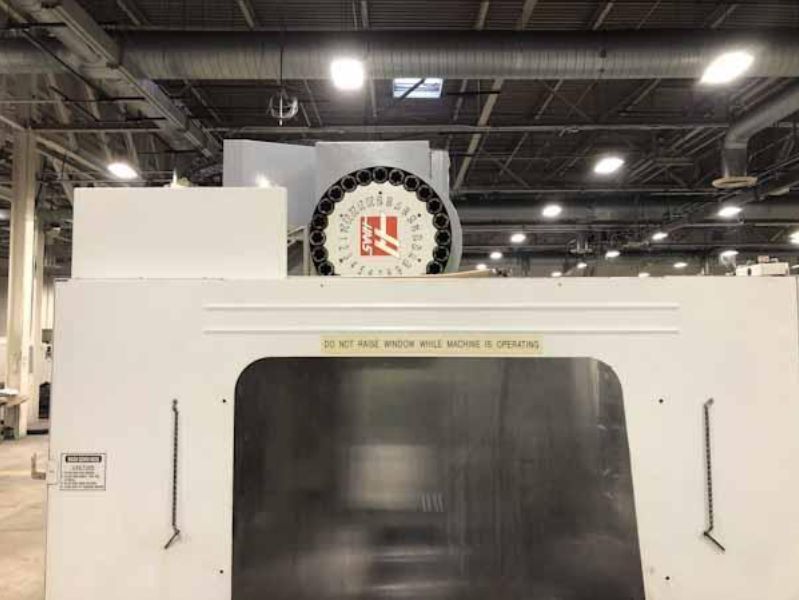

  • 24+1 Side Mounted Automatic Tool Changer

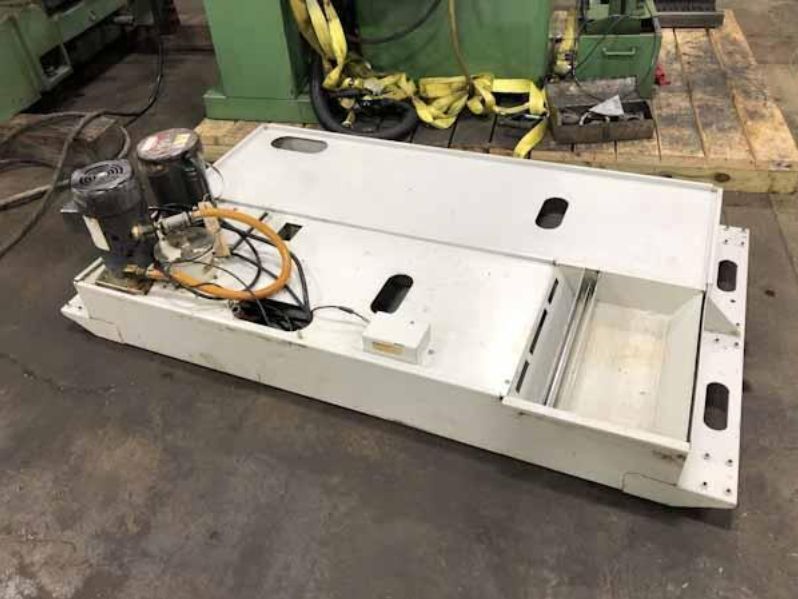

  • Roll Out Coolant Pump And Tank
  • Oil/Coolant Separator
