2005 HAAS SL-20 CNC LATHE TURNING CENTER WITH TAILSTOCK
SL-20 TAPL
71055
Lathes and Turning Centers CNC
Slant Bed Turning center
used
(LB)
2005
$25,500.00

Description

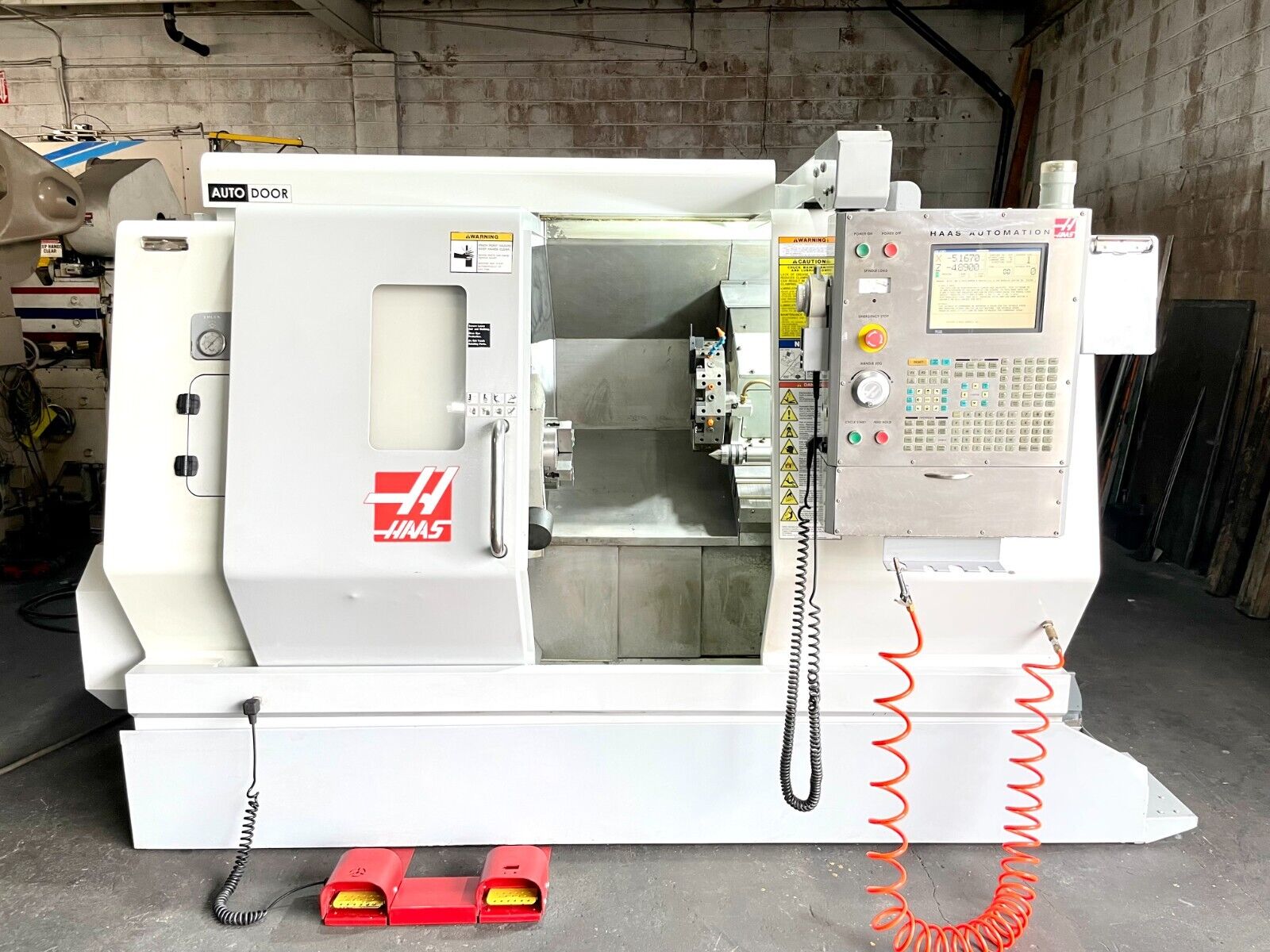

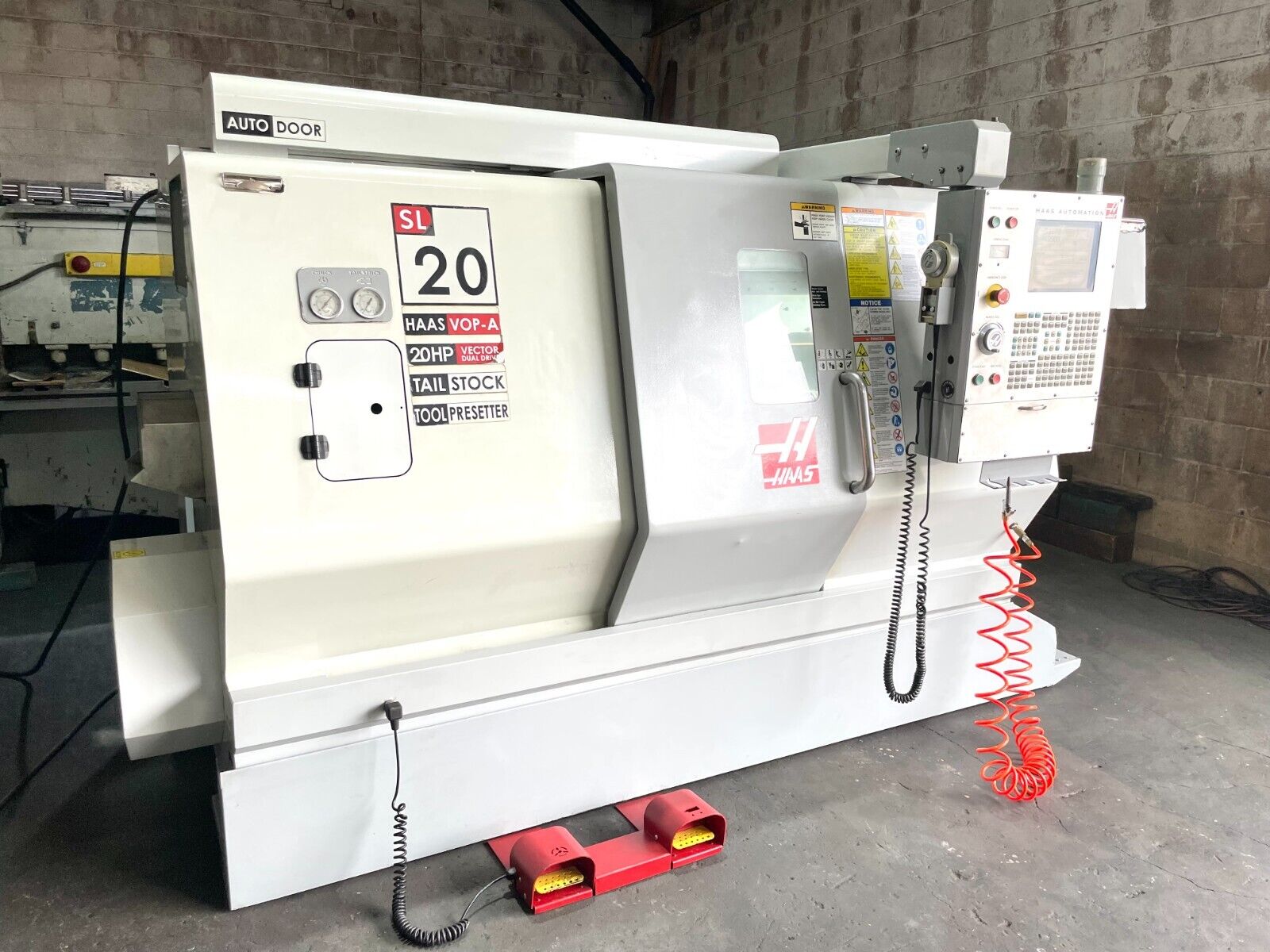

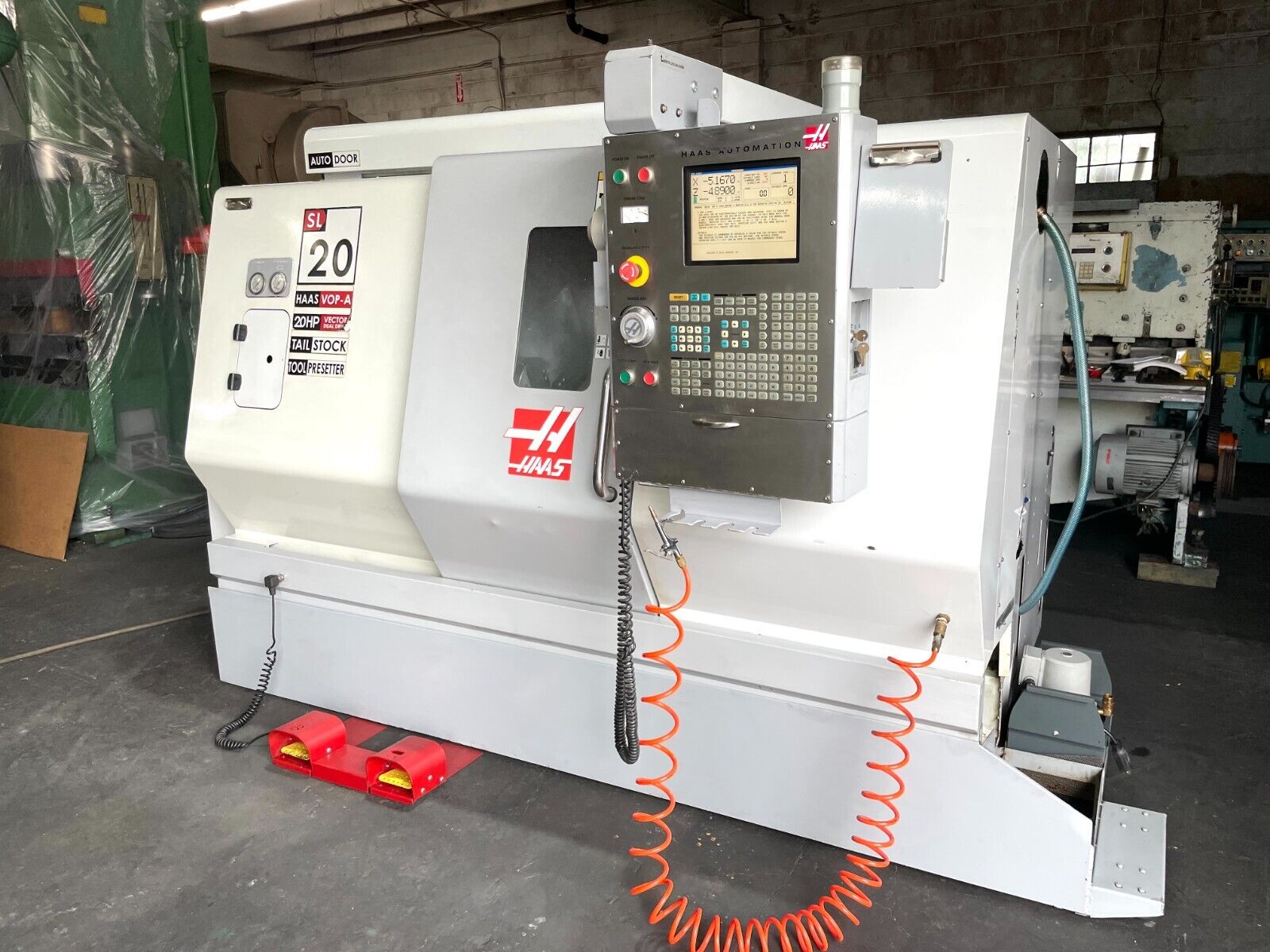

2005 HAAS SL-20 CNC Lathe Turning Center With Tailstock
Specifications:
Max Swing Over Front Apron: 23.0 in
Max Swing Over Cross Slide: 9.5 in

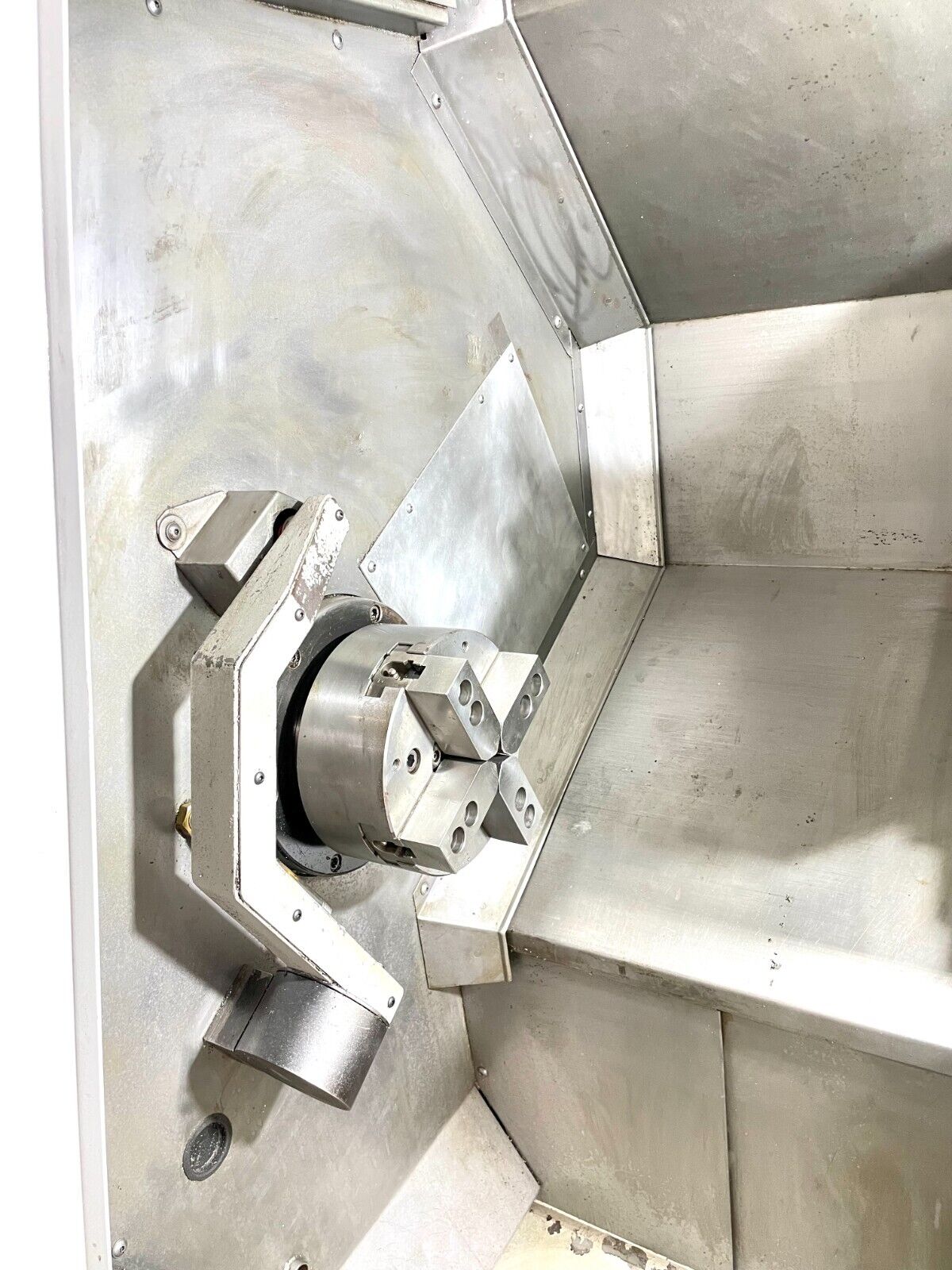

Chuck Size: 8 in 4-Jaw Chuck
Max Turning Diameter: 10.3 in
Max Turning Length: 20 in
Rapid Feed Rates: 710 IPM
Spindle Speeds: 4,000 Max RPM

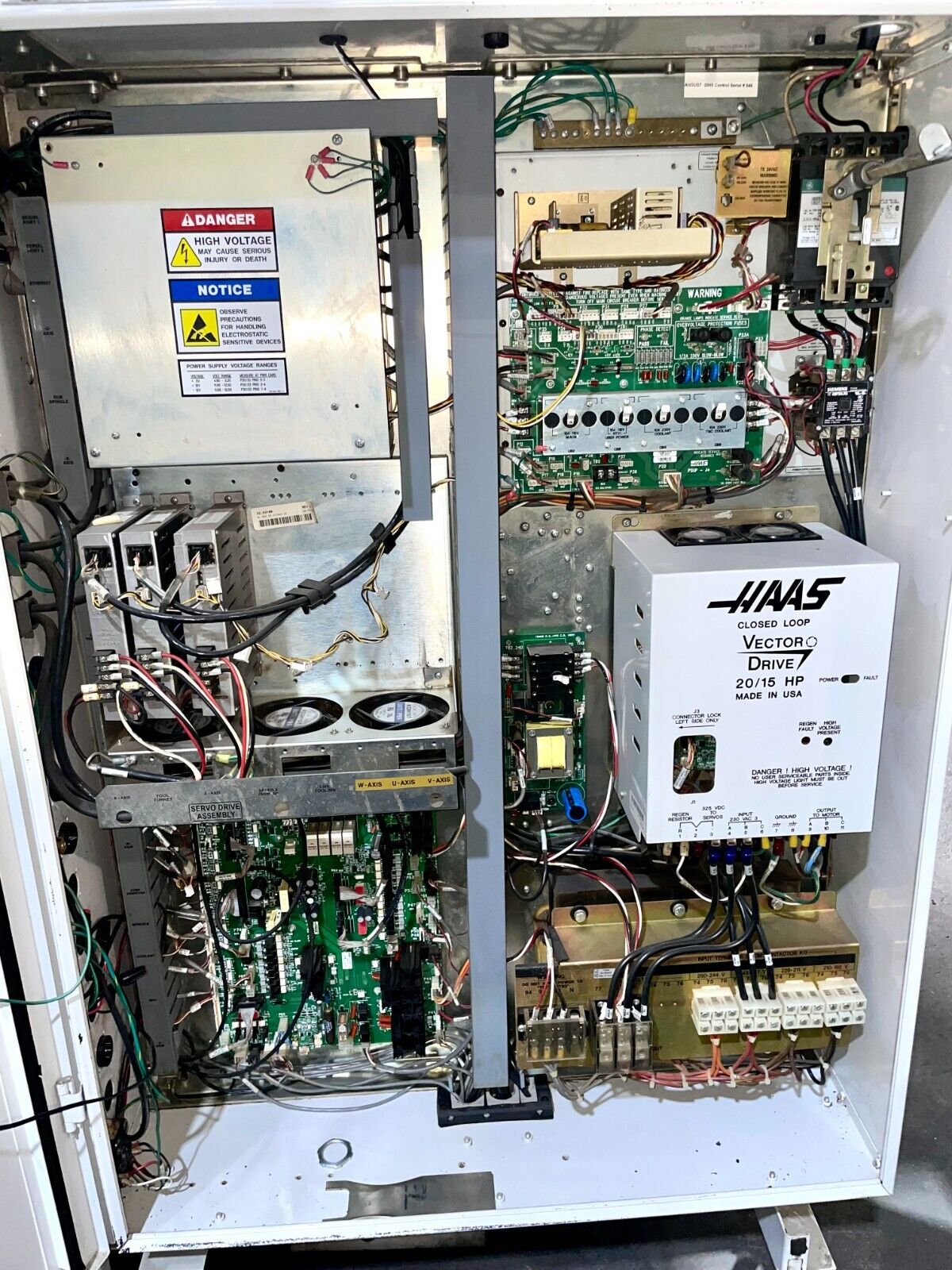

Spindle Drive: 20 HP Vector
Spindle Nose: A2-6
Max Swing Over Bed: 23 in
Hole Thru Draw Tube: 2.06 in
Max Swing Over Saddle: 9.5 in
Turret Capacity: 10 Station
Turret Index Time (One Tool): 1 Second
Turret Travels (X,Z): 8.45 in / 20 in
Turret Index Time: 1 Second Per Station
Tailstock Travel: 20 in
Tailstock Quill Diameter / Taper: #4 Morse Taper
Rapid Feed Rates: 1,000 IPM

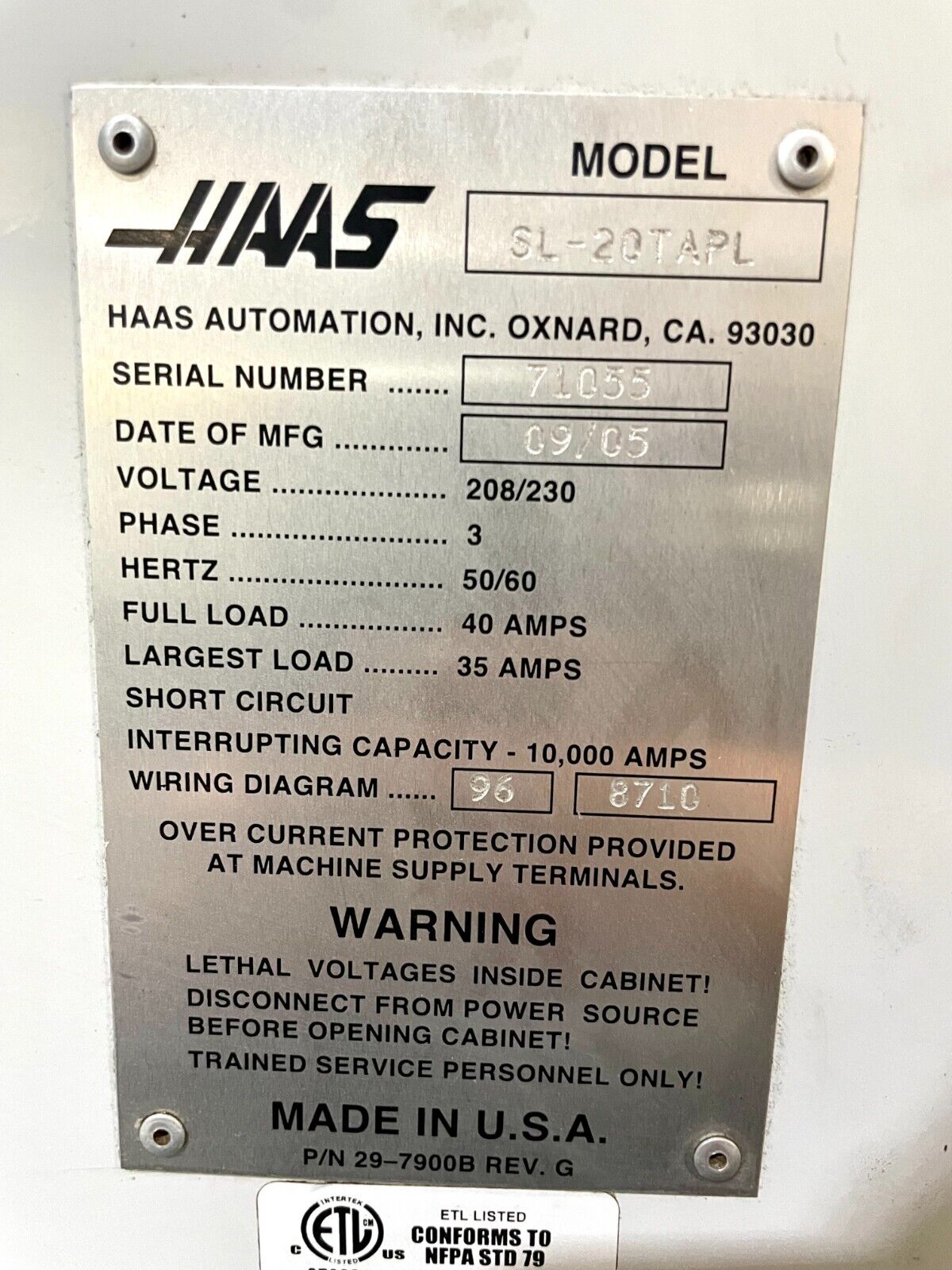

Electrical: 208/230 Volt 3 Phase

Equipped With:

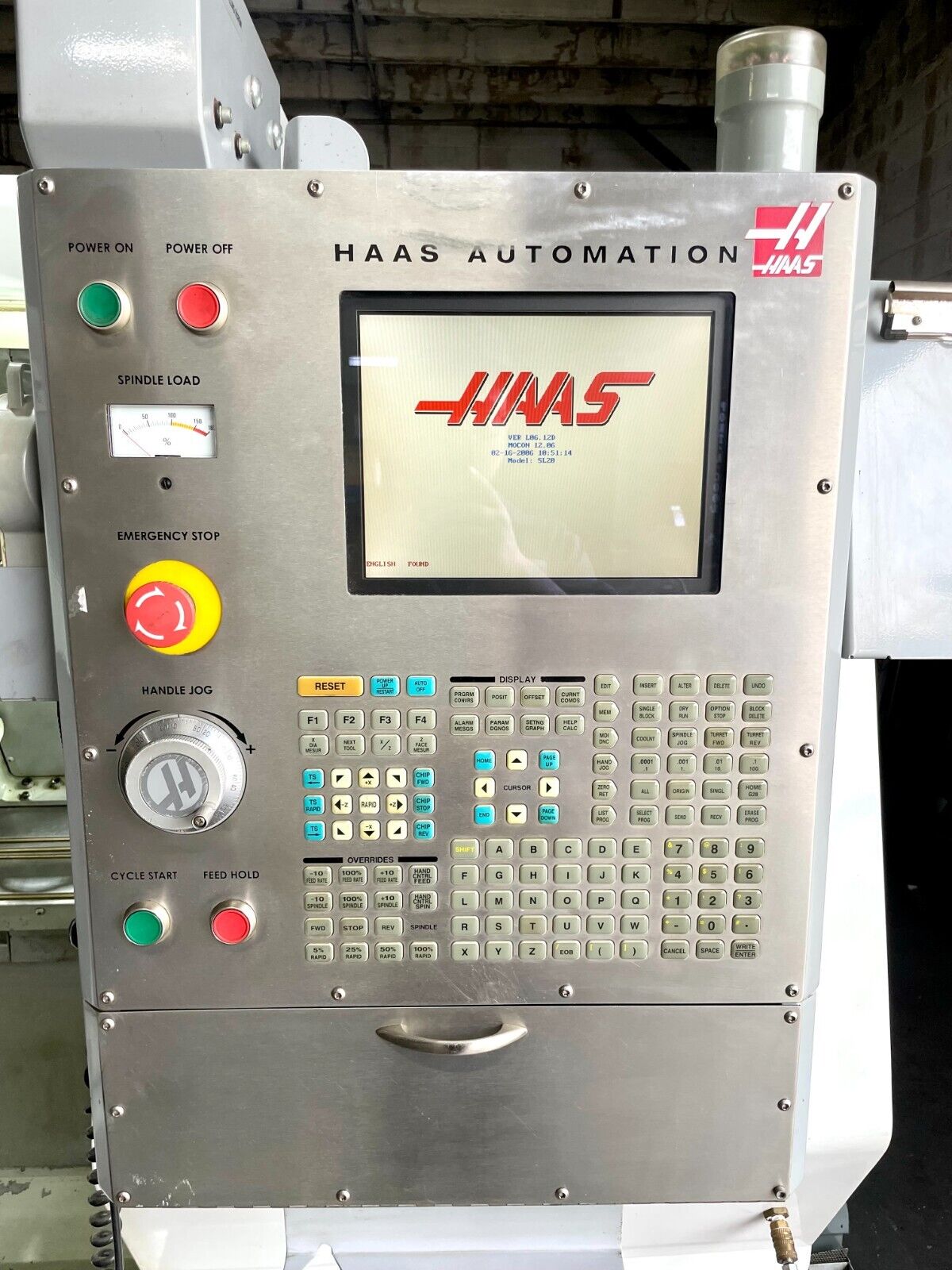

Haas CNC Control

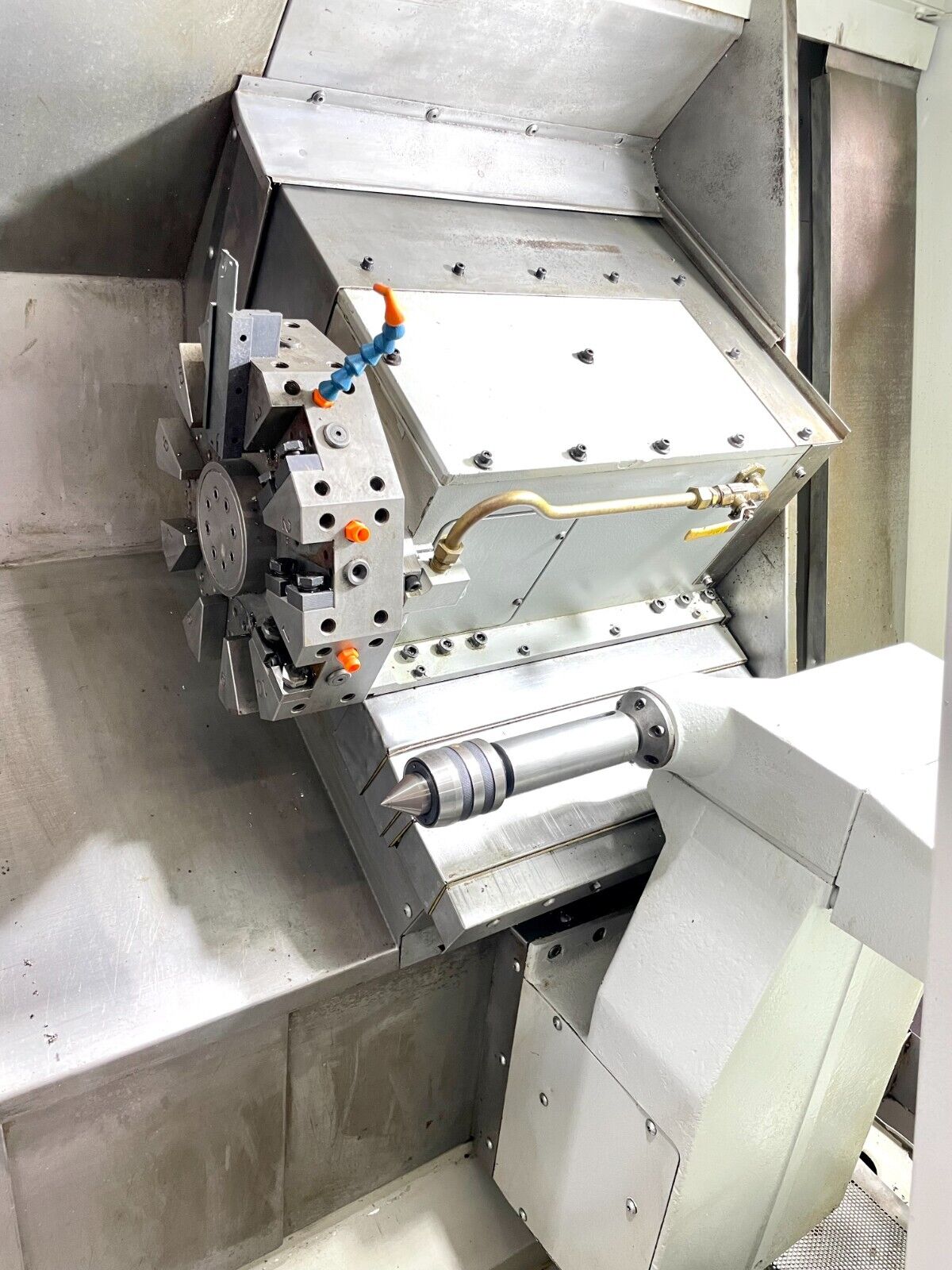

Tailstock
Automatic Doors
Tool Presetter

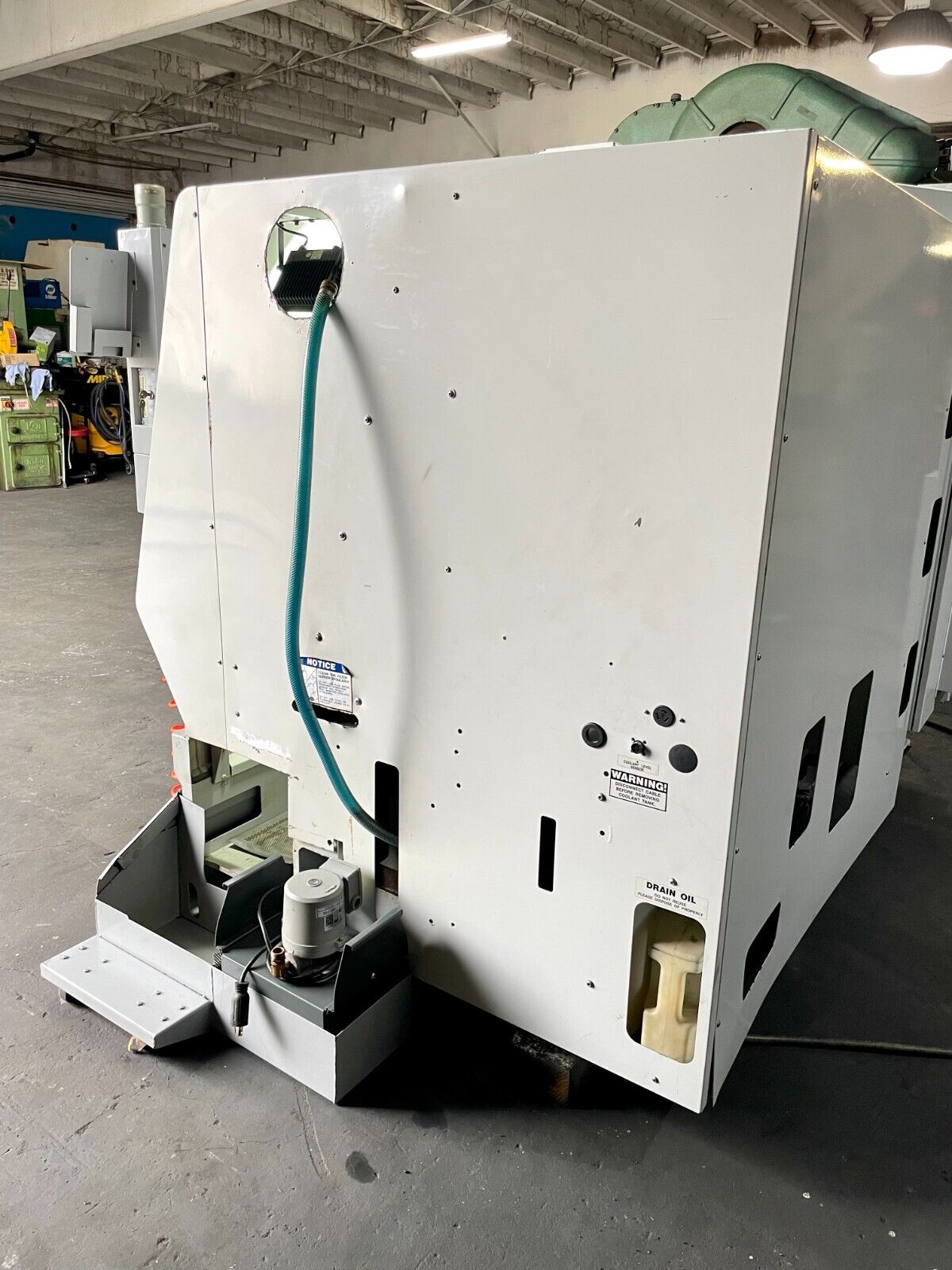

Coolant System with Pump and Tank
MPG Hand Control
