2005 DOOSAN LYNX 220LC
Lynx 220LC
L2150
Lathes and Turning Centers CNC
Universal
used
(KG)
2005
$0.00

Description

Capacity:

  • Chuck Size: 8\
  • Swing Over Bed Ways: 20.1\"
  • Max. Turning Diameter: 12.6\"
  • Max. Turning Length: 20.7\"

Spindle:

  • Speeds: 40 - 4000 RPM
  • Bore: 3\"
  • Bar Capacity: 2.68\"
  • Nose: A2-6
  • Main Motor: 20 HP

Turret:

  • Number of Positions: 12 Tools
  • X-Axis Travel: 6.9\"
  • Z-Axis Travel: 21.7

Tailstock:

  • Stroke of Quill: 3.14
  • Quil Diameter: 2.6\"
  • Quill Taper: MT #4

Rapids:

  • Rapid Traverse (X & Z ): 1181 / 1417 IPM

Dimensions:

  • Floor Space (L x W x H): 101 x 63 x 65\"
  • Weight (approx.): 7700 Lbs

General:

  • Coolant pump pressure: 65 psi

Equipped With:

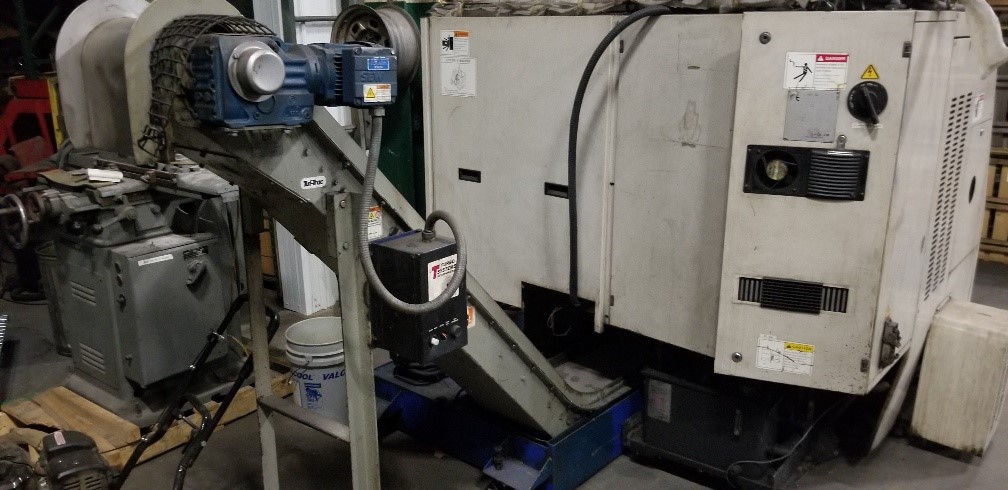

  • Eriez Magnetic chip conveyer

Comments:

  • This is a 2005 unit that was in storage for three years.
  • The control says the machine has 5,725 hours and 14 minutes of run time.
  • When put under power the machine fired right up.
