Description

Description:

• Swing over bed: 30.3\"
• Swing over carriage: 23.2”
• Distance between centers: 86\"
• Maximum turning diameter: 22.0\"
• Maximum turning length: 79.8\"
• Spindle speed: 20 - 2,000 RPM
• Spindle nose: ASA-A2-11
• Spindle bore diameter: 5.20\"
• AC Spindle Motor (30 min.): 50 HP
• Spindle speed ranges: 2
• Minimum “C” axis programming angle (degrees): .001
• Rapid traverse rate: 100 RPM
• X axis travel: 14.3”
• Z axis travel B: 84.8\"
• Angle of slant bed: 45 degrees
• X axis guideway span: 14.2\"
• Z axis guideway span: 16.5\"
• Tailstock guideway span: 11.8”
• X axis rapid traverse rate: 550 IPM
• Z axis rapid traverse rate: 710 IPM
• X / Z axis ball screw diameters: 1.6\" / 2.0\"
• Number of tools: 12
• Number of live tool positions: 12
• Turning tool shank size: 1.0\"
• Boring bar diameter: 2.5\"
• Turret index time (next station): 0.25 sec.
• Turret index time (180º opposing stations): 2.1 secs.
• Tool selection: Bi-directional
• Rotating tool: 3,000 RPM
• Rotating tool: 10 HP
• Rotating tool torque: 70.5 ft-lbs.
• Rotating tool type: BMT 75
• Rotating tool collet type: ER40
• Maximum collet ID: 1.0\"
• Tailstock quill diameter: 4.7\"
• Tailstock quill stroke (programmable): 4.7\"
• Maximum tailstock quill thrust /: 3,210 lbs.
• maximum hydraulic pressure: 580 PSI
• Tailstock body stroke (programmable): 80.7\"
• Tailstock spindle taper (built-in type): MT #5
• Coolant pump pressure: 65 PSI
• Coolant pump motor: 1.2 HP
• Coolant tank capacity: 69 gal.
• Hydraulic tank capacity: 2.6 gal.
• Way lubrication tank capacity: 0.5 gal.
• Floor space with chip conveyor (Length X Width): 260” x 99”
• Net weight: 23,670 lbs
• Voltage required: 205-235 volt/3 phase
• Power requirement: 58 KVA
• : 152 amps@220 volts

Equipped With:

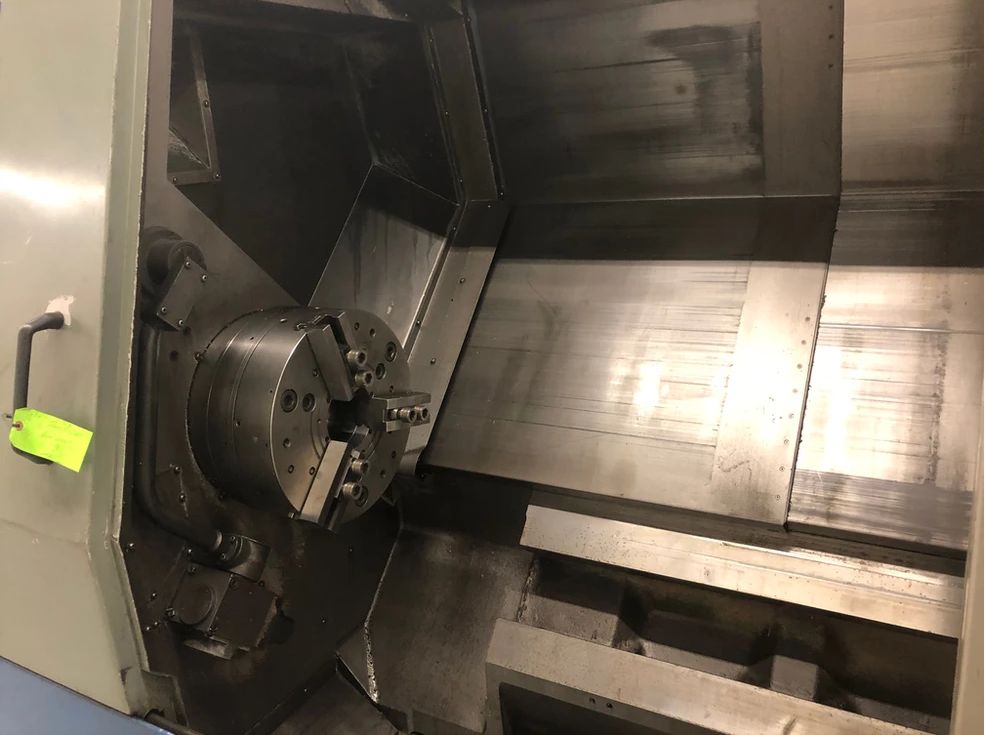

• 15\" chuck

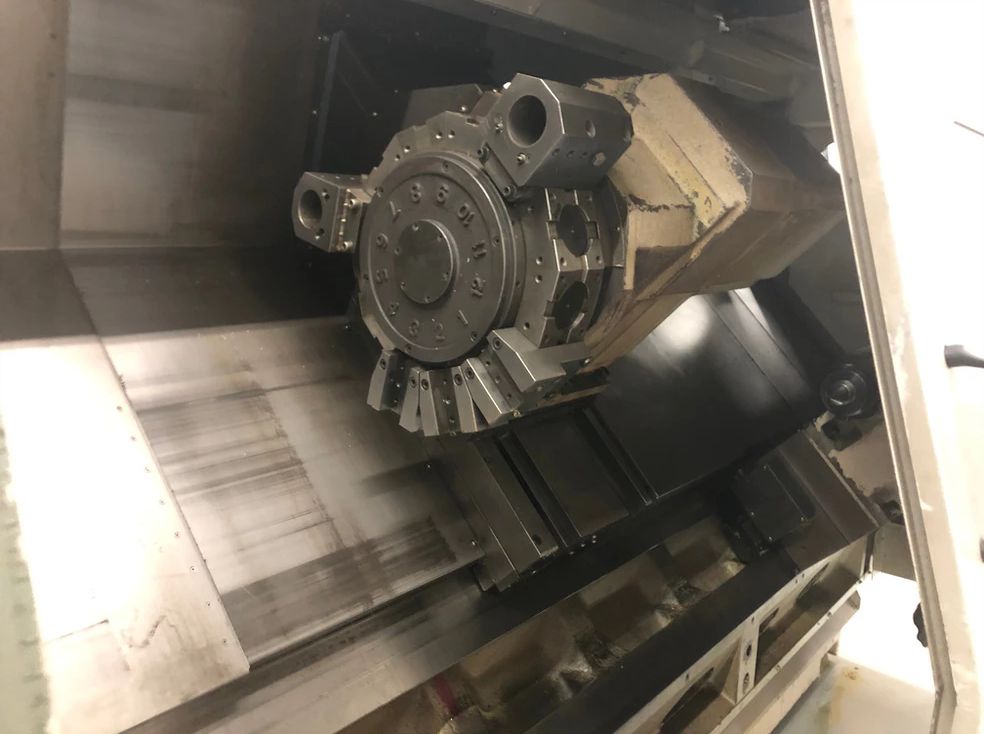

• Miscellaneous turret tooling
• (1) X axis live tool
• (1) Z axis live tool
• Turbo Chip Conveyor

Comments:

• Is loading on a truck included in the price? YES
• Machine cutting hours? Cutting hours = 17,902 / Power on in hours =
• 56,805 / Operating time 2 hours 15 min (which means they had very
• long cycle times) Long cycle times + less wear on ball screws and
• thrust bearings.
• What type of materials/parts were made on the machine? STAINLESS
• / FOOD PROCESSING PARTS
• Any mechanical or electrical issues to note? NONE
• This machine was a single-company owner who is meticulous about
• maintenance. They run almost 100% stainless steel.
