2004 TAKAMAZ XY-120, COMBINATION, 3-AXIS OR MORE MACHINE # 9064

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


XY-120
Lathes and Turning Centers CNC
Slant Bed Turning center
new
(LB)
2004
$0.00

Description

Reference #: 9064
Machine Type: CNC Lathes
Year: 2004
Manufacturer: Takamaz
Model: XY-120

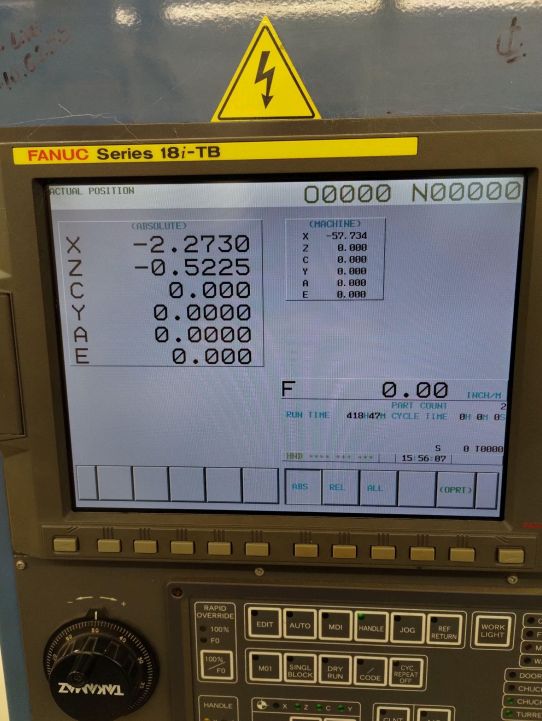

Control: Fanuc 18iTB
Condition: Used
Under Power: Yes
Code: L2155
Capacity:
Max. turning diameter - Main / Sub-Spindle: 170 / 135 mm
Max. turning length: 330 mm
Max. bar diameter: 42 mm
Chuck Size - Main / Sub-Spindle: 6" / 6"
Spindle Nose - Main / Sub-Spindle: A2-5 / Flat Type
Spindle Indexing - Main / Sub-Spindle: C / Cs
Spindle speed - Main / Sub-Spindle: 4500 / 4500 rpm
Turret:
Type: 12-station VDI: 30
X-Axis: 150mm
Z-Axis: 330mm
Y-Axis: +/- 30mm
A-Axis: 380mm
Main Spindle:
Motor: 7.5 / 5.5 kW
Sub-Spindle:
Motor: 3.7 / 2.2 kW
Live Tools:
Tool storage capacity: 12 each
Spindle Speed: Max. 4,000 rpm
Motor: AC 3.7 / 2.2 / 1.5 kW
C-Axis:
Rapid Traverse Rate - Main - Sub-Spindle: 50 / 60 rpm
Motor: 0.5 / Cs
General:
Spindle center height: 960 mm
Dimensions (L x W x H): 2400 x 1650 x 1700mm
Weight: 3,500 kg
Total electric capacity: 27 kVA
Equipped With:

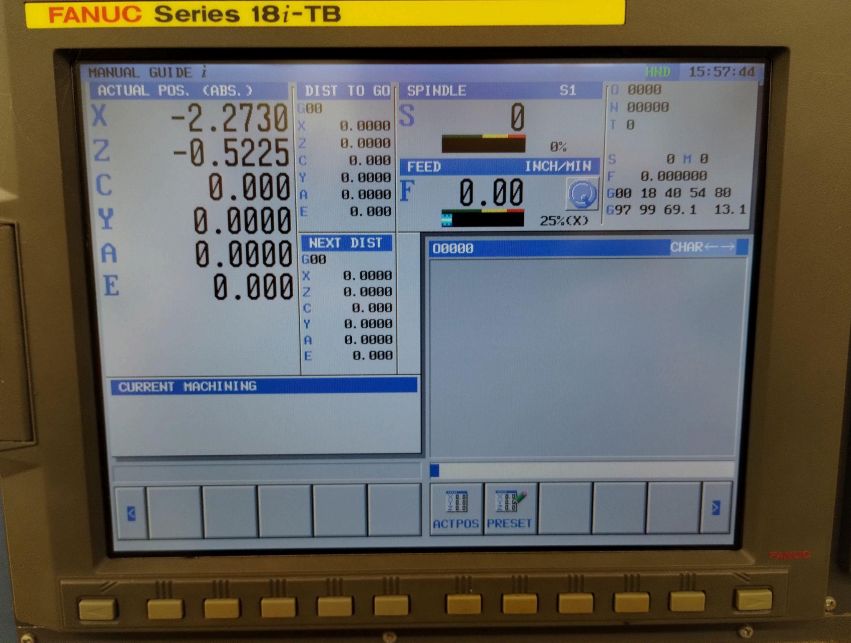

Fanuc 18i-TB with Manual Guide I Conversation Programming

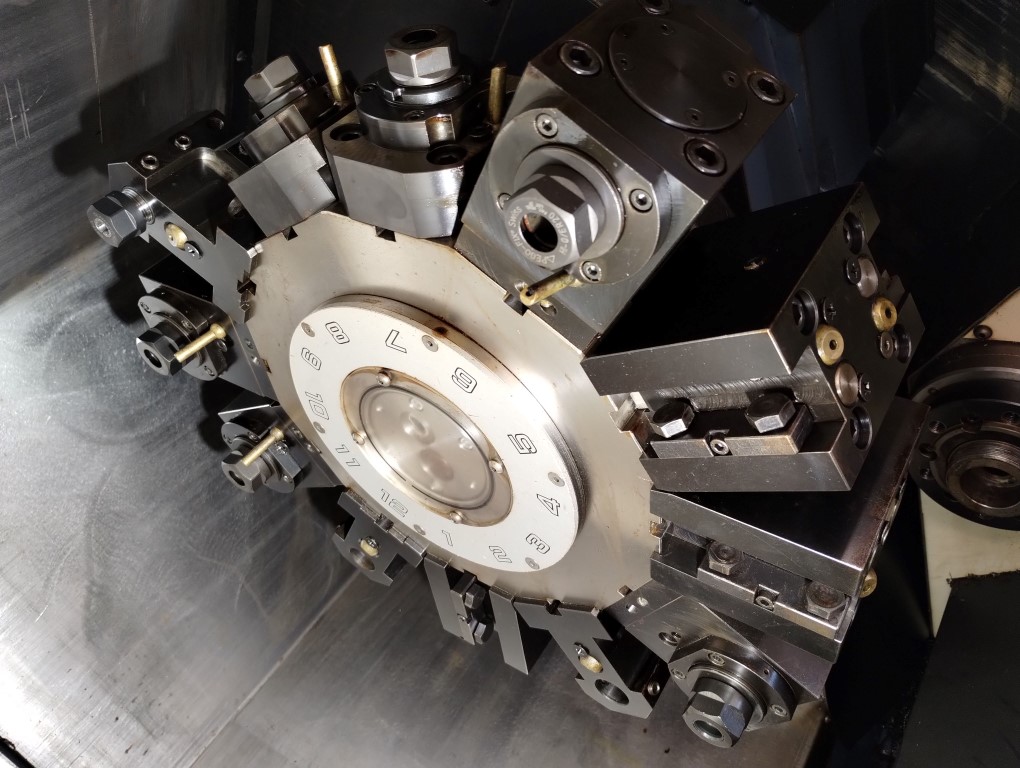

12-Station Turret

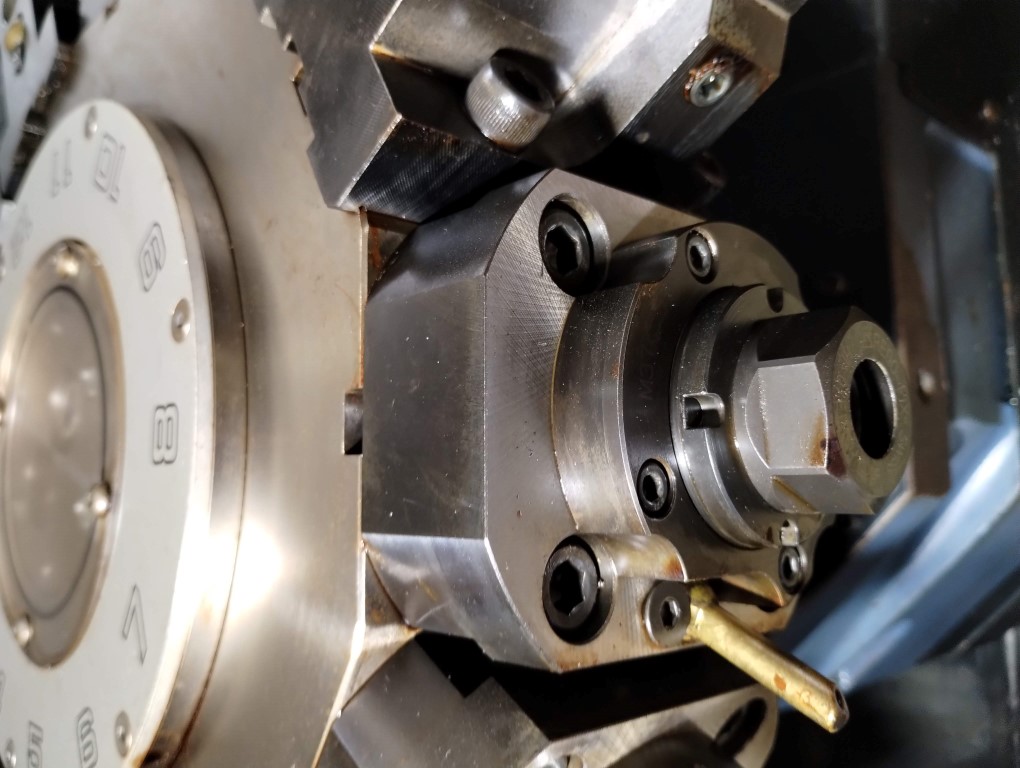

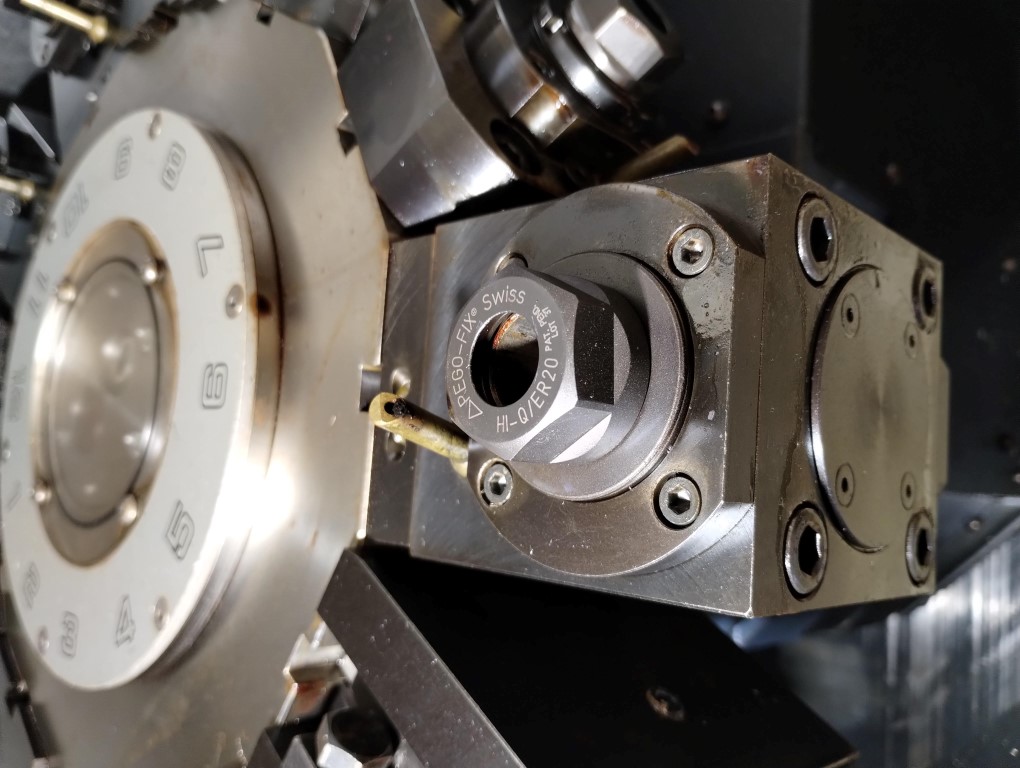

4 Axial and 2 Radial Live Tool Blocks
Static Tooling Blocks
5 Boring
4 O.D. Double Holders (facing both Main and Sub)
1 Cutoff Holder
2.05 Thru Bore
6" Three Jaw Chuck on Main Spindle Sub-Spindle
16C Collet Chuck (can accept up to 5" MultiJaw)
Matching 16C Collet Chuck also included for Main
Parts Catcher and Part Conveyor Chip Conveyor
All Available Books and Manuals
Assorted 16 Collets and Hard-Soft Jaws included
