Description:
New 2004 OKUMA HOWA.....2SP 25 & 30 ......... 2 -10" chucks, CNC controls Fanuc 18 i TB 10 station turret with holders, Chip conveyor , good running.
SPECIFICATIONS:
BASE MACHINE CAPACITY:
MAXIMUM CUTTING DIAMETER...................14.96"
MAXIMUM CUTTING LENGTH.........................9.06"
DISTACE BETWEEN SPINDLES........................17.72"
SPINDLE CENTER HEIGHT FROM FLOOR.........47.44"
SPINDLES:
SPINDLE MOTORS FANUC Alpha X 2.............30 HP
SPINDLE SPEED RANGE.............................. 45- 3,500 RPM
STANDARD CHUCK DIAMETER.......................10" 3-Jaw Opt.12 Diameter
SPINDLE NOSE..............................................A2-8
DRAWTUBE THROUGH HOLE DIAMETER..........3.02"
TURRETS:
TURRET TYPE (FANUC ALPHA 6/2000 MOTOR)..V12 + V12
CURVIC COUPLING DIAMETER........................6.61"
CLAMPING FORCE.........................................6,173 LBS
INDEXING TIME(STATION TO STATION).............0.3 SEC.
STANDARD TOOL SIZE...................................1.0" X 1.0"
MAXIMUM BORING BAR SIZE........................1.75" OD
MACHINE SIZE & MASS:
FLOOR SPACE REQUIREMENTS......................215" X 152" x 160"
MACHINE WEIGHT.......................................24,200 LBS

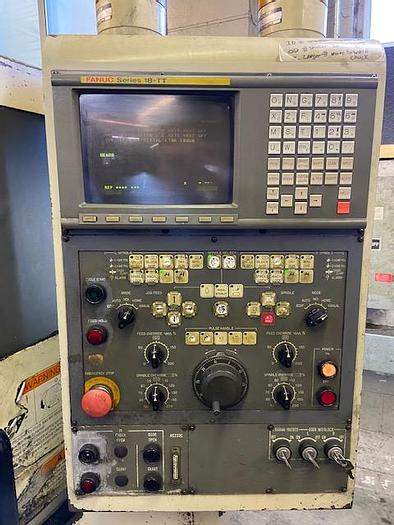

FANUC 18T CNC CONTROL
ENOMOTO HEAVY DUTY REAR DISCHARGE CHIP CONVEYOR
ALL COOLANT TANKS AND ALL PUMPS INSTALLED INCLUDED
ALL TOOL HOLDERS WITH EACH MACHINE
Specifications:
Manufacturer Okuma Howa 2 SP 30H
Model 2 SP 30H & 2 SP 25
Year 2004
Condition Used
MAXIMUM CUTTING DIAMETER 14.96"
To view more information on the 2004 OKUMA HOWA 2 SP 30H & 2 SP 25 TWIN CHUCK TURNING CENTER, including reviews, brand information, photos, videos, and more,
