Description

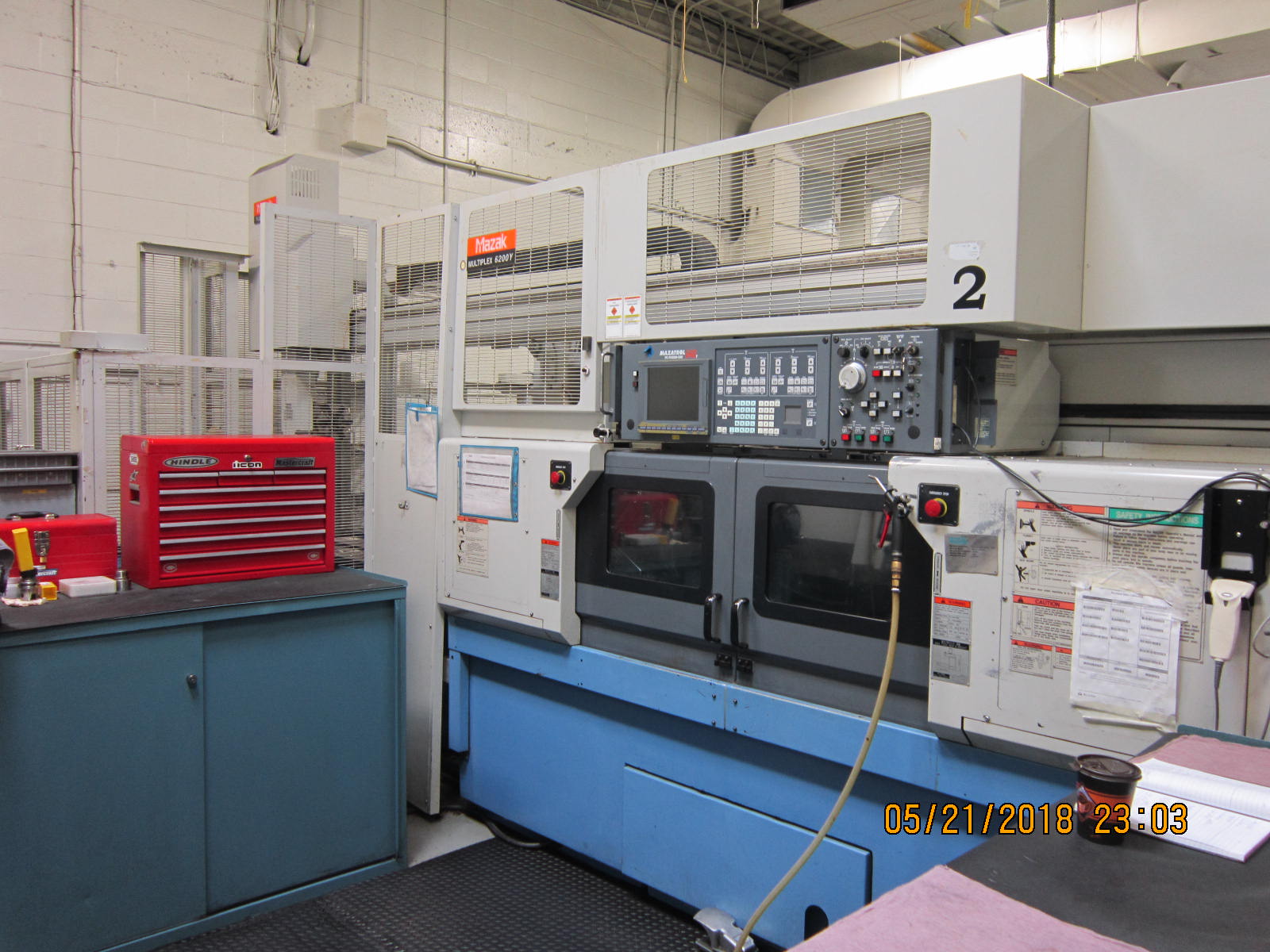

2004 Mazak Multiplex 6200Y

Spindles:

• Number of Main Spindles: 2
• Turning Diameters (Nominal): 7"
• Turning Diameters (Maximum): 10.24"
• Turning Lengths (Nominal): 7.5"
• Turning Lengths (Maximum): 46"
• Maximum Swing: 12.5"
• Chuck Diameter: 8"
• Bar Capacity: 2"

Spindle #1:

• Nose: A2-6
• Bore Diameter: 2.4"
• Speed: 35 - 5000 RPM
• Drive Motor: 30 HP
• Index Increment: 0.001 degress

Spindle #2:

• Nose: A2-6
• Bore Diameter: 2.4"
• Speed: 35 - 5000 RPM
• Drive Motor: 30 HP
• Index Increment: 0.001 degrees

Turret #1:

• Turning Positions: 12
• Rotary Positions: 12
• Tool Shank Size - Square: 1"
• Tool Shank Size - Round: 1"
• Rotary Tooling Horse Power (30 min): 5.0 HP
• Rotary Tooling Speed: 4500 RPM
• X-Axis Travel: 9.44"
• X-Axis Traverse Rate: 1200 IPM
• Z-Axis Travel: 17.32"

Z-Axis Traverse Rate: 1300 IPM

• C-Axis Travel: 360 degrees
• C-Axis Traverse Rate: 400 RPM
• Y-Axis Travel: 2"
• Y-Axis Traverse Rate: 393 IPM

Turret #2:

• Turning Positions: 12
• Rotary Positions: 12
• Tool Shank Size - Square: 1"
• Tool Shank Size - Round: 1"
• Rotary Tooling Horse Power (30 min): 5.0 HP
• Rotary Tooling Speed: 4500 RPM
• X-Axis Travel: 9.44"
• X-Axis Traverse Rate: 1200 IPM
• Z-Axis Travel: 17.32"
• Z-Axis Traverse Rate: 1300 IPM
• C-Axis Travel: 360 degrees
• C-Axis Traverse Rate: 400 RPM
• Y-Axis Travel: 2"
• Y-Axis Traverse Rate: 393 IPM

Cutting:

• Max. Number of Simultaneous Cutting Tools: 2

Machine:

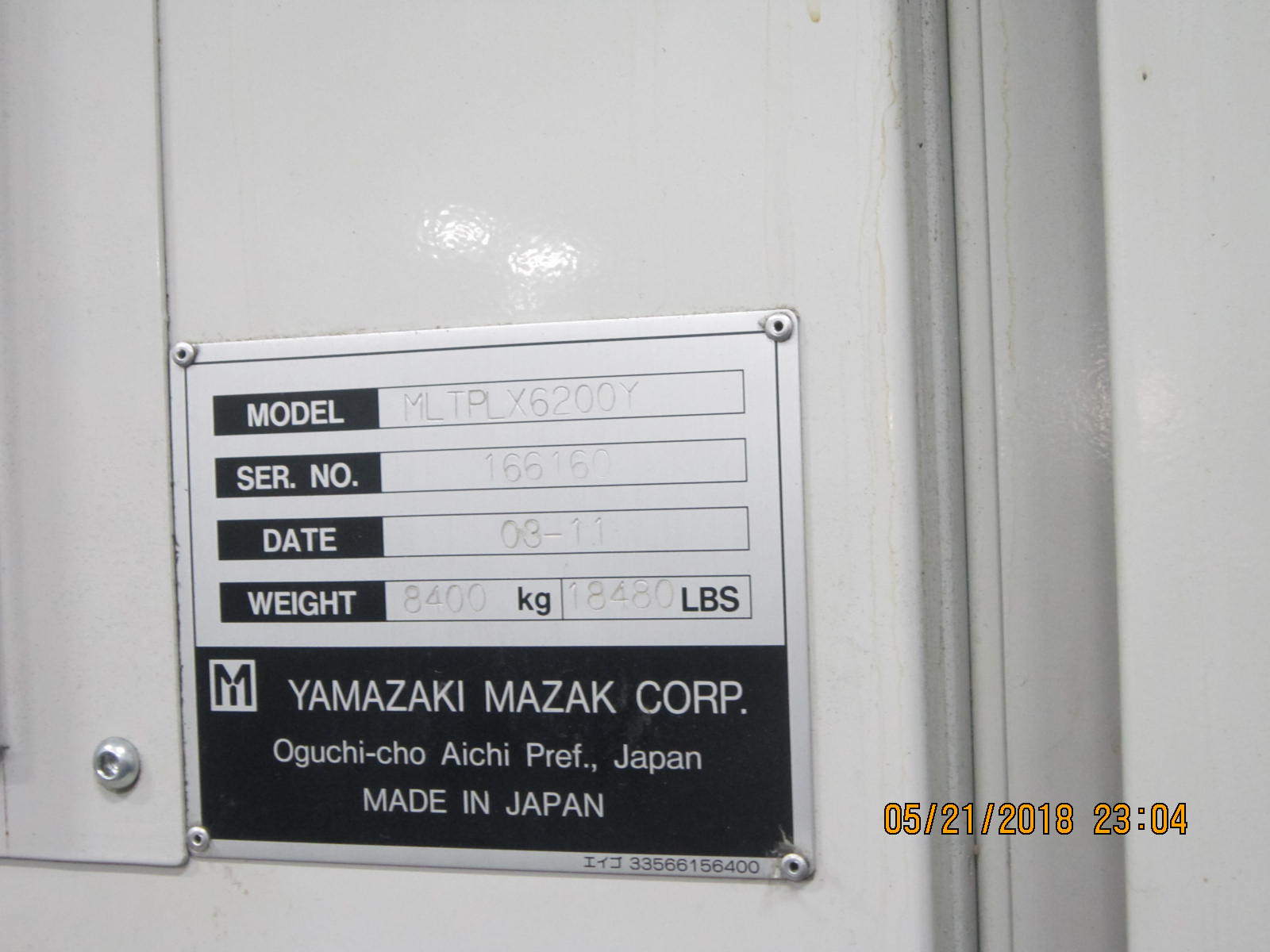

• Net Weight: 18,520 Lbs
• Length: 141"
• Width: 78"
• Height: 82"

Equipped With:

• Twin Spindles
• Twin Turrets

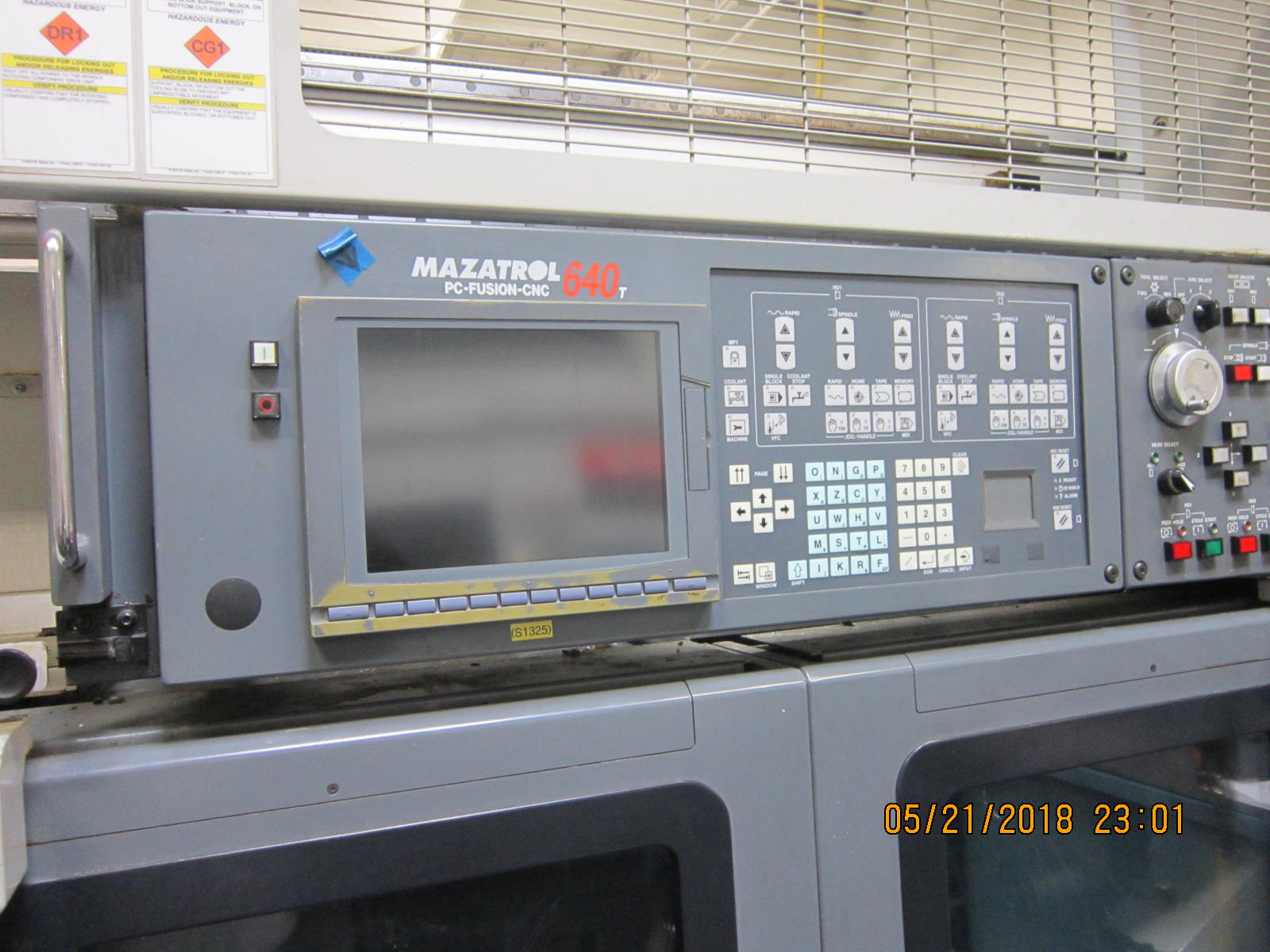

• Fusion 640T Control
• On-Center Mill Drill Capabiity with C-Axis
• Off-Center Mill Drill with Y-Axis

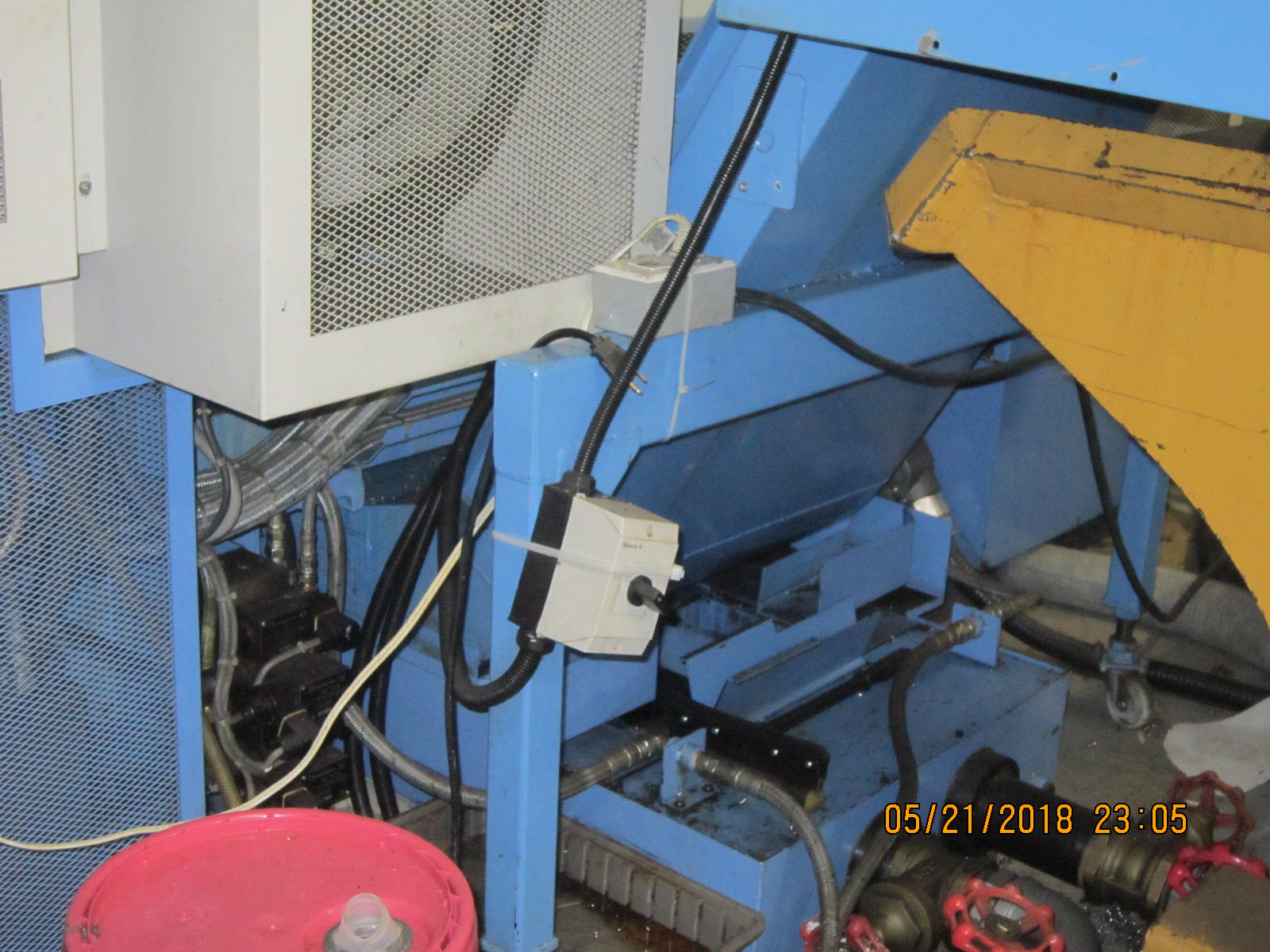

• Chip Conveyor

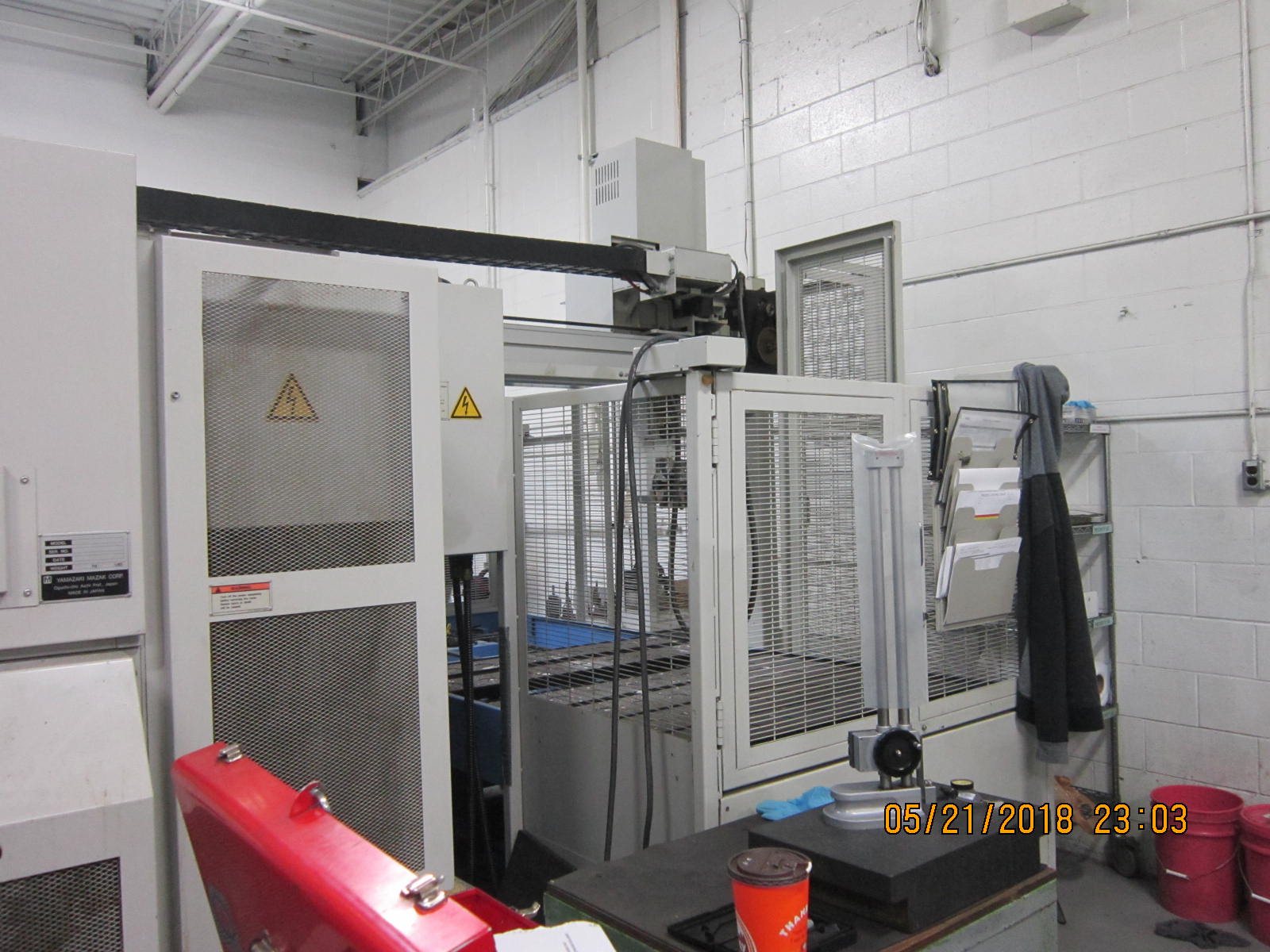

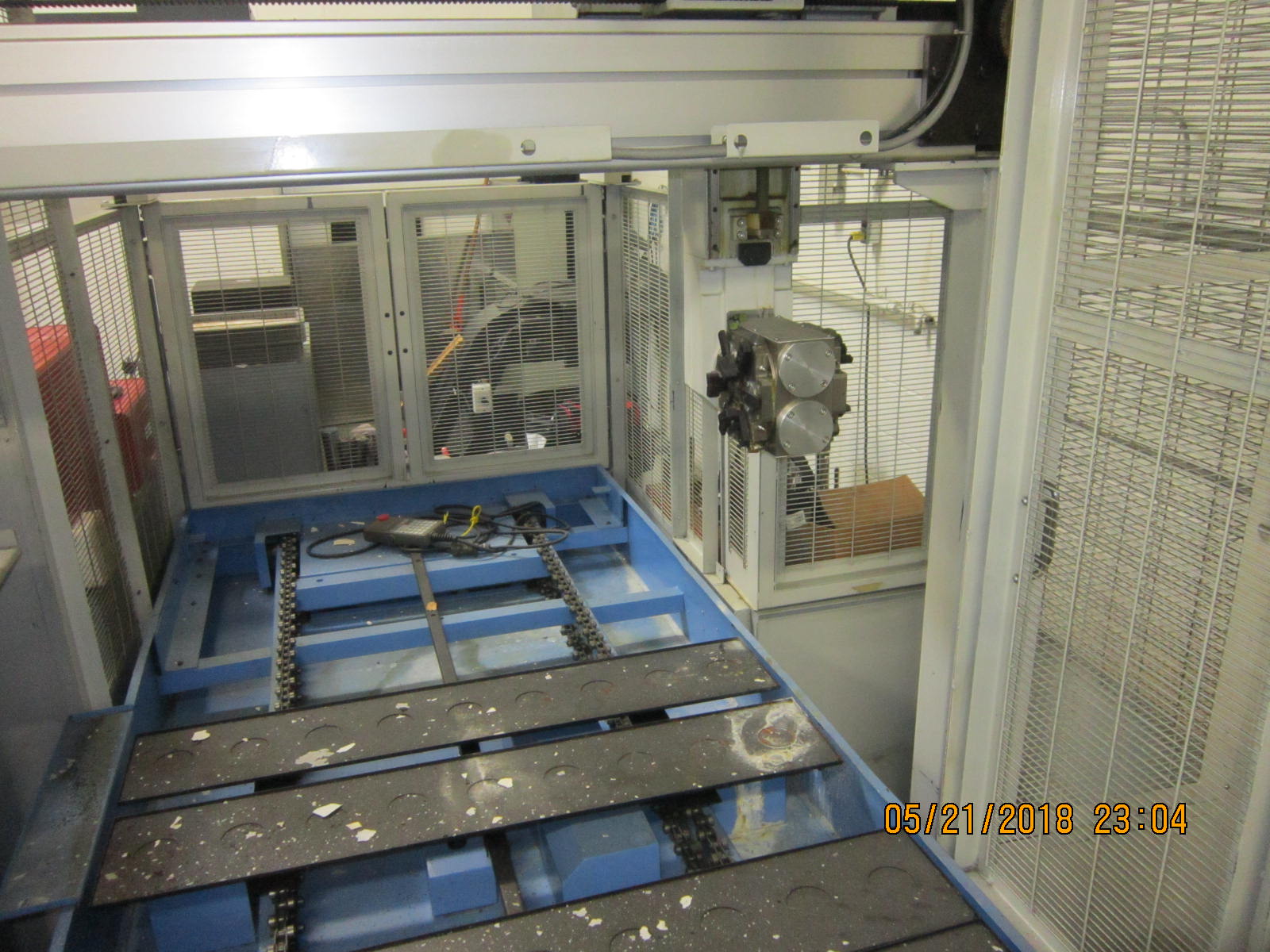

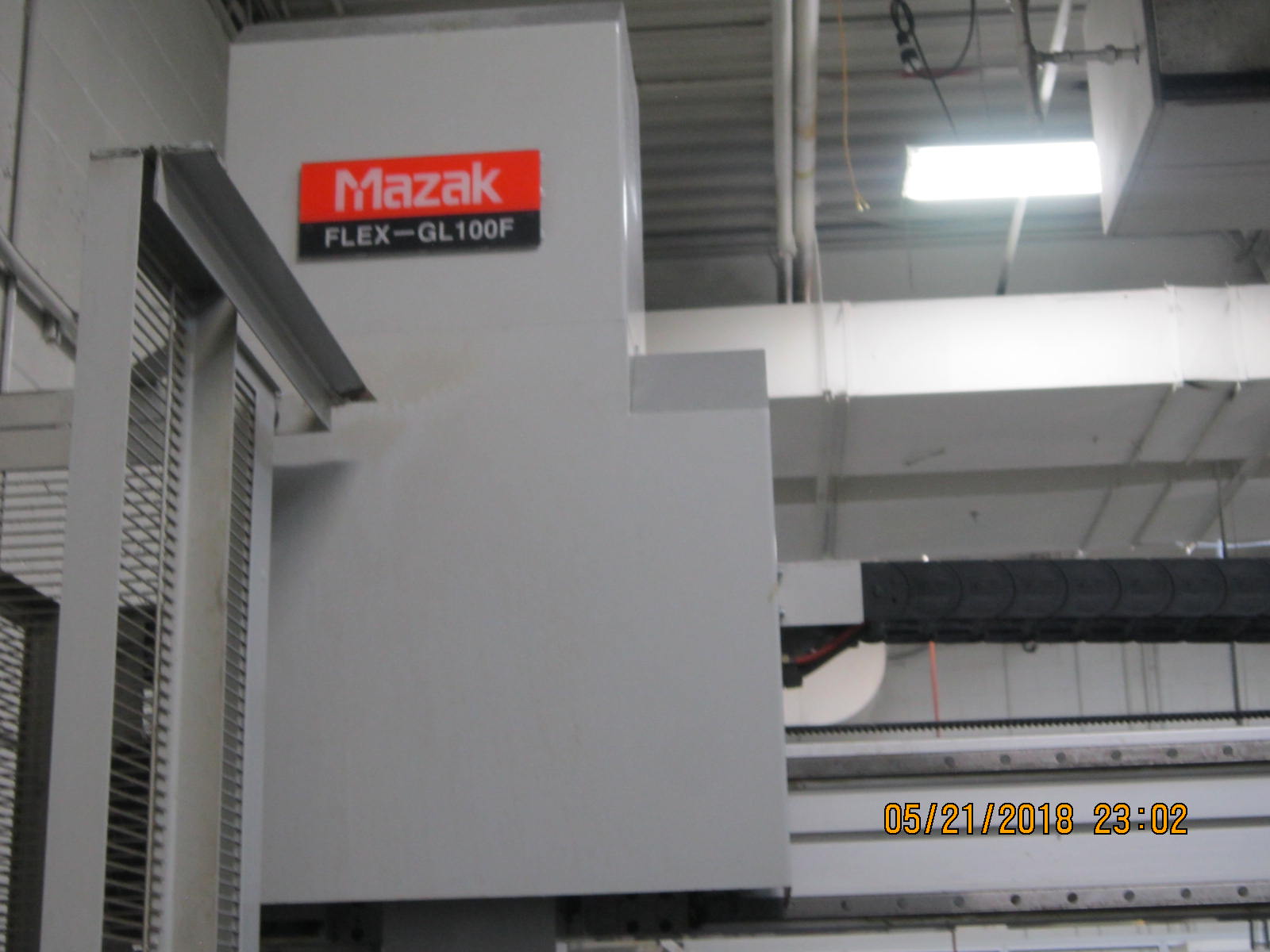

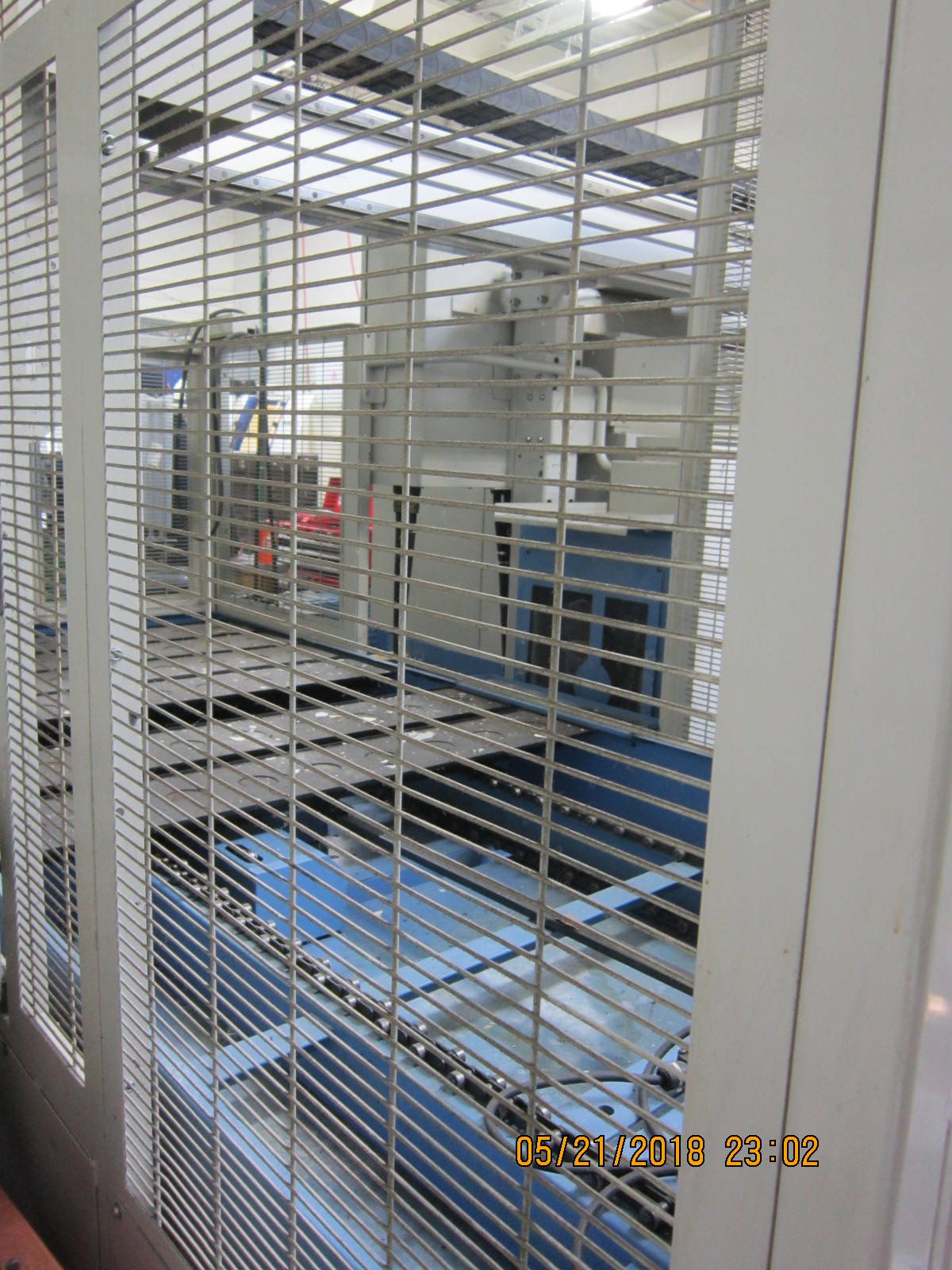

• GL100F Gantry W/ Robot Loading/Unloading
• Two (2) 8 inch Chucks
• Chip Conveyor

          Just pulled from service ; Very low hours, Check out the condition

Price             79,500.00
