Reference #: 8535
Machine Type: CNC Verticals
Year: 2004
Manufacturer: Makino
Model: S56

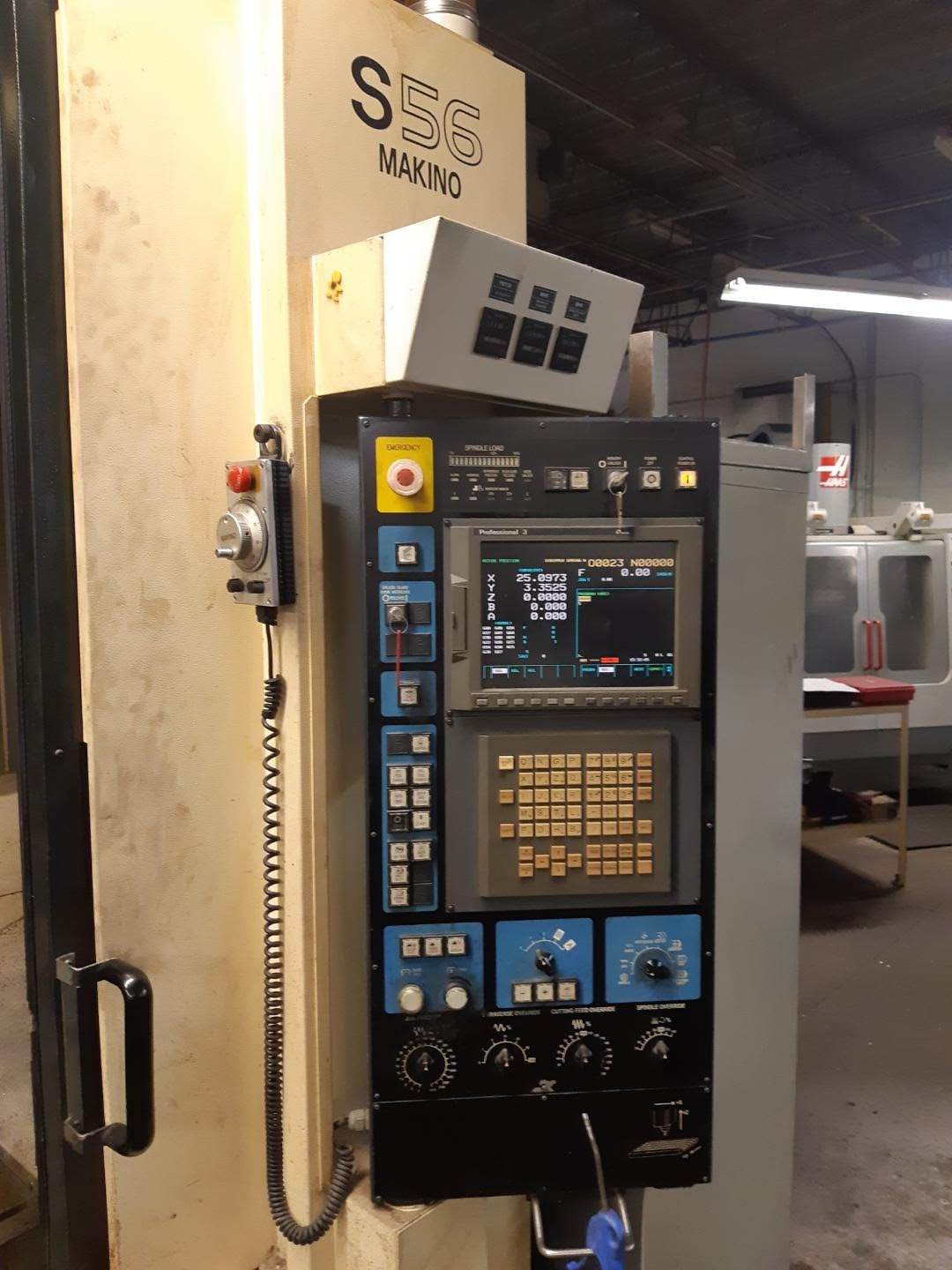

Control: Makino Pro 3
Condition: Used
Code: M0185
Table:
Table Size: 39.4" x 19.7"
Maximum Table Load: 1,100 Lbs
Travels:
X-Axis Travel: 35.4 inches
Y-Axis Travel: 19.7 inches
Z-Axis Travel: 17.7 inches
Spindle:
Spindle Speeds - Maximum: 13,000 RPM
Spindle Taper: CT 40 Taper
Main Motor (30 min.): 20 HP

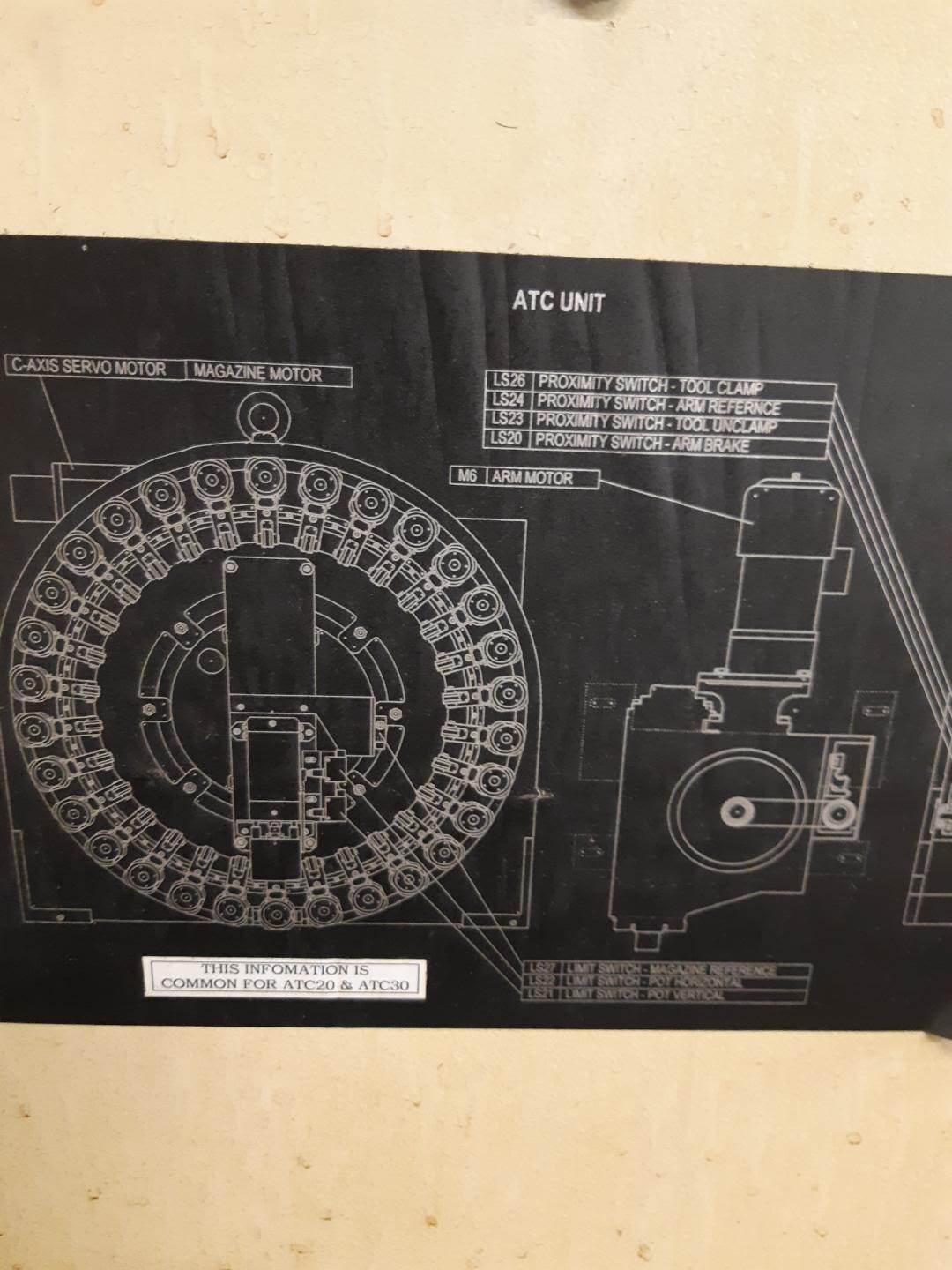

Tool Changer:
Tool Changer Positions: 30 ATC
Tool Change Time C-to-C: 1.2 seconds
Max. Tool Length: 11.81 inches
Max. Tool Diameter (with empty adacent pockets): 5.12 inches
Max. Tool Weight: 17.6 Lbs
Rapids:
Rapid Traverse (XY/ Z): 1,575 ipm
General:
Machine Dimensions (l x w x h)(in.): 98 x 106
Equipped With:
Makino S56 Control
13,000 RPM Spindle
Tsudakoma 4th Axis Rotary Table
