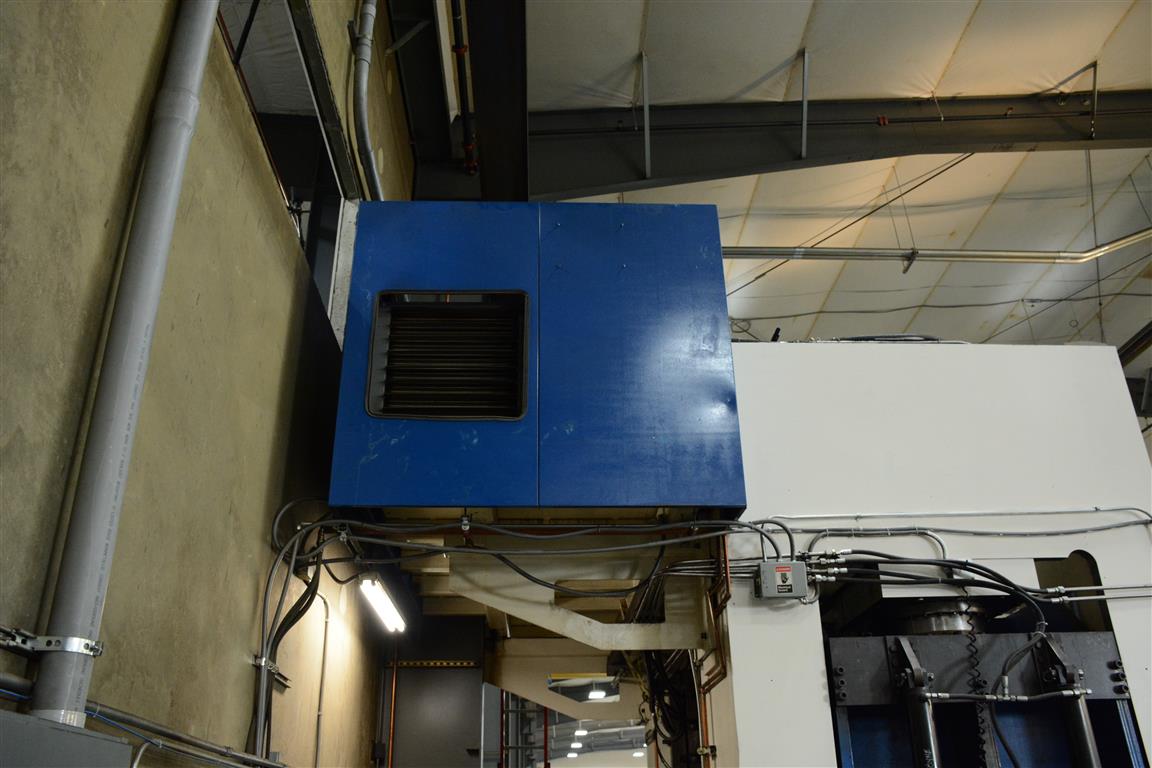

2004 MACRODYNE MPZ1500 - 1500 TON HYDRAULIC PRESS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


MPZ1500 - 1500 Ton Hydraulic Press
P5102
Drills Manual and CNC
DRILLS, MAGNETIC BASE, HYDRAULIC
used
(KG)
2004
$0.00

Description

CAPACITY:

  • Tonnage: 1500 Tons
  • Lifting Force: 12 Tons
  • Stripping Force: 100 Tons
  • Bed Size: 54\" X 144\"
  • Distance Between Frames: 56\" X 76\"
  • Stroke: 16\"
  • Daylight: 32\"
  • Closed Height: 16\"
  • Pass Line: 38\"
  • Fast Approach: 7.5\" @ 100 IPM
  • Pressing Speed: 5\" @ 6 IPM
  • Fast Return: 8\" @ 100 IPM
  • Total Cycle Time: 15 Seconds
  • Hydraulic System: 3900 PSI
  • Hydraulic Motor: 60 HP

Control:

  • Allen Bradley Micrologix 1500 PLC

Comments:

  • We are planning to keep it powered-up and in production through June of this
  • year. We have a rigging quote under $30k to dismantle the press and move it to
  • our rail spur. The press works great and is well maintained.
  • It has been used to punch hole patterns in grain bin body sheets. We are
  • converting our body sheet line to a more automated process and this press will
  • be replaced. We do not have a use for such a big press otherwise, so we will sell
  • it. It has been very well cared for and runs great.

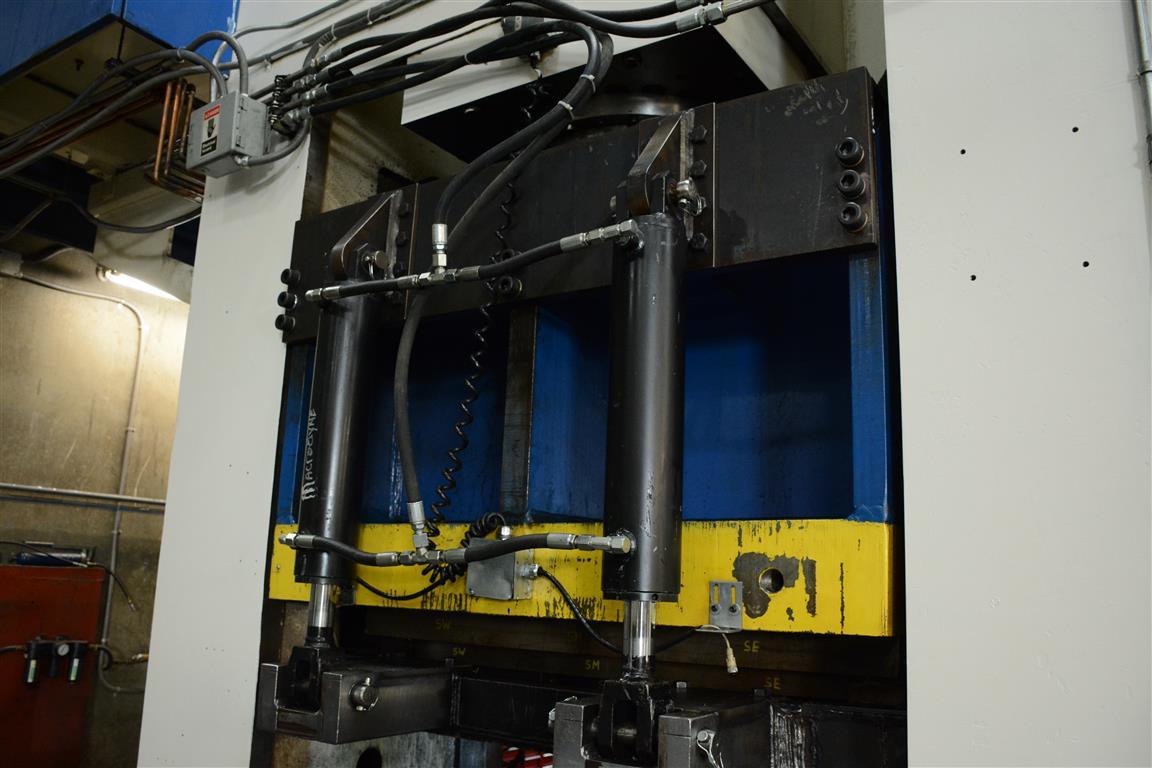

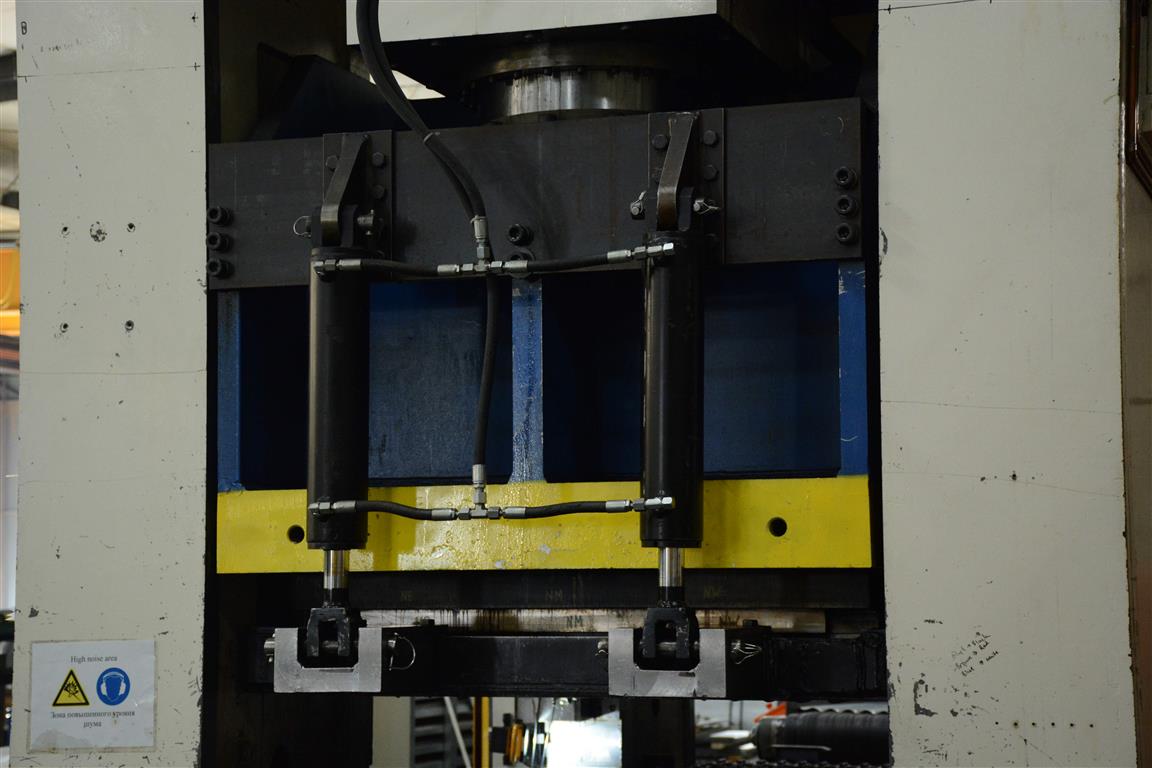

  • The two main double acting, single stage cylinders are 22 inches in diameter
  • The one single acting cylinder in the middle, single stage, is 16 inches in diameter.

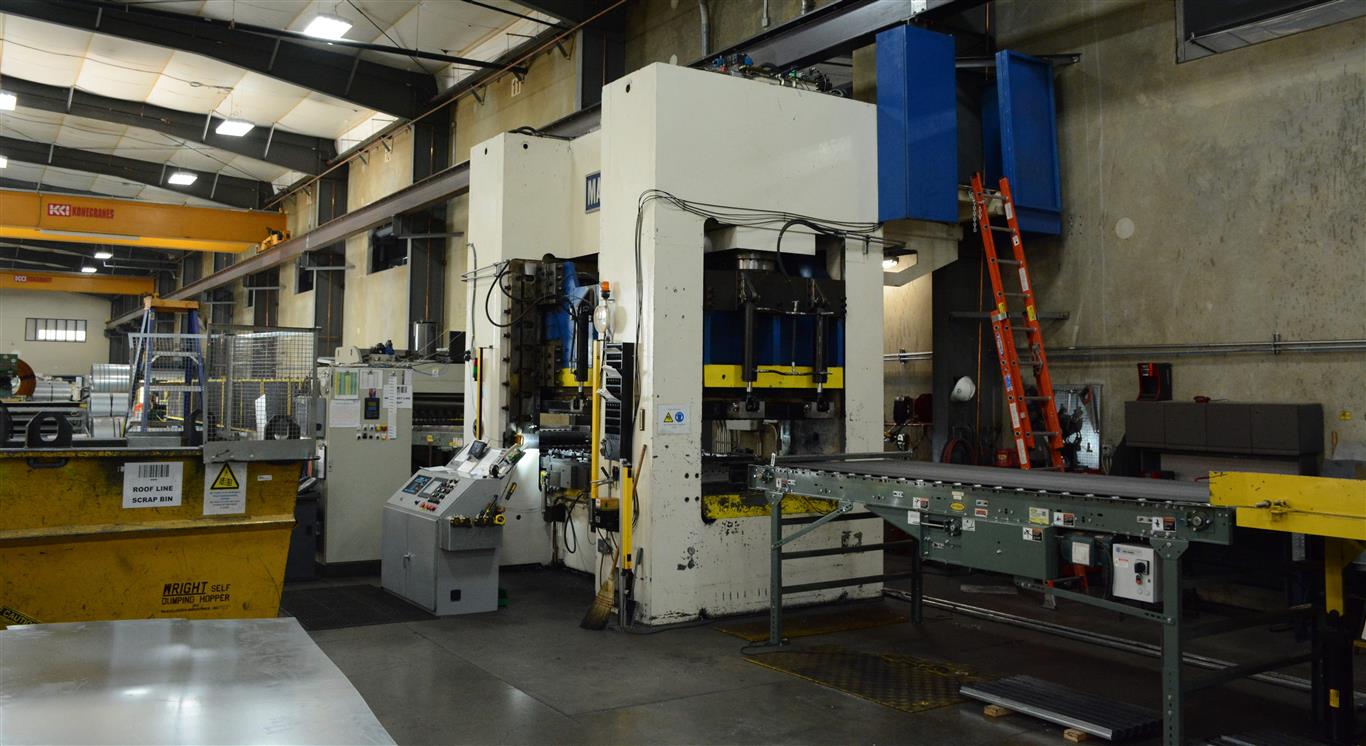

  • The press is currently being used in the Agriculture industry making
  • corrugated sheets for Grain Silos. 20 to 7-gauge galvanized steel. It
  • produces a part approximately every 2-1/2 to 3 minutes. The machine
  • runs 10 hours or more day x 5 days per week. The company has changed
  • their manufacturing process so the need for the press has changed.
