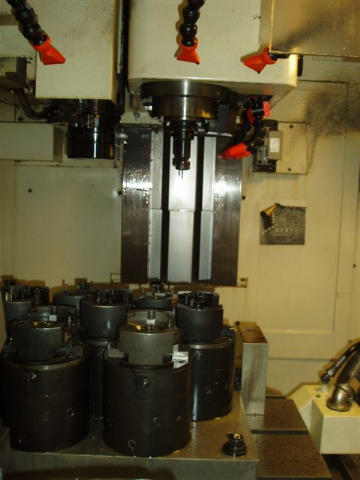

Mycenter 3Xi Spark Changer
M0185
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
(KG)
2004
$0.00

Description

Reference #:5415

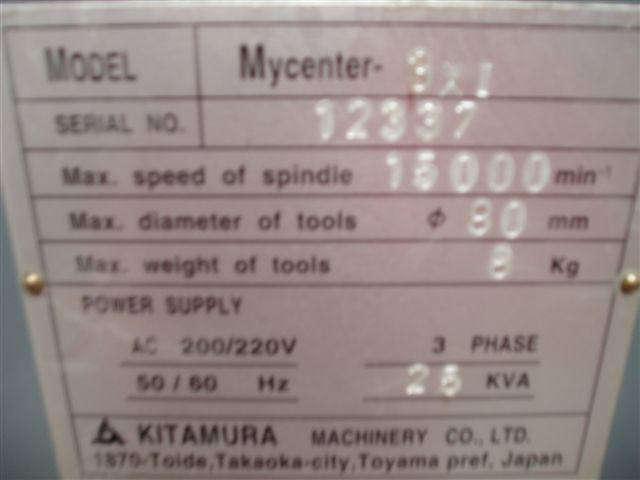

Machine Type:
Year:2004
Manufacturer:Kitamura
Model:Mycenter 3Xi Spark Changer
Control:Fanuc 16iM
Condition:Good
Under Power:Yes
Code:M0185

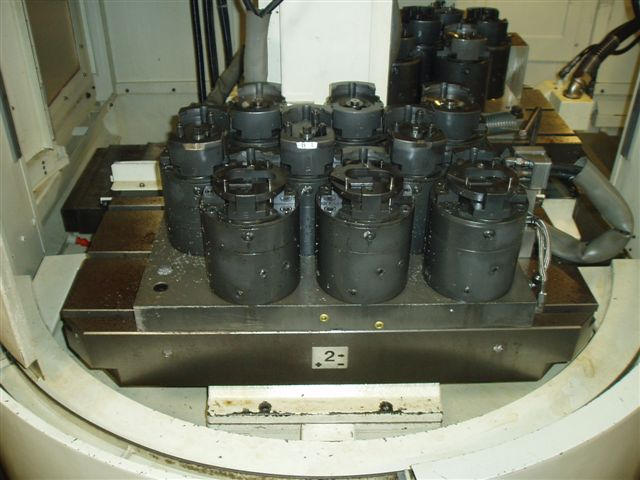

Table:

  • Table Size: 16.1" x 35.4"
  • Maximum Table Load: 1100 lbs

Travels:

  • X-Axis Travel: 30"
  • Y-Axis Travel: 17.9"
  • Z-Axis Travel: 18.1"
  • Spindle Nose to Table Top: 4.9" - 23"

Spindle:

  • Spindle Speeds: 15,000 RPM
  • Spindle Taper: 40 Taper
  • Main Motor: 15 HP

Tool Changer:

  • Tool Changer Positions: 30 ATC
  • Maximum Tool Diameter: 3.1"
  • Without Adjacent Tool: 4.9"
  • Maximum Tool Length x Weight: 11.8" x 17.6 lbs

Rapids:

  • X, Y Axis: 1969 IPM
  • Z Axis: 1417 IPM

Machine:

  • Electrics: 220 V / 3 Ph / 60 Hz

Equipped With:

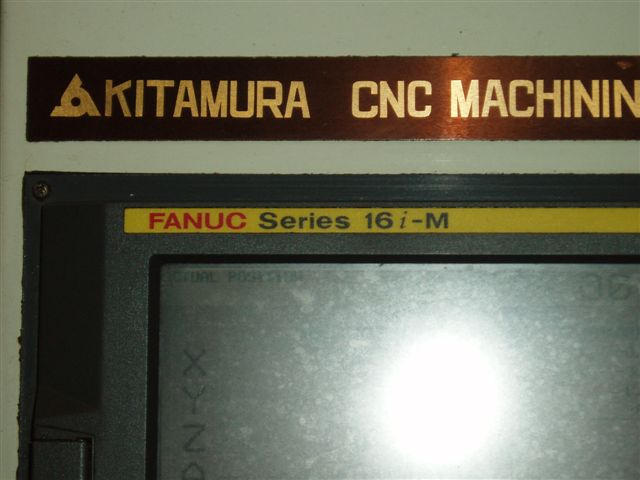

  • Fanuc 16iM Control
  • Coolant through Spindle

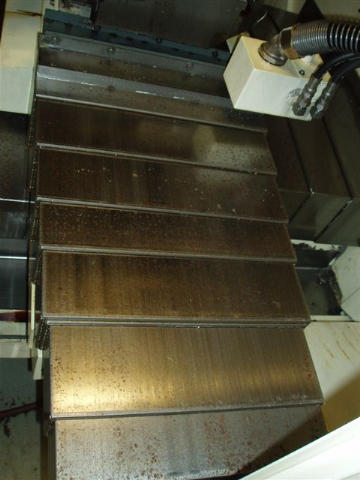

  • Fully Enclosed Splash Guards
  • 15,000 RPM (2-Step Geared)
  • 30 Tool ATC (CT 40)

Comments:

  • 5,747 spindle hours
  • Very Good Condition
  • Video available here: https://youtu.be/8ZkWsBryTLs
