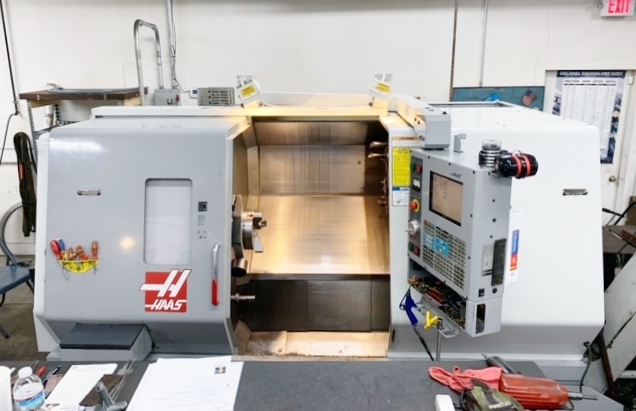

2004 HAAS SL30T, MACHINE # 8070

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


SL30T
Lathes and Turning Centers CNC
Slant Bed Turning center
used
16000 (LB)
2004
$0.00

Description

Reference #:8070
Machine Type:CNC Lathes
Year:2004
Manufacturer:Haas
Model:SL30T

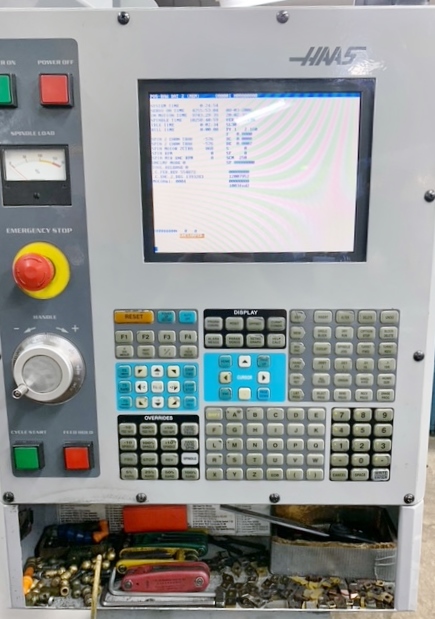

Control:Haas 32 BIT
Condition:Used
Under Power:Yes
Code:L2150

Capacity:

  • Chuck Size: 10"
  • Swing Over Bed Ways: 30.0"
  • Swing Over Cross Slide: 14.5"
  • Max. Turning Diameter: 17"
  • Max. Turning Length: 34.0"
  • Distance Between Centers: 39.0"

Spindle:

  • Speeds Range: 25 - 3,400 RPM
  • Bore: 3.5"
  • Bar Capacity (Max): 3.0"
  • Nose: A2-6
  • Main Motor: 30 hp

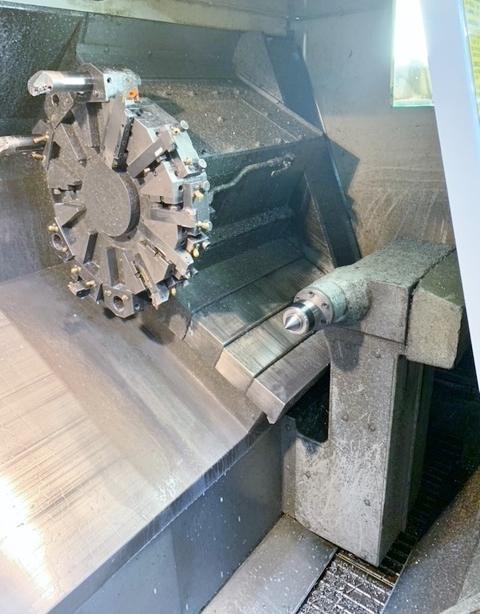

Turret:

  • Number of Positions: 12
  • X-Axis Travel: 11.30"
  • Z-Axis Travel: 34.00"

Rapids:

  • Rapid Traverse (X & Z ): 710 ipm

Dimensions:

  • Floor Space (L x W x H): 162" x 77" x 74"
  • Weight (approx.): 16,000 lb

Electrics:

  • Power Requirement: 28 kVA
  • Volts / 3 Phase, 60 Hz: 200-250 VAC@100A

Tailstock:

  • Taper: MT4
  • Travels: 33.5"
  • Thrust: 300 - 1,500 lb

Equipped With:

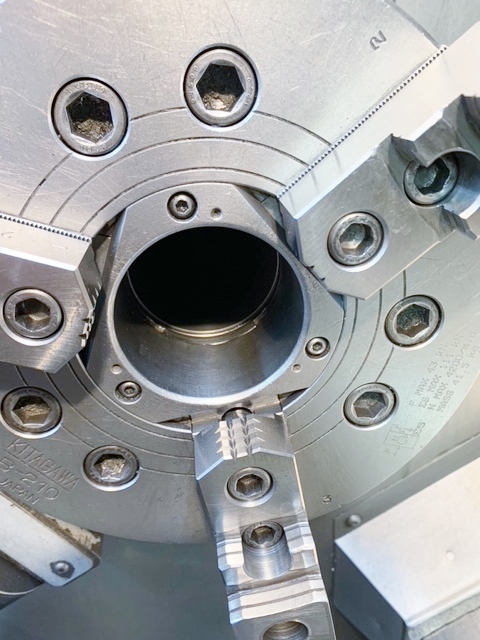

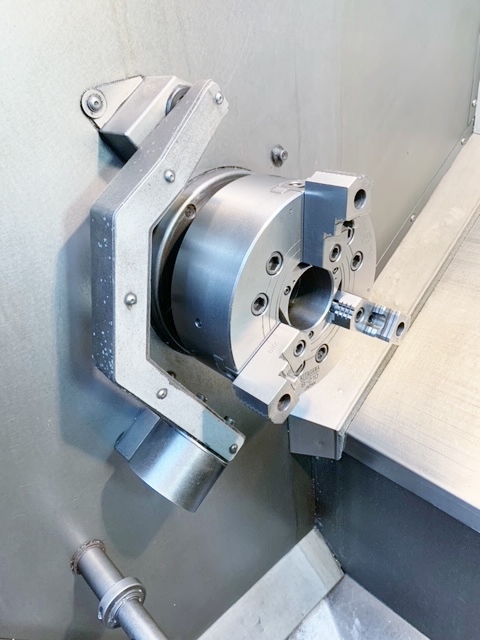

  • 10" 3-Jaw Kitagawa (B-210) Hydraulic Chuck
  • Programmable Tailstock
  • Tool Presetter
  • Parts Catcher
  • Chip Conveyor
  • Barfeed Interface
  • High-Intensity Lighting
  • Spindle Orientation
  • Rigid Tapping

Comments:

  • As Of 05/2021, Spindle Time - 10,258 Hours
  • Machine Cut Primarily Steel
  • Replacement Cost, As Equipped - $95,000
  • New Spindle Drive Belts & Pulleys Just Installed
  • In Plant, Under Power, Available For Immediate Inspection & Removal
