2004 DAEWOO PUMA 240C CNC TURNING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


240C
Lathes and Turning Centers CNC
Slant Bed Turning center
used
9700 (LB)
2004
$0.00

Description

SPECIFICATIONS:
Control Fanuc i Series
Max Swing Over Bed 21.7"
Swing Over Carriage1 5.4"
Distance Between Centers 26.3 in
Max Turn Length 21.6"
Max Turn Diameter 13.8 in
Spindle Speeds 35 to 3,500 RPM
Spindle Motor 25 HP
Spindle Nose A2-8
Spindle Bore Diameter 3.38"
Draw Tube 3.03"

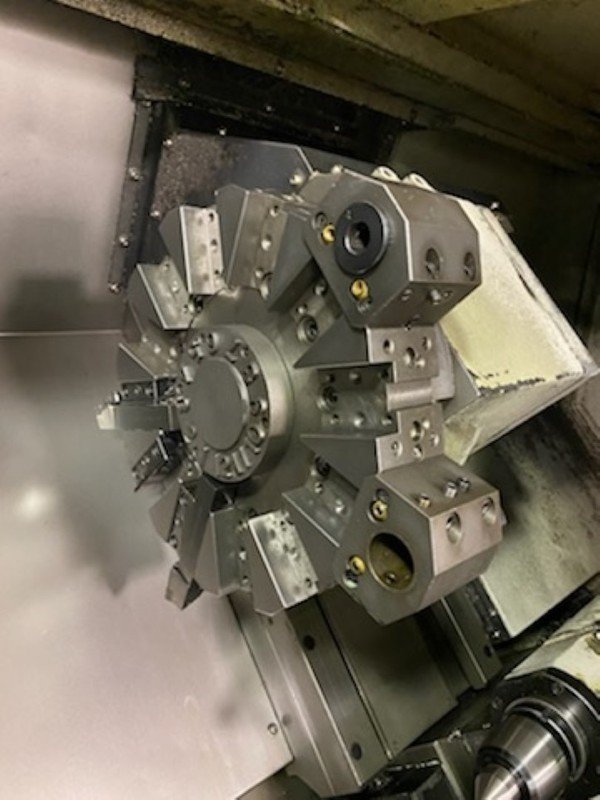

Turret Positions12 Station Turret
Machine Weight 9,700 lb.
Machine Dimensions 135" L x 66" W x 72" H
EQUIPPED WITH:

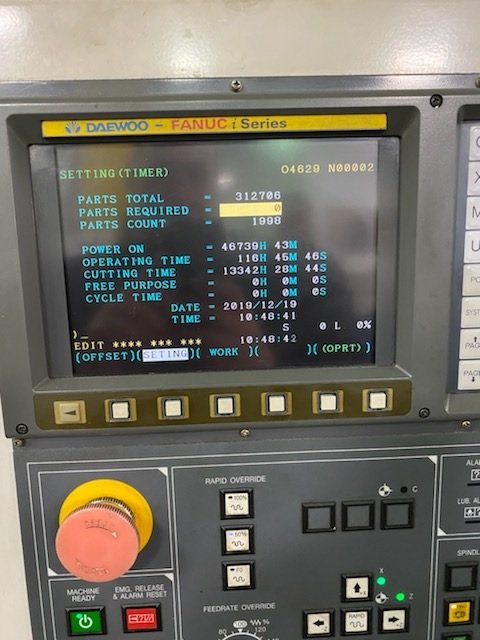

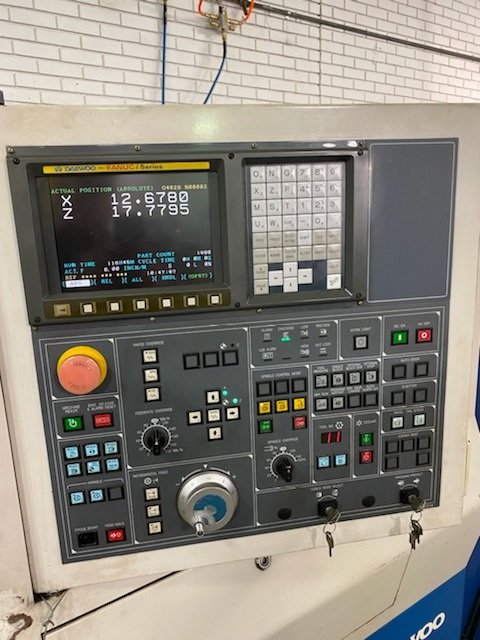

Fanuc i Series Control
10 in 3-Jaw Chuck

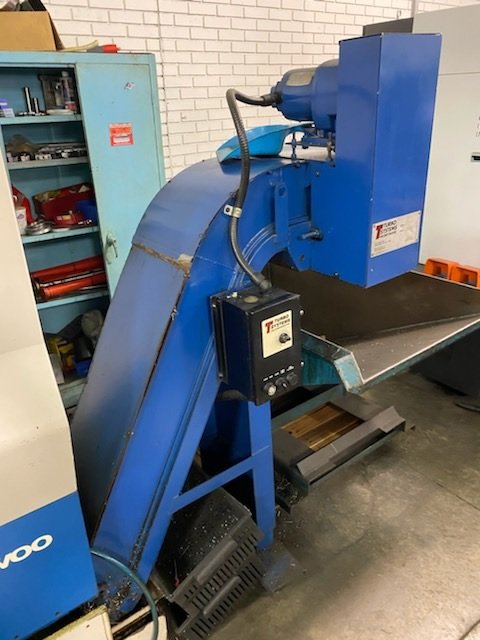

Chip Conveyor
Programmable Tailstock
Parts Catcher
Tool Presetter
Misc. Tool Holders
