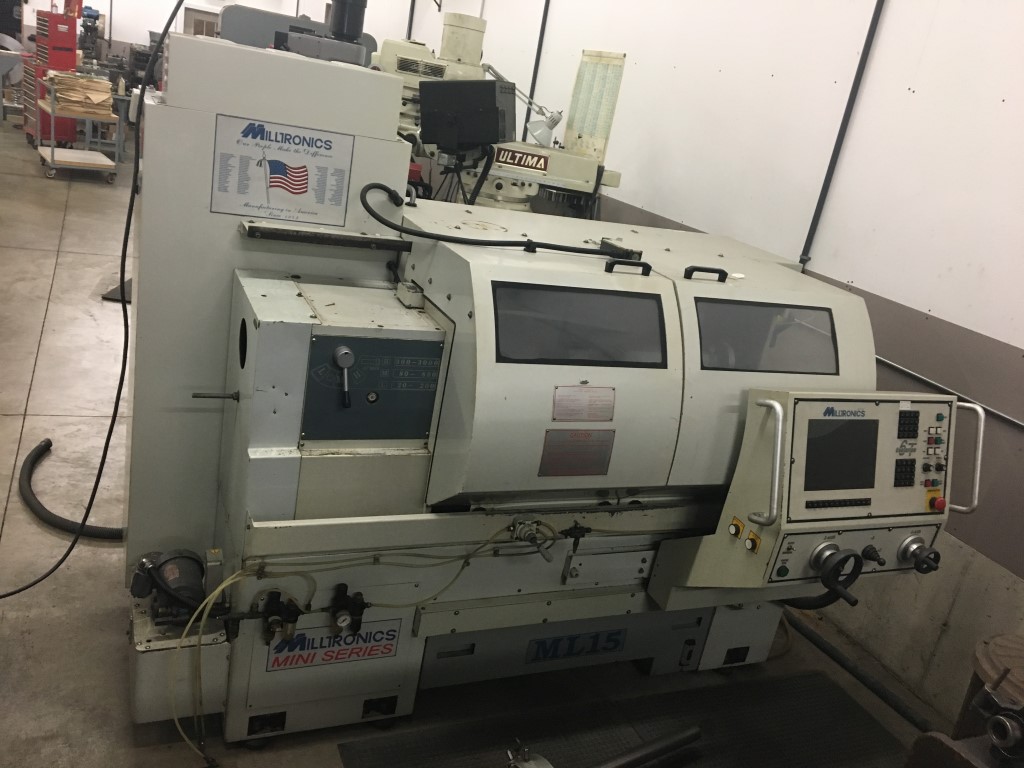

2002 MILLTRONICS ML15, CNC LATHE # 7899

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


ML15
Lathes and Turning Centers CNC
CNC Lathe (Flat Bed)
new
4000 (LB)
2002
$0.00

Description

Reference #:7899
Machine Type:CNC Lathes
Year:2002
Manufacturer:Milltronics
Model:ML15
Control:Centurian 6T
Condition:Used
Under Power:Can be
Code:L3040

Specifications:

  • Bed Length: 40"
  • Swing Over Bed: 15"
  • Swing Over Cross Slide: 7.8"
  • Swing Over Gap: 22" / 10.5" Gap
  • Travel (X Axis) Cross Slide: 7.5"
  • Travel (Z-Axis) Long Slide: 32.5"
  • Center Height: 7.5"
  • Center Distance: 36"
  • Bed Width: 11.8"
  • Spindle Motor HP (1 Min / 30 Min): 7.5 / 5
  • Spindle Bore: 2.18"
  • Spindle Nose: Camlock D1-6
  • Spindle Speeds (3 Ranges): 20 - 3000 RPM
  • Tailstock Quill Travel: 6"
  • Tailstock Quill Diameter: 2.04"
  • Tailstock Quill Taper: No. 4 MT
  • Rapid Traverse Rate: 300 ipm
  • Feedrate Range: .1 to 100 ipm
  • Floor Space Requirement: 48" x 92"
  • Machine Weight: 4000 Lbs

Equipped With:

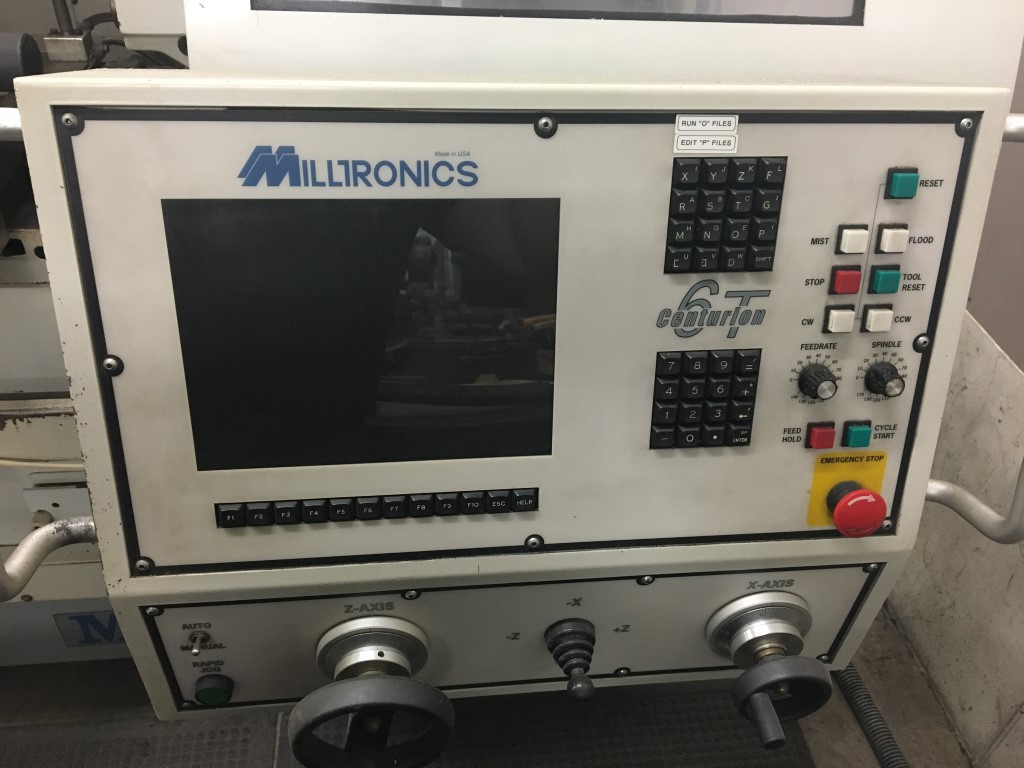

  • Centurion 6 PC Based Conversational Control
  • Torit Dust Collector
