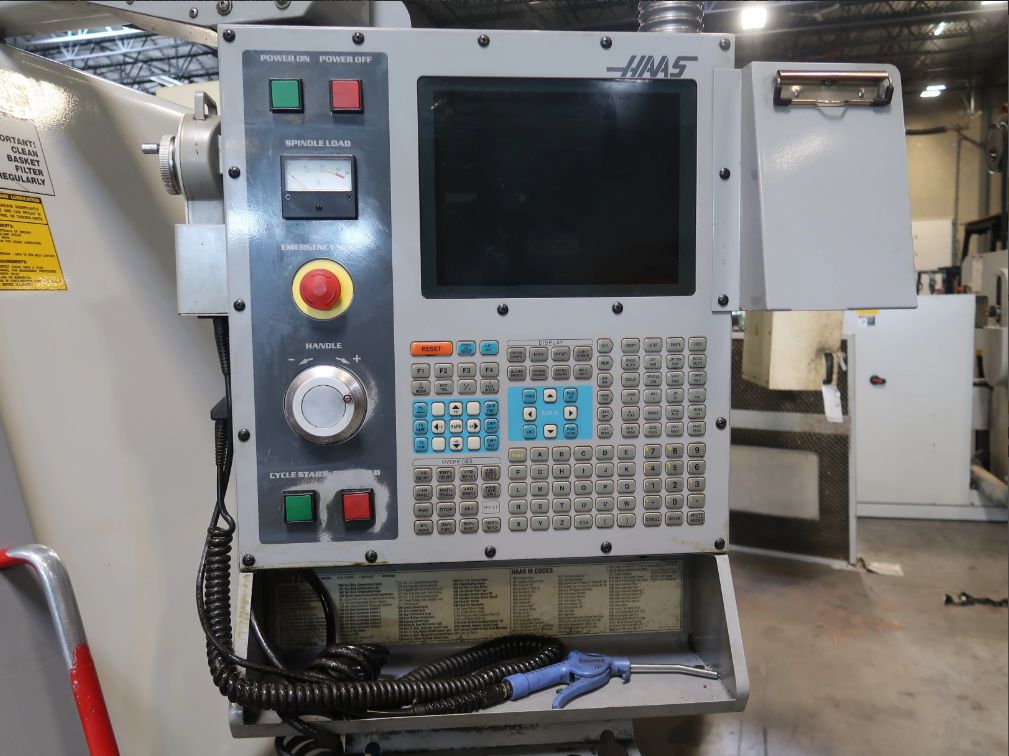

2002 HAAS SL-20T, MACHINE # 7857

Add to Your File

Brand: 2002 HAAS SL-20T, MACHINE # 7857

Model: SL-20T

Serial No. : L2150

Category: Lathes and Turning Centers CNC

Sub Category: Universal

Condition: used

Weight: (KG)

Year Built: 2002

Status:

Price: $0.00

Description

Capacity:

Swing / Swing Over Cross Slide: 23\"
Distance Between Centers: 24\"

Spindle:

Spindle Speeds: 6 - 4,000 RPM
Spindle Bore / Bar Cap: 3\" / 2\"
Spindle Nose: A2-6
Main Motor: 20 HP

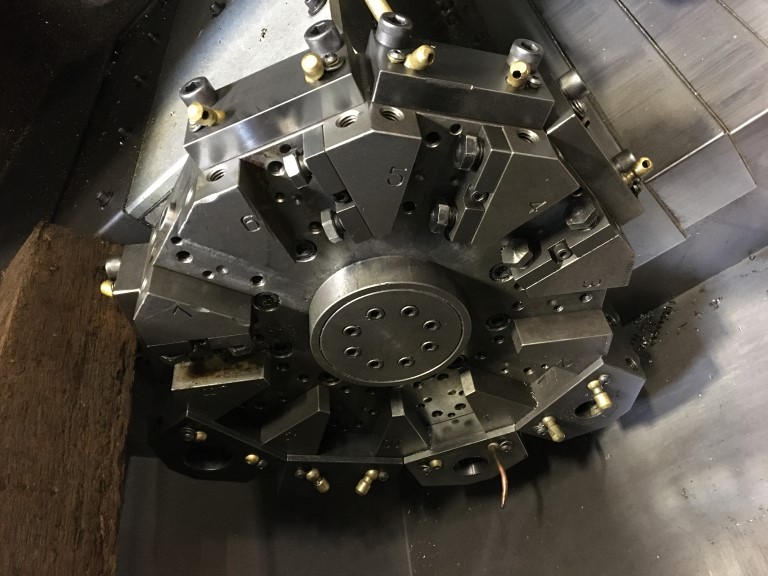

Turret:

Number of Positions: 10 Positions
X-Axis Travel: 8.45\"
Z-Axis Travel: 20\"

Tailstock:

Stroke of Body / Quill: 20\" / 3.1\"
Quill Diameter / Taper: 3.13\" / MT #4

Dimensions:

Floor Space: 96\"L x 62\"W x 70\"H
Weight (approx.): 9,000 Lbs

Equipped With:

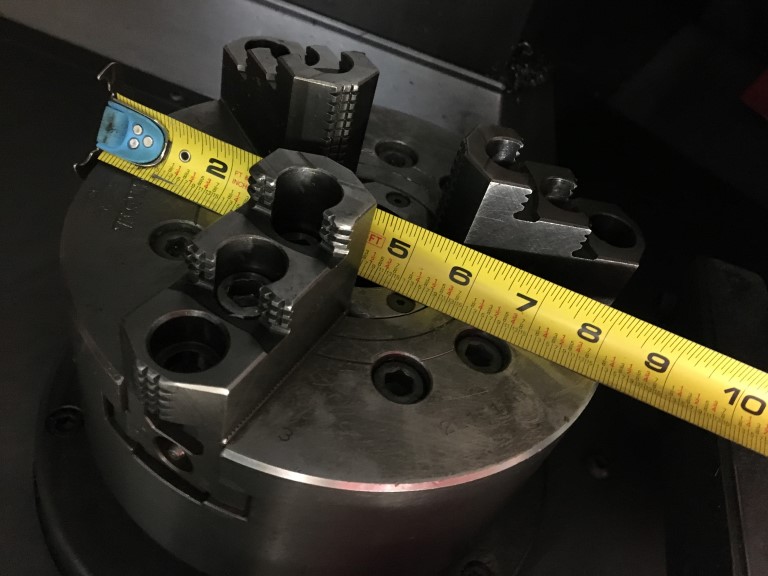

8.25\" hydraulic chuck

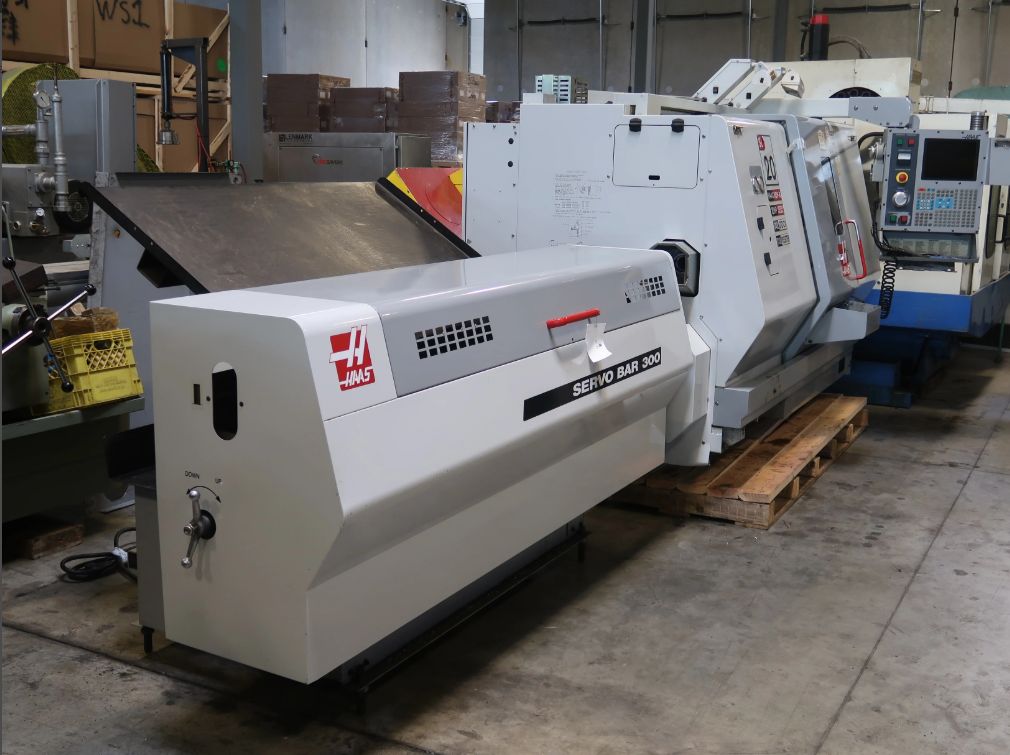

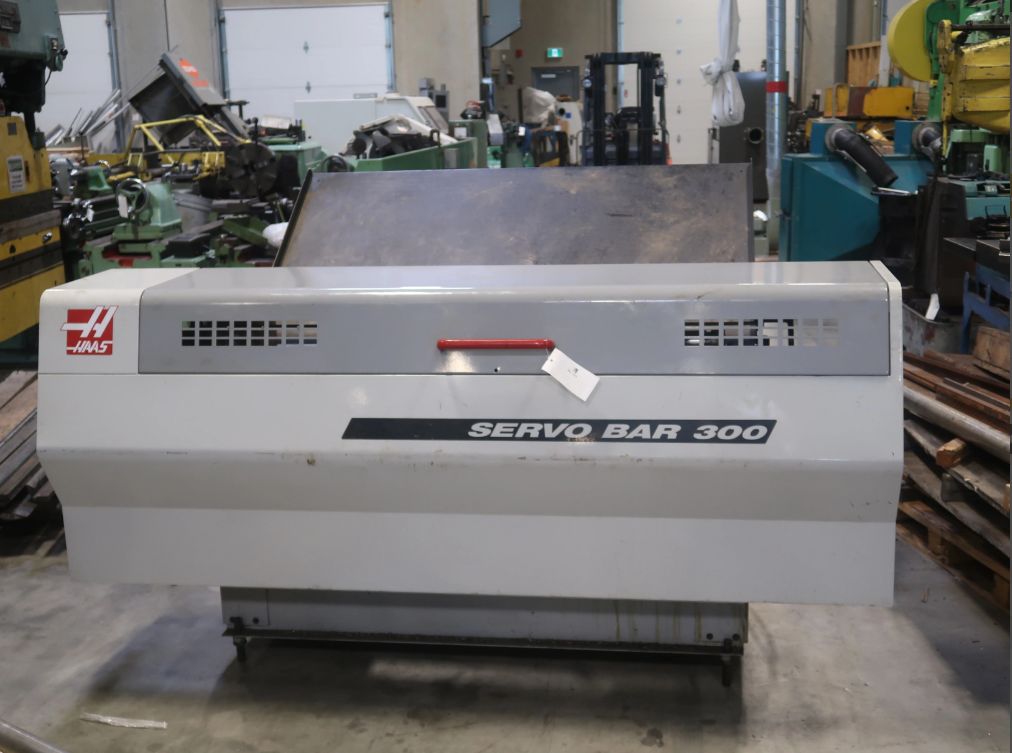

HAAS Servo Bar 300
Capacity: 3/8\" to 31/8\" dia. and up to 60\" length
Pushers: 3/8\" and 3/4\"
Tray Capacity: 1\" Dia. Bars x 30 pieces
