FSG-3A818Table Size8" x 18"
Max. Grinding Length18"
Max. Grinding Width8"
Max. Distance from Table Surface to Spindle Centerline17"
Standard Magnetic Chuck Size7 7/8" x 17 3/4" Travel,
Hydraulic19 3/4"Max. Travel,
Manual21"Table
Speed, Variable16~82fpm
Crosswise Rapid Travel, Approx.48imp
Crosswise Auto Increment0.02~0.24"
Crosswise Max. Auto Travel 9"
Crosswise Max. Manual Travel9 1/2"
Spindle Drive Speed60Hz/3,450rpm, 50Hz/2,850rpm
Spindle Drive Power Rating 2HP
Hydraulic Drive Power Rating1HP
Crossfeed Drive Power Rating0.05HP
Elevating Drive Power Rating0.25HP
Grinding Wheel Diameter8"
Grinding Wheel Width1/2"
Grinding Wheel Bore1 1/4"
Floor Space86" x 62" x 76"
Net Weight 2907lbs.
Rated Power 5HP
Packaging Dimensions73" x 61" x 87"

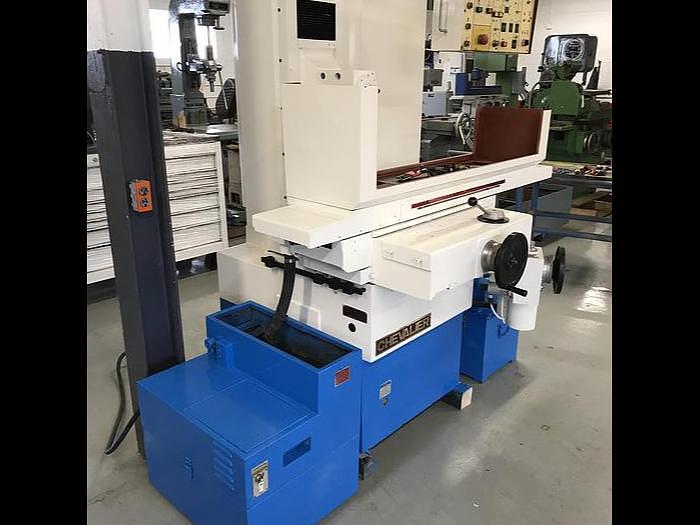

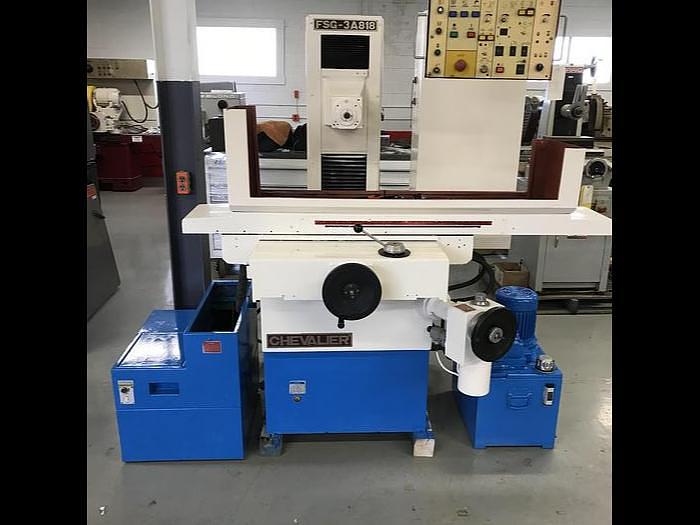

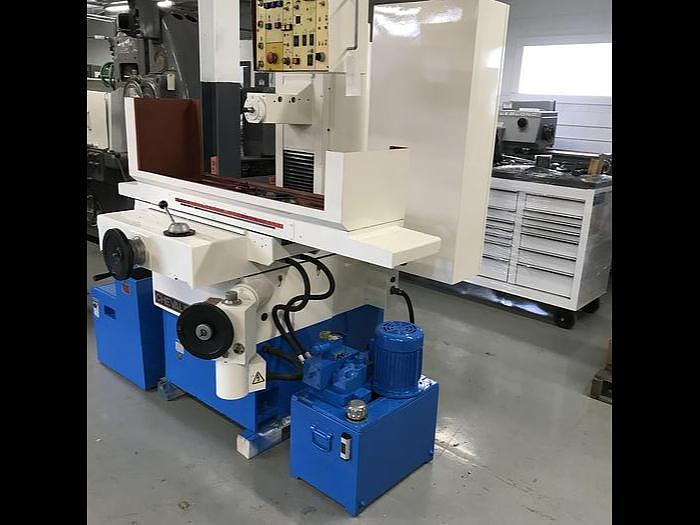

Stock Number 1854To view more information on the 2002 CHEVALIER SURFACE GRINDER FSG -3A 818, including reviews, brand information, photos, videos, and more,
