2001 TOSHIBA TUE-15 VERTICAL TURRET LATHE, MACHINE # 7411

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


TUE-15
Vertical Turret Lathes VTL
CNC Vertical Turret Lathes
used
38000 (LB)
2001
$0.00

Description

Reference #:7411
Machine Type:Vertical Lathes
Year:2001
Manufacturer:Toshiba
Model:TUE-15
Control:Fanuc 18TC
Condition:Good
Under Power:Yes
Code:B6200

Capacity:

  • Table Diameter: 59"
  • Maximum Swing: 70"
  • Maximum Height Under Rail: 59"
  • Maximum Weight Capacity: 17,600 LBS.
  • Ran Size: 9.8" x 8.7"
  • Rapid Traverse: 393 IPM

Spindle:

  • Speeds: 2-250 RPM
  • Motor: 30/40 HP

Travels:

  • Ram Vertical Travel: 35.43"
  • Ram Horizontal Travel: 47.24"
  • Cross Rail Travel: 35.43"

General:

  • Dimensions (L-R x F-B x H): 157" x 134" x 195"
  • Weight: 38,000 LBS

ATC:

  • Tool Magazine Capacity: 12 Tools
  • Max. Tool Weight: 110 Lbs
  • Tool Taper: 59 Taper

Table:

  • Number of Table Speed Ranges: 2
  • Table Speed For Turning: 8 to 250 RPM (inf Var)
  • Max. Height from Table to Ram Bottom: 67"

Electrics:

  • Volts: 200/220/3/60
  • Power Consuption: 150 kVA

Equipped With:

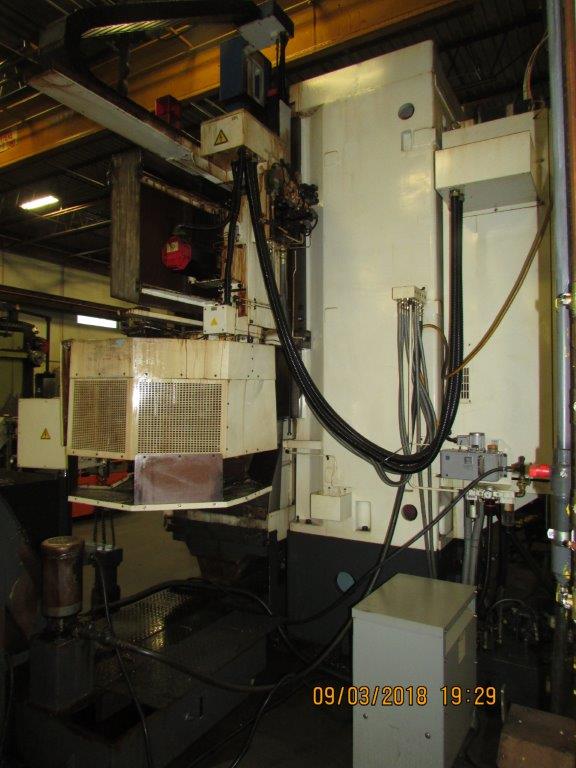

  • Ram with 12 Position Automatic Tool Changer

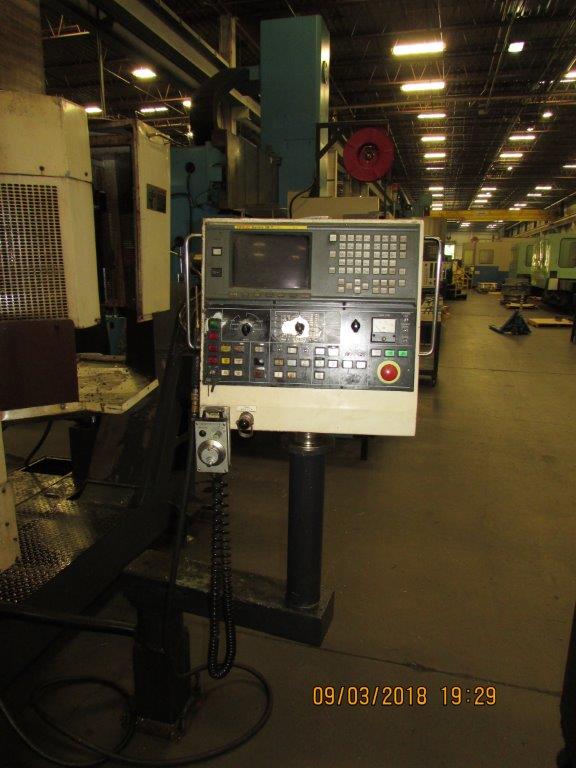

  • Fanuc 18T Control wit Manual Pulse Generator

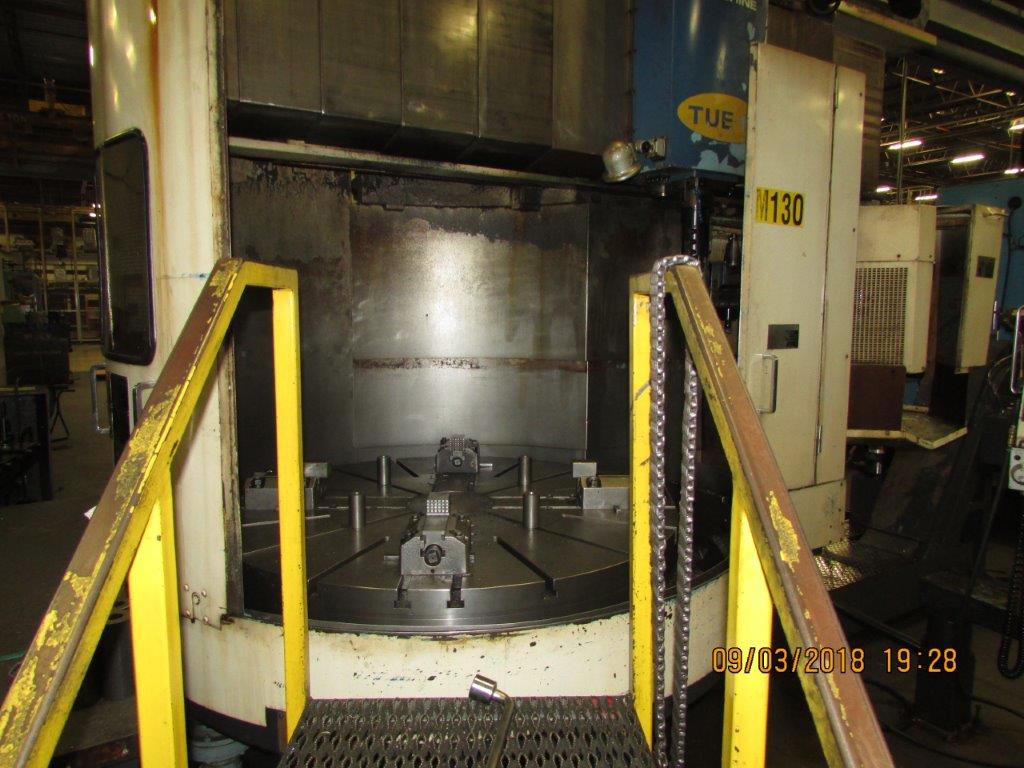

  • 59" 4-Jaw Chuck
  • Some 50 Taper Toshiba Style Holders
  • Transformer for 480 volts to 220 volts
  • Chip Conveyor with Coolant Tank
  • All Available Manuals

Comments:

  • Good Condition
  • Under Power and can be demonstrated
  • Buyer to dismantle machine ready for shipping
