Reference #: 8382
Machine Type: CNC Lathes
Year: 2001
Manufacturer: Okuma

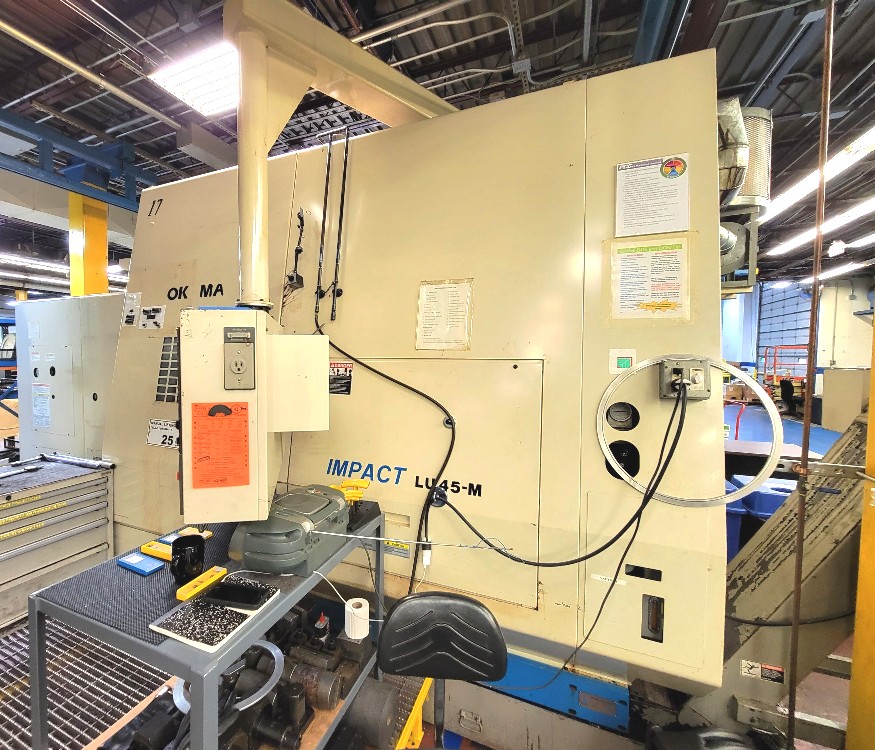

Model: LU45M
Control: Okuma U100L
Condition: Very Good
Under Power: Yes
Code: L2155
Specificatoins:
Swing over bed: 33"
Max. turning diameter (XA/XB): 23"/18"
Center distance: 1250mm / 49.21"
Travels, Z axis: 1250mm / 49.21"
X-axis Travel: 26"

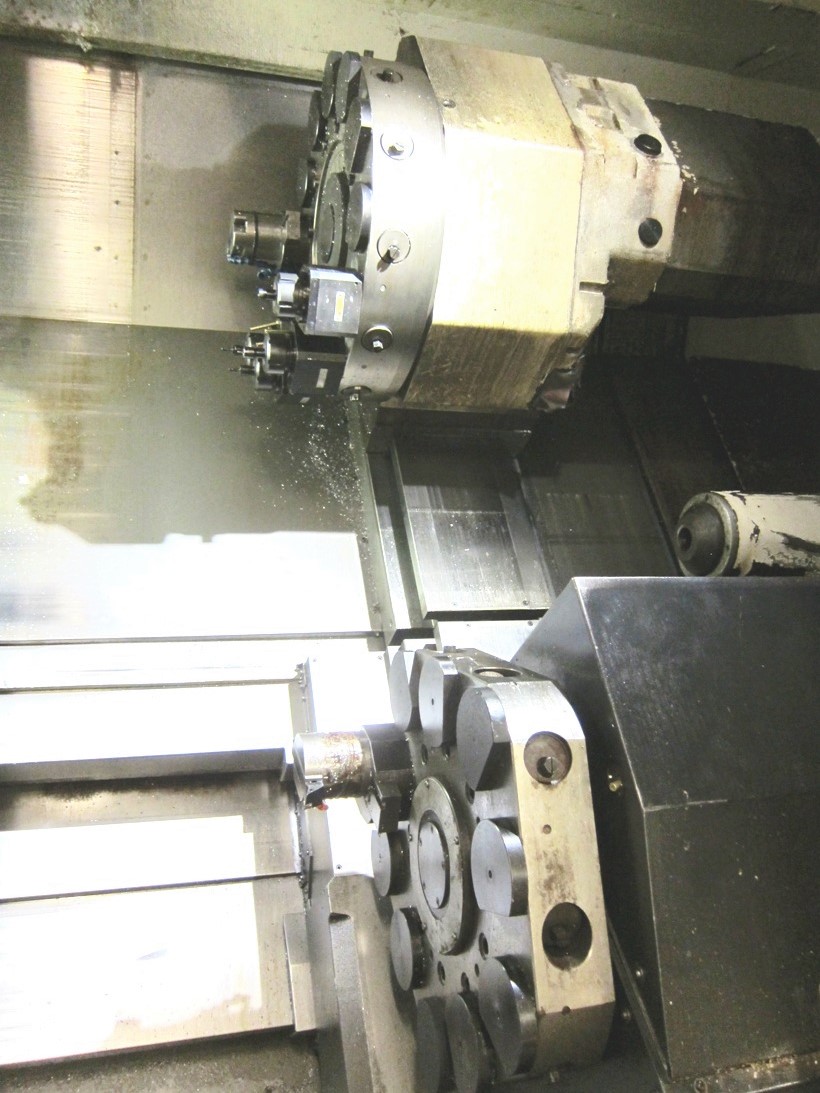

Turret stations (Upper / Lower): 10 / 8 Live Mill/
Turret stations (Upper / Lower): 10 / 8 Live Mill-Drill
Spindle nose: A2-11
Spindle speed: 31-900 rpm
Rapids (Z / X): 393 / 196 IPM
Feed rates: 0.00001---39.37 IPM

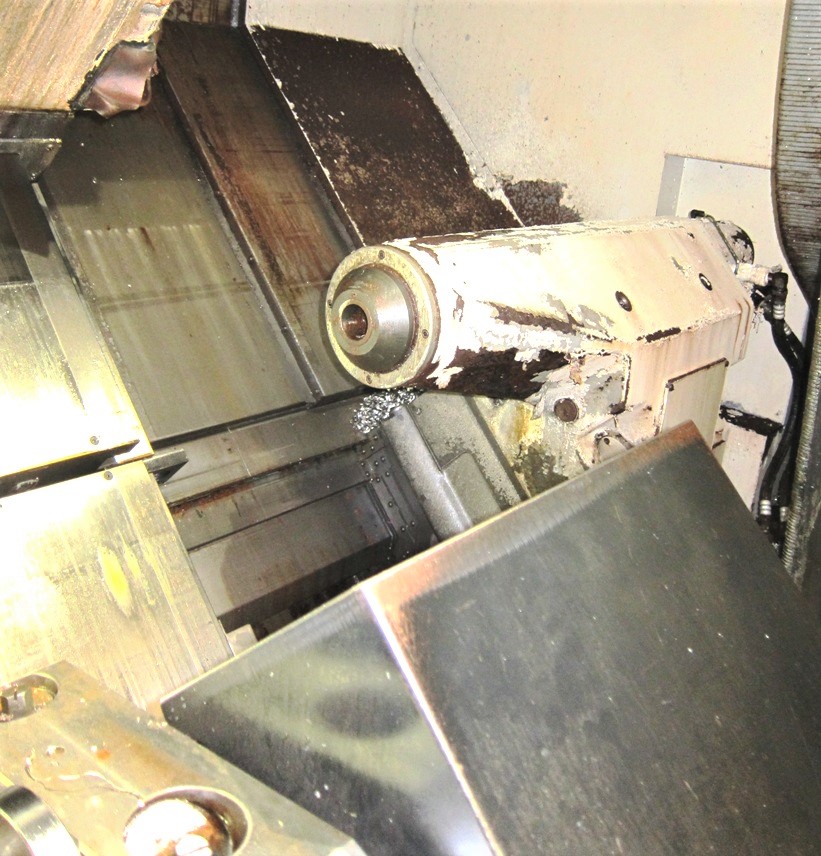

Quill diameter: 5.12" MT No. 5
Main motor (Continuous / 30 Min): 50 / 60 HP
Electrics: 220/480/3/60

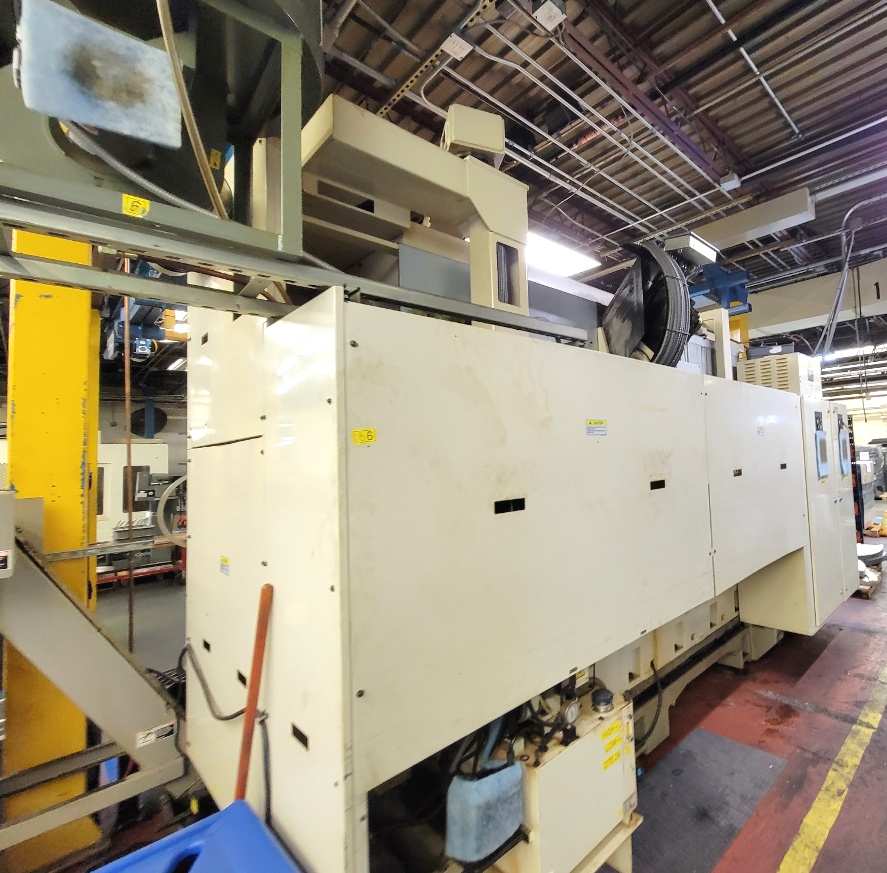

Dimensions (Floor Space): 294"x 89" x 82" H
Equipped With:

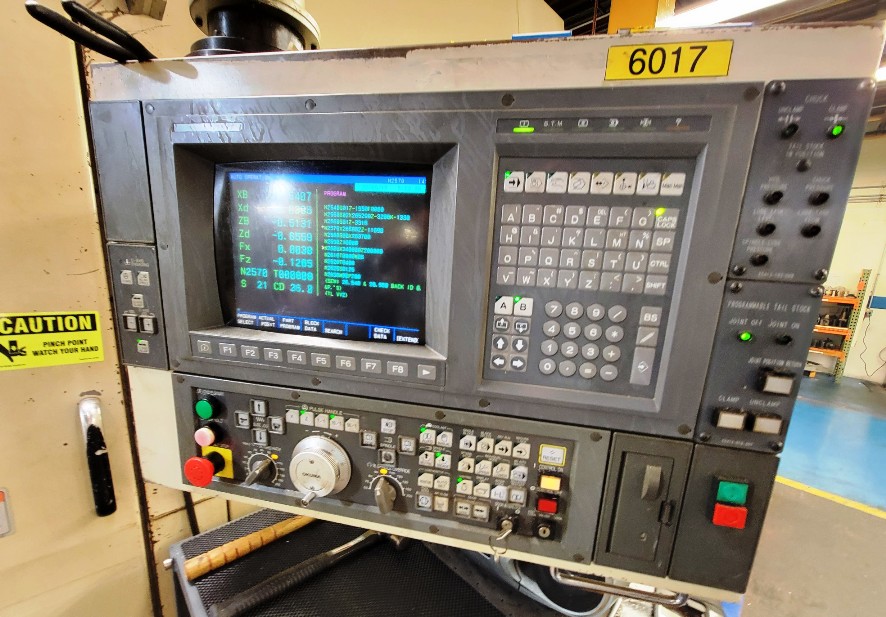

Okuma OSP-U100L Color Graphics with IGF Conversational Programing

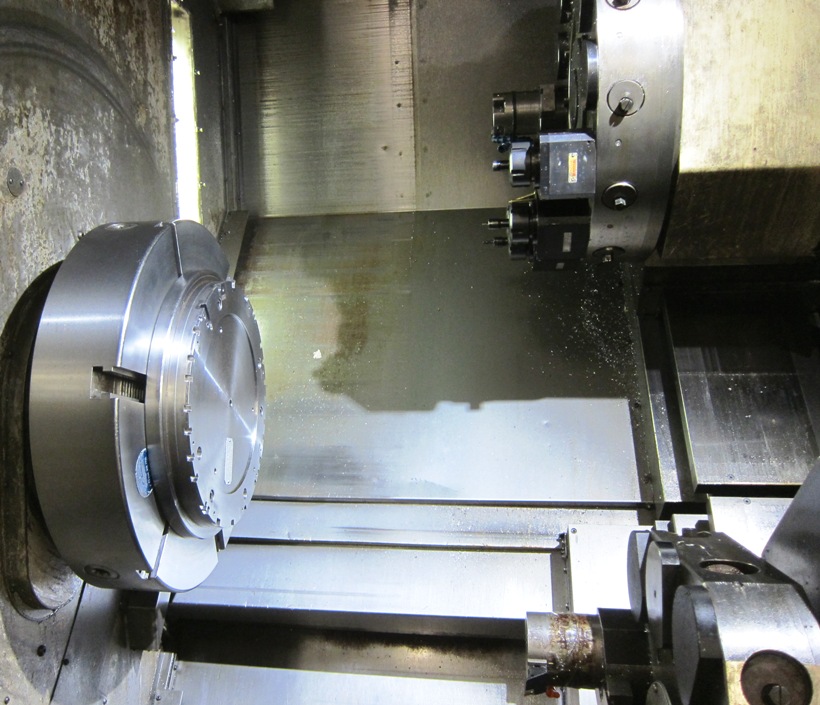

27" Rohm 3-Jaw Power Chuck All Jaws & Tool Holder Included
Conventional 2- 4-Axis programming steps and language
OSP makes the conversions for the lower turret
Machining is executed in the order of "P-codes" (P1--Pn )
Comments:
Machine is in Very Good Condition Holding Tight Tolerance Aerospace Components
No Cast Irion!
