2001 HYUNDAI HIT-15S, MACHINE # 7466

Add to Your File

Brand: 2001 HYUNDAI HIT-15S, MACHINE # 7466

Model: HIT-15S

Serial No. : L2150

Category: Lathes and Turning Centers CNC

Sub Category: Universal

Condition: used

Weight: (KG)

Year Built: 2001

Status:

Price: $0.00

Description

Capacity:

Chuck Size: 8\"
Swing Over Bed Ways: 17.32\"
Max. Turning Diameter: 10\"
Max. Turning Length: 19.69\"

Spindle:

Speeds: 45 - 3600 RPM
Bore: 2.44\"
Bar Capacity: 2\"
Nose: A2-6
Main Motor: 20 HP

Turret:

Number of Positions: Eight (8)
X-Axis Travel: 7.1\"
Z-Axis Travel: 20.1\"

Tailstock:

Stroke of Body: 18.110\"
Stroke of Quill: 5.120\"
Quil Diameter: 3.150\"
Quill Taper: MT4

Rapids:

Rapid Traverse (X & Z ): 1181 IPM

Dimensions:

Floor Space (L x W x H): 101\" x 60\" x 72\"
Weight (approx.): 9261 Lbs

Equipped With:

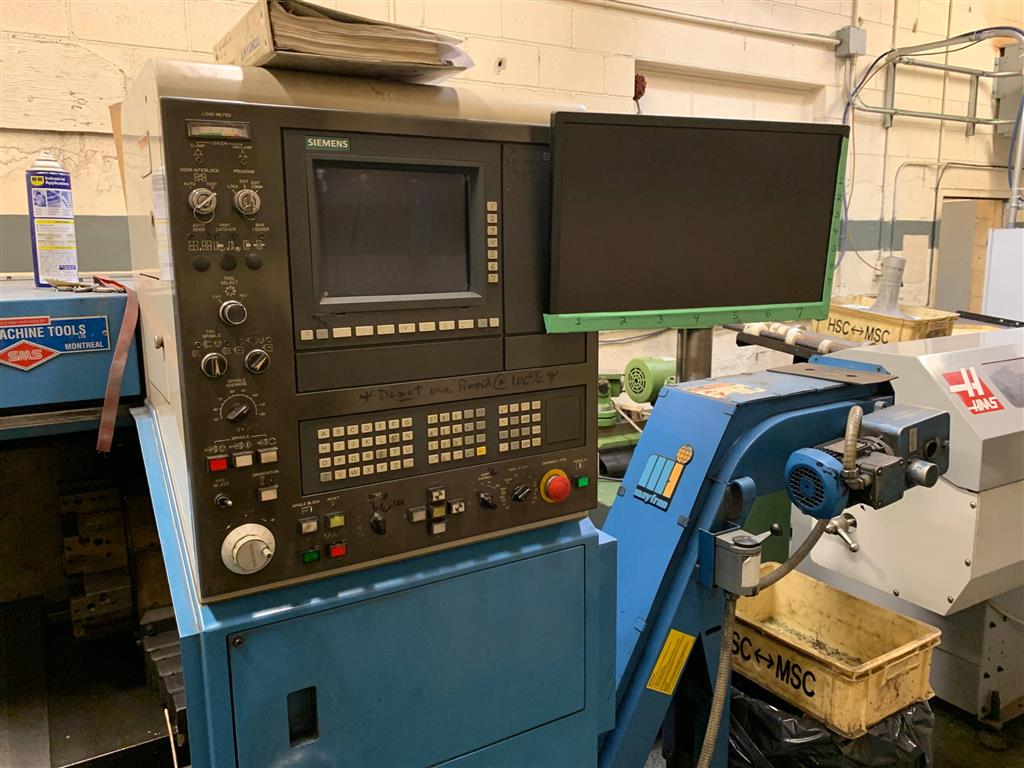

Siemens Control
14\" Color CRT
Automatic Tool Setting System
Tool Life Management
Spindle Orientation
Standard Work Light
Complete Coolant System
Chip & Coolant Splash Guarding
Programmable Tailstock Body & Quill with Live Center
8\" Diameter Hydraulic Thru-Hole Chuck
Hydraulic Unit

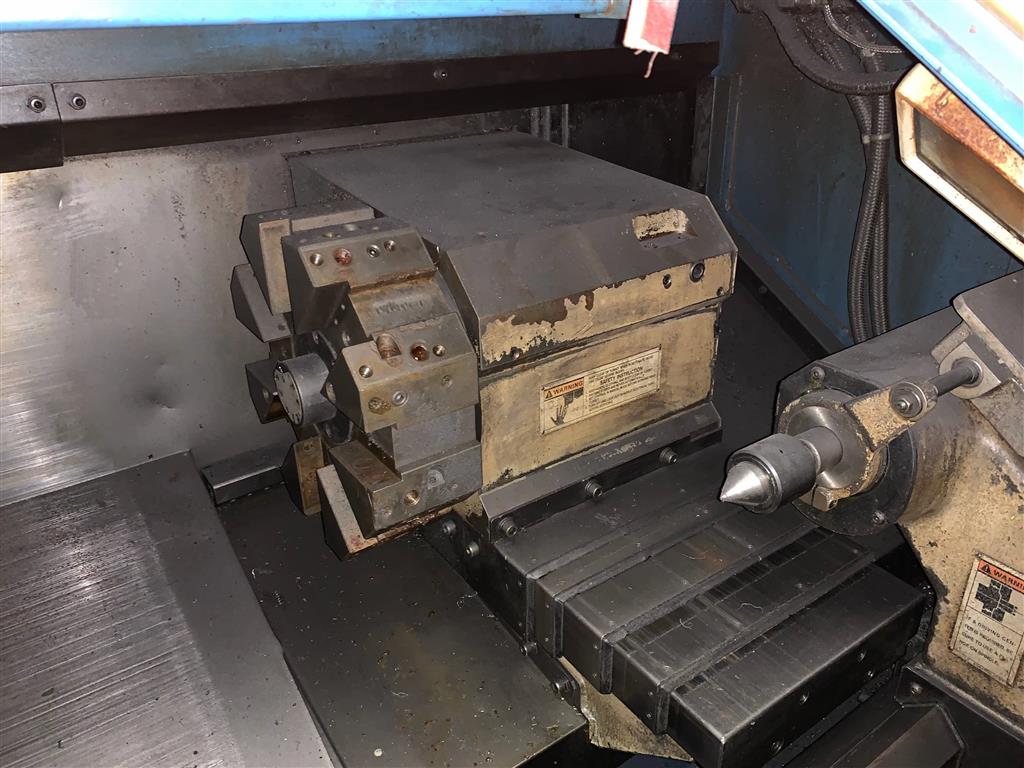

8 Position Drum Turret
Lubrication System
Chuck Foot Switch
Front Door Interlock
Machine Arranged for 220V+5% Volt Operation
Assorted Manuals
Assorted Tool Holders

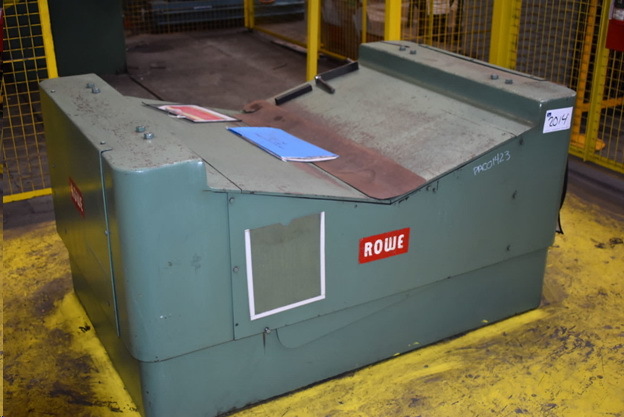

Side Discharge Chip Conveyor
45 kVA Isolation Transformer 600 V Primary - 120/208 Sec. 3 PH MT45A1
