2000 WATT AMADA ENSIS-3015AJ FIBER LASER,MFG:2016 INSTALLED:2017 OUR STOCK NUMBER: 11771

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


ENSIS-3015AJ
Lasers
Fiber Laser
used
(LB)
2017
$0.00

Description

Specifications
Motion Package:
Travel method: Stationary table X,Y and Z axis movement for cutting head
Control method: X,Y and Z simultaneous 3-Axis control
Drive motors: Fanuc AC Servo motors
Maximum sheet size (X,Y): 120" x 60"
Maximum axis travel (X,Y,Z): 121" x 61" x 3.93"
Maximum positioning speed (X,Y)
Per axis: 4,724 inches per minute
45 degree vector: 6,693 inches per minute
Maximum speed Z-axis: 4,724 inches per minute
Repeatability: +/- 0.0002"
Maximum material weight: 2,000 lbs.
Maximum material thickness
Mild steel: 0.875"
Stainless steel: 0.375"
Aluminum: 0.312"
Assist gas: 4 ports with NC Pressure control
Electrical requirements: 200V, 3 Phase, 60 Hz

Fiber Laser resonator (Engine):
Model: AJ2000 with ENSIS Technology
Resonator style: LD Excited Yb fiber
CW output power: 2 KW
Peak pulse output power: 2 KW
Power stability: +/- 2%
Laser wave length: 1.08 microns
Laser power model selection: CW, gated pulse (CNC Controlled)
Laser beam model output: Multimode mode
Beam divergence: < 3mm-mrad
Pulse frequency: 1-10000Hz
Pulse duty: 0-100%
chiller water requirements: > or = 41 L/min
Interlocks: Electrical, mechanical, and chiller
Electrical requirements: 200V, 3-phase, 60 Hz, 12kVA max.
Electrical power consumption: 9KW


Equipped with:

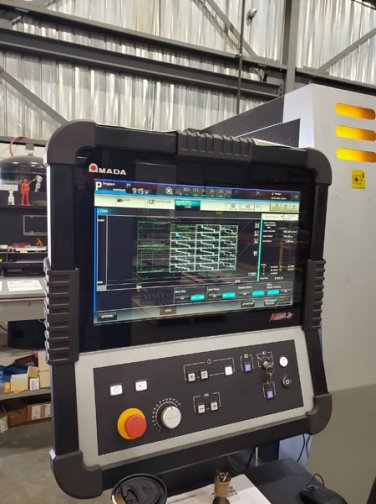

AMNC 3i control
Interlock enclosure
NC Assist gas
B-Axis NC focus
Integrated beam purge
150 mm lens, 190 mm lens
High speed cutting head
Active cut
Clean cut
Chiller

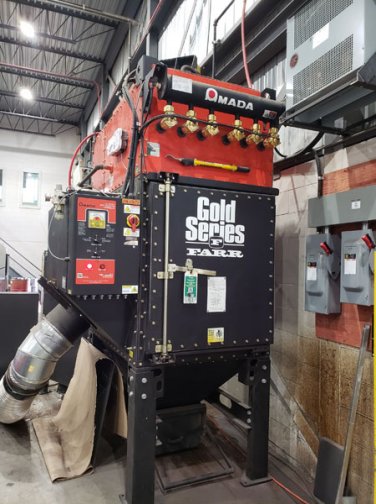

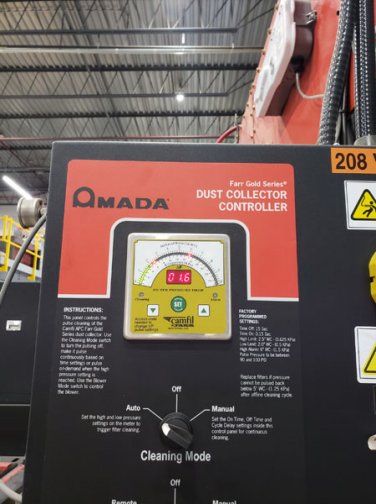

Dust Collector
